In Win Case 303i Asus Edition Black

In Win Case 303i Asus Edition Black

Prekės kodas: 544633

328,39 / vnt.
328,39 / vnt.
Gaukite į namus už 5,99 €*. Pristatysime sausio 3 d.
* Pristatymo kaina apskaičiuota įvertinus aptarnavimo mokestį ir prekės svorį: 10.96 kg
Atsiimkite nemokamai. Paruošime sausio 2 d.
Atsiėmimas paštomate negalimas
Prekės informacija

Bendrosios charakteristikos

Prekės tipas Korpusai
Prekės ženklas In Win
Korpuso dydis
Nurodo standartinį pagrindinės plokštės form-factor dydi.
Mid tower (ATX)
Medžiaga Grūdintas stiklas, Plienas
Spalva Juoda
Integruotas maitinimo blokas (PSU) Ne

Išplėtimo galimybės

3.5 colio skyrių skaičius
Drive Bays - tai vieta techninei įrangai įdėti į kompiuterio korpusą. Šiandien dažniausiai naudojami keturių Form Factor tipų Drive bays (dydžiai) - 5,25 ", 3.5", 2.5" ir 1.8".
2

Priekinio skydelio jungtys

Jungtys
Nurodomos išorinės jungtys esančios priekinėje korpuso pusėje.
Audio-in, USB 3.0, USB 3.1 type C

Matmenys ir svoris

Svoris 10.96 kg

Papildomai

Garantija 24 mėn
Papildoma informacija Suderinamumas: ATX, Micro-ATX, Mini-ITX. Diskų skyriai: 2x 2.5". Išplėtimo lizdai: 7
Prekės aprašymas anglų kalba:

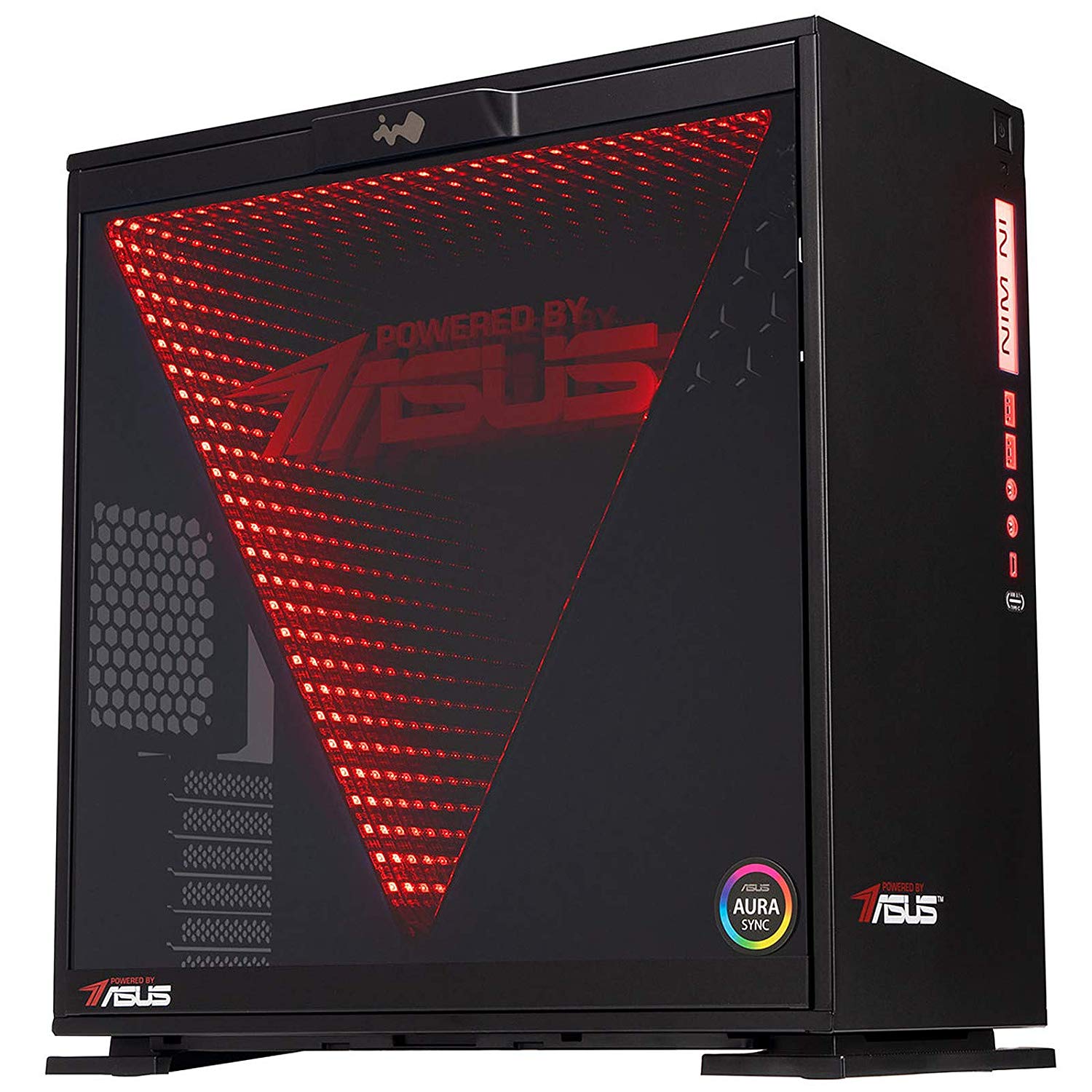

With the IN WIN 303 , the case specialist once again presents a fabulously thought-out and stylish midi tower that leaves one speechless. Made from the highest quality steel and equipped with a huge tinted tempered glass side window, the 303 is especially designed for stylish gaming systems up to ATX form factor. The presentation of assembled hardware succeeds in such a housing particularly well, because the noble chassis is "IN WIN" typical very high quality and allows a largely individual arrangement of the hardware. In this version, the tempered glass side panel is a giant triangle with RGB LED strips on all three sideslighting the ASUS logo in the window. A back-mounted mirror creates a visually impressive infinity effect.
The IN WIN 303 ASUS Edition at a glance:
  • Elegant design with clear lines
  • Side windows made of tinted tempered glass with a huge illuminated ASUS logo
  • Illuminated I / O panel & IN WIN logo
  • Excellent workmanship & quality materials
  • Vertical attachment of the top fans or the radiator
  • Space for motherboards with ATX, Micro ATX or Mini ITX form factor
  • I / O panel with 1x USB 3.1 type C, 2x USB 3.0 and HD audio ports
  • Sufficient space for a strong air or water cooling
  • 2x 3.5 "& 2x 2.5" drive slots available

Timelessly elegant design with huge tempered glass side window The IN WIN 303 ASUS Edition combines modern look with a noble-looking aesthetics. It was mainly made of high-quality, 1.2 mm thick steel and impresses above all by its huge side window made of tinted tempered glass . A triangular mirror illuminated with a total of six RGB LED strips is attached to the window. If the LEDs light, a visually impressive infinity effect is created and illuminates the ASUS logo printed on the toughened glass.

The 3 mm thick side window is attached to the top edge with a snap-on handle and can be opened completely without tools. Clear advantage! The clean front of the black case is made exclusively by the stylish I / O panelUSB 3.1 Type-C slot and the "IN WIN" logo interrupted. Special feature here is the illumination of the logo that corresponds to the color of the illumination of the side panel. The individual ports are also illuminated, which benefits the optics as well as the visibility and, above all, looks cool in the dark.

Of course, the black interior also has some surprises in store. For example, the power adapter is installed at the top of the case and is located behind a honeycomb-look air-permeable cover. As a result, the motherboard is mounted underneath and allows a trouble-free presentation of the installed hardware. A handy support for graphics cards is also part of the delivery, because high-speed pixel accelerators can bring some weight today. In general, the interior space for ATX, Micro ATX, and mini-ITX motherboards, CPU cooler to 160 mm height, graphics cards up to 350 mm in length and power supplies up to 200 mm in length . Cooling options and hard disk spaces The cooling concept in the IN WIN 303 ASUS Edition is anything but standard. The theory is that fresh and cool air is sucked in from the lower, dust filter protected side and blown out at the top or back, supported by the chimney effect. There are a maximum of three 120 mm fans or a 360 mm radiator on the floor . The back can accommodate a 120mm fan or a 120mm radiator.

The peculiarity of the cooling concept lies also in the cover of the power supply, because on the honeycomb structureA maximum of three 120 mm fans or one radiator up to 360 mm in size can be mounted vertically. The warm air should thus be carried past the power supply by the side wall of the housing (also with honeycomb structure) to the outside. The vertical orientation of the upper cooling components looks really fantastic due to the large side window. In order to give the user complete freedom in choosing his housing cooling, no fans are included.

Of course IN WIN has also provided enough hard disk slots. On the front of the motherboard tray are two mounts for two 2.5-inch hard drives, which can be optionally supplemented by a third bracket. In addition, there are two additional 3.5 "hard drive brackets on the back of the motherboard tray. A lack of hard disk slots is therefore impossible with the IN WIN 303.

Technical details:
  • Dimensions: 215 x 483 x 480 mm (W x H x D)
  • Weight: approx. 10,96 kg
  • Material: Steel (Chassis), Tempered Glass (Window)
  • Color: Black
  • Form factor: ATX, Micro-ATX, Mini-ITX
  • Fan (possible):
    3x 120 mm (lid, vertical)
    3x 120 mm (bottom)
    1x 120 mm (rear)
  • Radiator-Mountings (instead of the fans):
    1x max. 360 mm (lid, vertical)
    1x max. 360 mm (floor)
    1x max. 120 mm (back)
  • Filter: bottom (removable)
  • Drive bays:
    2x 3.5-inch slots
    2x 2.5-inch slots (3x possible)
  • Power supply: 1x standard ATX12V (optional)
  • Expansion Slots: 7
  • I / O Panel:
    1x USB 3.1 Type C
    2x USB 3.0
    1x HD Audio (In / Out)
  • Maximum graphics card length: 350 mm
  • Maximum CPU cooler height: 160 mm
  • Maximum power supply length: 200 mm
