Noctua Fan NF-A12x25 120mm ULN

Prekės kodas: 522248

31,94 / vnt.
Pratęsta pirkinio garantija
Nemokamas remontas arba keitimas nauja preke
Jokio papildomo streso sugedus įrenginiui
Tik vienas skambutis įvykiui registruoti

Pristatymas kurjeriu

Gaukite į namus nemokamai*. Pristatysime gegužės 18 d.

Gaukite į namus už 3,49 €*. Pristatysime gegužės 18 d.

* Pristatymo kaina apskaičiuota įvertinus aptarnavimo mokestį ir prekės svorį: 2.00 kg
** Galimas siuntų pristatymo vėlavimas dėl COVID-19.

Atsiėmimas parduotuvėje

Atsiimkite nemokamai. Paruošime gegužės 18 d.

Atsiėmimas paštomate

Gaukite į paštomatą už 1,99 €. Pristatysime gegužės 18 d.

Prekės informacija

Gaminio savybės

Bendrosios charakteristikos

Prekės tipas Oro aušintuvai
Prekės ženklas Noctua
Modelis NF-A12x25 120mm ULN
Paskirtis
Aušintuvai turi kelis pritaikymo būdus – procesoriui, vaizdo plokštei, korpusui ir kt.
Korpusui

Papildomai

Garantija 24 mėn

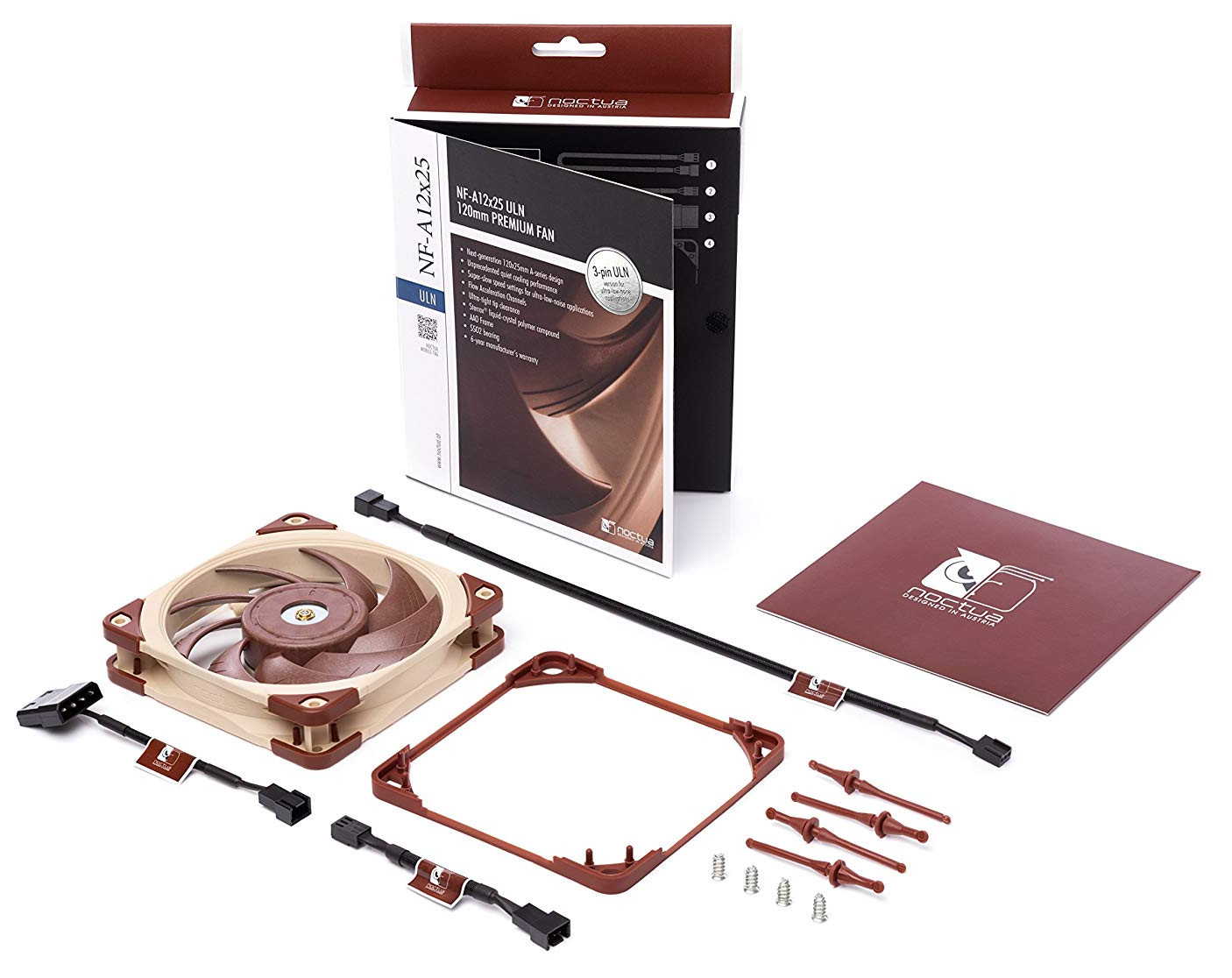

Papildoma informacija Matmenys: 120 x 120 x 25 mm. Pajungimas: 3-kontaktų. Guoliai: SSO2. Ventiliatorių dizainas: serija su srauto pagreičio kanalais. Frame technologija: AAO (Advanced Acoustic Optimization). Greitis: maks. 1200 ap/min. Maks. sukimosi greitis с L.N.A .: 900 ap/min . Maks. oro sąnaudos: 55.7 m³/val . Maks. oro sąnaudos с L.N.A .: 39.4 m³/val . Maks. triukšmo lygis: 12.1 dB (А) . Maks. triukšmo lygis с L.N.A .: 7.6 dB (А) . Maks. statinė įtampa с U.L.N.A .: 0.82 mm H2O . Maks. statinė įtampa с L.N.A .: 0.41 mm H2O . Maks. veikimo galia: 0.6 W. Maks. įeinanti srovė: 0.05 A. Veikimo įtampa: 12 V. Tarnavimo laikas: 150 000 val. Garantija: 6 metai. . . Komplektas: Ventiliatorius. Žemo triukšmo lygio adapteris (U.L.N.A.), 3: 4-kontaktų PSU adapteris, Laido prailgintojas 30 сm, Antivibraciniai antgaliai NA-AV3, antivibraciniai antspaudai vandens aušintuvams. ventiliatoriaus sraigtai.

Video medžiaga

Prekės aprašymas anglų kalba:
The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin ULN version provides super-slow 1200/900rpm speed settings for ultra-low-noise applications and highly noise-sensitive users who demand near-silent acoustics. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.



Details

Next-generation performance
Noctua’s 120mm fans such as the NF-F12 and NF-S12A are renowned as being among the best on the market and have received more than 400 awards and recommendations from the international press. With its further improved efficiency and novel, state-of-the-art engineering, the NF-A12x25 represents another step up in performance and manufacturing.

Highly optimised P/Q curve for all applications
The NF-A12x25’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.

Excellent on-application acoustics
While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A12x25 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.

Flow Acceleration Channels
The NF-A12x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Ultra-tight tip clearance
The NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.

Metal-reinforced motor hub
The centrepiece of the NF-A12x25’s motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area.

Sterrox liquid-crystal polymer compound
The NF-A12x25’s impeller is made from Noctua’s novel Sterrox liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.

AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Anti-vibration gasket for watercooling radiators
The NF-A12x25 includes a silicone gasket that can be used when installing the fan on watercooling radiators or other applications that benefit from a tighter seal with the fan. The gasket helps to damp minute vibrations and to reduce air loss between the fan and the radiator for optimal cooling performance.

SSO2 bearing
The NF-A12x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A12x25 sports a CNC milled bearing shell made entirely from brass.

2 speed settings for maximum quietness
Providing 1200 and 900 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.

Smooth Commutation Drive 2
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.

Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply.

Optional adaptor for 140mm watercooling radiators
Thanks to its superior efficiency, the NF-A12x25 can outperform many 140mm fans. Combined with the optional NA-FMA1 adaptor frame that allows it to be installed on 140mm radiators, the NF-A12x25 is a great upgrade for 140mm-based watercoolers.

6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A12x25 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.
