Адаптер Delock M.2 Key 67 pin M male, PCIe

Описание товара на английском языке:

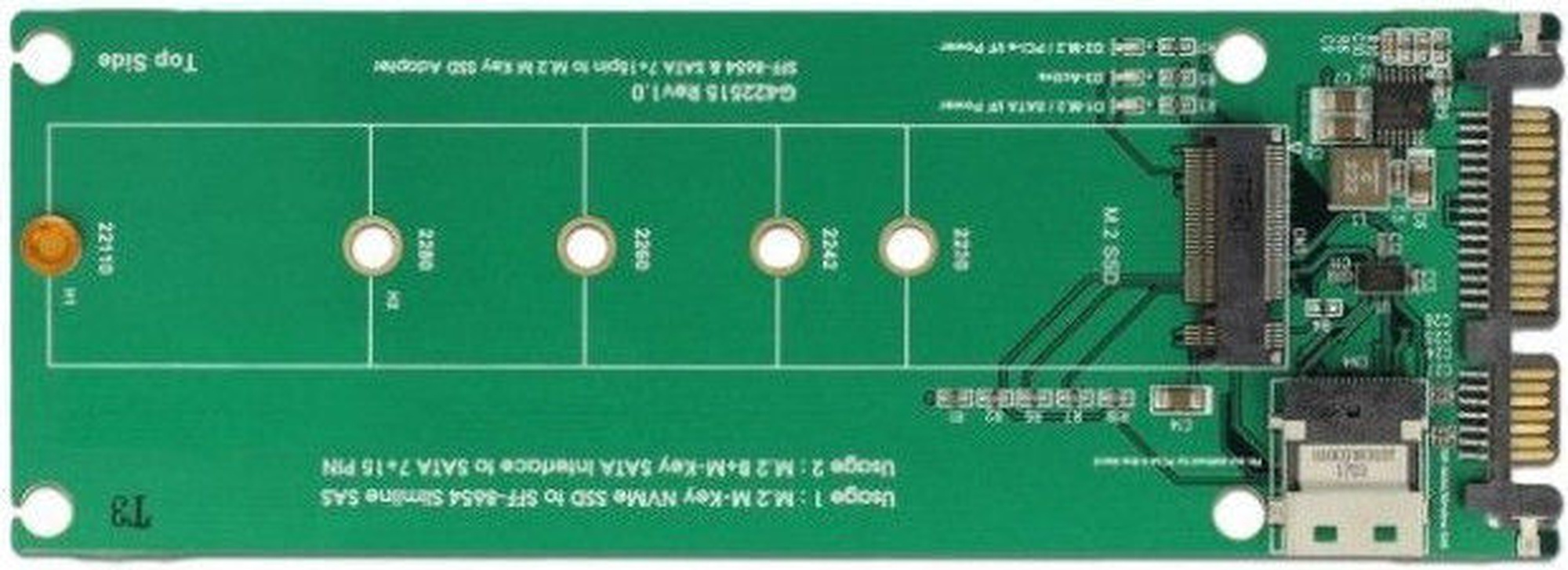

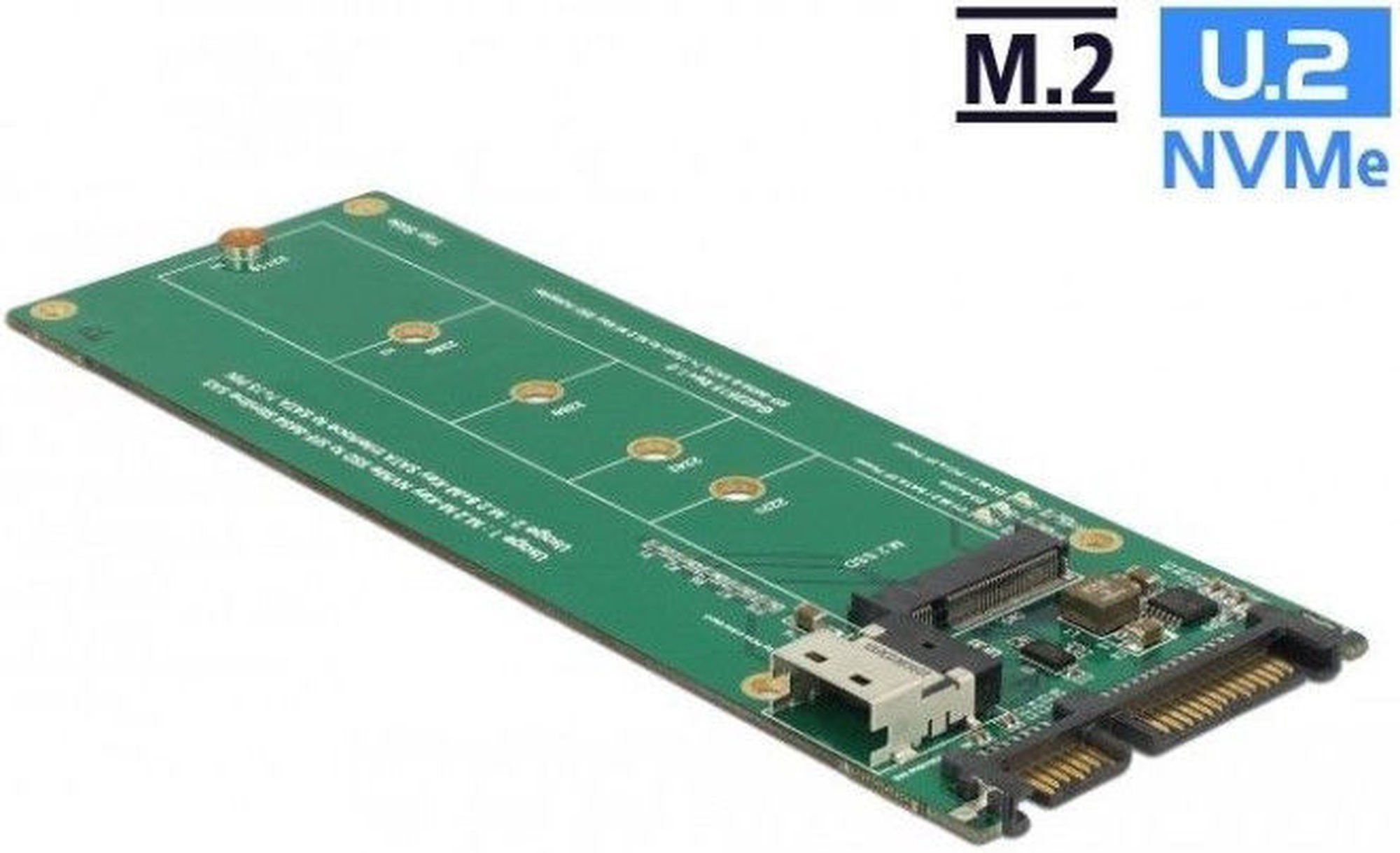

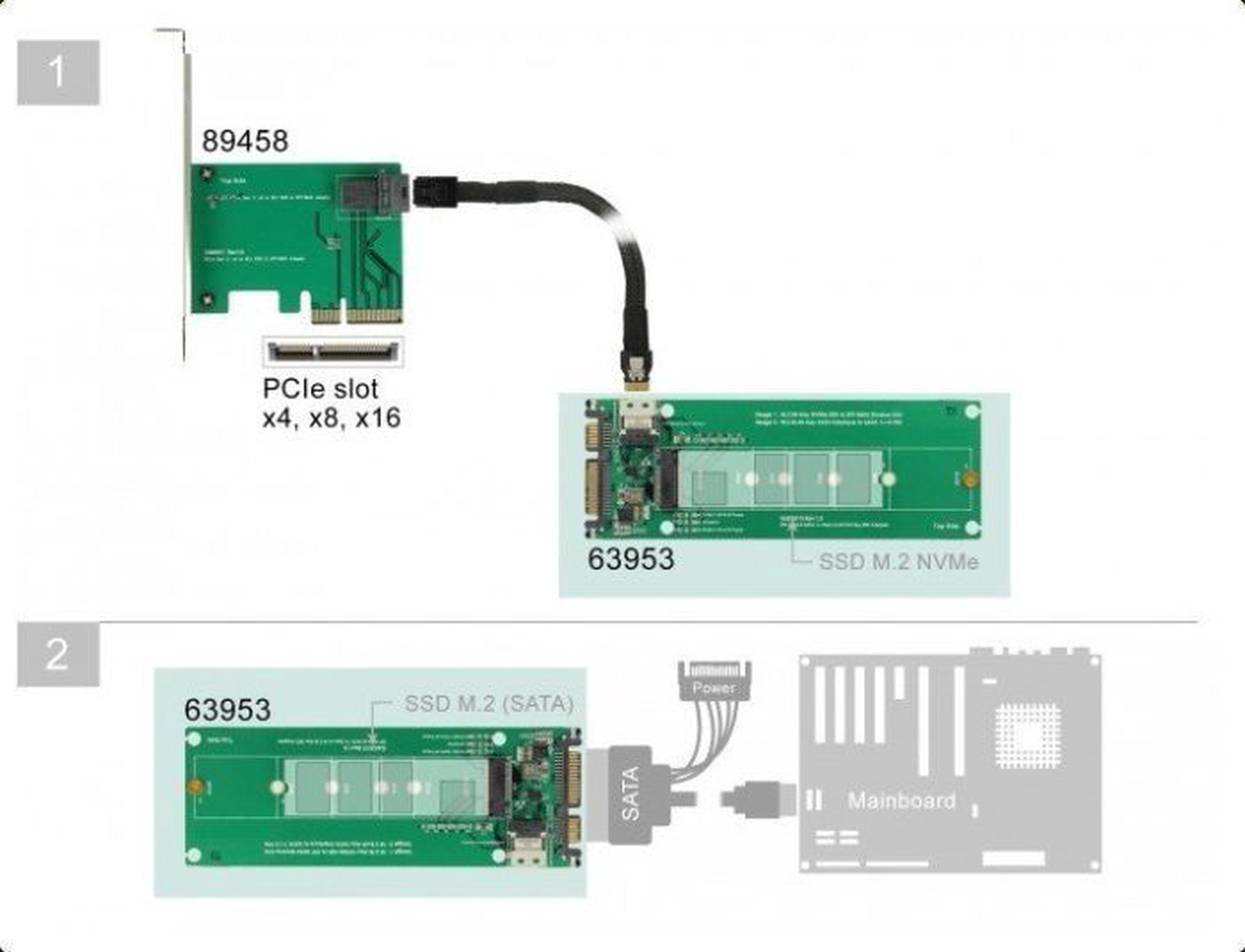

This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the possibility to connect a PCIe or SATA M.2 SSD. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the U.2 interface while using a PCIe M.2 SSD.

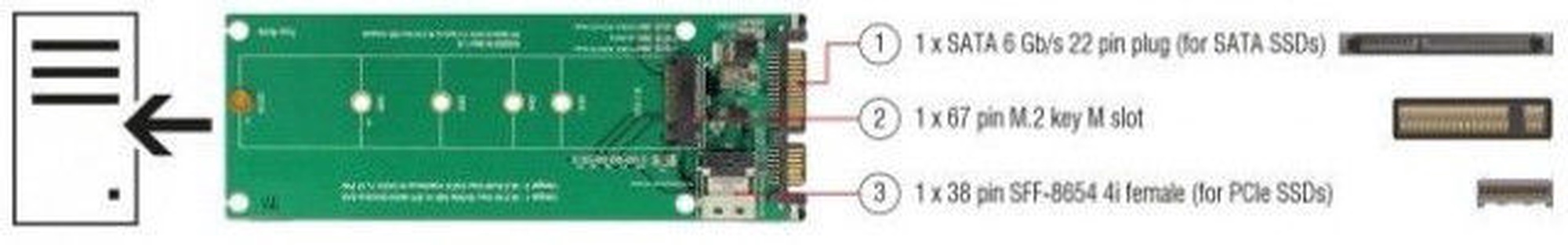

• Connectors:

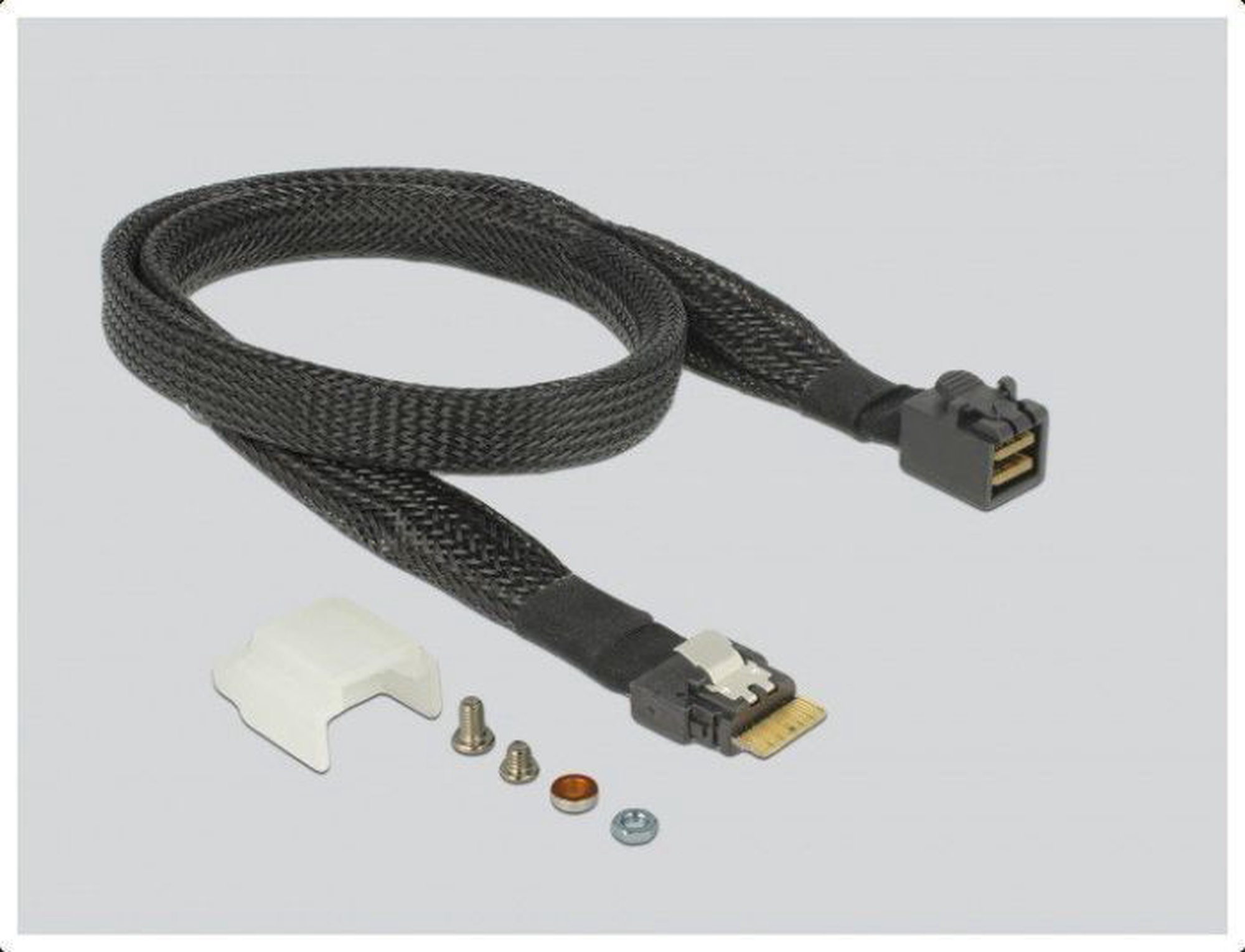

1 x 38 pin SFF-8654 4i female (for PCIe SSDs)
1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs)
1 x 67 pin M.2 key M slot
• Interface: PCIe / SATA
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 51 x 9 mm
