Антенна Delock 12417

Delock - antenna

This LTE antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.


Specification:
• Connector: 1 x SMA plug
• Frequency range:
700 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave,
LoRa 868 MHz / 915 MHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -30 °C ~ 70 °C
• Colour: black

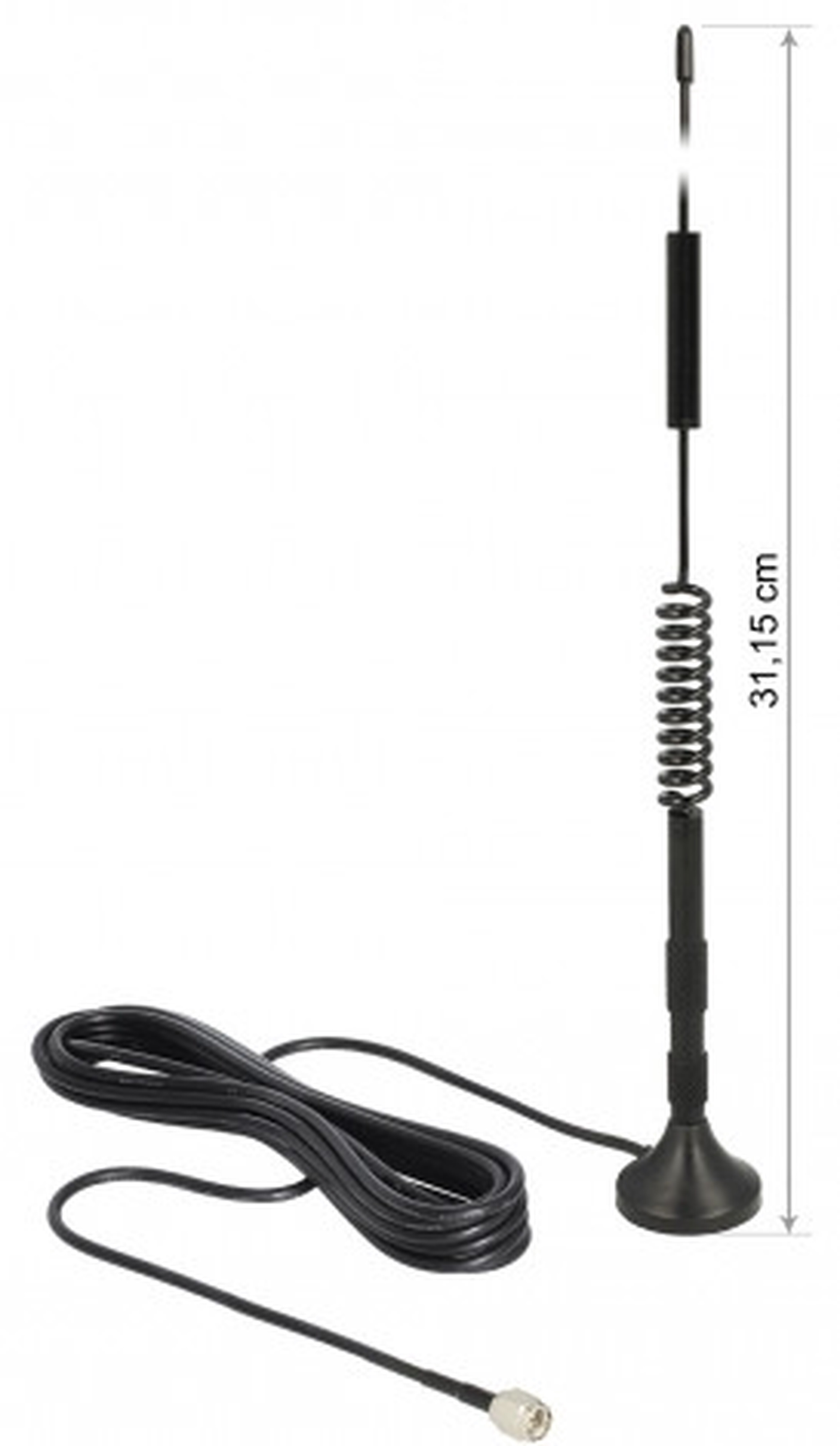

• Antenna length including magnetic base: ca. 311.5 mm
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Diameter magnetic base: ca. 29.0 mm


System requirements:
• Device with a free SMA jack


Package content
• Antenna
