HDD/SSD корпус Delock 42001 USB Type-C 20 Gbps, M.2

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.

SuperSpeed USB 20 Gbps
The enclosure allows a data transfer rate of 20 Gbps on the USB-C™ port.

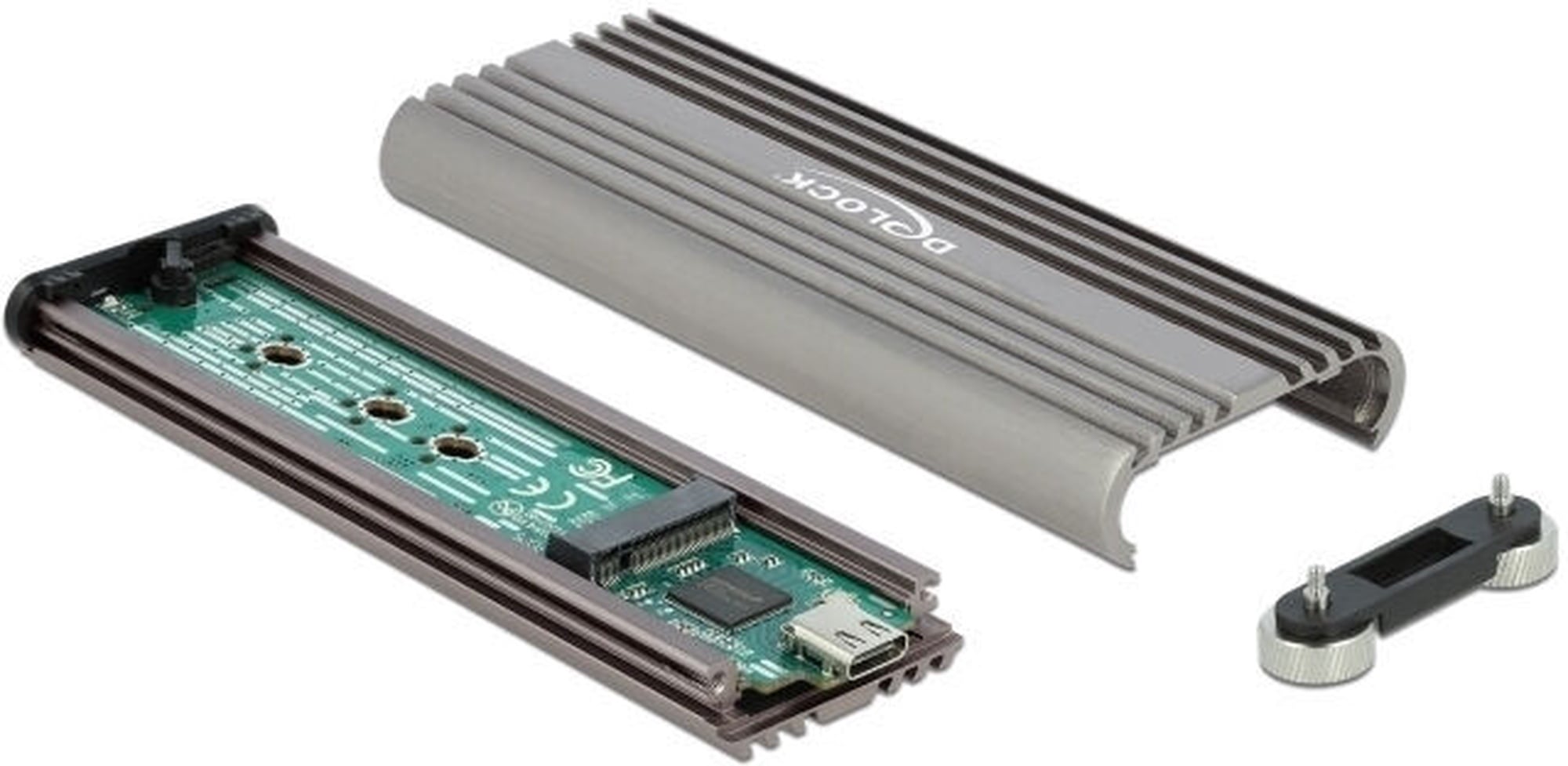

SSD installation without tools
The special feature of this enclosure is that no tools are required to install the M.2 SSD.

• Connectors:
external: 1 x SuperSpeed USB 20 Gbps (USB 3.2 Gen 2x2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot
• Chipset: Asmedia ASM2364
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 20 Gbps
• LED indicator for power and access

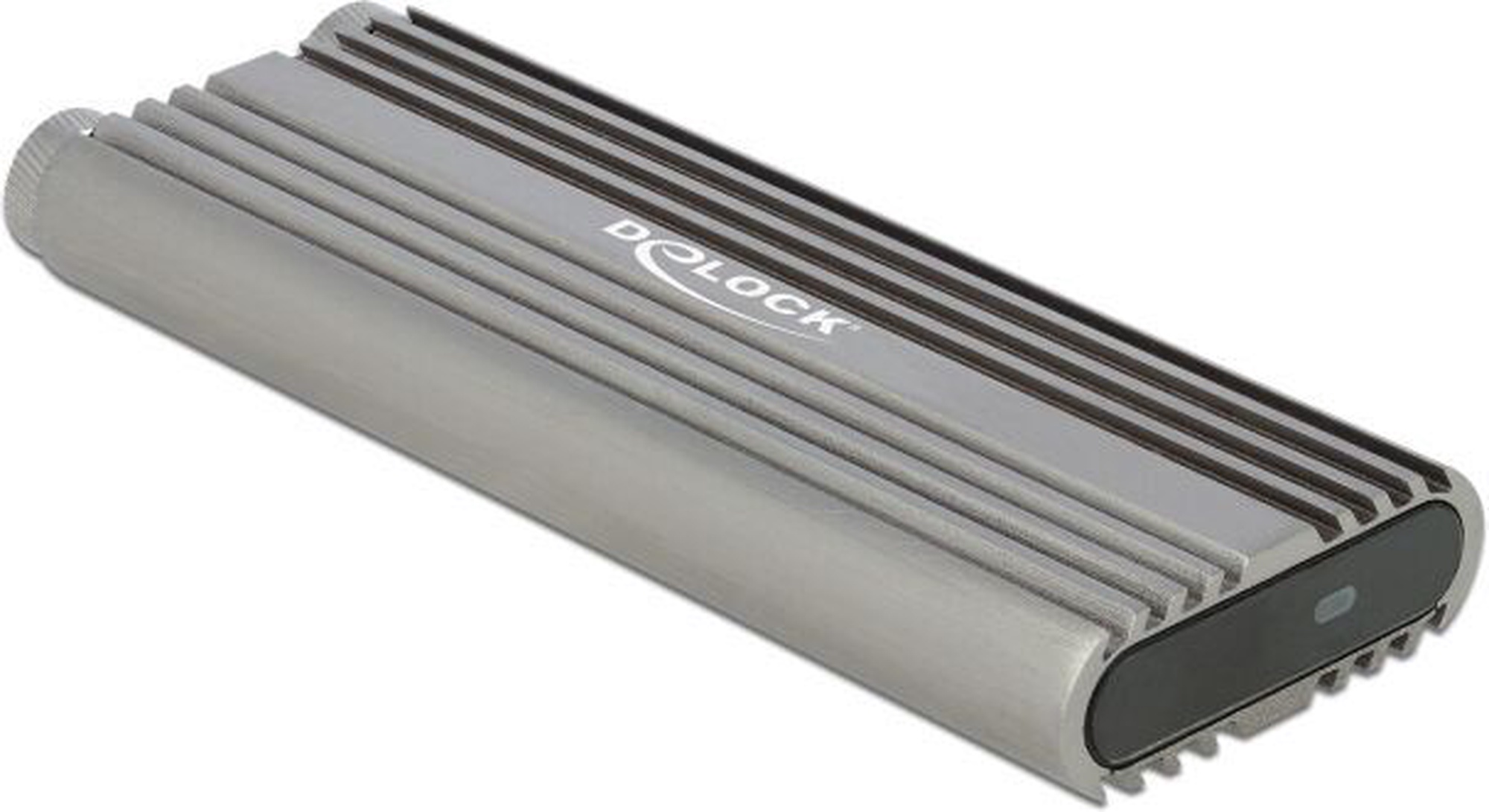

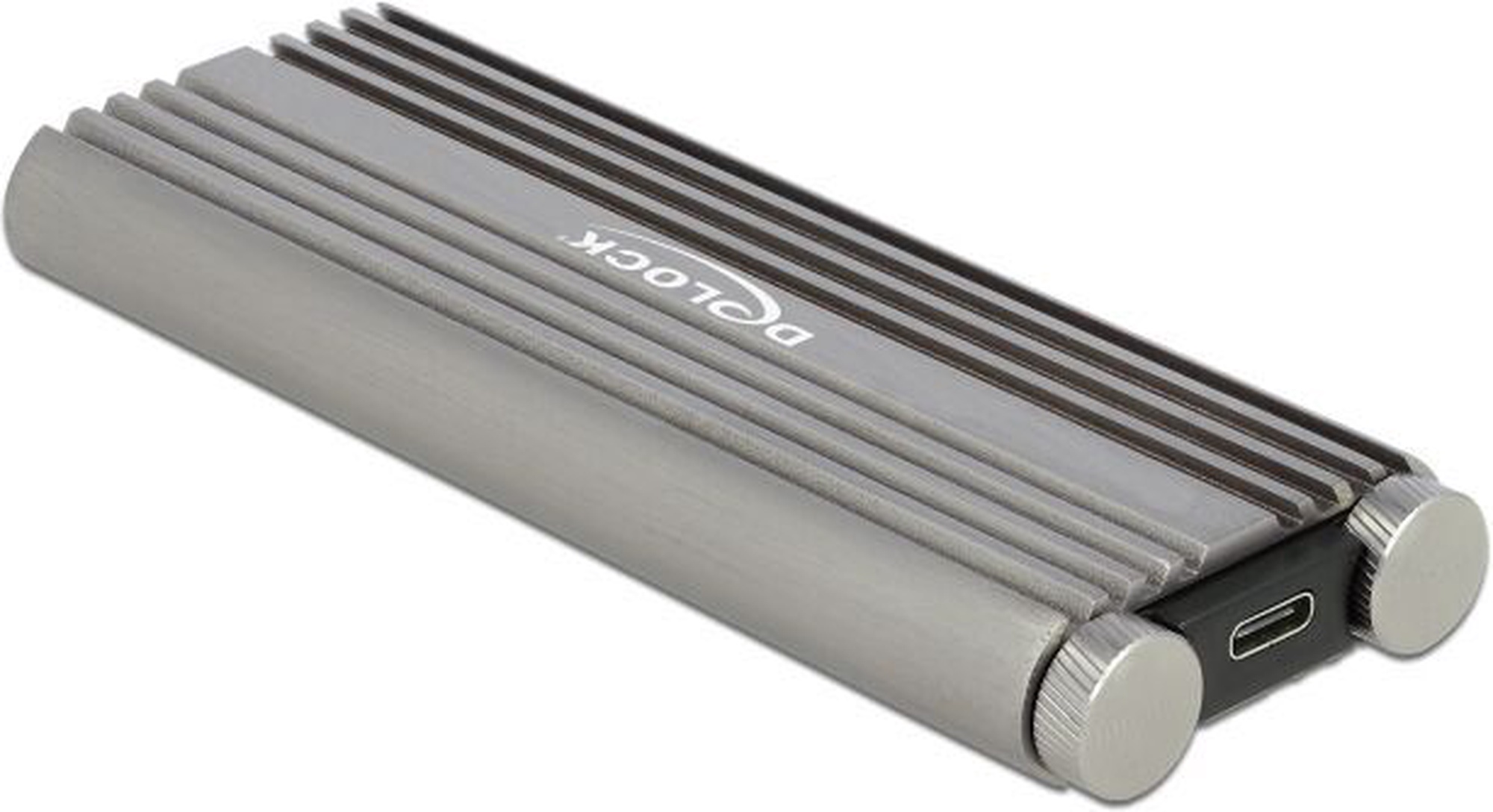

• Metal housing
• Dimensions (LxWxH): ca. 119 x 46 x 15 mm
• Hot Plug, Plug & Play

• Android 9.0 or above
• Chrome OS 78.0 or above
• Linux Kernel 3.18.37 or above
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port

• External enclosure M.2
• 1 x thermal conductive pad

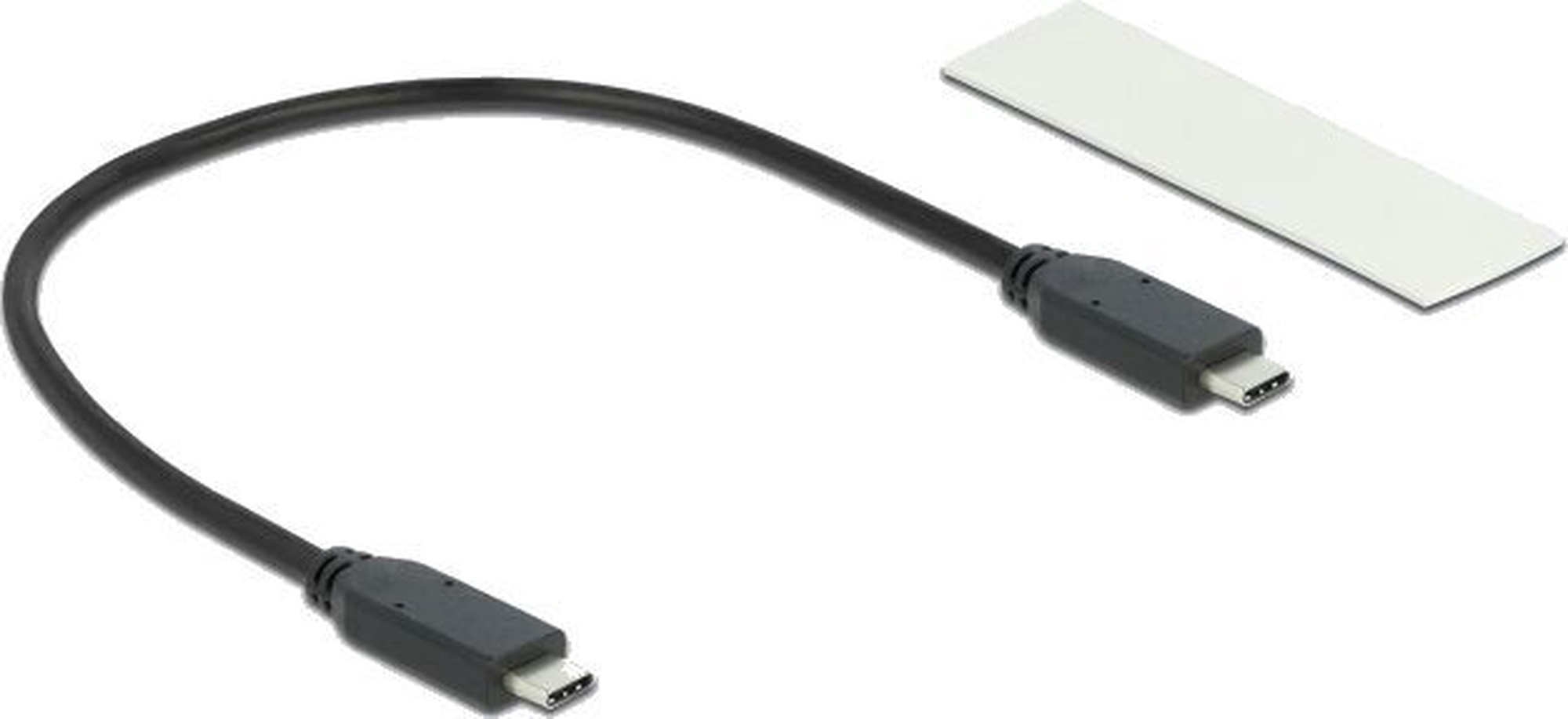

• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• User manual
