HDD/SSD корпус Delock

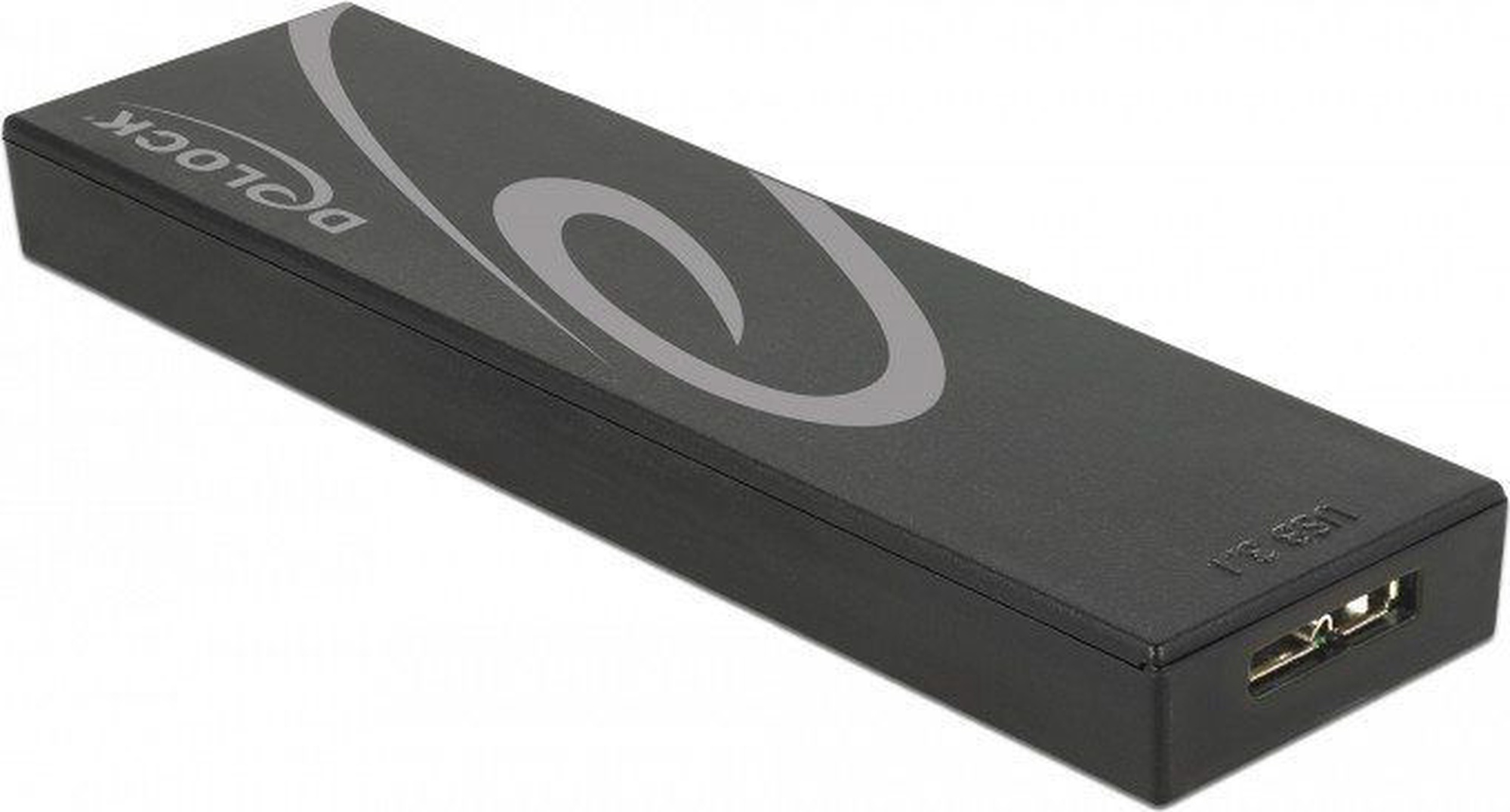

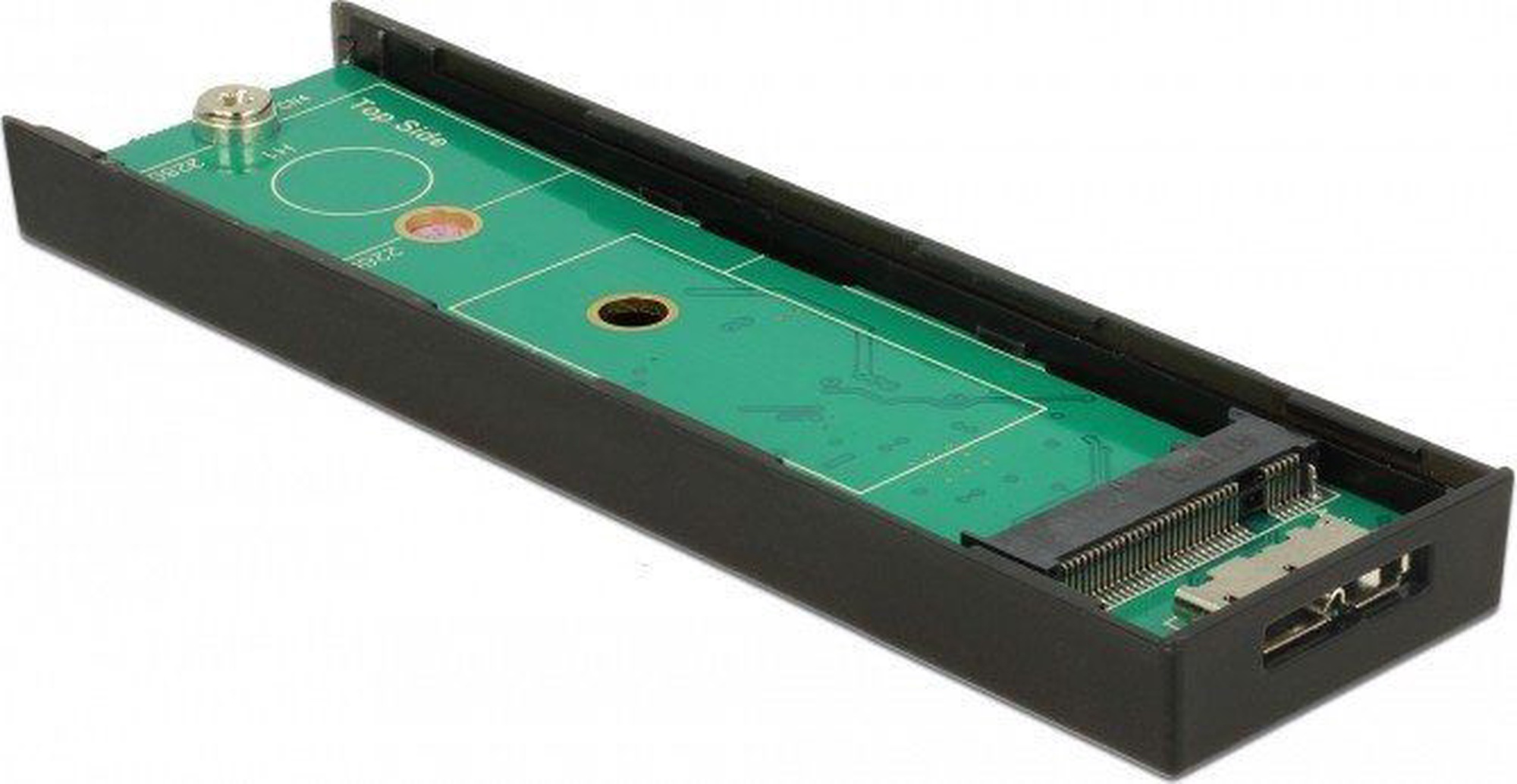

This enclosure by Delock enables the installation of an M.2 SSD in 2280, 2260 and 2242 format, it can be connected via USB to the PC or laptop.

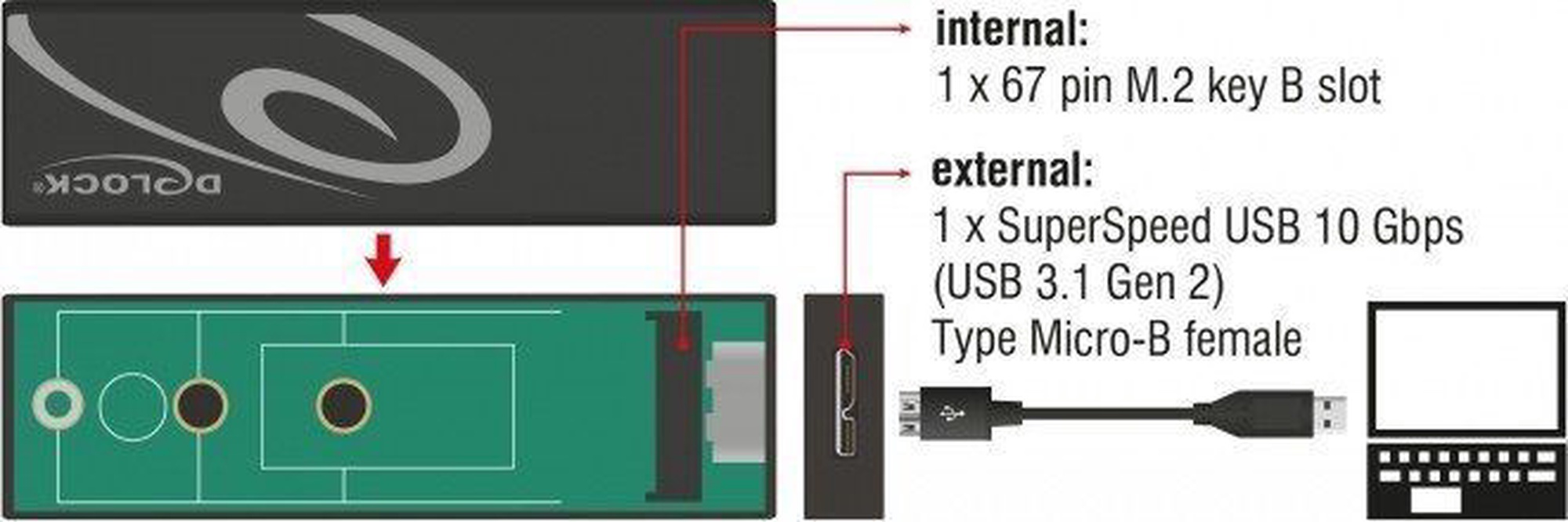

• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female

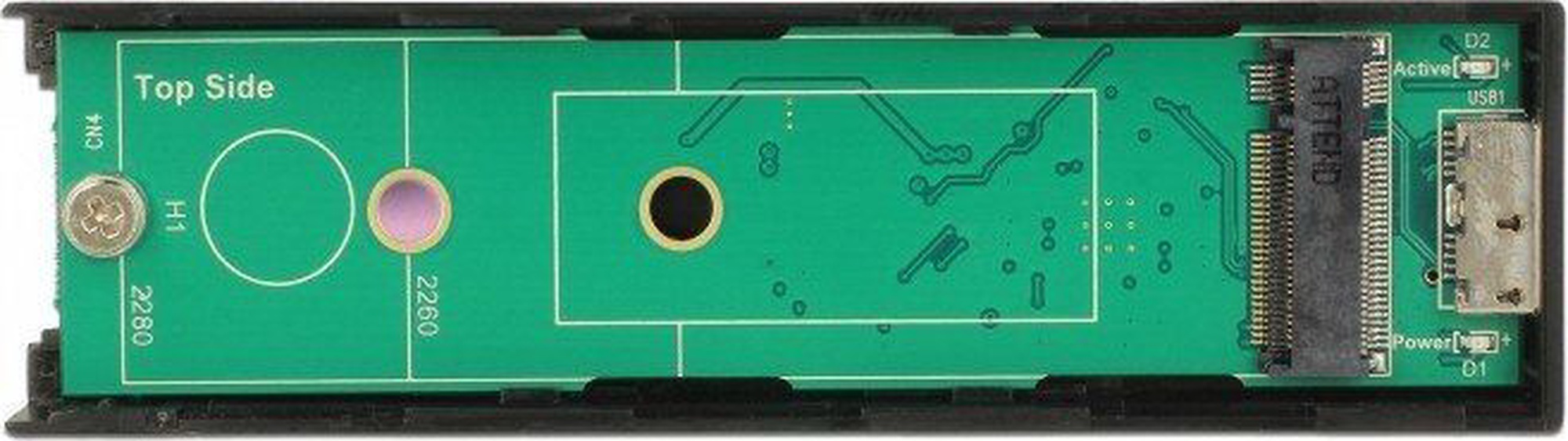

internal: 1 x 67 pin M.2 key B slot
• Chipset: Asmedia ASM1351

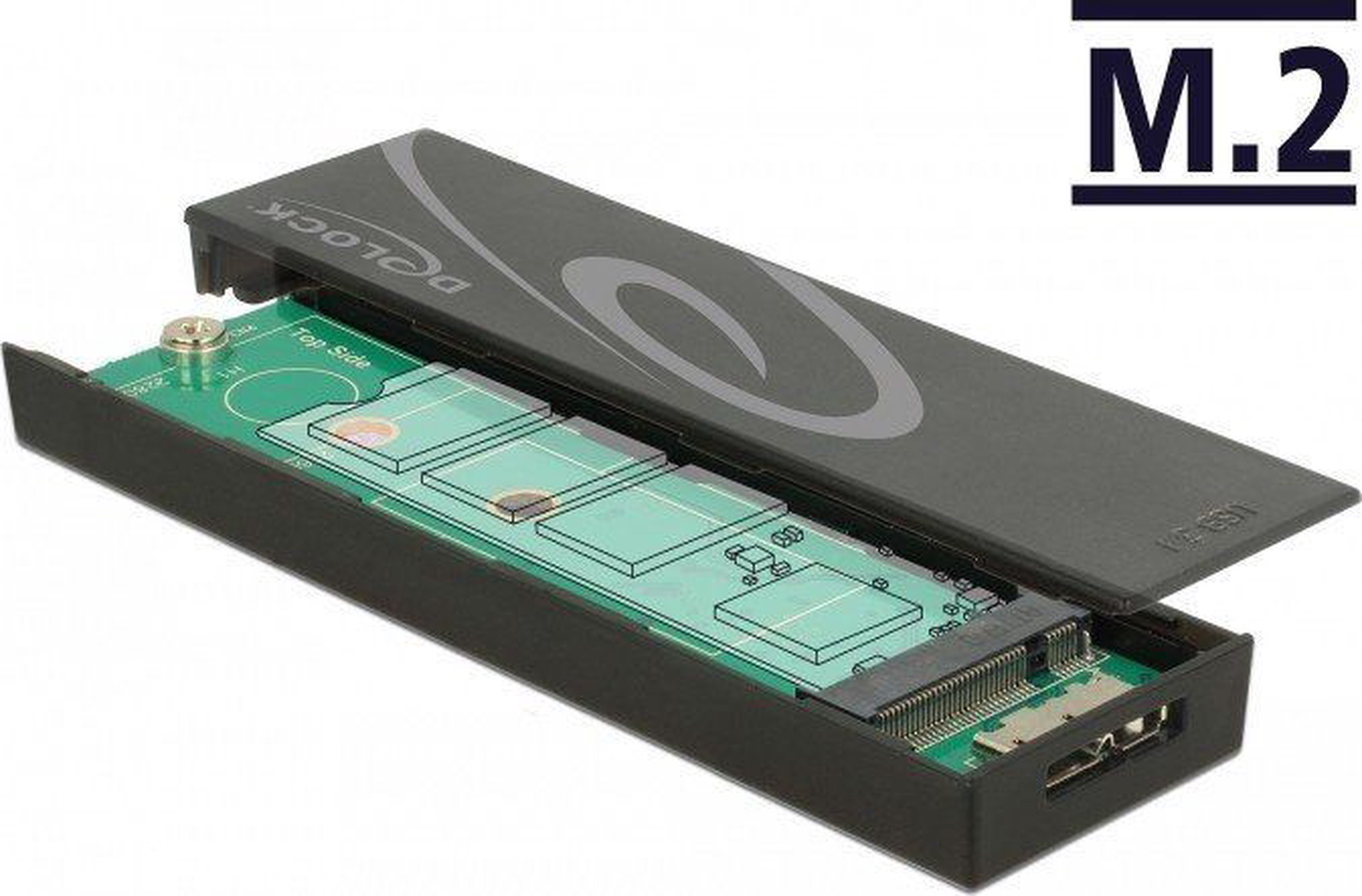

• Supports M.2 modules in format 2280, 2260 and 2242 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• LED indicator for power and access
• Maximum power for modules: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Hot Plug, Plug & Play
• Dimensions (LxWxH): ca. 102 x 28 x 10 mm

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.4.x
• PC or laptop with a free USB Type-A port

• External enclosure M.2

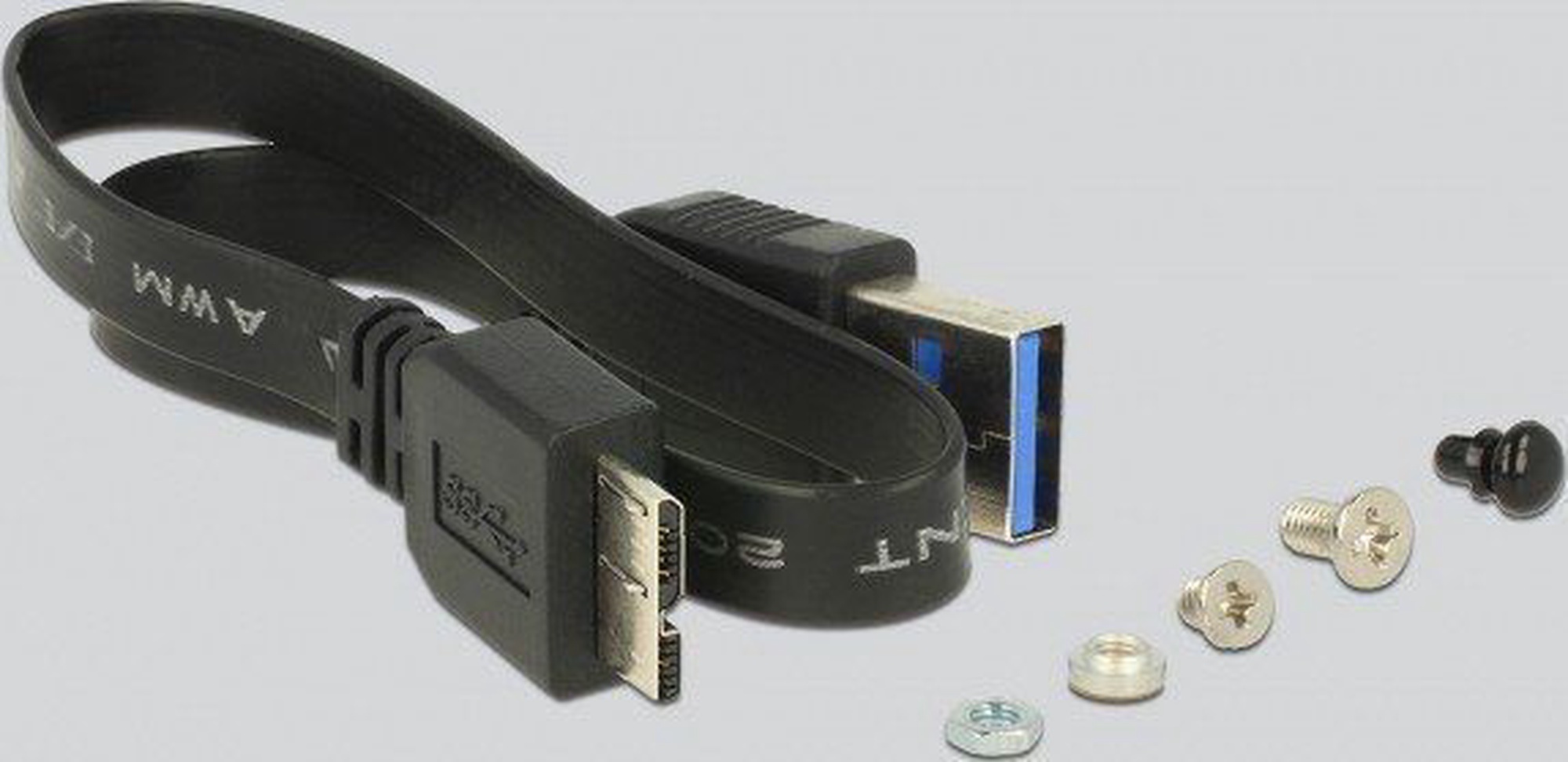

• Mounting material
• Cable USB 3.1 Type-A to Type Micro-B, length ca. 15 cm
• User manual

• Retail Box
