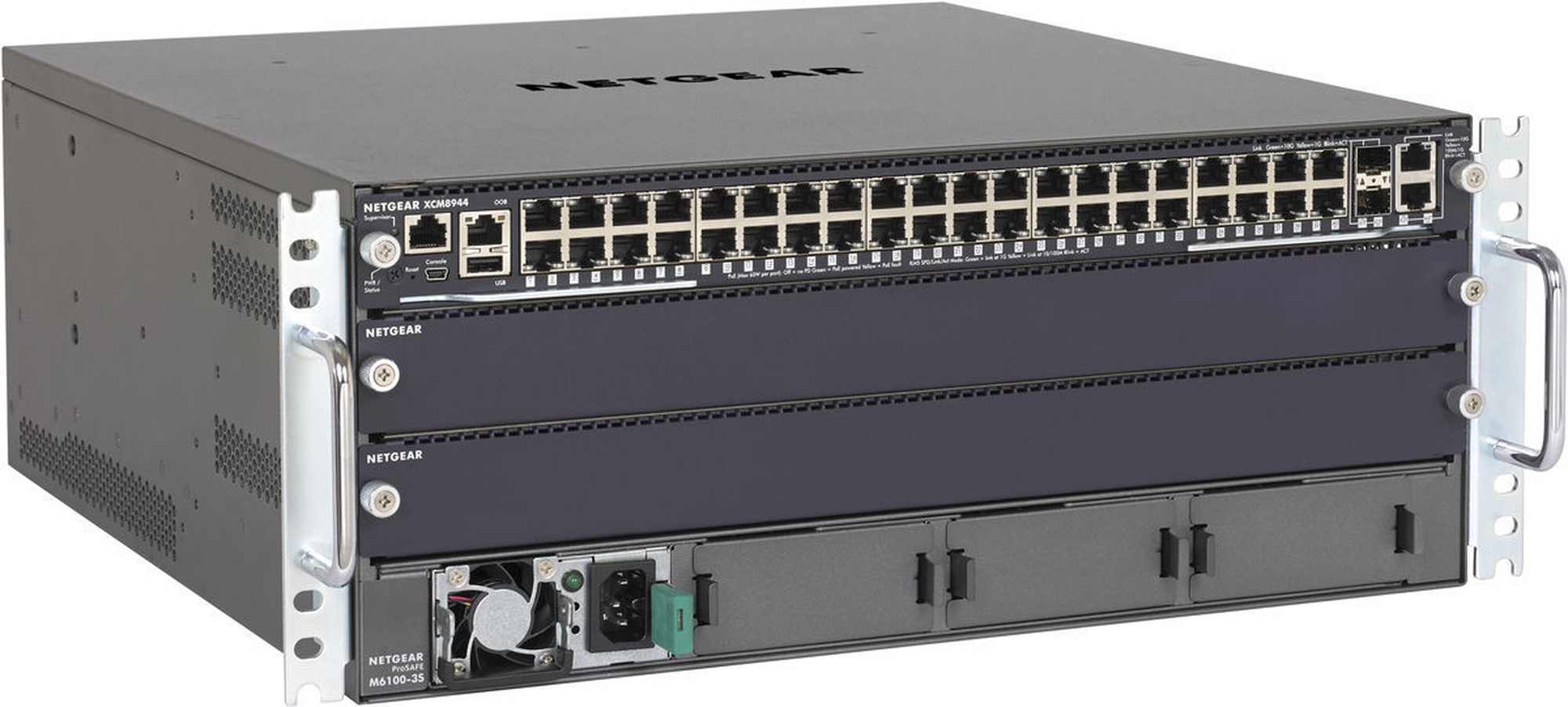

Коммутатор (Switch) Netgear M6100 XCM8903SK

The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.

• Proficient access layer in campus LAN networks, and competent distribution or core layer for midsize organizations networks
• Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including PBR, BGP, DCBX, PFC, ETS and FCoE FIP
• 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy
• Up to 144 (Gigabit) ports, or 72 (10 Gigabit) ports, or a combination of both in dense form factor models
• PoE+ (30 watts per port) and UPOE (60 watts per port) modular, flexible implementation
• Ultra-low latency and scalable table size with 32K MAC, 8K ARP/NDP, 4K VLANs, 12K routes

• Any Gigabit copper blade can receive PoE+ or UPOE daughter cards for easy upgrade / downgrade and best investment protection
• Up to 3,000W PoE budget is provided by internal power supplies when 6,000W are available with additional 1U power shelf
• All set for rapid proliferation of PoE/PoE+ devices, such as IP telephony endpoints, 802.11n / 802.11ac access points and IP security cameras
• Future-proof 60W UPOE power delivered to next-gen VDI clients or physical security devices; UPOE is backward compatible with PoE/PoE+

• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
• Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
• Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
• Best-in-class IPv4/IPv6 static and dynamic routing including Proxy ARP, OSPF, BGP, Policy-based routing and automatic 6-to-4 tunneling
• Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 Querier and Control Packet Flooding protection
• High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G,rpt) state machine events transitioning
• Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
• Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization
• Datacenter-ready features include DCBX (802.1Qaz), Priority Flow Control (PFC), Enhanced Transmission Selection (ETS) and FCoE FIP Snooping

• Passive backplane, distributed redundant fabric and redundant management provide hitless, nonstop forwarding failover protection for always-on availability
• Redundant N+1 power protection contributes to business continuity management
• Distributed Link Aggregation across all I/O blades allows for multi-resiliency and advanced load balancing capabilities
• Multi Chassis Link Aggregation (MLAG) between two M6100 switches overcomes limitations of Spanning Tree, increasing bandwidth while preserving redundancy
• Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures
• Virtual Router Redundancy Protocol (VRRP) provides backup for any statically allocated next-hop router address going down, increasing default path availability

• DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
• Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
• Selectable service port for out-of-band Ethernet management (OOB)
• Selectable standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
• Standard USB port for local storage, logs, configuration or image files
• Dual firmware image and configuration file for updates with minimum service interruption
• Industry standard command line interface (CLI) for IT admins used to other vendors commands
• Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
• Single-pane-of-glass NMS300 management platform with mass-configuration support

• This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware
• Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
• ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
• ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
