Помпа EK Water Blocks

Описание товара на английском языке:The EK Water Blocks EK-XTOP SPC-60 PWM is a combination of an efficient EK-SPC60 pump with a suitable pump cover EK-XTOP SPC60. Together they achieve excellent performance for smaller water cooling circuits, which are mainly used in compact housings. The pump is only operated via a 4-pin PWM connection, which makes it extremely economical with a power consumption of just 6 watts. Nevertheless, it achieves a flow rate of 450 L / h The EK Water Blocks EK-XTOP SPC-60 PWM at a glance:

• EK-SPC60 pump with efficient performance for small systems
• Increasing performance thanks to EK-XTOP SPC60 pump cover made of acetal
• Head of 3.2 m & flow rate of 450 L / h
• 2x G1 / 4-inch connections for integration into the Wakü circuit
• Power supply via 1x 4-pin PWM connection

What does the EK-XTOP do on a pump? EK Water Blocks is one of the specialists among the manufacturers of high-quality water cooling systems and offers an extensive range with individual designs. The company is now well known and is constantly expanding its offer to other Wakü areas.

The developers are also innovative when it comes to water pumps, as they do not accept the standard configurations, but do their own work to adapt the mostly foreign products to the needs of water cooling.

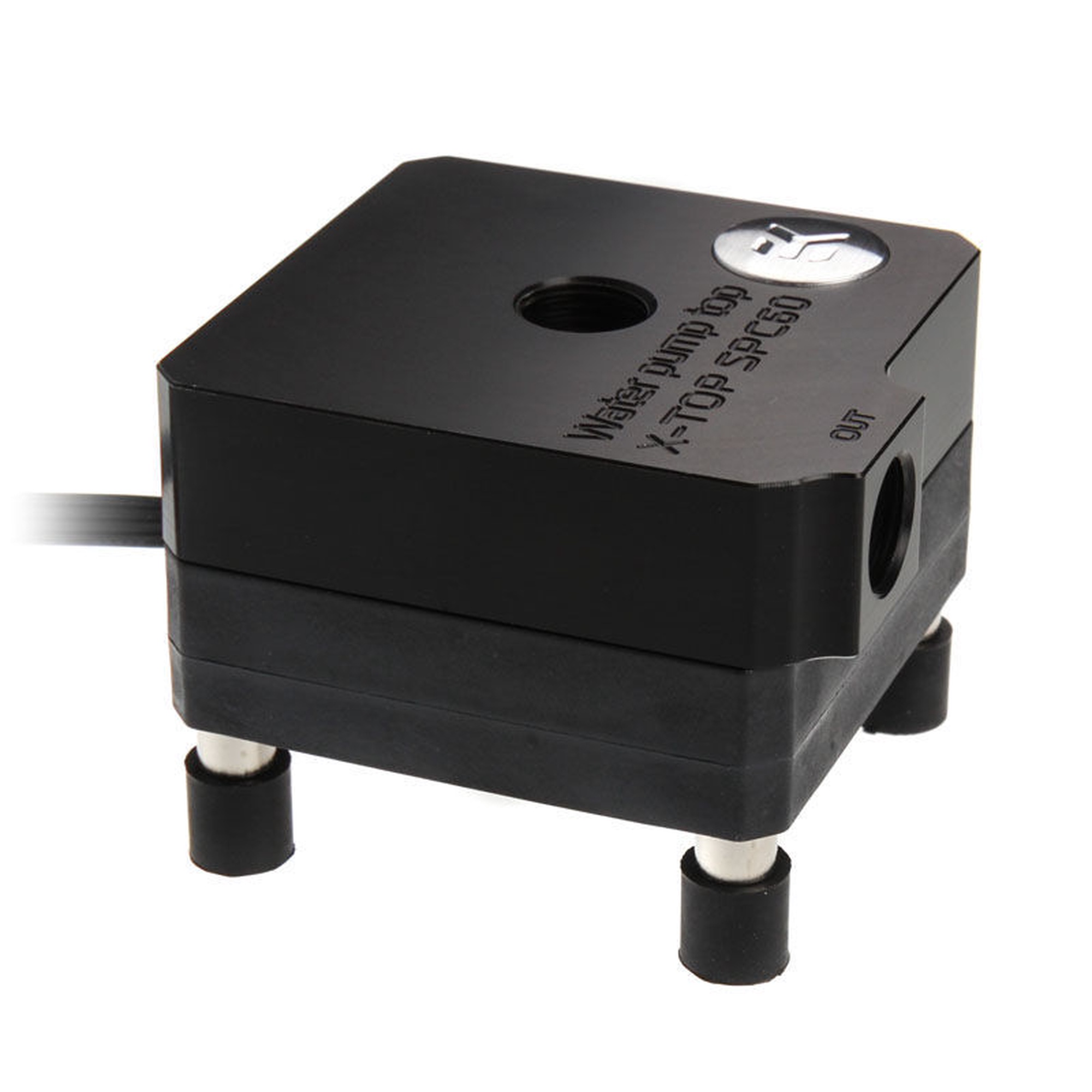

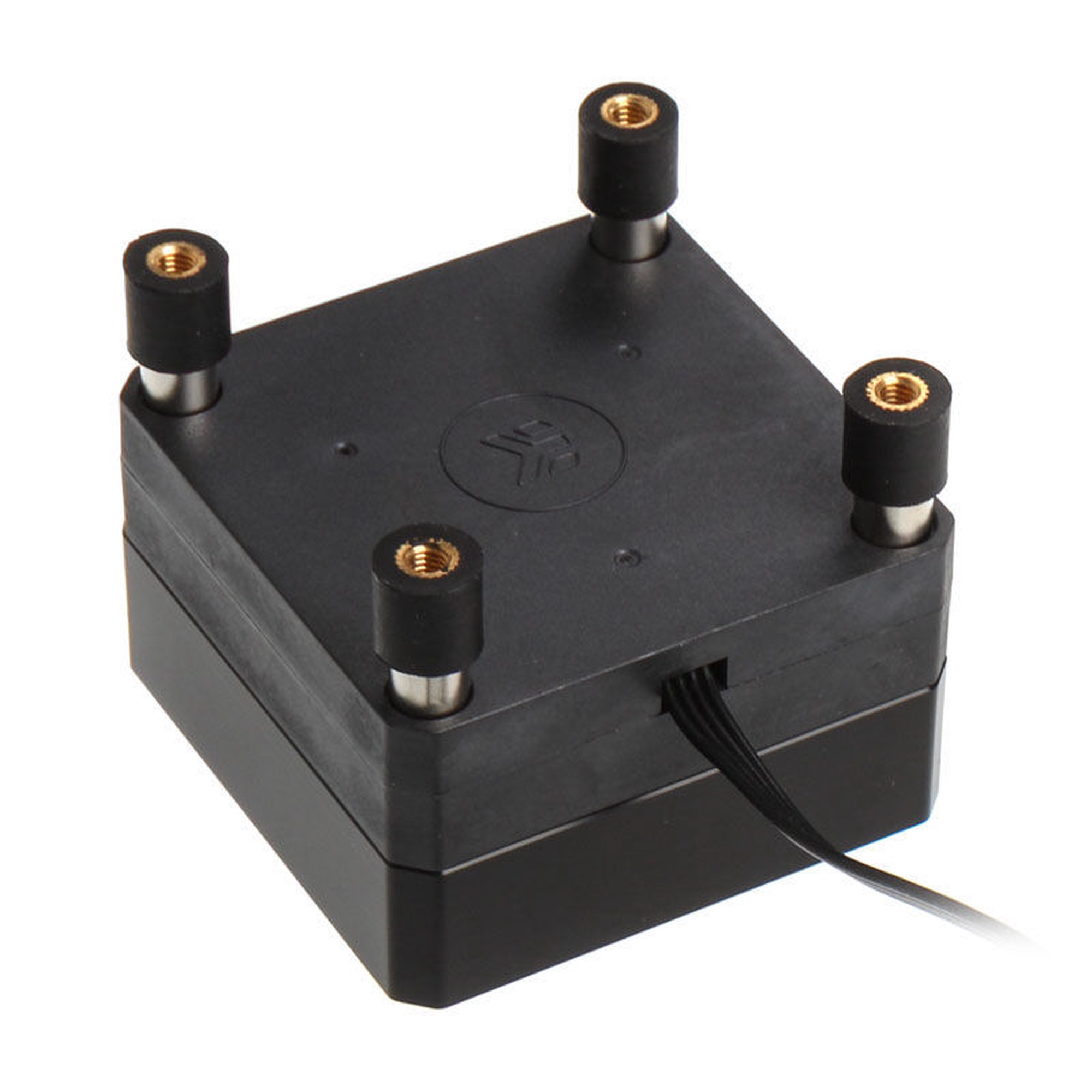

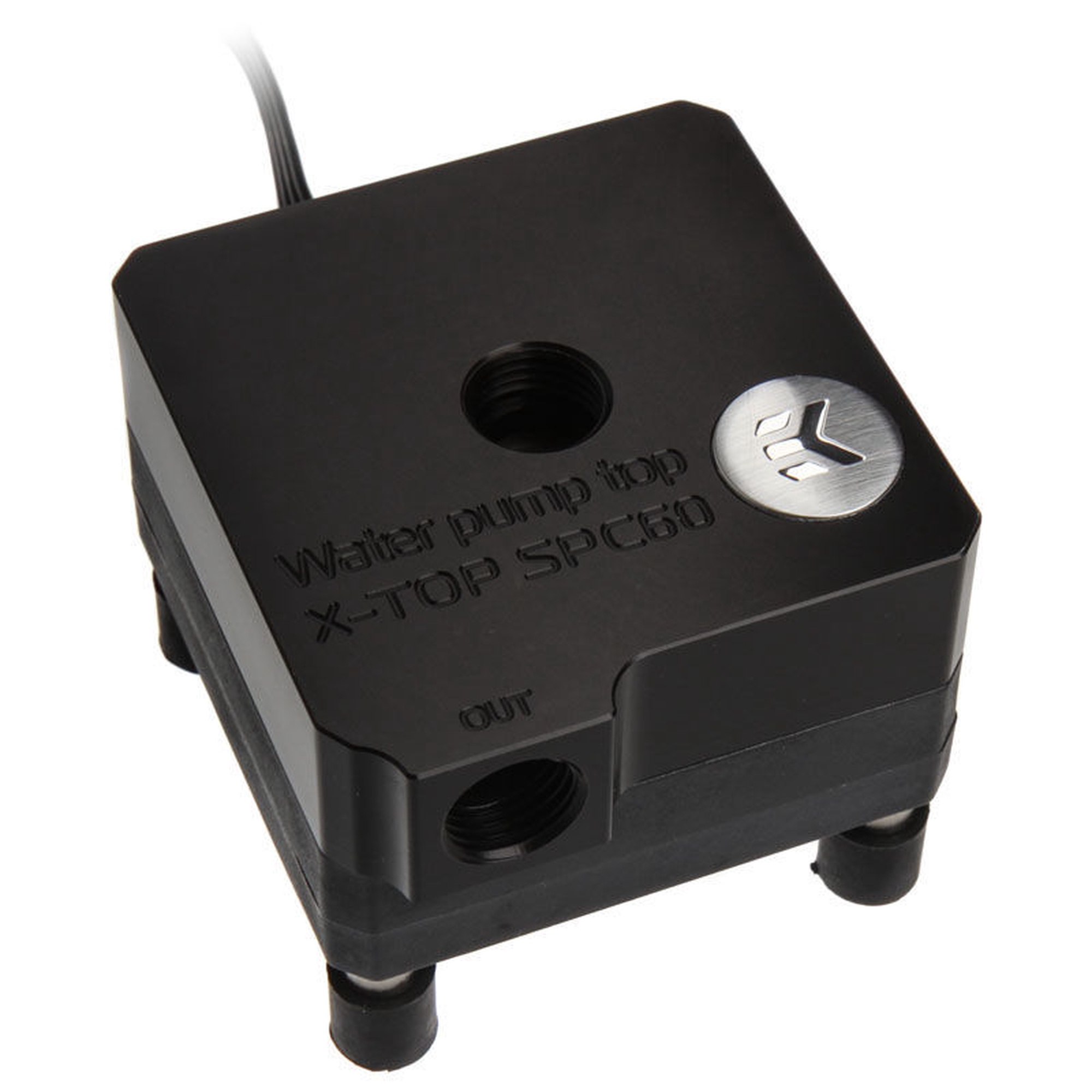

The EK-XTOP SPC-60 PWM is a prefabricated rectangular cover made of acetal and is already equipped with an EK-SPC60 pump. The cover in connection with the SPC60 pump generates a higher hydraulic output than the original pump head and thus works as efficiently as possible. Virtually any Wakü port with a G1 / 4 port can be connected to two G1 / 4 ports.

The built-in pump is ideal for compact Wakü systems and equipped with an electronic motor. With a power supply of only 6 watts, this achieves a maximum flow rate of 450 L / h and a delivery head of 3.2 m. The performance is therefore suitable for smaller water cooling circuits.

The power supply is only via the 4-pin PWM connector, which keeps the power consumption pleasantly low and still delivers sufficient power. The PWM control of the pump enables automatic regulation of the speed between 20 - 100%. This ensures full performance or whisper-quiet operation in standby mode if required.

Technical details:

• Dimensions: 62 x 62 x 51 mm (W x D x H)
• Material: acetal (lid)
• Head: approx.3.2 m
• Maximum flow rate: 450 L / h
• Maximum system temperature: 50 °
• Operating voltage: 12 V
  Power consumption: 6 watts
• Connection: 4-pin PWM
• Ports: 2x G1 / 4-inch
• Scope of delivery: EK-XTOP SPC60 - Acetal
  EK-SPC60 PWM 12V DC pump

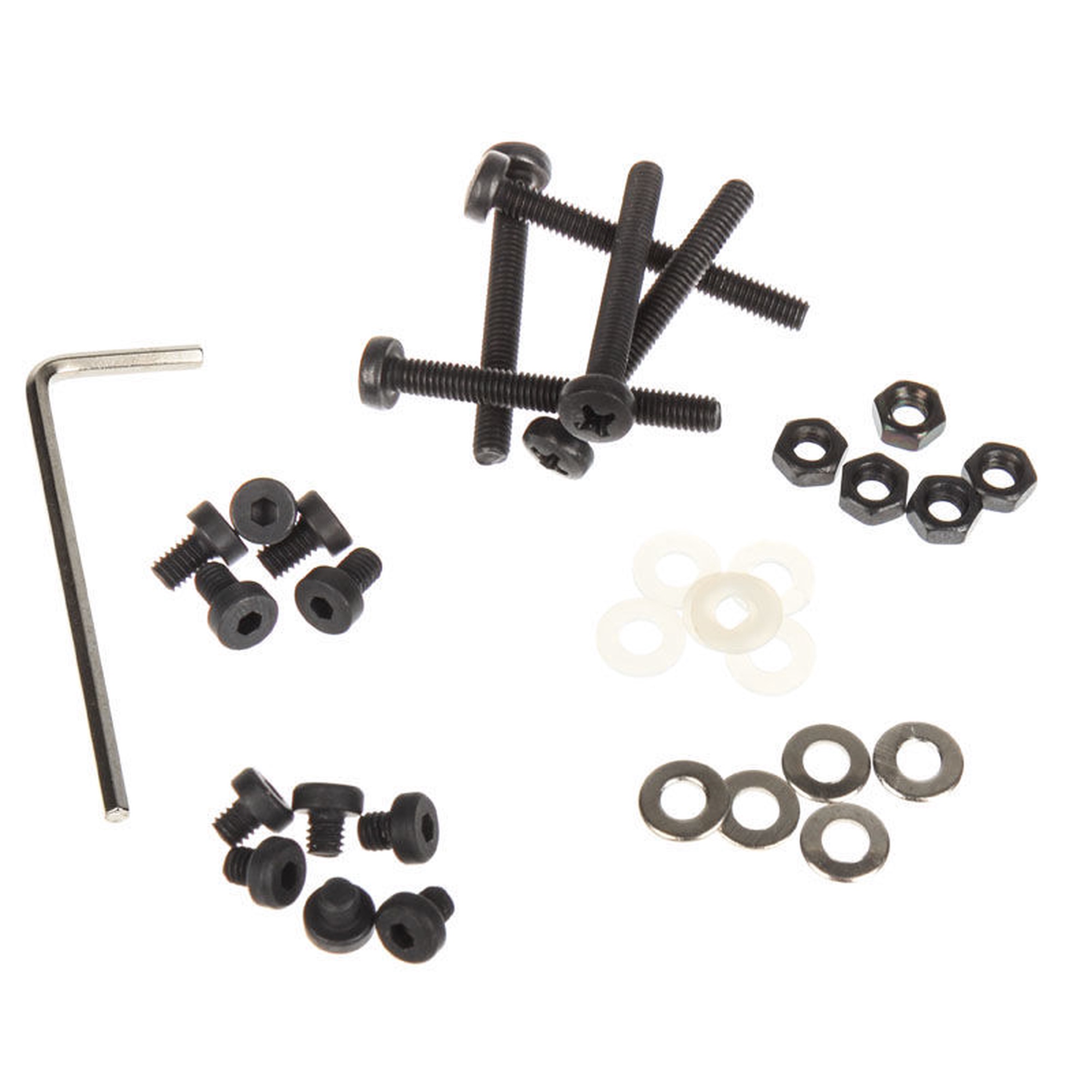

  mounting material
