A new star in the water cooling component sky is born. And it glows brightly. We're talking about Coolgate. The small but fine forge knows how to convince with finesse and high-quality workmanship. Coolgate radiators are aimed at high-end customers and ultra-silent enthusiasts.

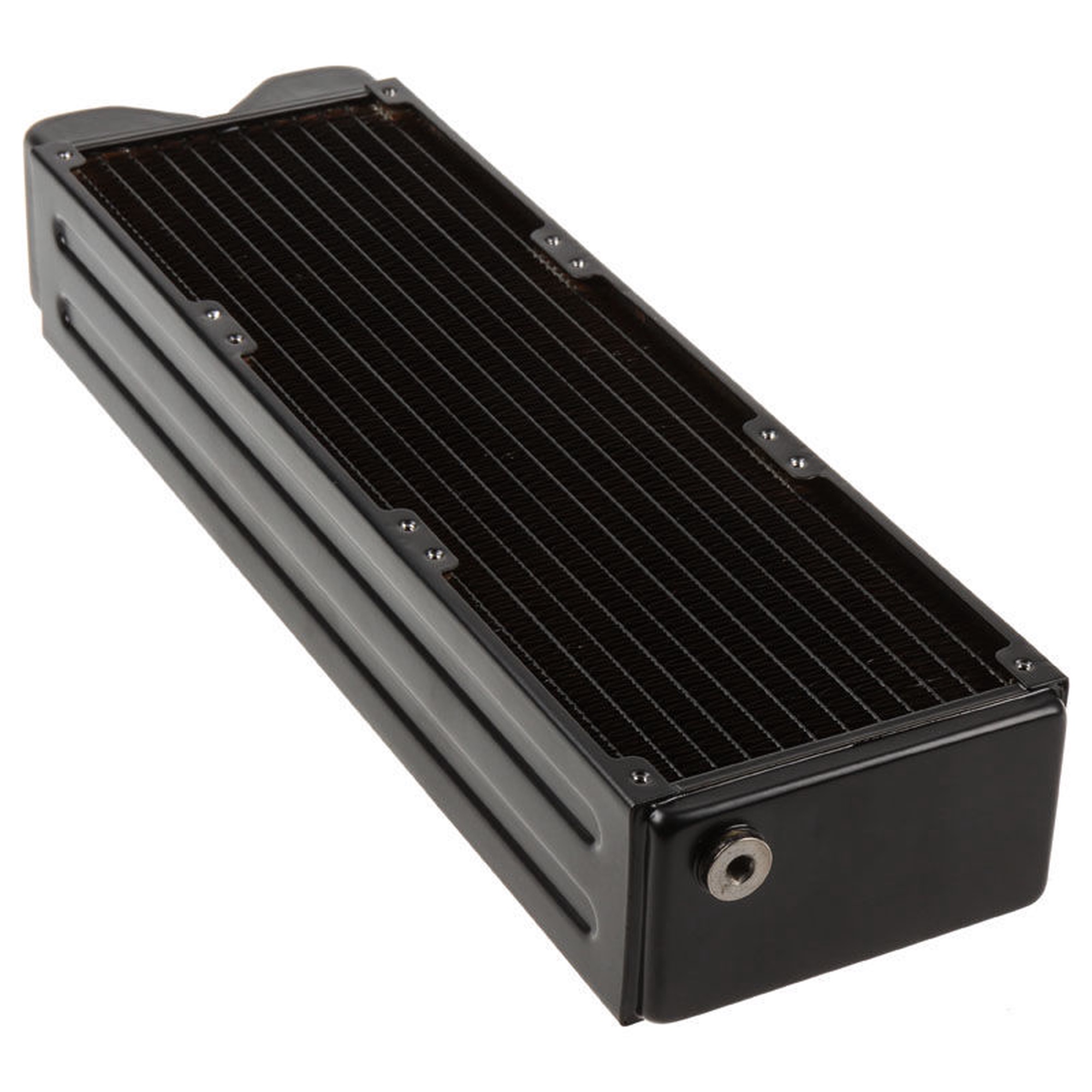

The G2 radiators represent the current generation of heat exchangers and naturally meet this requirement better than ever. Wrapped in black, the copper fins contain three parallel rows of tubes, each tube having a diameter of 16 mm, so that a lot of water can flow through it.

The cooling strength, which is also manifested in the impressive overall height of 6.5 cm, is nevertheless combined by Coolgate with the possibility of very quiet operation, because the lamella density on the G2 models is only 10 FPI, which also means slow-rotating silent fans Apply enough static pressure to penetrate the copper core.

In the tripler radiator version offered here in 360 mm format, these can be mounted either on one or both sides. The tubes are not located directly below the UNC 6-32 holes so that none of the tubes can be accidentally damaged when the 120 mm fans are attached. When used properly, Coolgate grants a 3-year manufacturer's warranty.

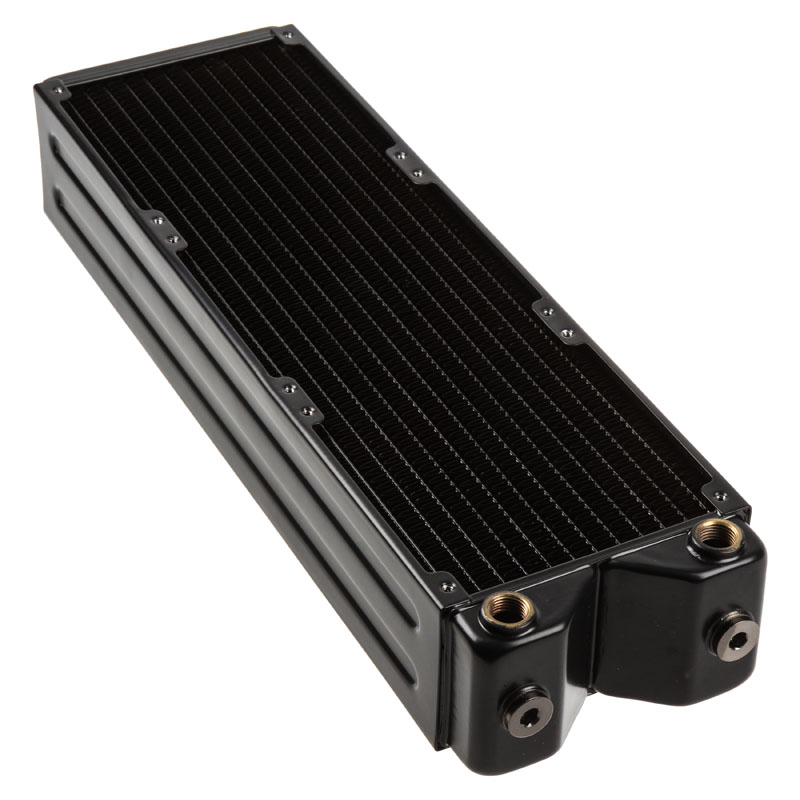

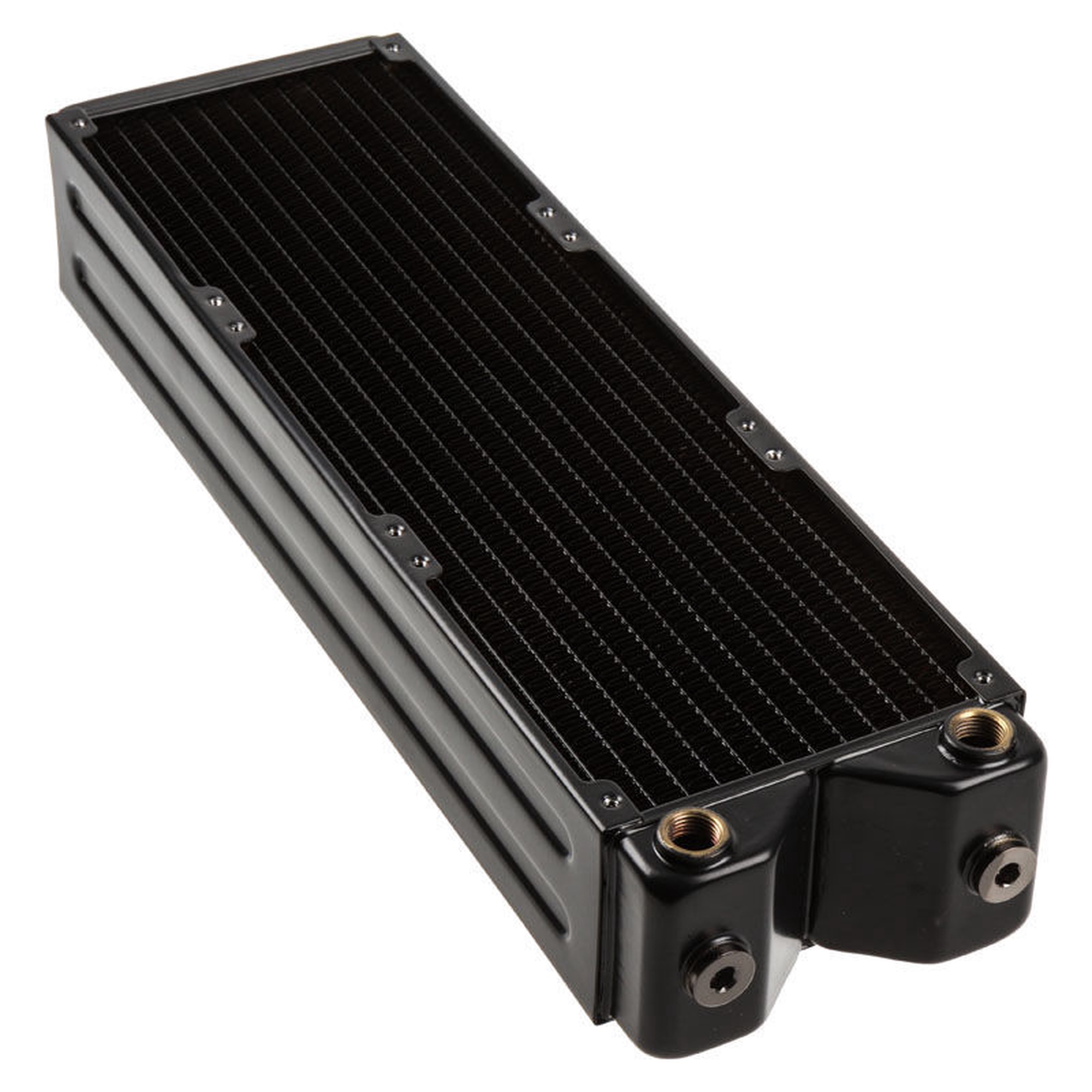

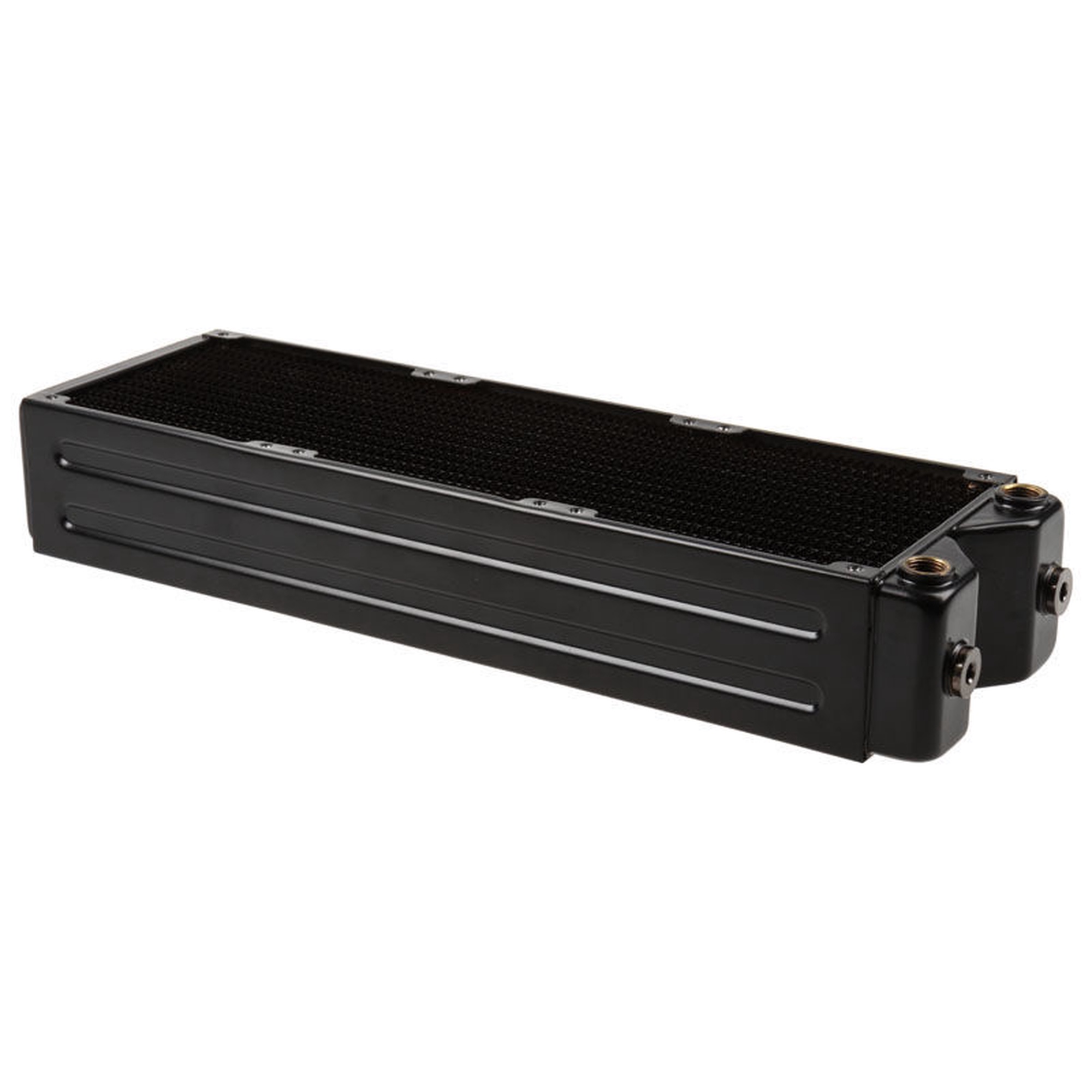

When buying a G2 heat exchanger, in addition to the height of 65 mm, the length should also be taken into account, with this triple model it is 392 mm. A total of five G1 / 4-inch connections are available on the antechambers made of brass, Coolgate also supplies three sealing plugs. In addition, the necessary screws for mounting three fans and for mounting in the housing are included.

Technical details:

• Dimensions: 120 x 65 x 392 mm (W x H x D)
• Weight: approx.1.650 g
• Material: copper (fins), brass (chambers)
• Color: Black
• Compatible fans: 3x 120 mm on both sides
• Slat density: 10 FPI
• Rows of pipes: 3
• Pressure tested up to: 1.5 bar
• Thread: 5x G1 / 4 inches

Scope of delivery:
12x screws UNC 6-32 long
12x screws UNC 6-32 short
3x sealing plugs
3x frames
1x Allen key
