RAID-контроллер сервера Intel

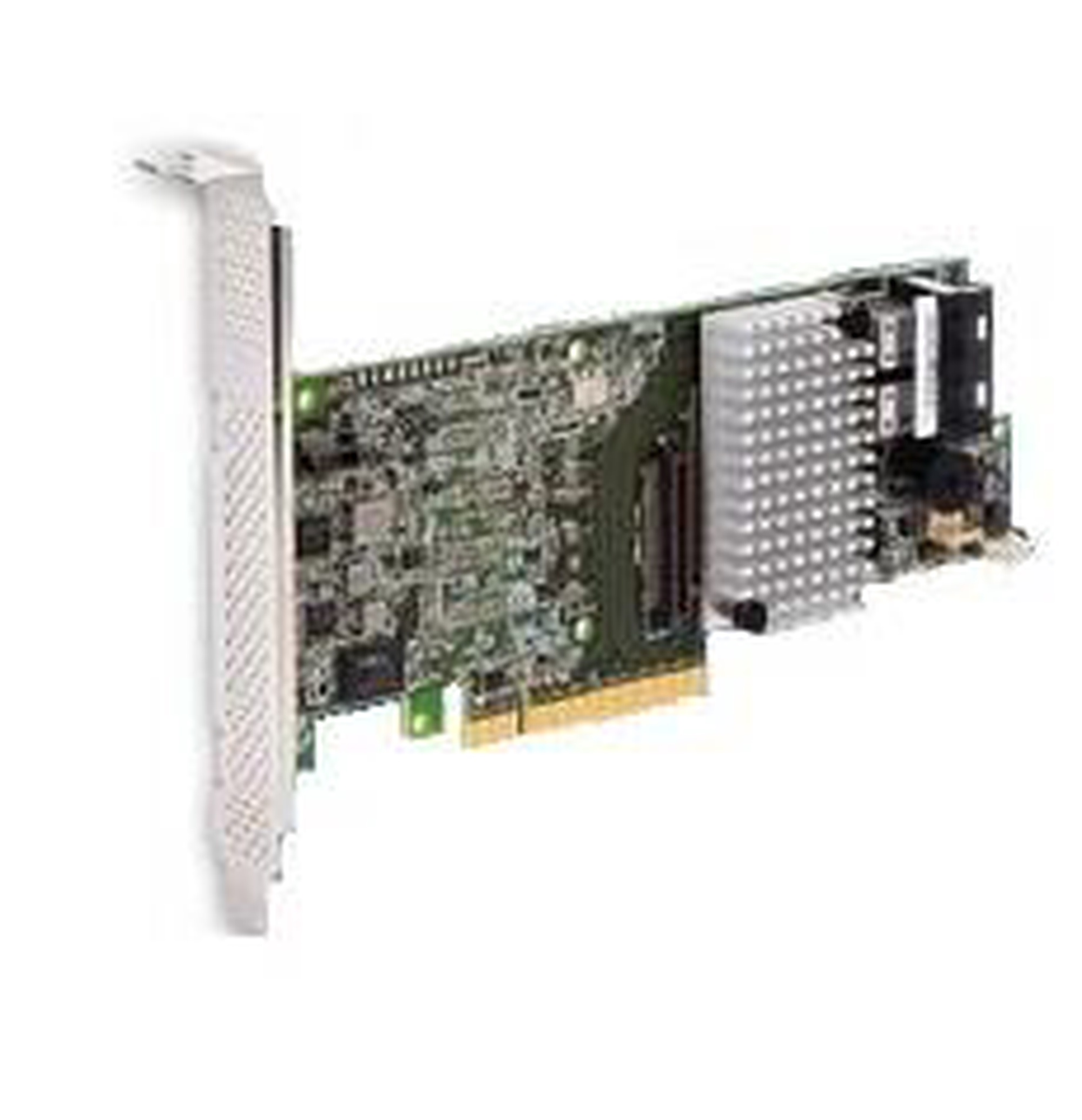

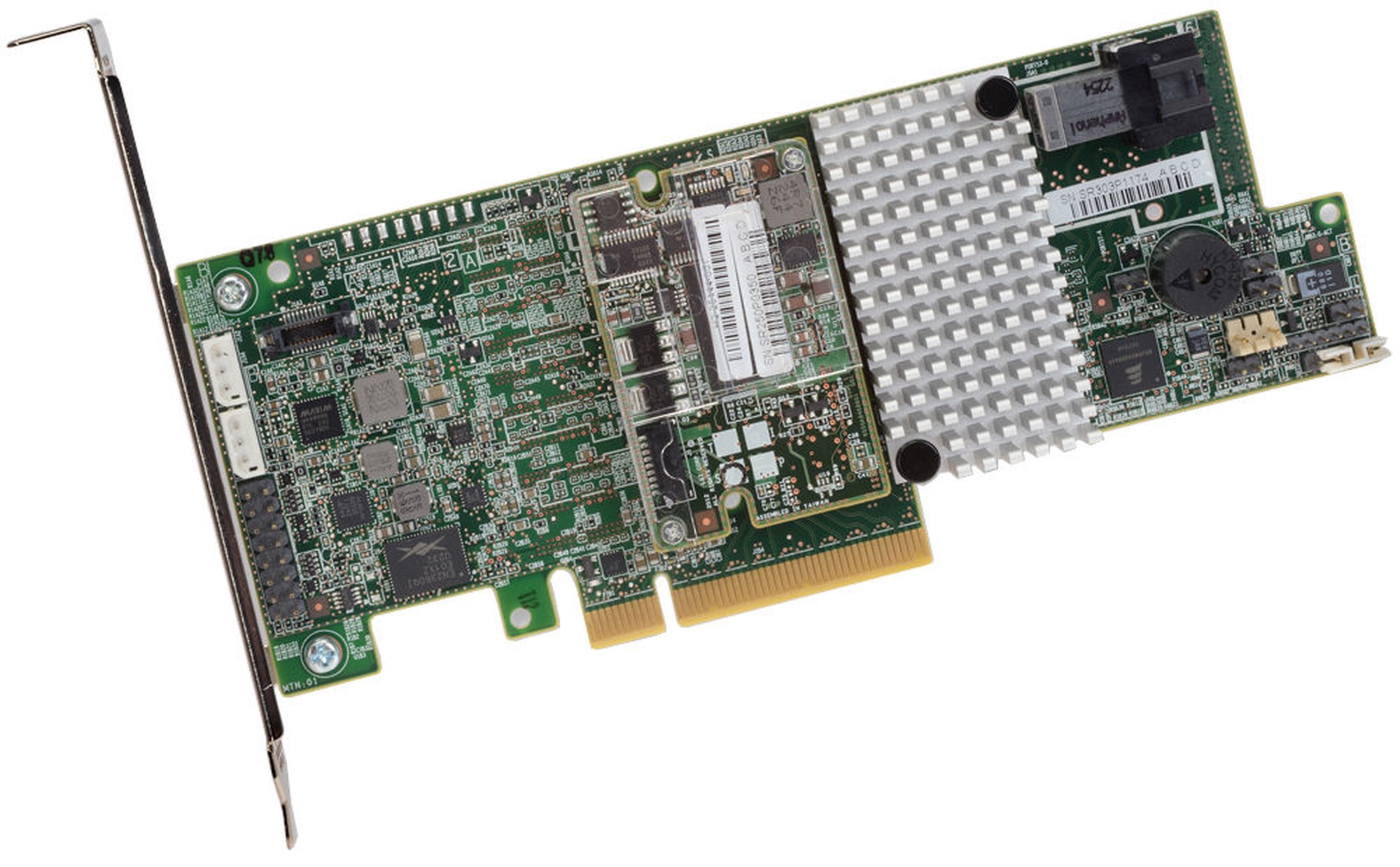

Intel RAID Controller RS3DC040
Описание товара на английском языке:




Intel® RAID Controllers RS3DC080/040
Mainstream 12Gb/s SAS-3 Intelligent RAID Adapters
As data continues to grow at an unprecedented pace, mainstream server environments that include database servers,
e-mail servers, and Web servers need a higher level of performance and scalability. Now with the Intel® RAID Controllers
RS3DC080 and RS3DC040, powered by LSI® MegaRAID® Technology, organizations get next generation SAS 3.0 12Gb/s
performance, enterprise-class data protection and scalability designed for mainstream server environments. Featuring
more than 750K RAID 5 IOPS – more than 60 percent improvement over the previous generation – and 6,000MB/s
throughput performance for streaming applications, these RAID adapters unleash the full potential of enterprise PCIe
3.0 systems.

The Intel® RAID Controllers RS3DC080 and RS3DC040 double the available bandwidth of current 6Gb/s SAS solutions,
and offer a higher level of RAID performance and security compared to entry-level products. They feature eight and
four internal ports respectively, deliver two 1.2GHz processor cores and 72-bit DDRIII interface that drives 1GB cache
memory at 1866MHz. They support 8 PCI Express® lanes that comply with the latest PCI Express 3.0 specification with
8 gigatransfers per second (GT/s) per lane. Plus, each adapter supports 8 individual SAS ports operating at 12Gb/s. The
adapters are backward compatible with previous PCIe and SAS generations through automatic negotiation and provide
SAS data transfer rates of 12, 6, and 3Gb/s per lane, and SATA data transfer rates at 6 and 3Gb/s per lane.

The Intel RAID Web Console 2 included in these adapters enhances RAID volume creation by empowering administrators
to further optimize their storage for application performance and data protection. With an intuitive graphical user
interface, this Intel RAID Web Console 2 deploys all the critical system storage functions and helps eliminate complexity
and learning curves. Plus, since all Intel RAID solutions are validated across multiple platforms with Intel® boards, chassis,
and systems, when used together they deliver the best combination of performance, built-in.
