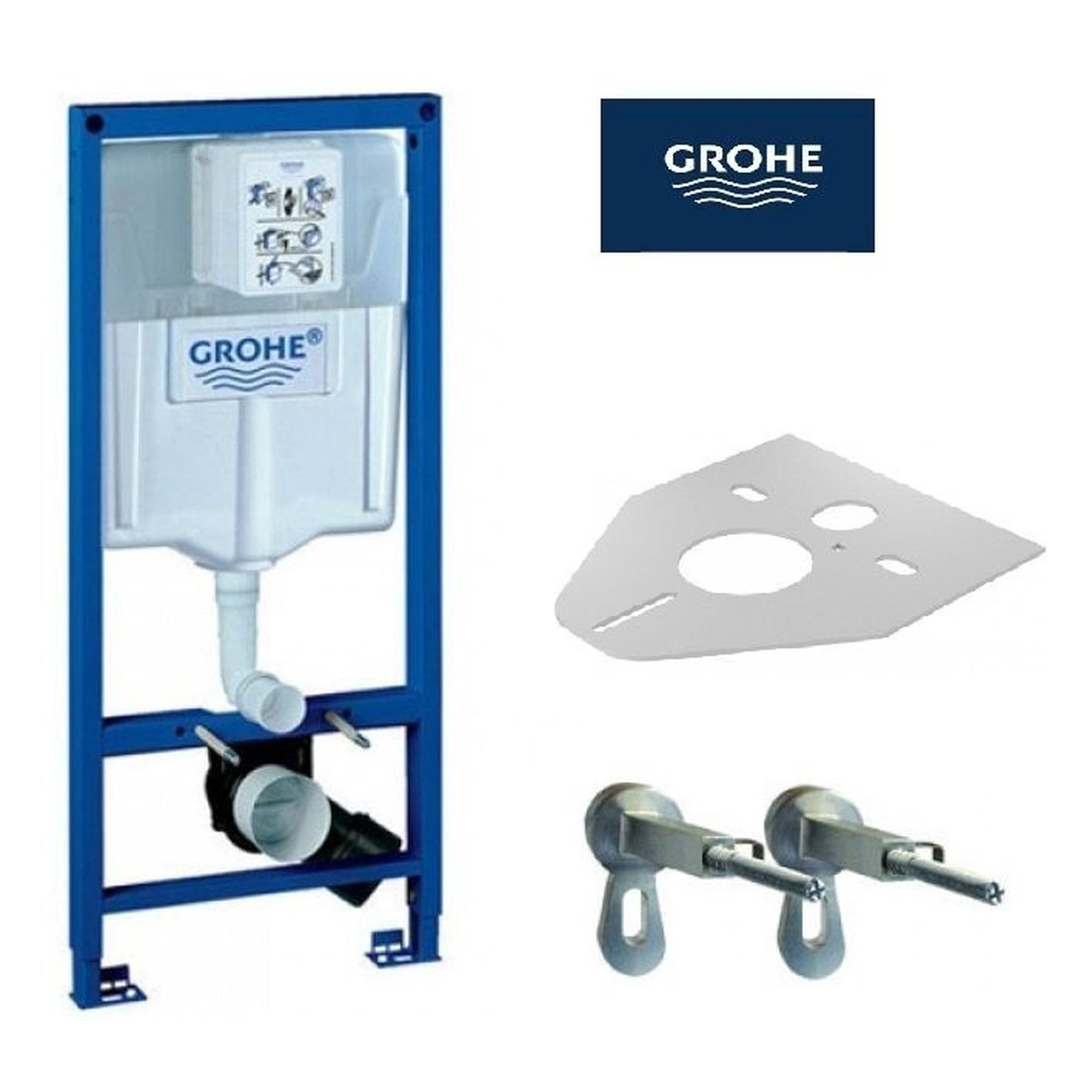

Рама туалета Grohe Rapid SL

Grohe Rapid SL 500x230mm H=1130mm 38536001
Описание товара на английском языке:


Rapid SL set for WC
flushing cistern GD 2 6 l - 3 l
with maintenance access
1.13 m finished installation height
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single or series installation
quick adjustment, lockable
fixing material, TÜV approved
2 WC fixing bolts, fixing device for ceramic
WC ceramics with small bearing area (< 205 mm)
require additional accessory 38 779 000
distance of fixing bolts 180/230 mm
outlet bend Ø 90 mm
depth adjustable
reducer Ø 90/110 mm
inlet and outlet connecting set
adjustment ex factory 6 l and 3 l
pneumatic discharge valve offering 2 modes of
operation: dual flush or single flush
water supply from left/right or back
low noise (group I acc. to
German Noise Specification)
Insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
no tools required for the installation
of the inspection shaft incl. protection
during construction phase
for vertical or horizontal use
Wall brackets for on-the-wall installation incl.
for mounting of small flush plates please order
revision shaft 40 911 000 (sold separately)
