USB-разветвитель Delock

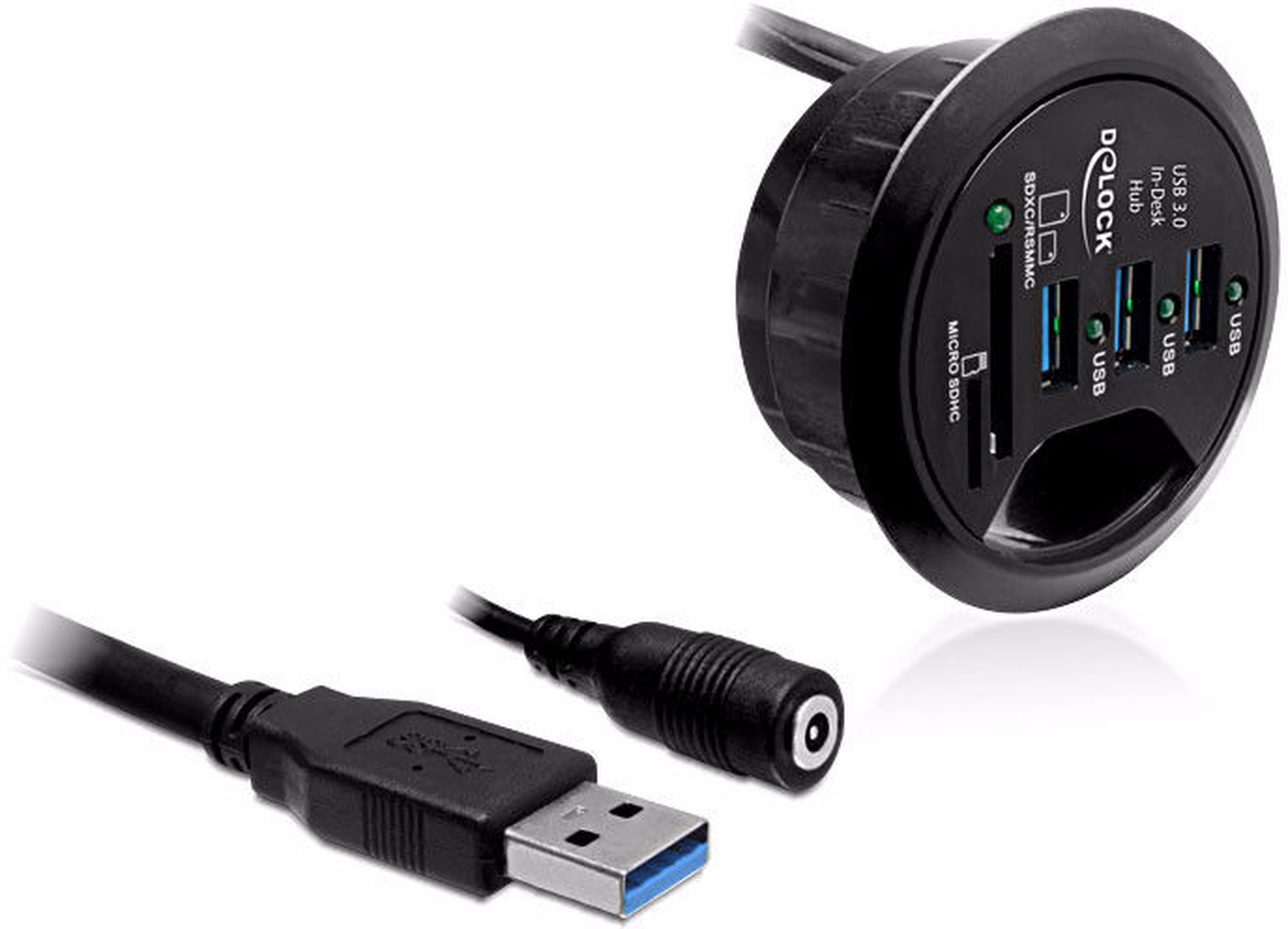

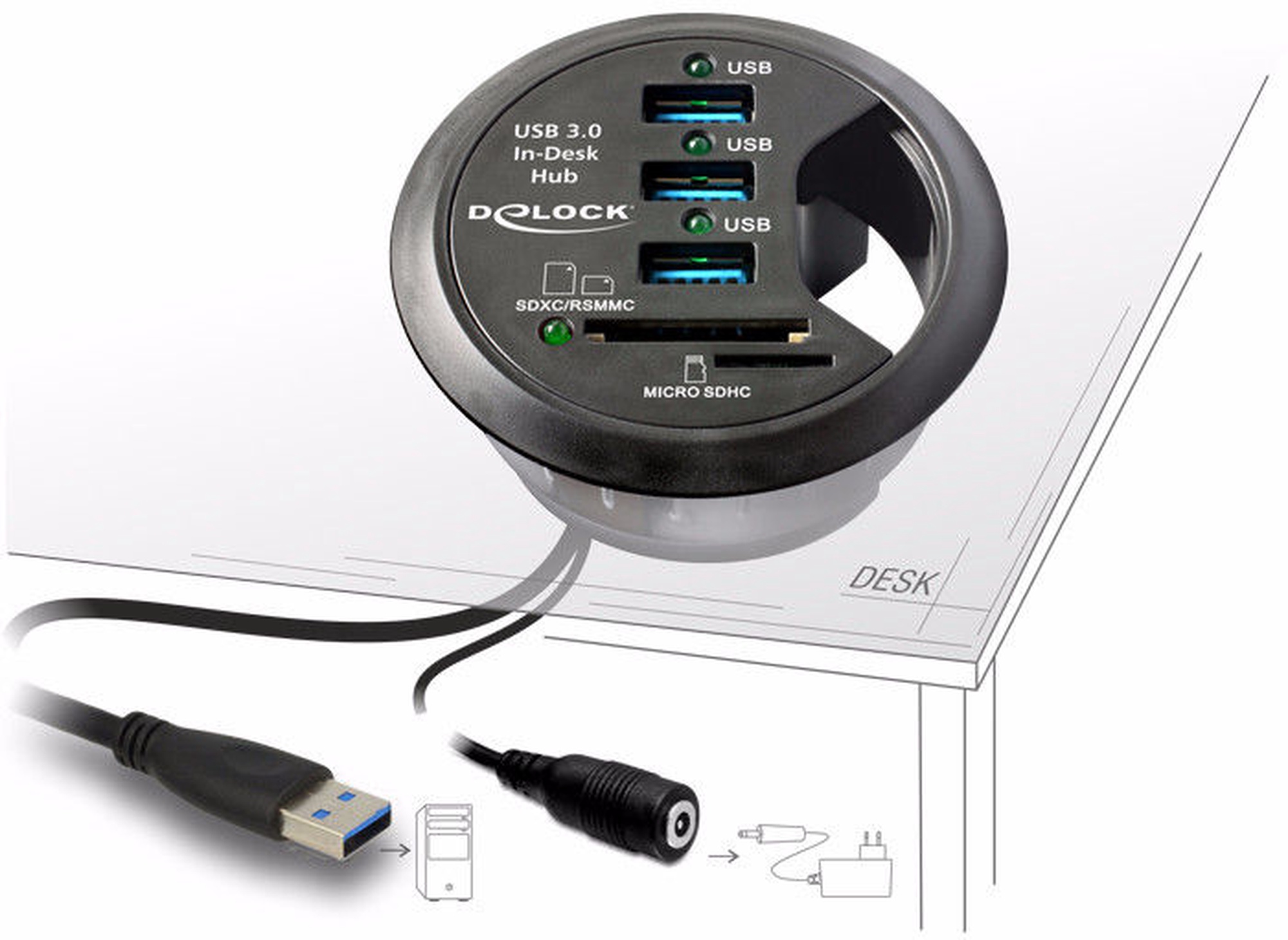

This Delock Hub can be installed into an existing cut-out of your desk and enables you to lead out the cables for monitor, keyboard and mouse. This is a practical and space saving solution which enables you to connect your USB devices easily. You can easily insert your SD card into the existing slots of your Desk Hub for reading and writing.

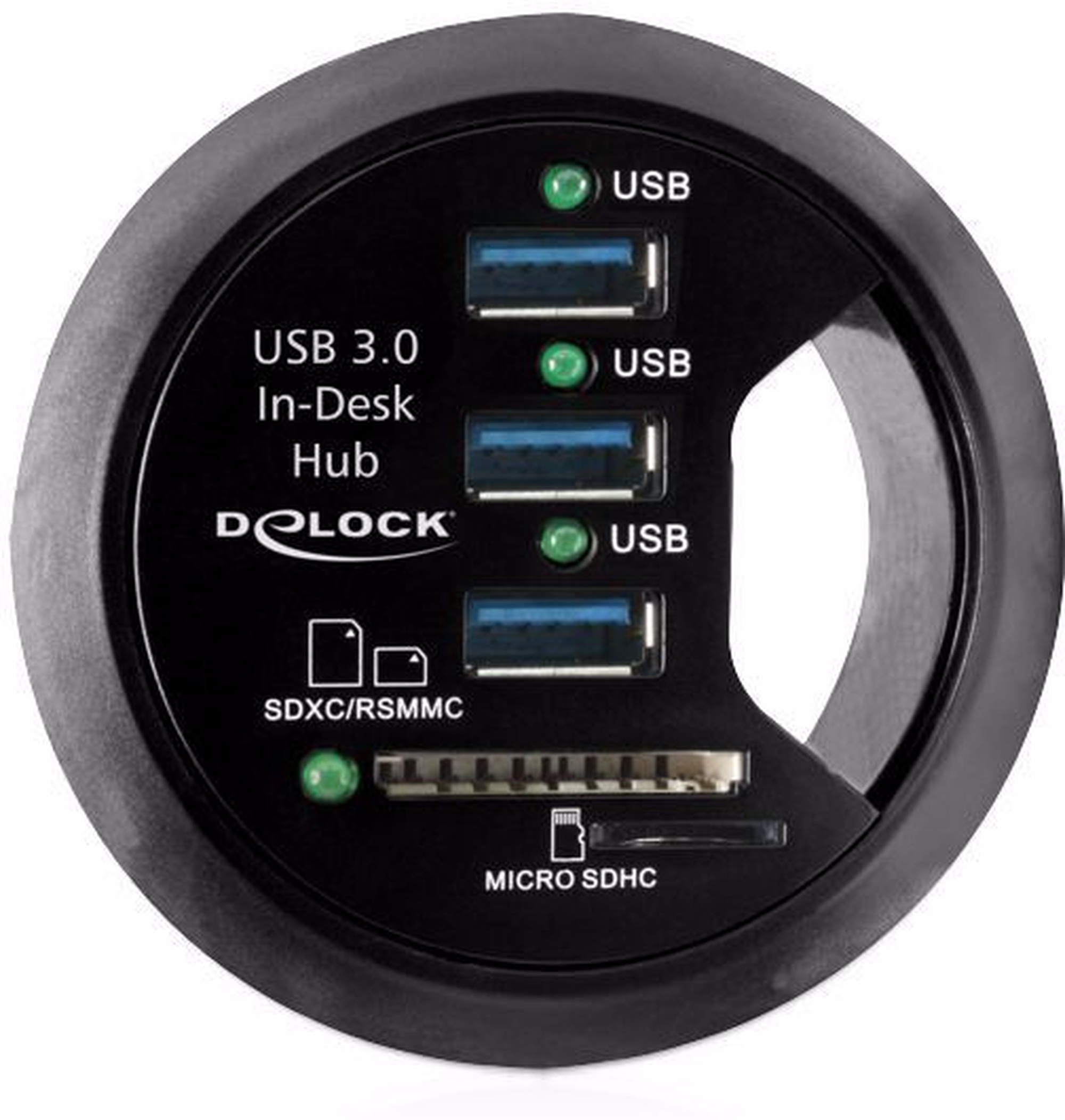

Specification• Connector:
top side:
3 x USB 3.0 Type-A female
1 x SD slot
1 x Micro SD slot
bottom side:
1 x USB 3.0 Type-A male
1 x 5 V DC jack
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD Pro, SD High Capacity (SDHC), SD Ultra, SDHC Ultra,
SDXC, SDXC Ultra, MMC-I, MMC-II, MMC 4.0, Mini SD, Mini SDHC,
MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot micro Secure Digital
MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• Mounting diameter: 60 mm
• Mounting depth: 30 mm
• Cable length:
USB 3.0 ca. 115 cm
DC ca. 12 cm
• Plug & Play

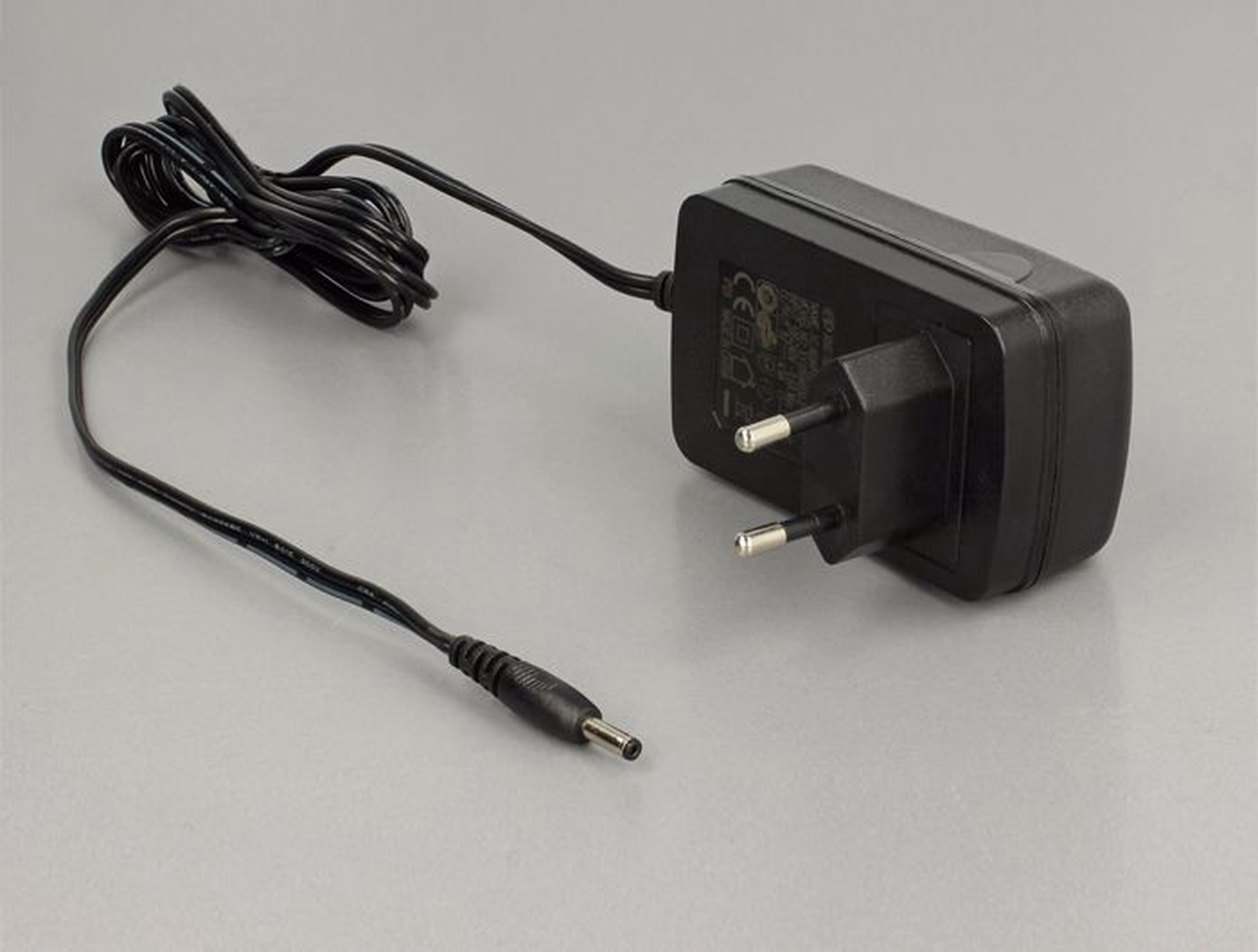

Power supply specification• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm

System requirements• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8.1/8.1-64/10/10-64, Mac Lion 10.7.4,
Linux Kernel 3.x
• PC or laptop with a free USB Type-A port
• 60 mm hole in the desk

Package content• In-Desk Hub with Card Reader
• External power supply
• User manual
