Водный блок EK Water Blocks

EK-FC GeForce GTX FE is a high-performance full-cover water block for multiple NVIDIA® GeForce® GTX and Titan X (Pascal) based graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

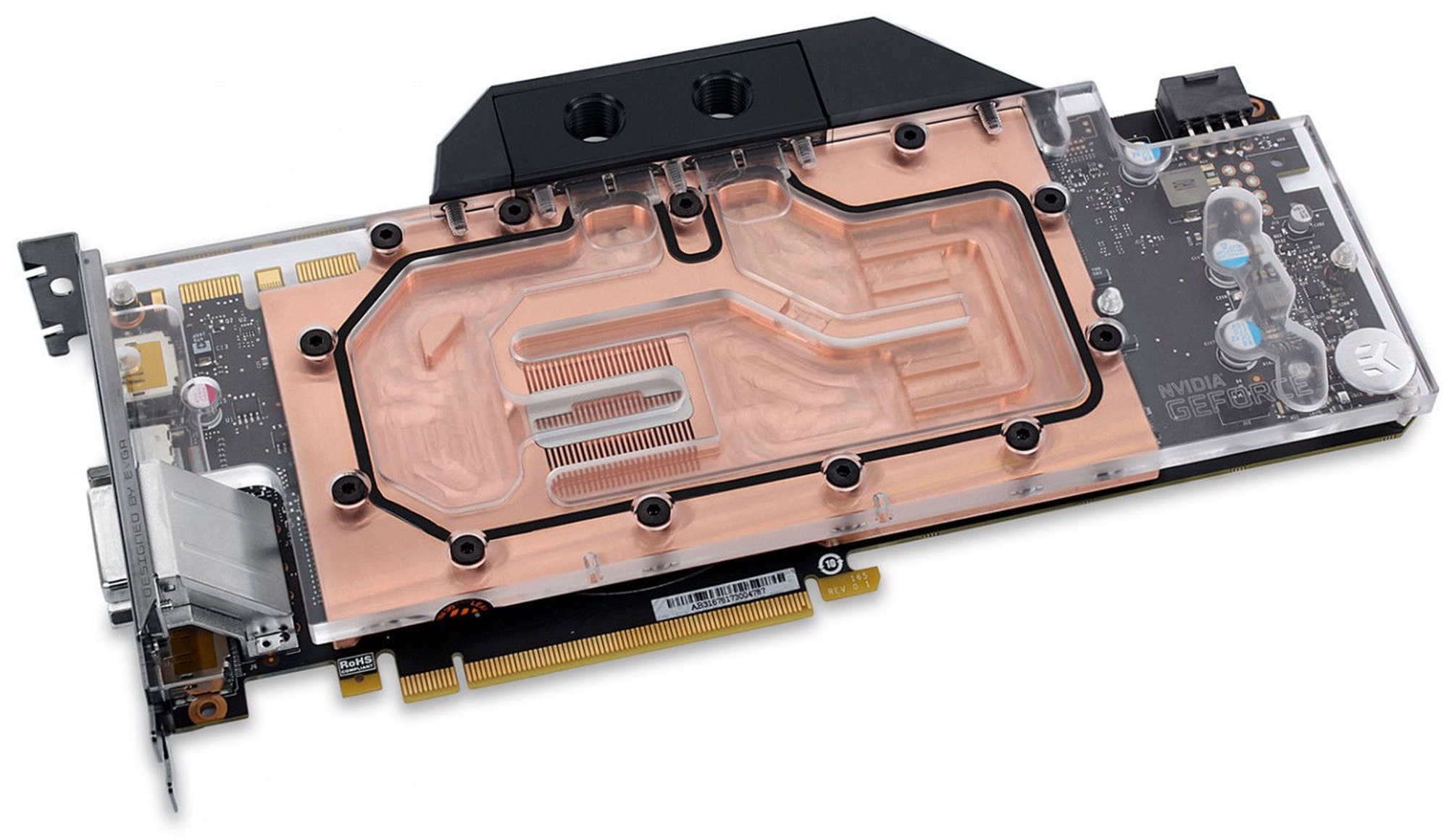

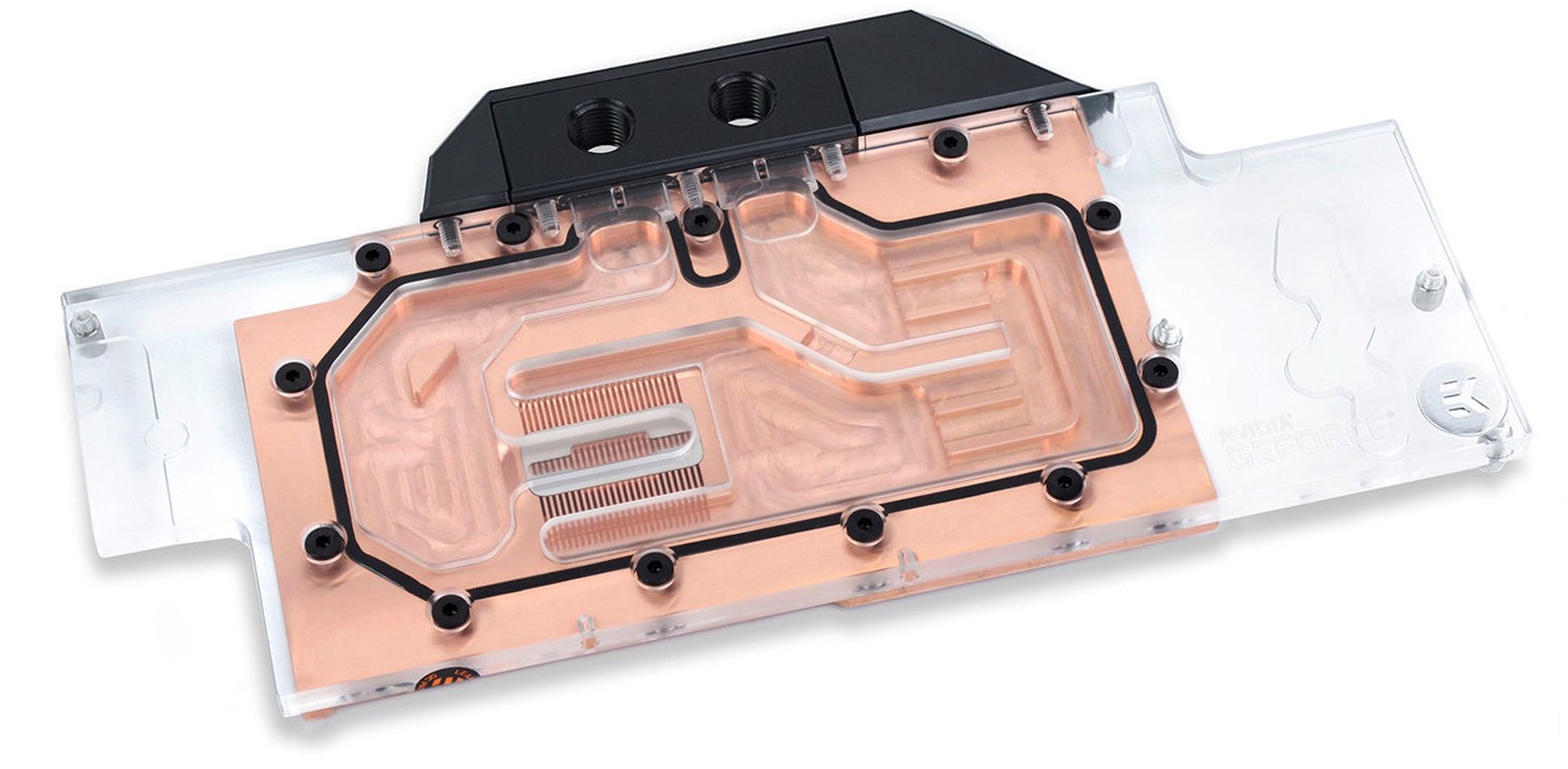

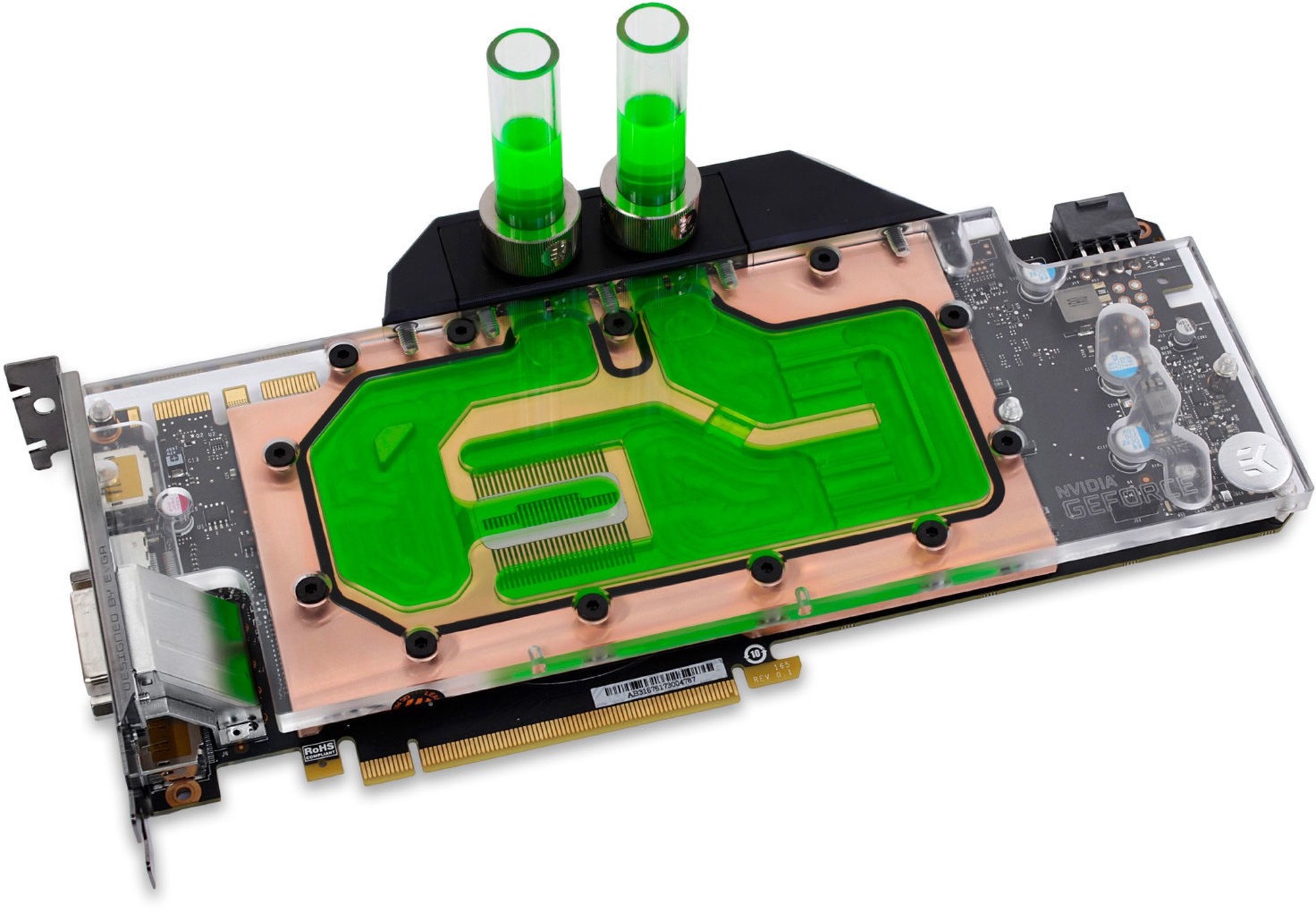

This water block directly cools the GPU, RAM, and VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC GeFroce GTX FE water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. This kind of efficient cooling will allow your high-end graphics card to reach higher boost clocks, thus providing more performance during gaming or other GPU intense tasks. Moreover, such design offers great hydraulic performance allowing this product to be used in liquid cooling systems using weaker water pumps.

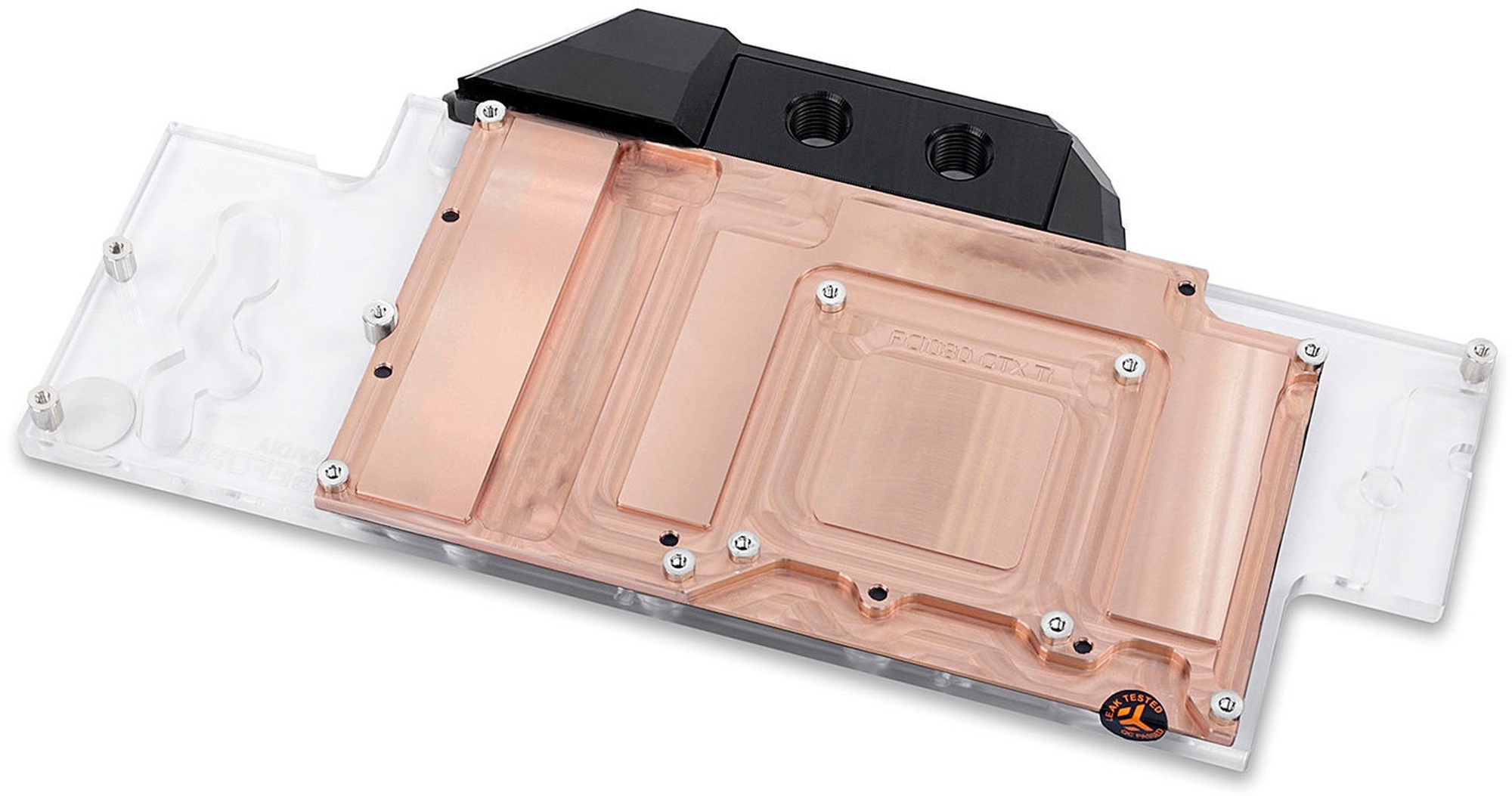

The base of the block is made of electrolytic copper while the top is made of quality acrylic material. The top also features two pre-drilled slots for 3mm LED diodes. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure.

EKWB recommends the purchase of aesthetic retention backplate which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section. The EK-FC GeForce GTX FE water block is backward compatible with all EK-FC1080 GTX Backplates, EK-FC1080 GTX Ti Backplates, and EK-FC Titan X Pascal Backplates.

G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC GeForce GTX FE water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.

The block also features a special plastic cover over the block Terminal. This add-on is designed to reveal the graphics card model, visible from the side. The terminal cover is removable, it is fitted with 2 screws from the side.

The EK-FC GeForce GTX FE water block is compatible with all reference design GeForce GTX 1060, GeForce GTX 1070, GeForce GTX 1080, GeForce GTX 1080 Ti, GeForce Titan X Pascal and GeForce Titan Xp based graphics cards. The current compatibility list rounds up a total of 106 graphics cards that are on the market, but as always, we recommend that you refer to the EK Cooling Configurator for a precise compatibility match.

- EK-FC GeForce GTX FE series water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x EK plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
