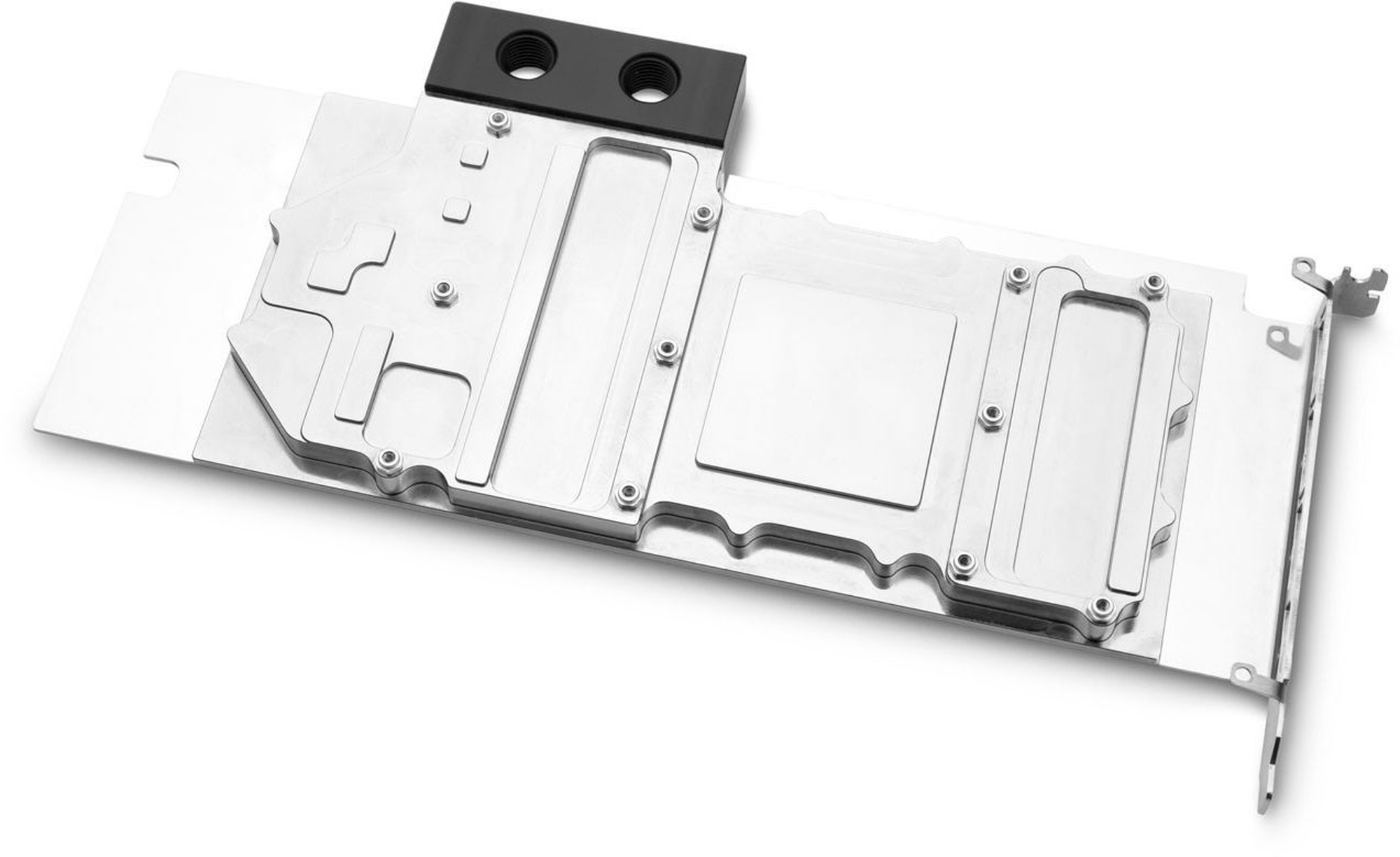

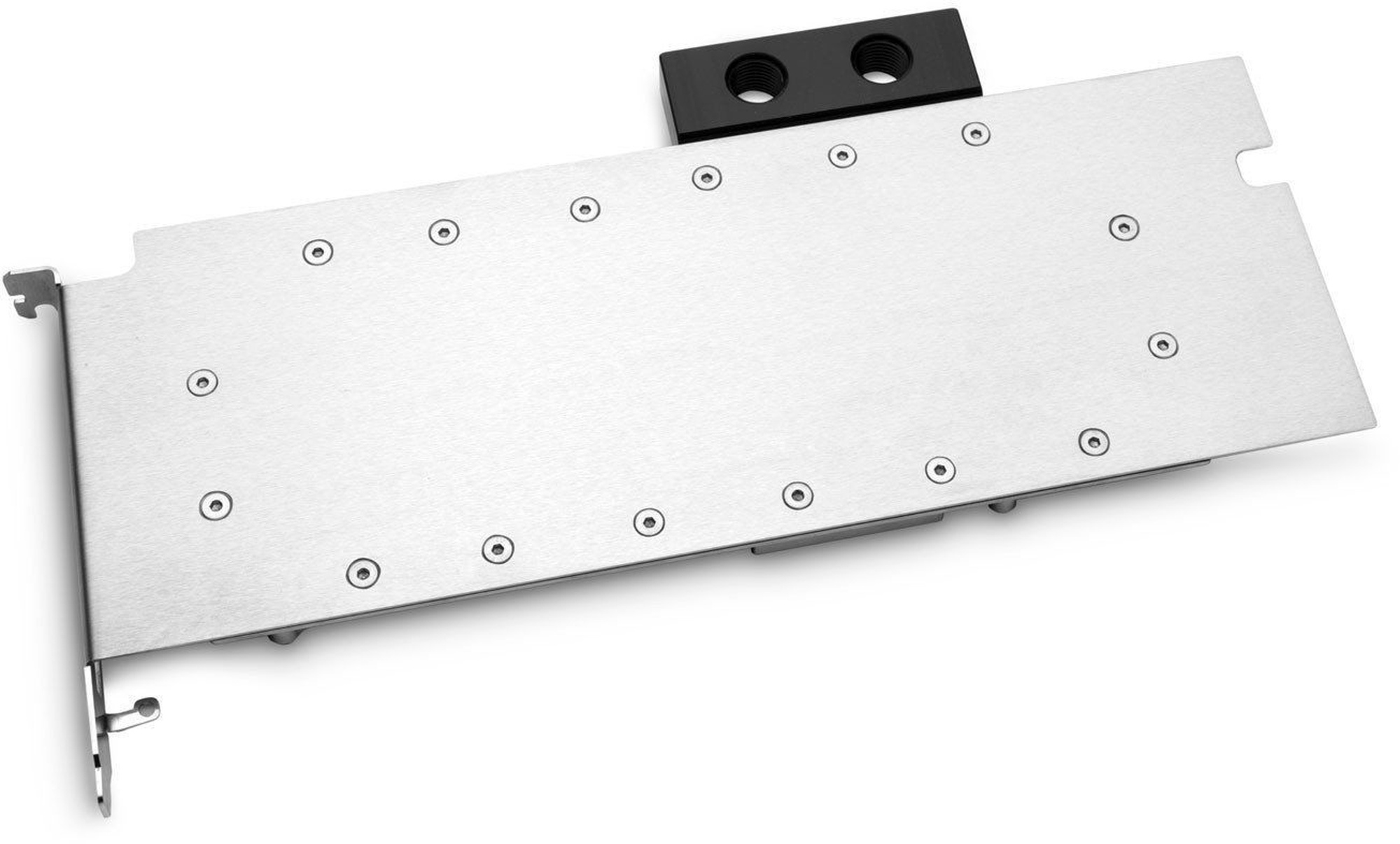

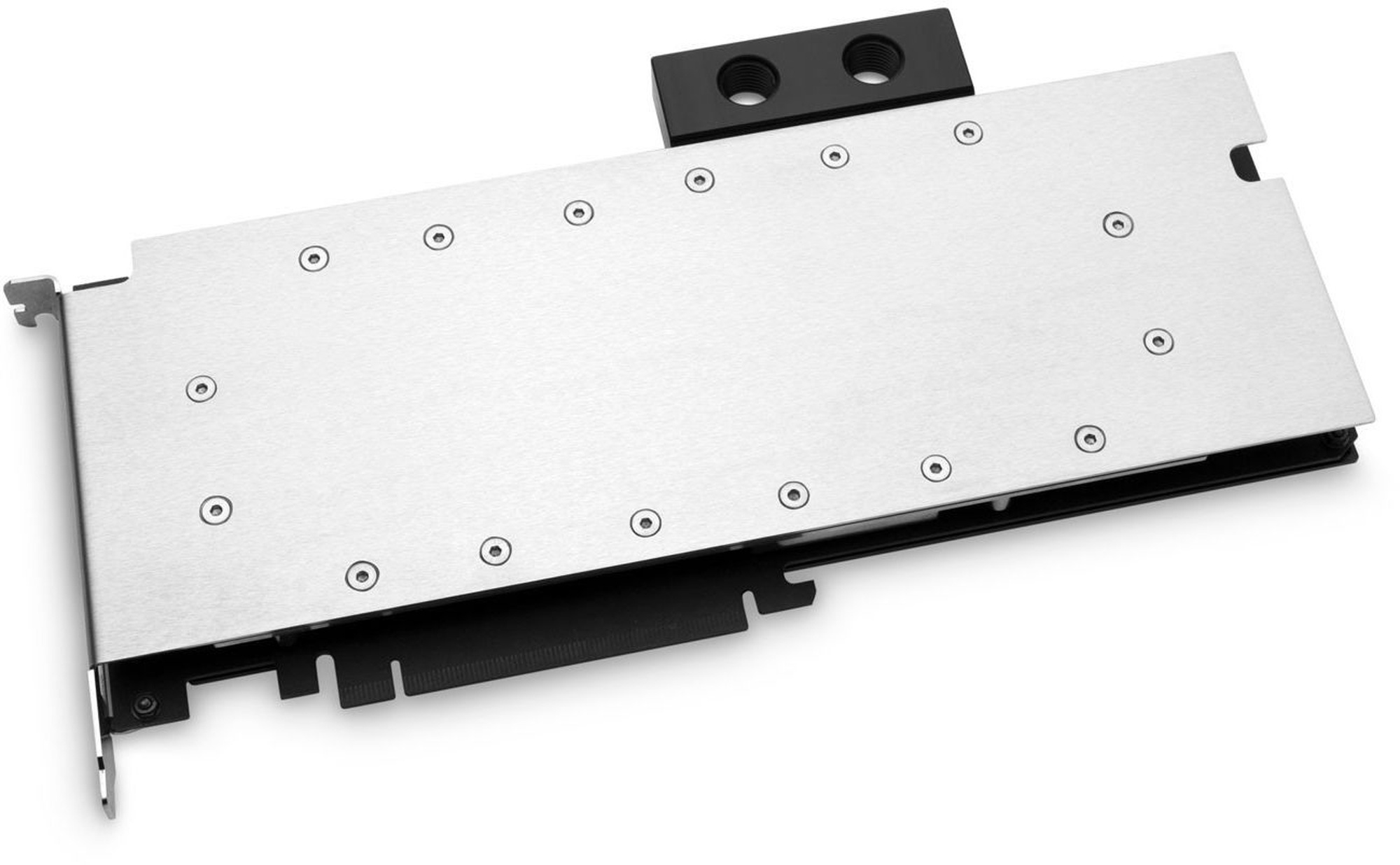

EK-FC GV100 Pro is a high-performance full-cover water block for NVIDIA® GV100 graphics cards. It is compatible with both the Quadro® GV100 and Tesla® V100, as well as the Titan V. The EK-FC GV100 Pro water block spans across the entire length of the card cooling all critical components.

The water block directly cools the GPU, VRAM and the VRM (voltage regulation module) as cooling liquid is channeled directly over these critical areas.

EK-FC GV100 Pro water blocks use an Open Split-Flow cooling engine design which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, which means that it can be used with weaker water pumps, or pumps running on low-speed settings and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios.

The base of the block is CNC machined out of nickel-plated electrolytic copper while the top is laser cut out of industry grade stainless steel. The sealing is ensured by high-quality EPDM O-Rings. The brass standoffs are already pre-installed and allow for a safe and easy installation procedure. For added stability and protection for the graphics card, the I/O plate is a part of the water block top itself. Meaning that the block replaces the stock I/O shield and adds more sturdiness to the whole assembly.

EKWB recommends the purchase of aesthetic retention backplate which improves the looks of your graphics cards, as well as improves structural rigidity while providing passive cooling to the backside of the PCB VRM area. The EK-FC GV100 Pro water block is compatible with EK-FC GV100 Pro Backplate - Black.

G1/4" threaded fittings can be used on both sides of the FC terminal and for multiple GPU connectivity, please refer to our offer of GPU Terminals.

- EK-FC GV100 Pro workstation-grade water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- Thermal pads
- 2x Nickel plated brass plug G1/4”
- Thermal grease EK-TIM Ectotherm (1g)
