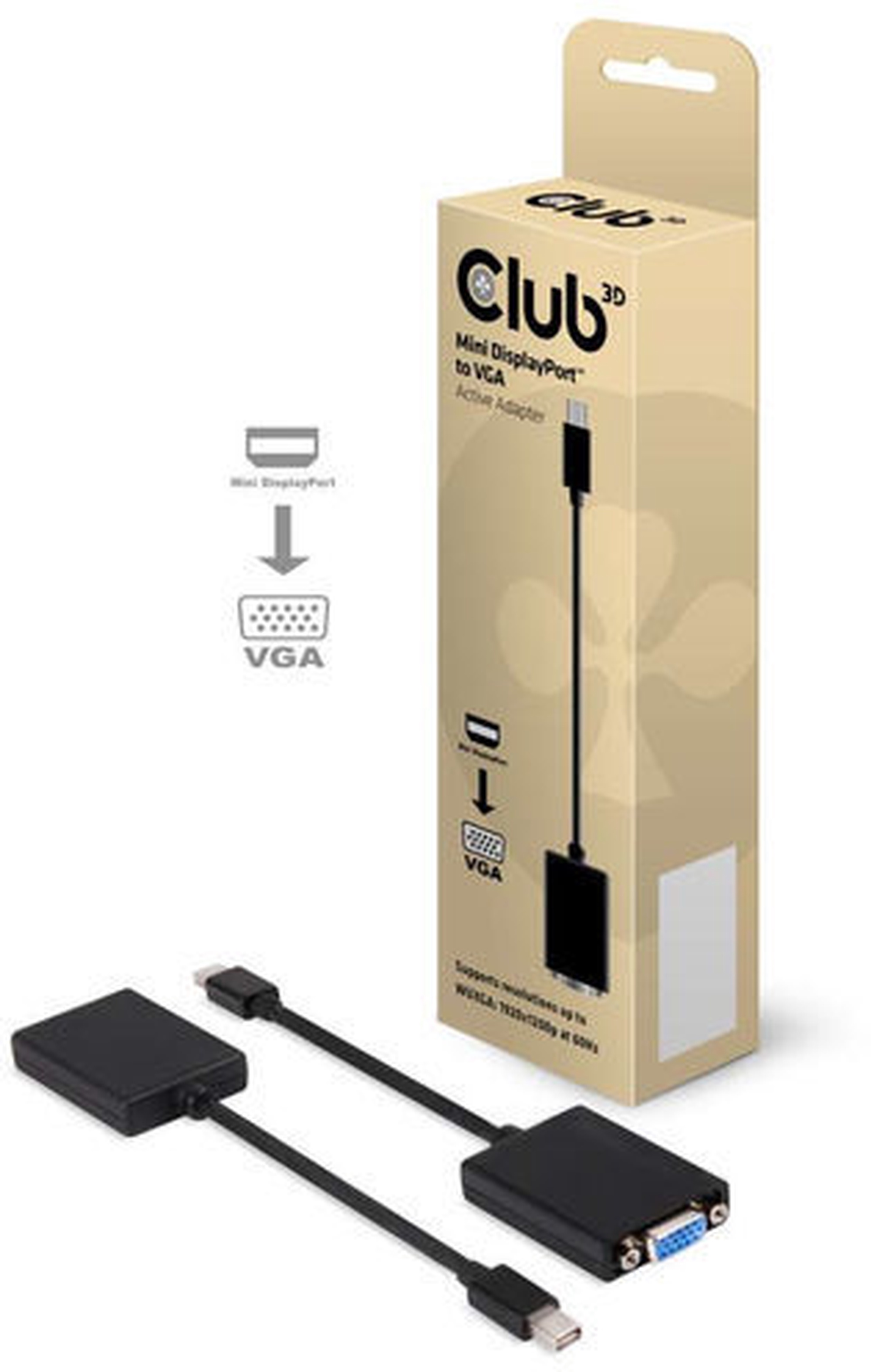

Adapteris Club 3D Mini DisplayPort, VGA, 0.15 m

Prekės aprašymas anglų kalba:

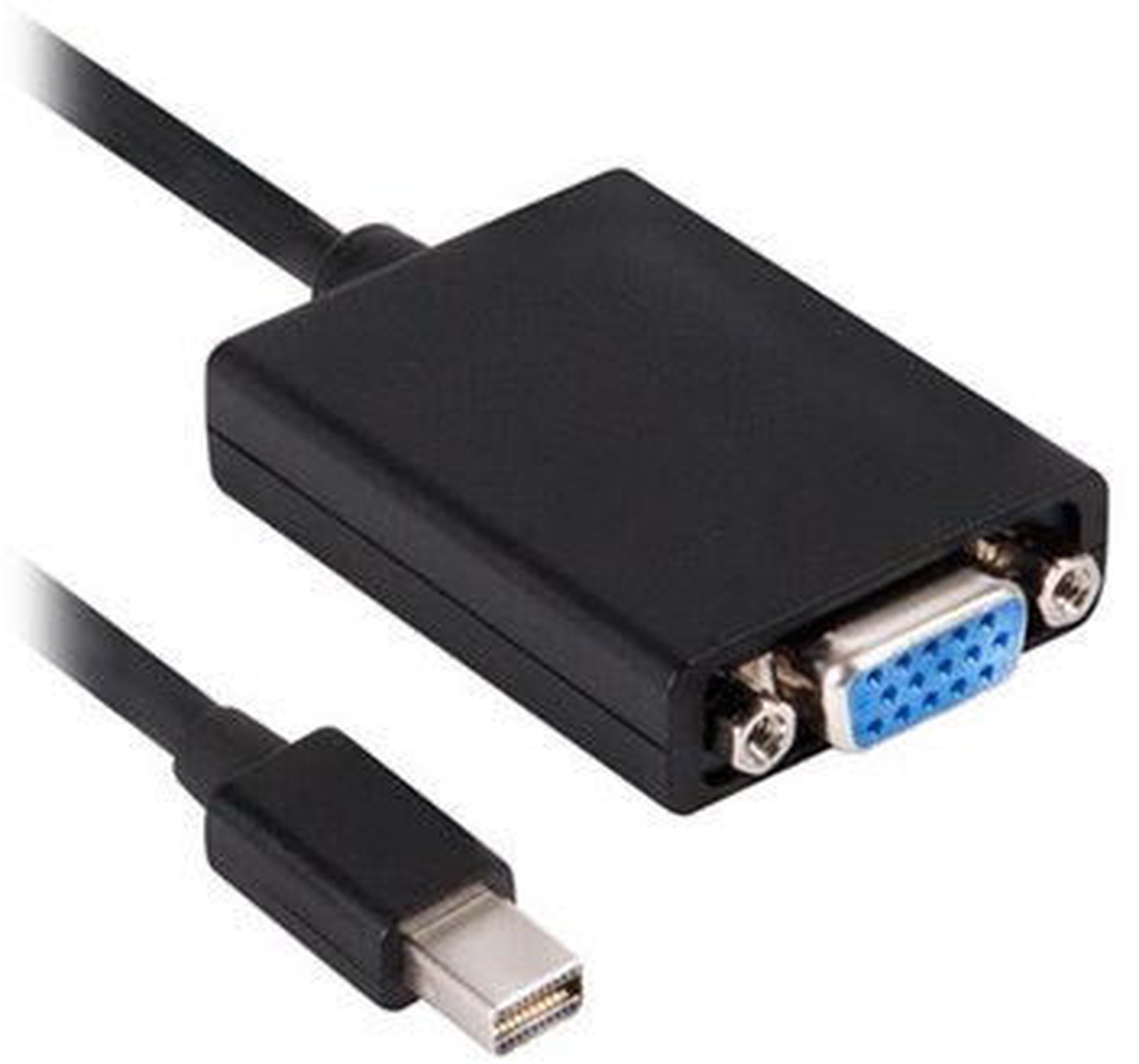

The Club 3D CAC-1103 is an active Mini DisplayPort™ to VGA signal converter. It accepts a Mini DisplayPort™ input from a Mini DisplayPort™ enabled Desktop or Laptop and converts to a legacy analog VGA output allowing the use of analog VGA Televisions, Monitors or Projectors. The adapter offers hassle free plug and play functionality and is powered by the DP output.

The Mini DisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and power. The VGA output is compliant to VSIS standard and supports up to WUXGA RB timings.

Supports resolutions up to WUXGA 1920x1200p @ 60Hz.
The adapter works with AMD, Nvidia and Intel Graphic Solutions and supports AMD Eyefinity™.

Features:

• DisplayPort™ 1.1a compliant receiver offering 5.4Gbps bandwidth over 2 lanes
• Integrated tripler 10-bit,162MHz video DAC for analog VGA signal output
• EDID and MCCS pass-through from PC source to display
• Supports resolutions up to WUXGA 1920x1200p at 60Hz
• Supports HDTV formats up to 1920x1080p Full HD
• Powered by the DisplayPort™ output
• Automatic sink detection
• Support for multi-monitor setups and AMD Eyefinity™
• Compatible with AMD, Nvidia and Intel Graphics solutions
