Adapteris Delock Displayport, DC jack

Prekės aprašymas anglų kalba:

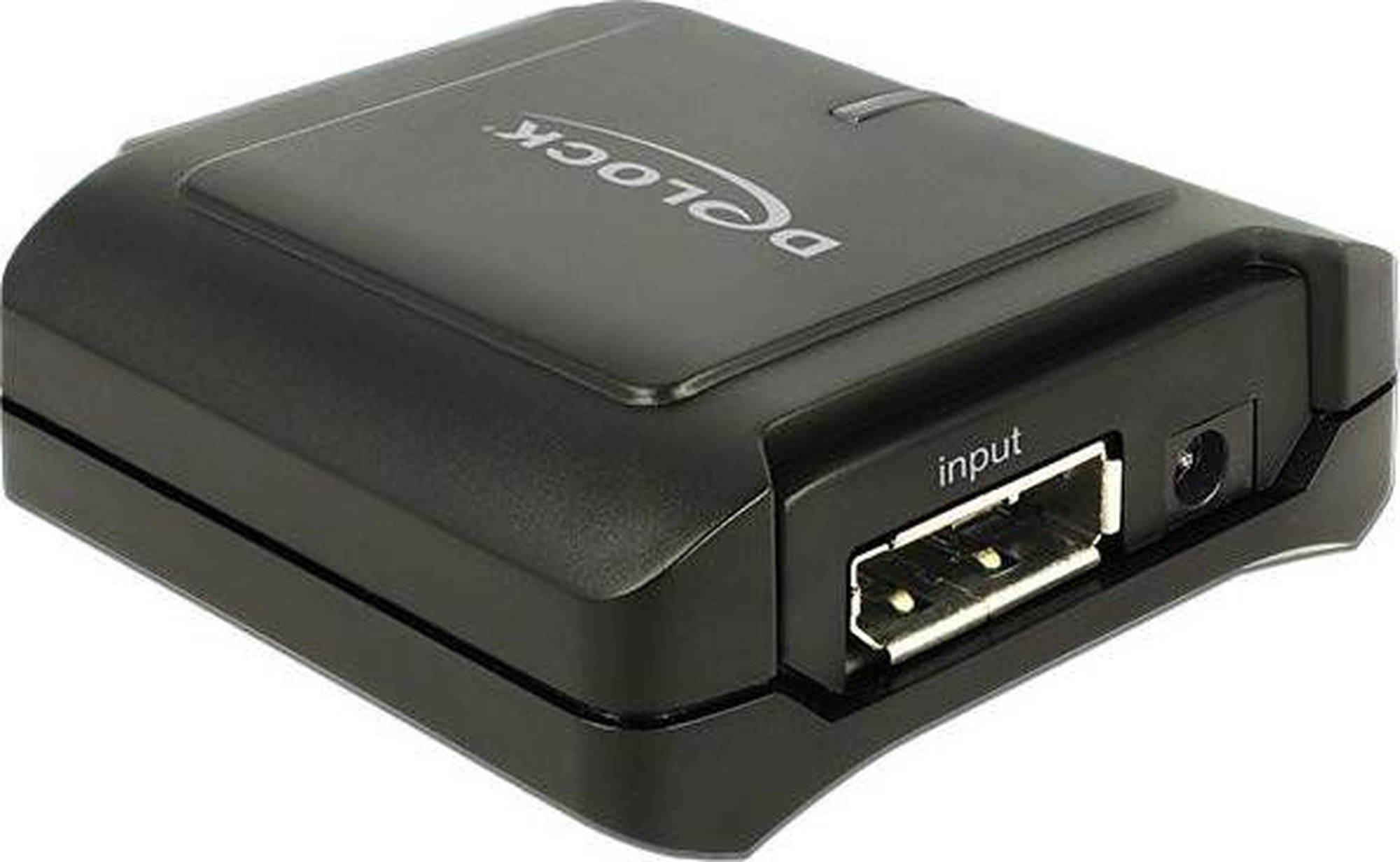

This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 40 m. An up to 20 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 20 m long cable to the output port of the repeater, which is then connected to a display or TV. The output is dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
• Connectors:
Input:
1 x DisplayPort 20 pin female
1 x DC 5 V power connector
Output:
1 x DisplayPort 20 pin female
• DisplayPort 1.2 specification
• Supports HBR2 (5.4 Gbps) data rate
• DisplayPort output supports Dual Mode DP++
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Resolution and maximum cable length:
3840 x 2160 @ 60 Hz / 5 m in, 5 m out
3840 x 2160 @ 30 Hz / 15 m in, 20 m out
2560 x 1600 @ 60 Hz / 20 m in, 20 m out
• Colour: black
• Dimensions (LxWxH): ca. 55 x 54 x 20 mm
