Adapteris Delock

Prekės aprašymas anglų kalba:

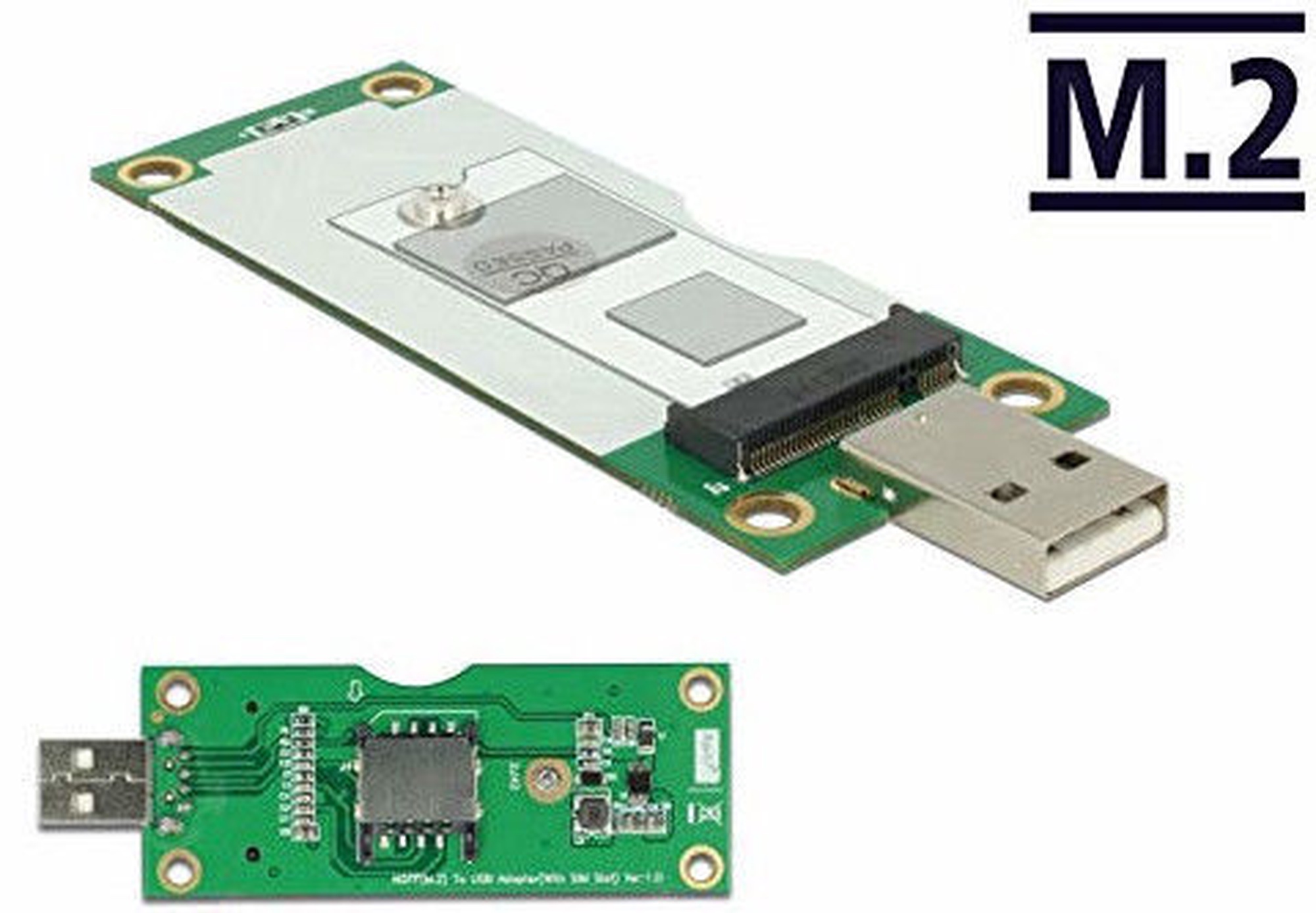

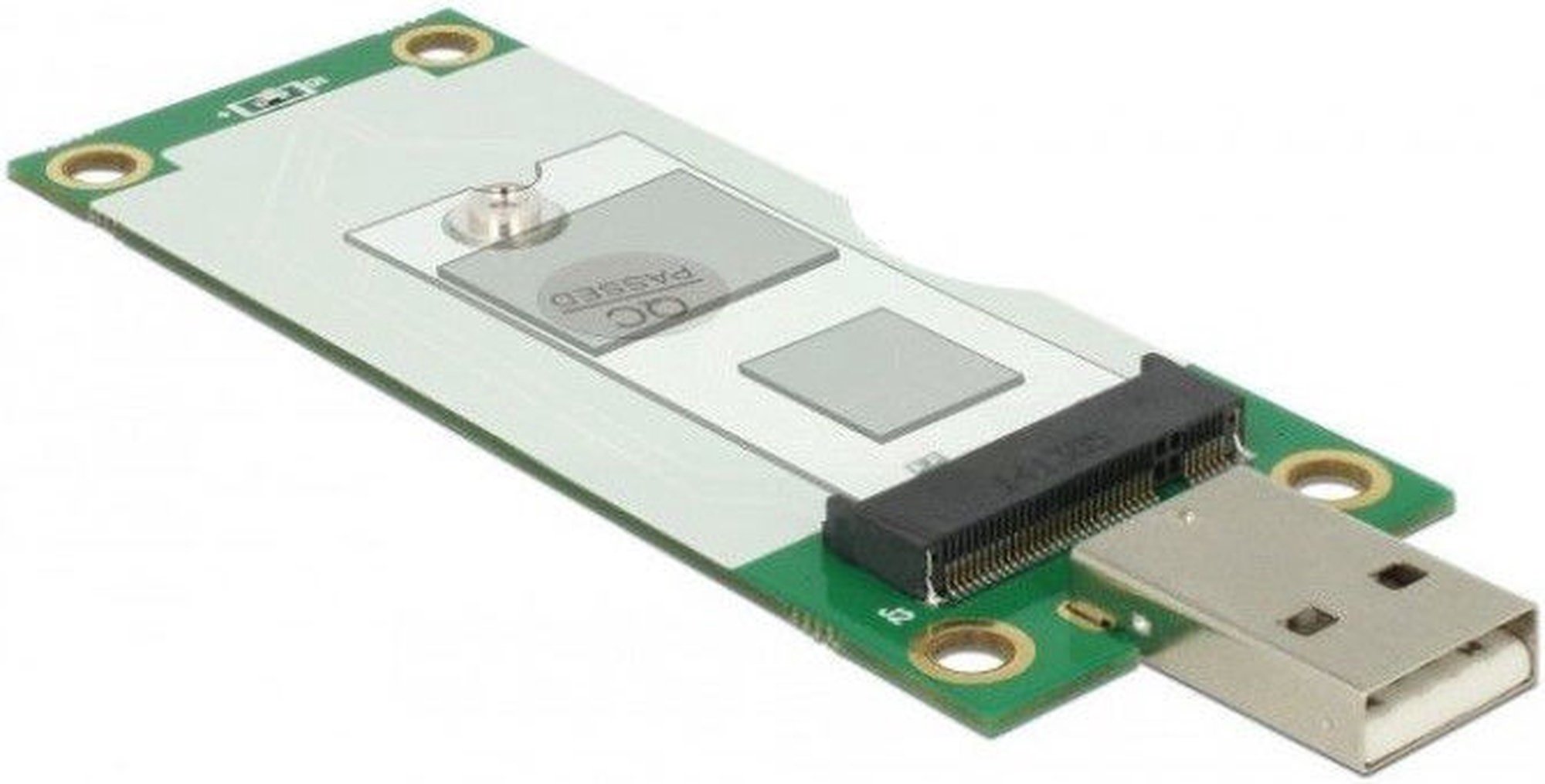

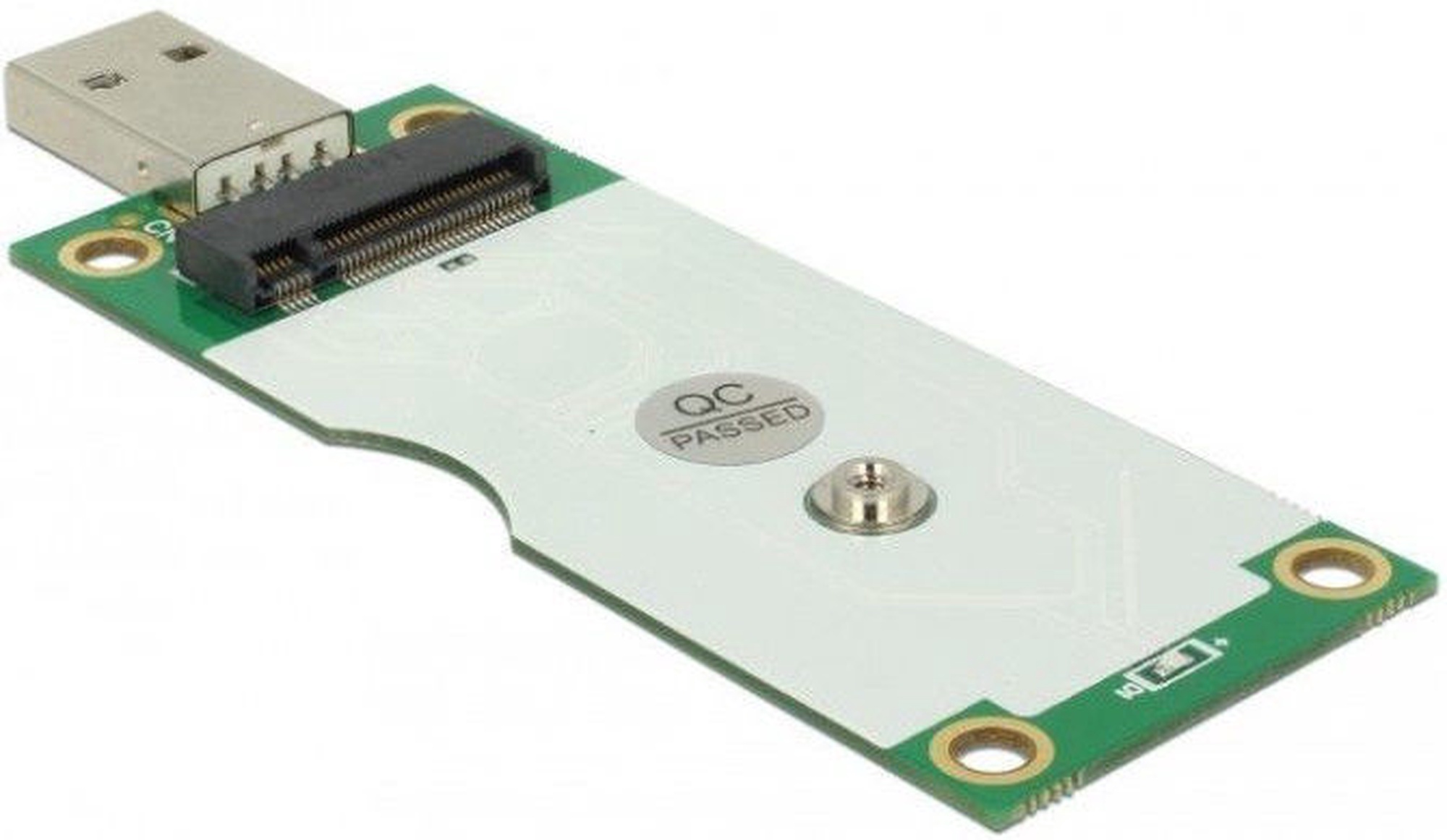

This converter by Delock enables the connection of an M.2 module, e.g. GSM, GPRS, 3G, WLAN or LTE, in 2242 or 3042 format. The converter can be installed into the system through the USB interface. Further there is the possibility to insert a SIM card in the slot and use with an appropriate M.2 module.


Specification

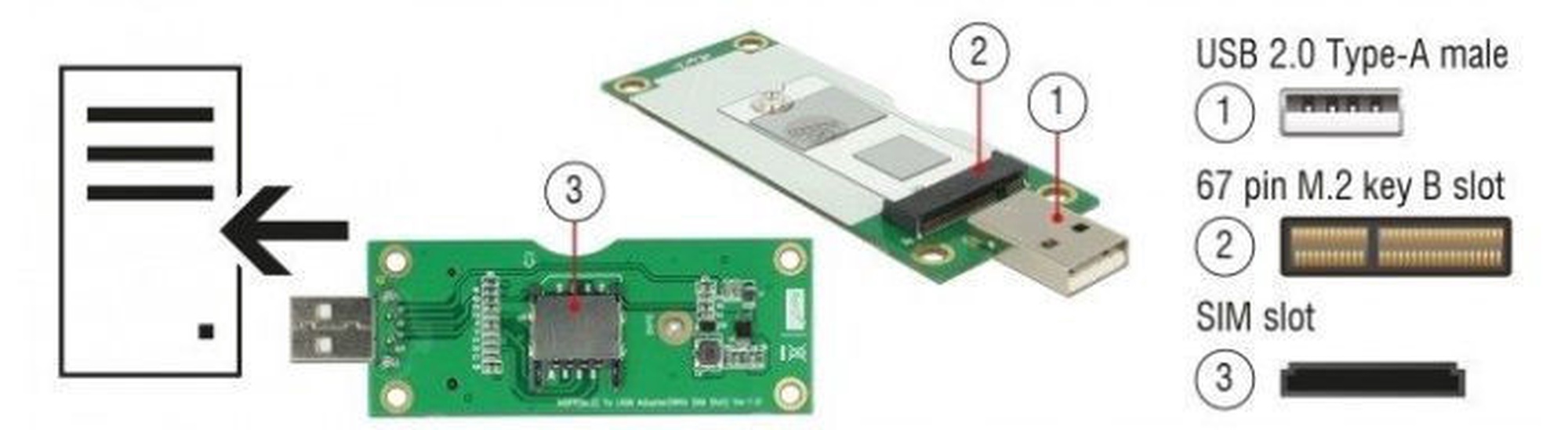

• Connectors:
1 x USB 2.0 Type-A male
1 x 67 pin M.2 key B slot

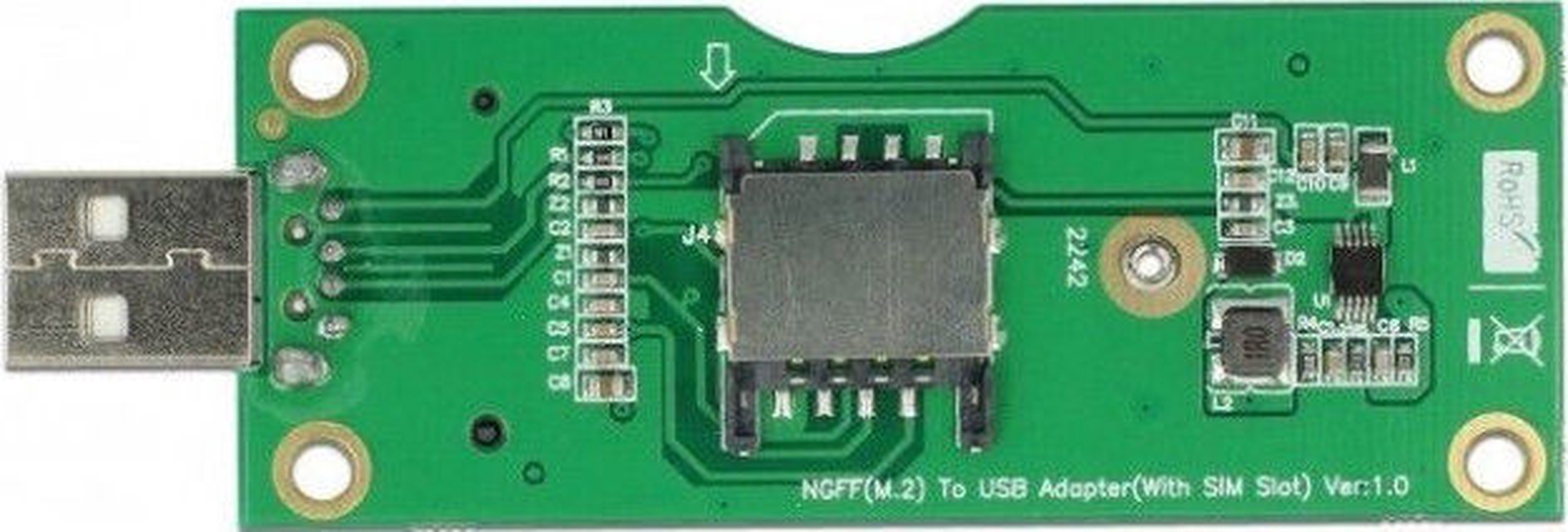

1 x SIM slot
• Interface: USB
• Supports M.2 modules in format 2242 and 3042 with key B or key B+M based on USB
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Dimensions (LxWxH): ca. 80 x 31 x 6 mm
• Hot Swap, Plug & Play
• USB bus powered
• OS independent, no driver installation necessary

System requirements

• A free USB Type-A port

Package content

• Converter

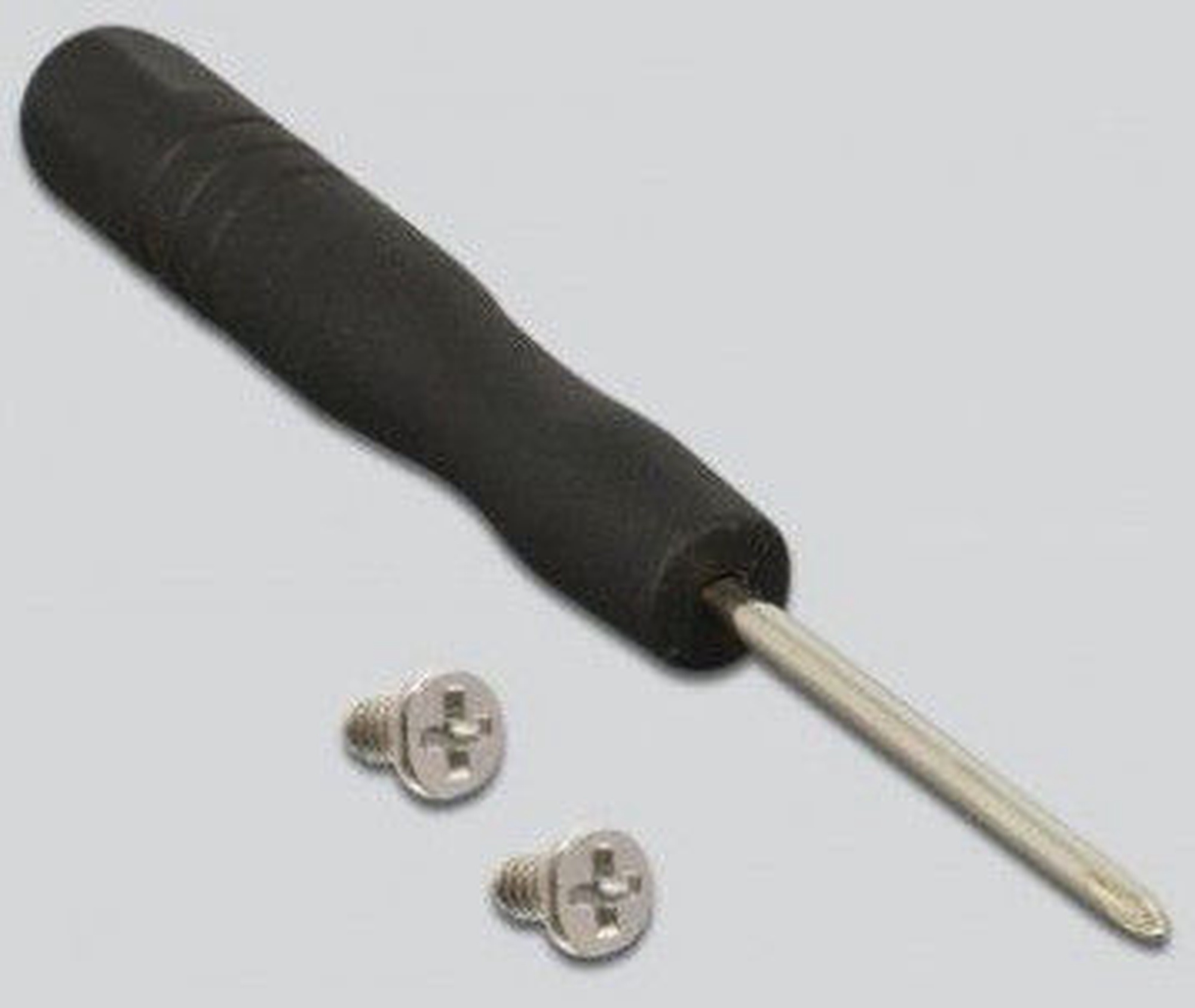

• Mounting material
• Screwdriver
• User manual

Package

• Retail Box
