Adapteris Delock

Description

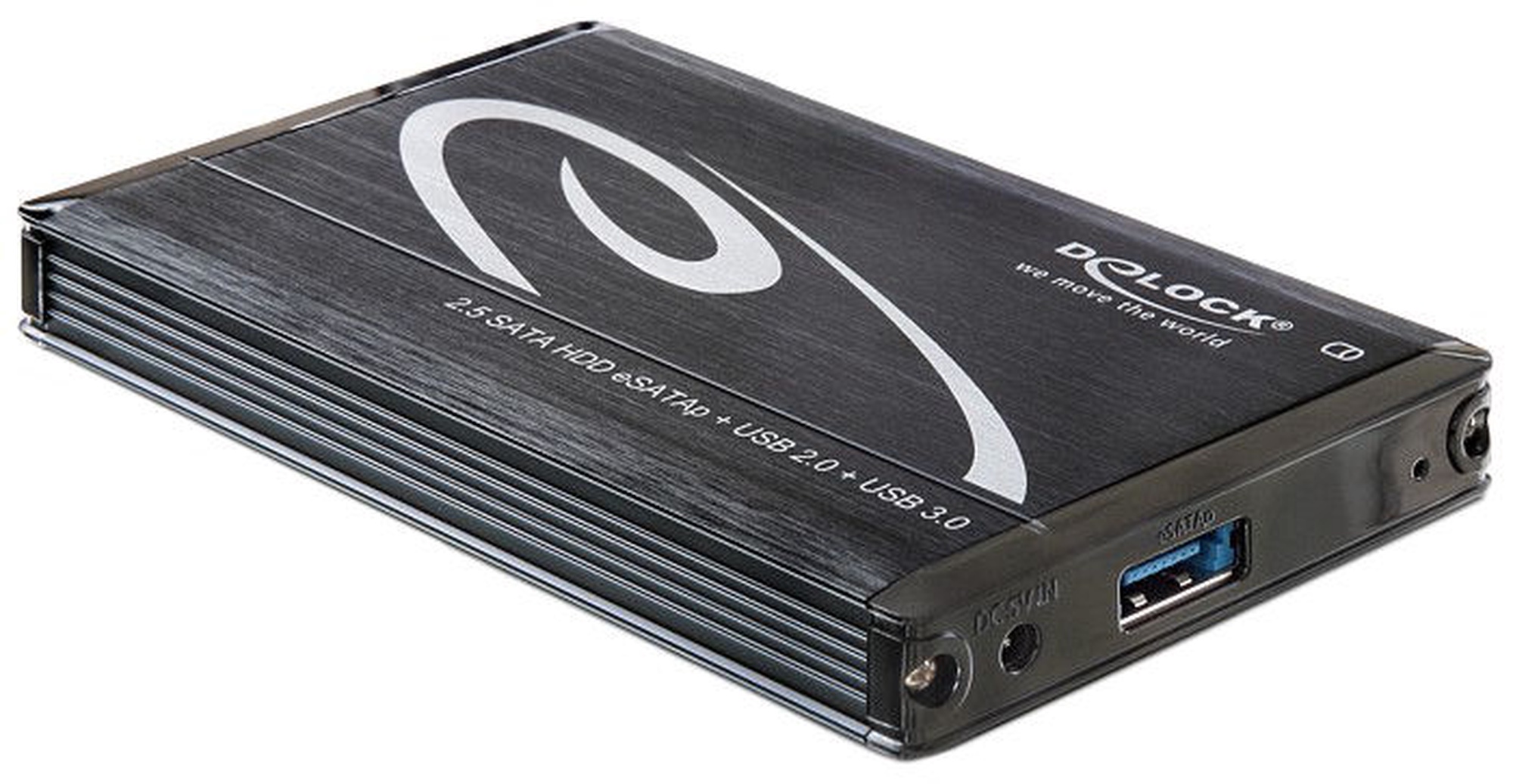

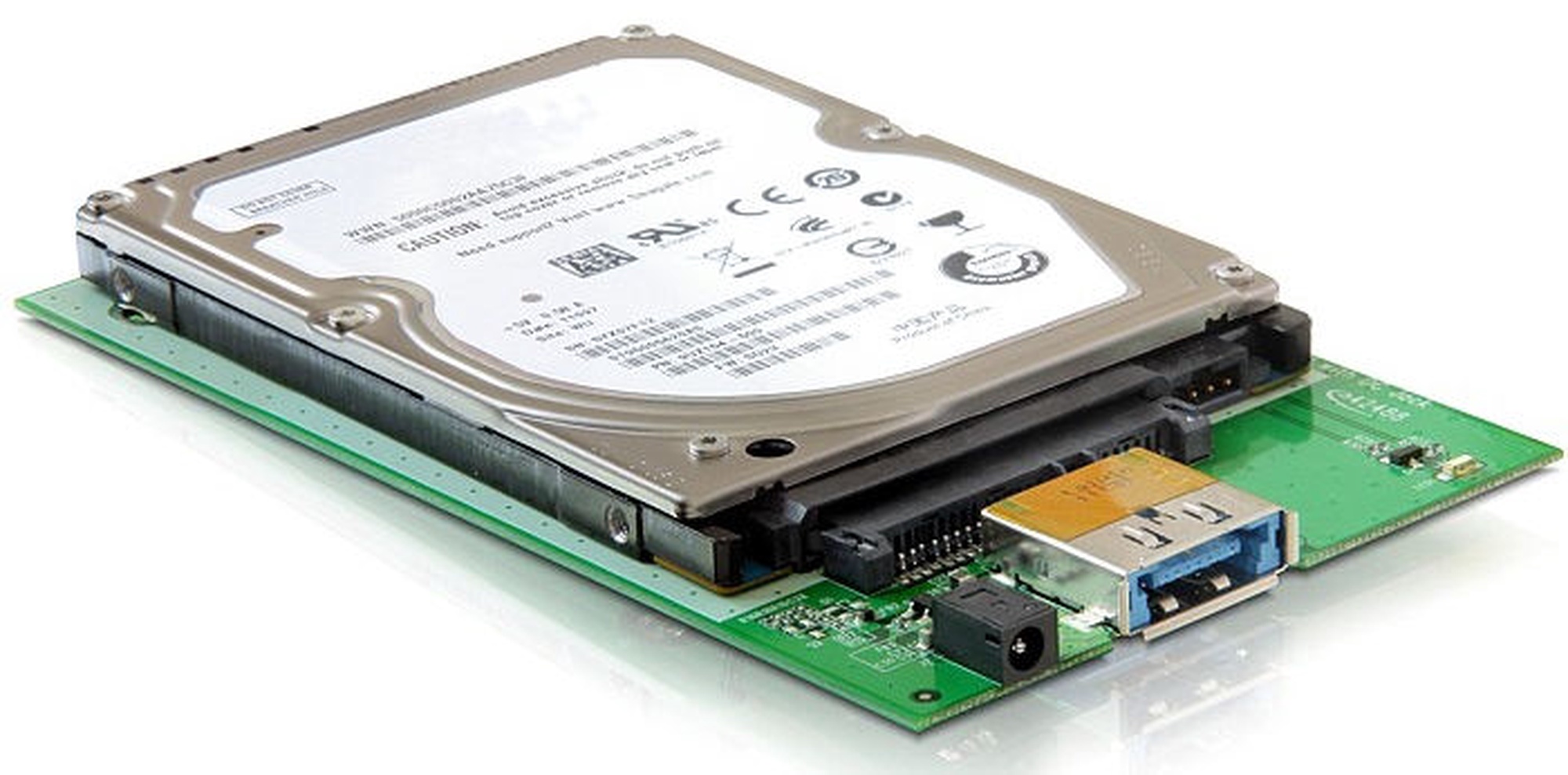

This aluminium-enclosure by Delock enables you to install a 2.5″ SATA HDD or SSD and provides up to 4 different connecting options due to its special Multiport USB 3.0 + eSATAp interface. The Multiport is a combination of eSATA and USB 3.0 interface, which supports a fast data transfer and a voltage supply of up to 5 V. For extra voltage supply, when connecting via eSATA, you will find an additional power cable included in delivery.

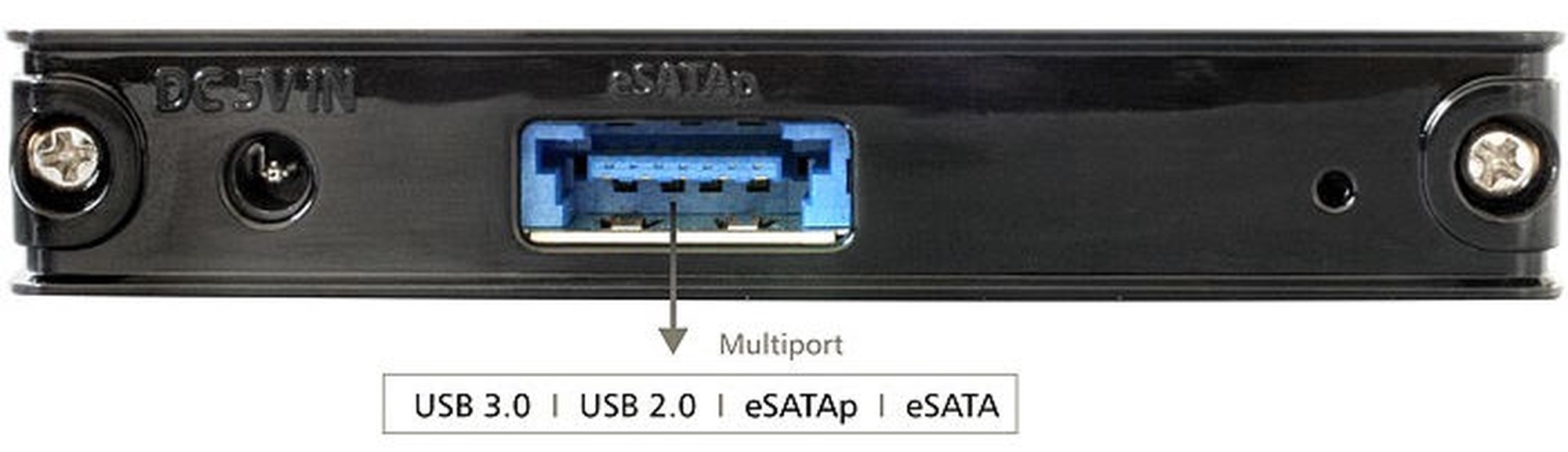

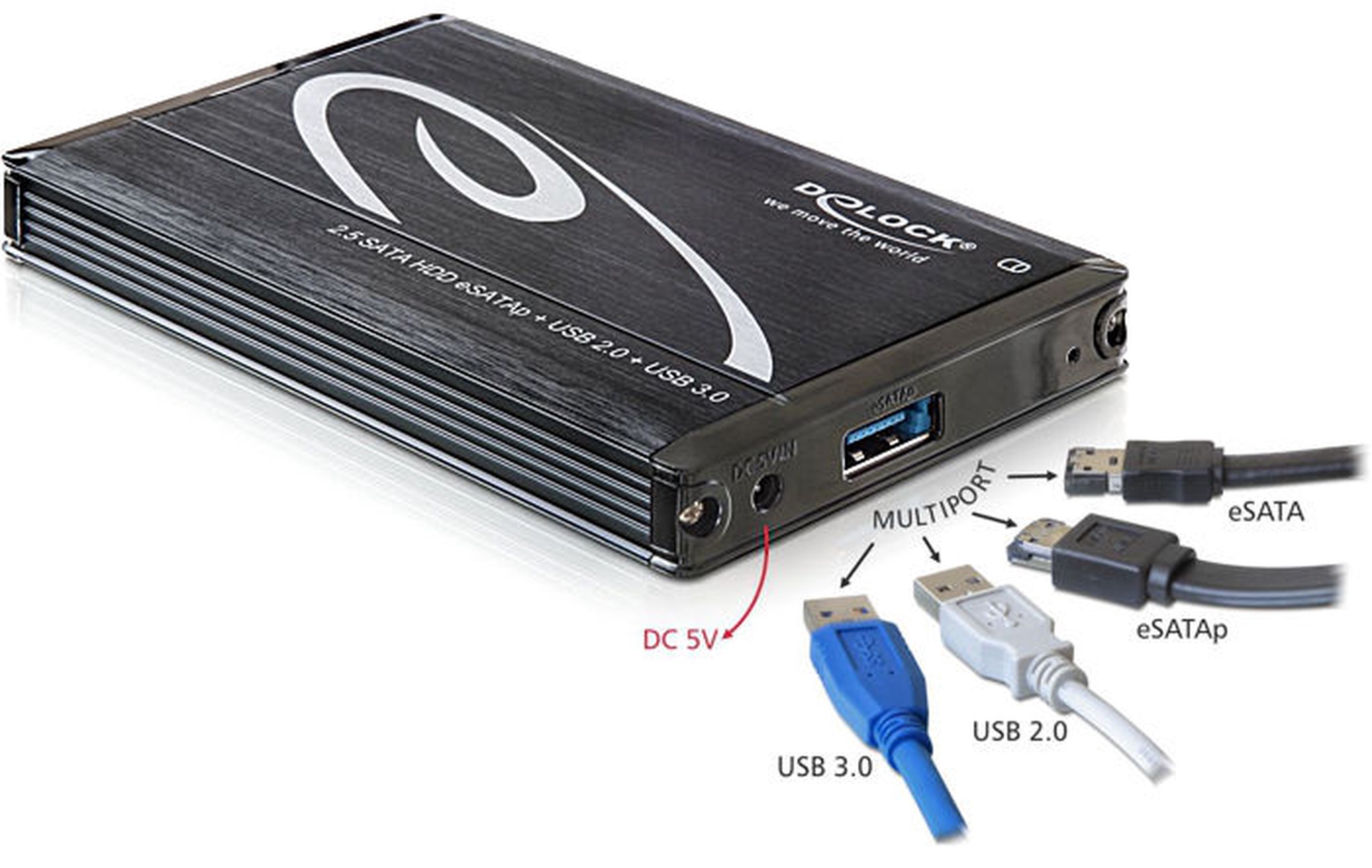

Connecting options:
1. USB 3.0 (Power via USB)
2. USB 2.0 (Power via USB)
3. eSATAp (Power Over eSATA combo-connection
eSATA+USB - eSATA for data and USB for power)

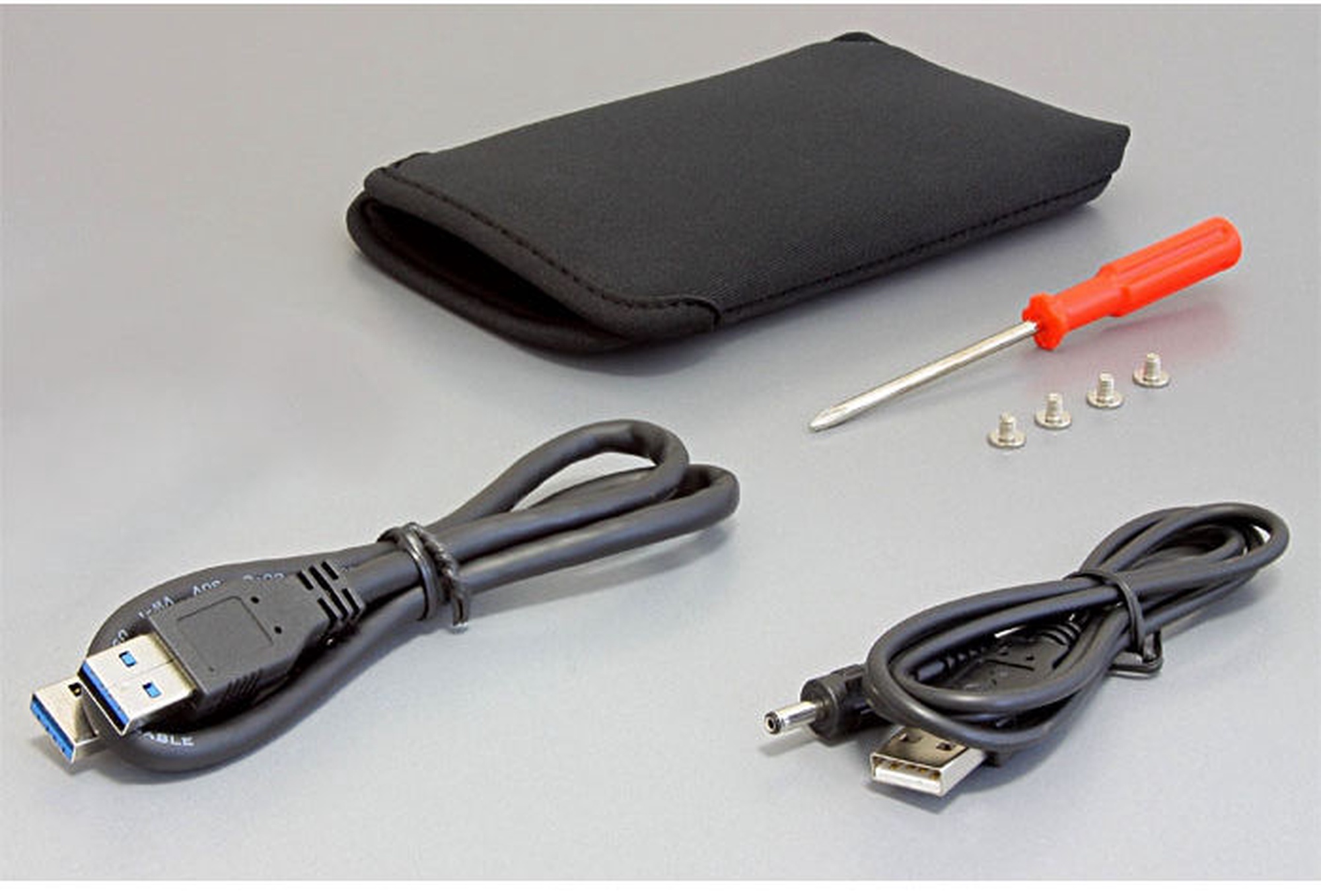

4. eSATA (eSATA for data and power via included USB power cable)

Specification

• Connector:

external:
1 x Multiport USB 3.0 + eSATAp 6 Gb/s female
1 x DC for power when connecting via eSATA
internal:
1 x SATA 6 Gb/s 22 pin male

• Suitable for 2.5″ SATA HDD / SSD:

HDD height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
HDD / SSD up to 3 TB

• Data transfer rate:

USB 3.0 up to 5 Gb/s
USB 2.0 up to 480 Mb/s
eSATA up to 6 Gb/s

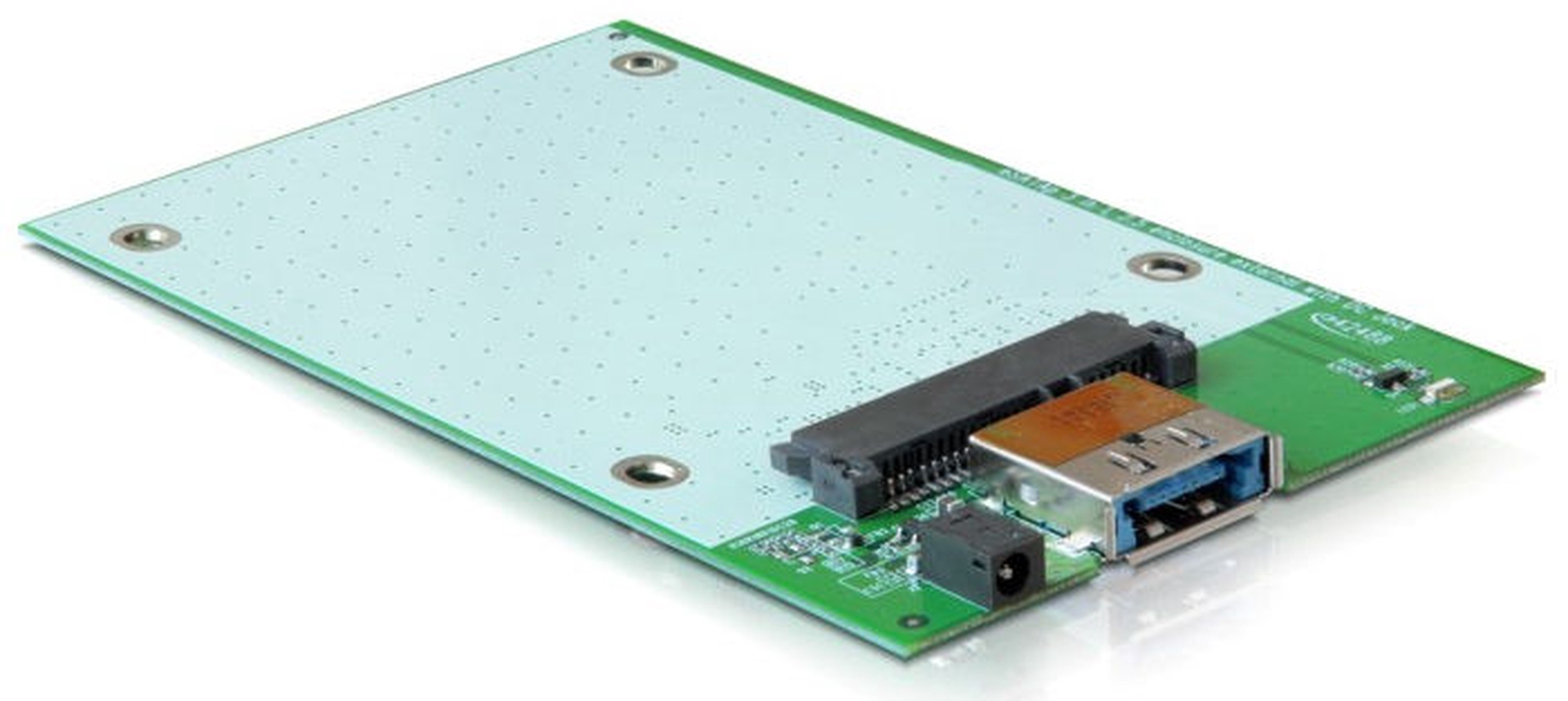

• Enclosure with full-PCB
• LED indicator for power
• Colour: black
• Dimensions (LxWxH): ca. 136 x 80 x 16 mm
• Hot Swap, Plug & Play
