Adapteris EK Water Blocks

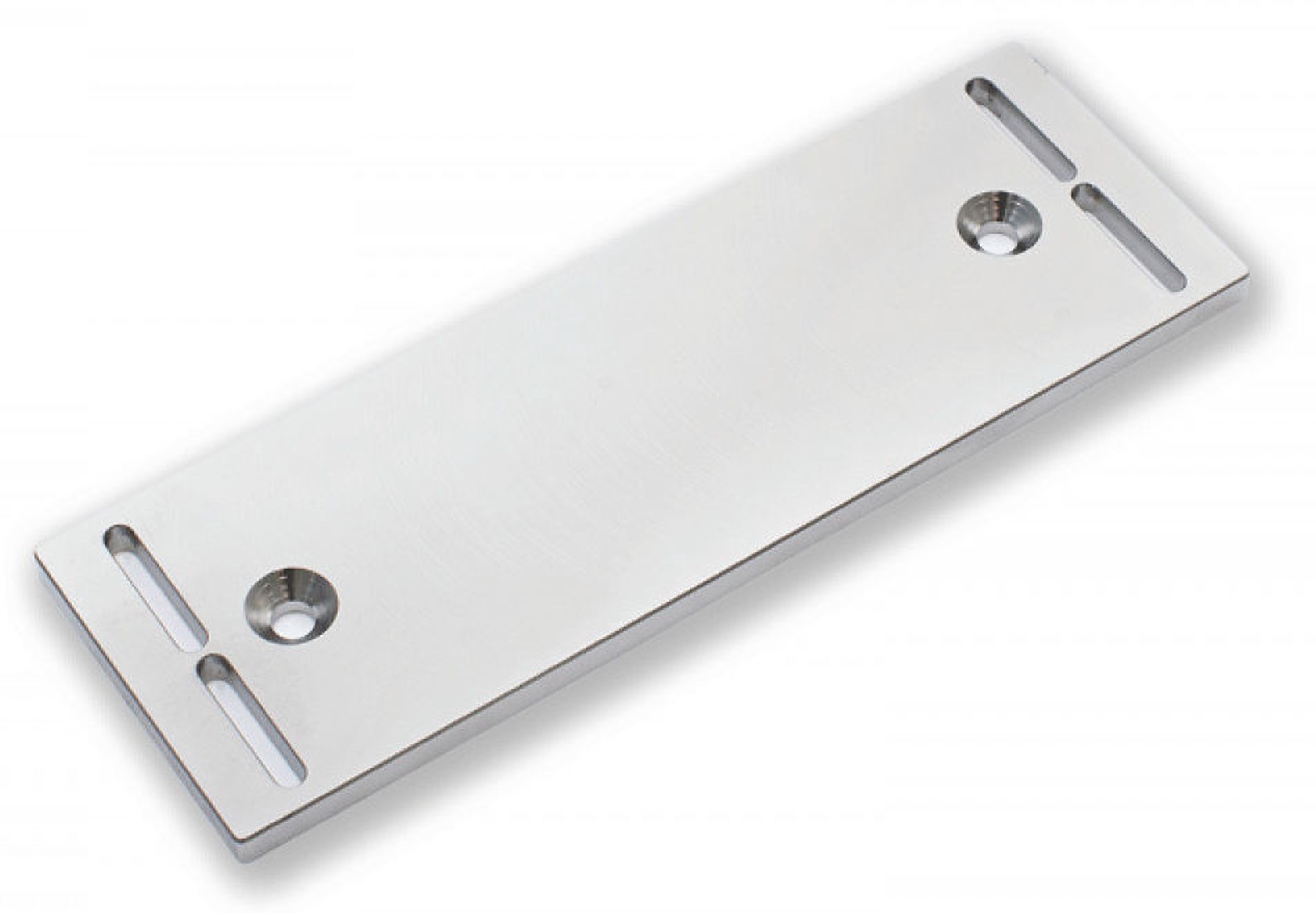

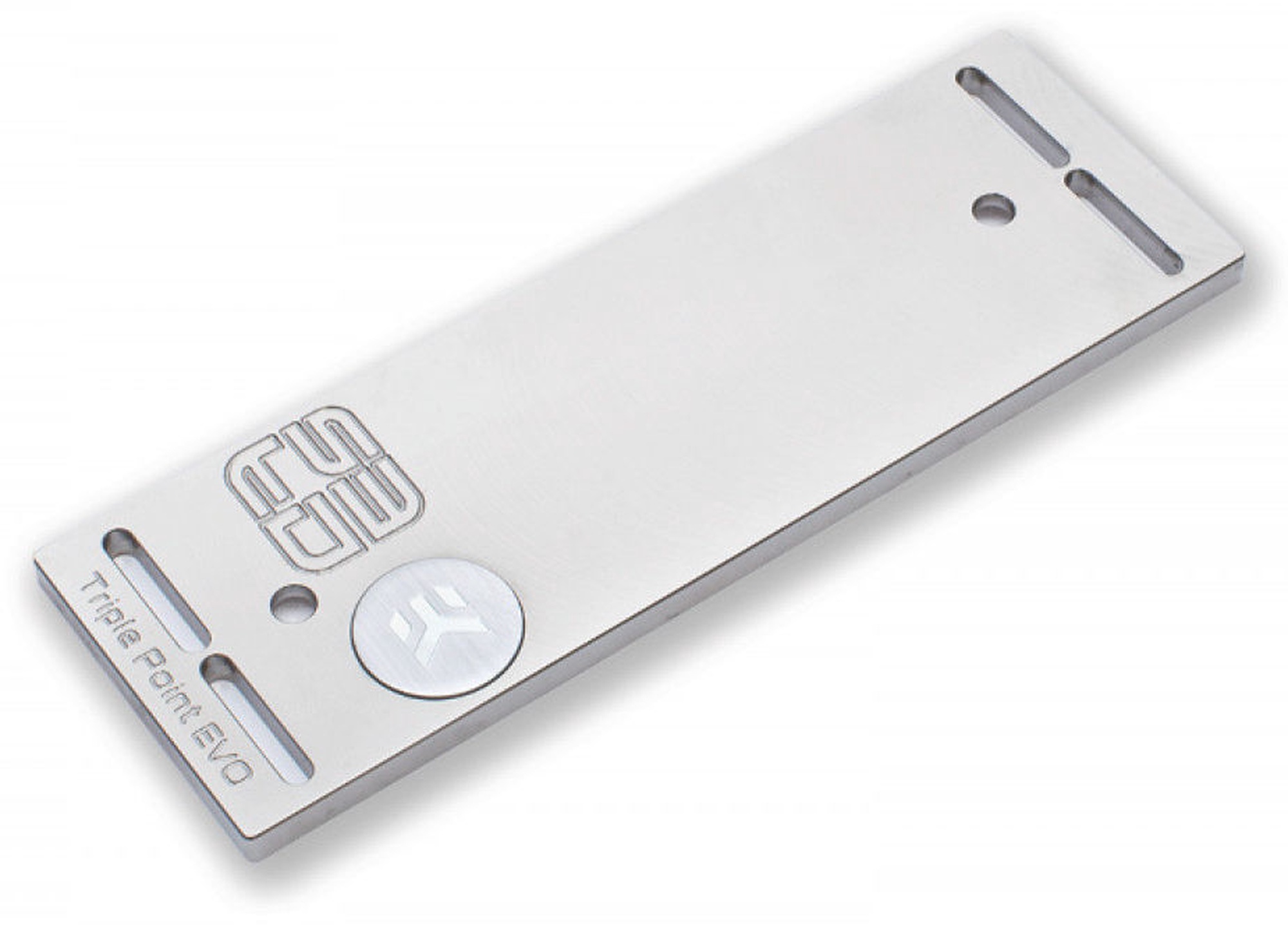

EK-SF3D Triple Point EVO - UNI Adapter is a universal adapter plate that allows the installation of various cooling solutions to your Triple Point Module Adapters. Used in conjunction with up to four Module Adapters this unit allows extreme overclocking of virtually any (DDR-)SDRAM memory module (of any generation).

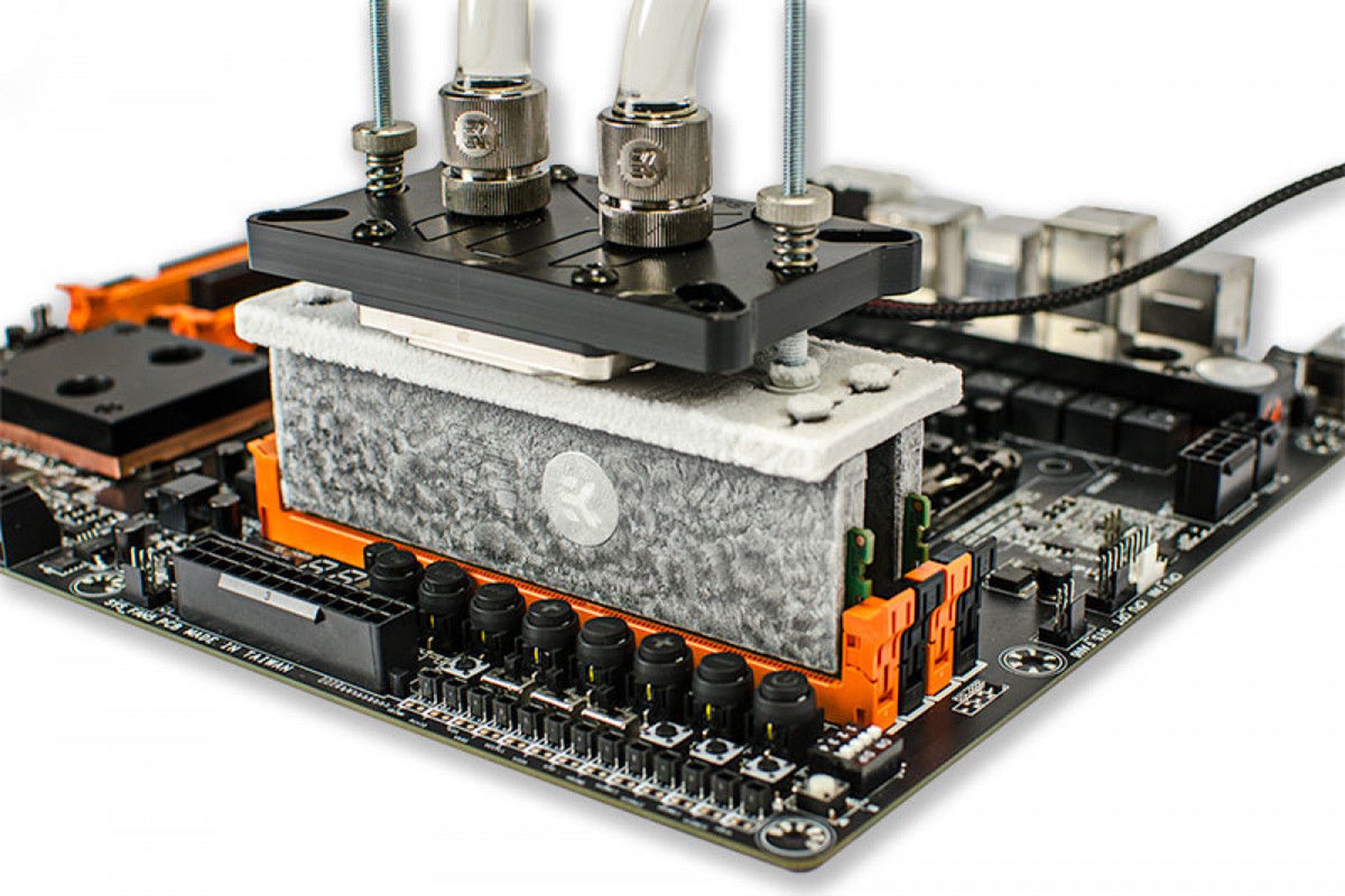

Pre-testing is the key to success in the world of extreme overclocking. With this adapter you can utilise your favorite phase change cooling unit, an old LN2 evaporator or your even a water cooled TEC (as shown on photo below) to bin your memory, as long as your cooler supports AMD S939/754 mouting hole pattern:

- pure electrolytic copper core with nickel plated finish
- standard AMD S754/939/940 mounting hole pattern (89mm)
- complete mounting mechanism with extra long 80mm M4 screws
- supports up to four EK-SF3D Triple Point EVO Module Adapters
- also compatible with EK-RAM Monarch Module Adapters

Enclosed:
- EK-SF3D Triple Point EVO - UNI Adapter

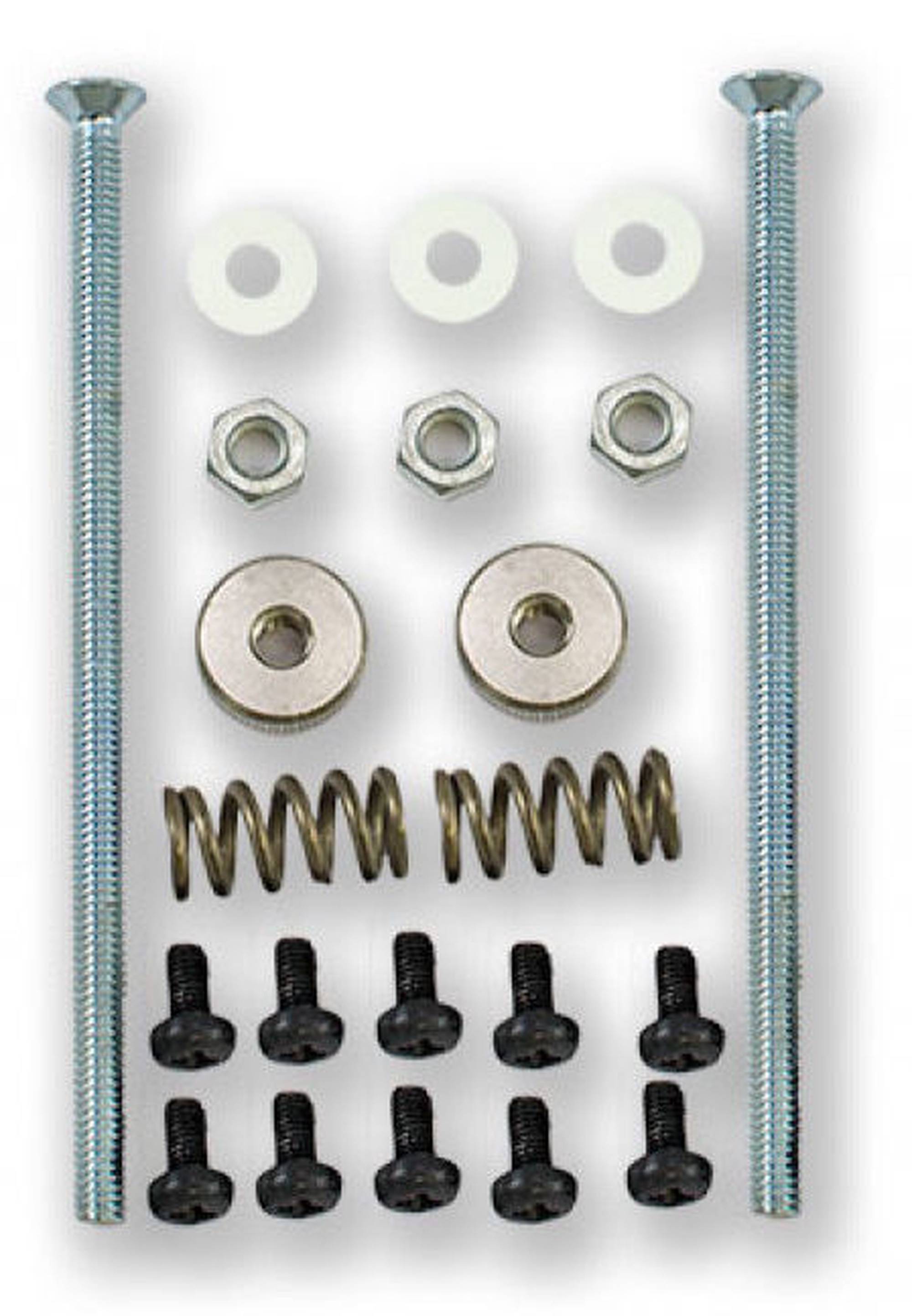

- mounting mechanism
