Išplėtimo kortelė Delock 89447

Delock PCI Express Card > 4 x Serial with voltage supply - serial adapter - PCIe 2.0 - RS-232 x 4

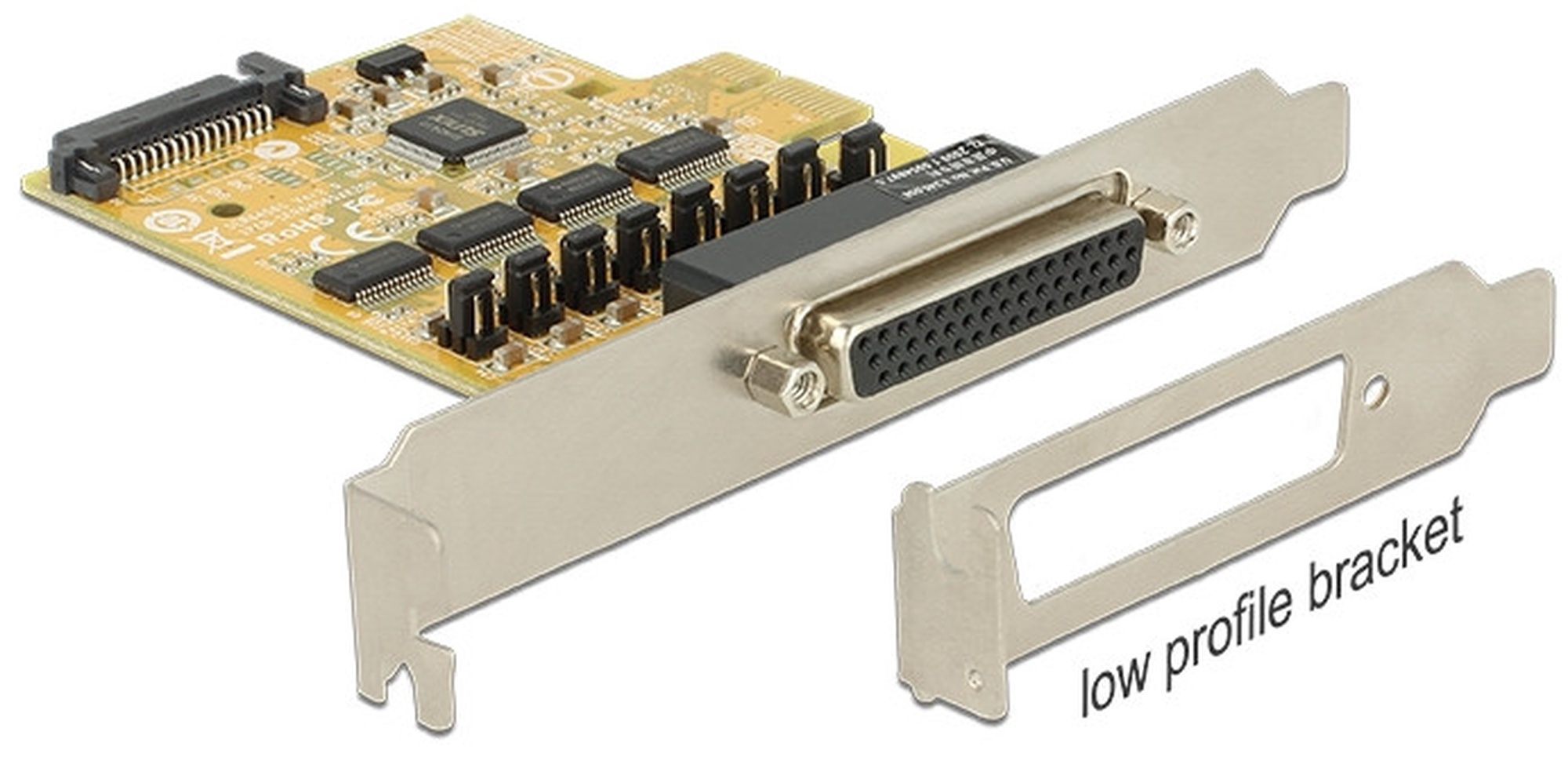

The Delock PCI Express card expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. Included are thumbscrews for the individual serial ports, so either serial devices with screws or with nuts can be connected to the ports. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

Special features:
This PCIe card is Windows Server 2019 WHQL certified

Specification:
• Connector:
external:
1 x DB44 female

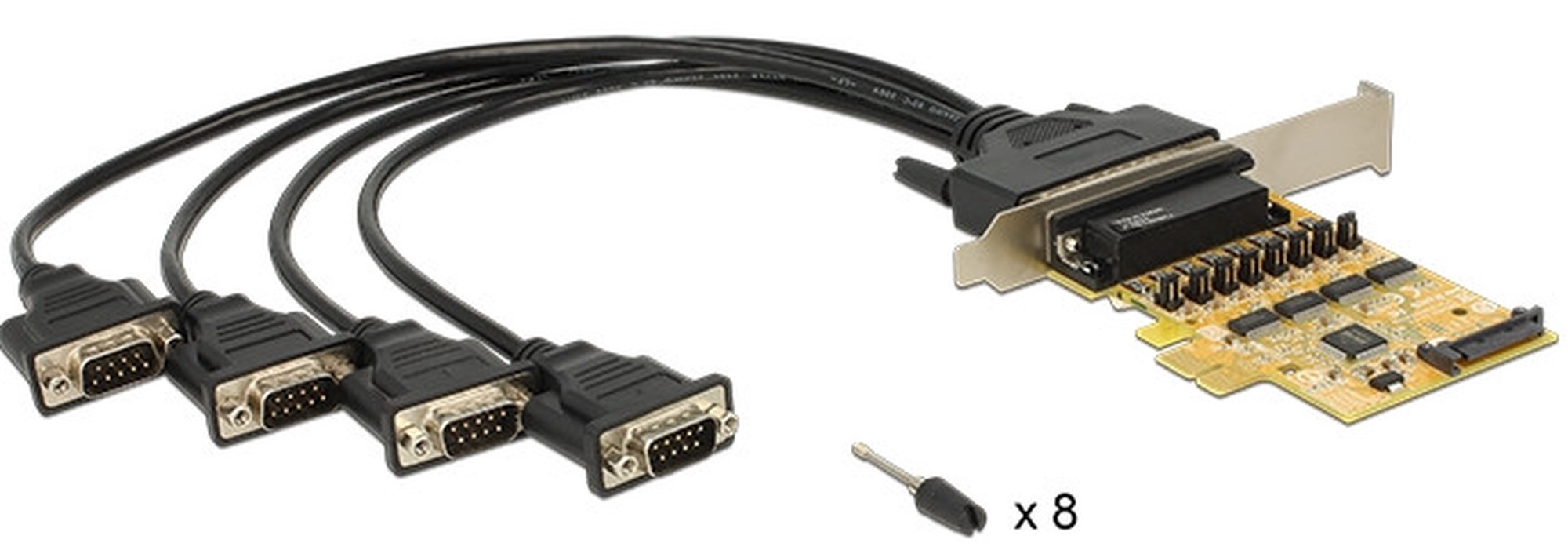

connecting cable: DB44 male > 4 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V2.0
1 x SATA 15 pin male

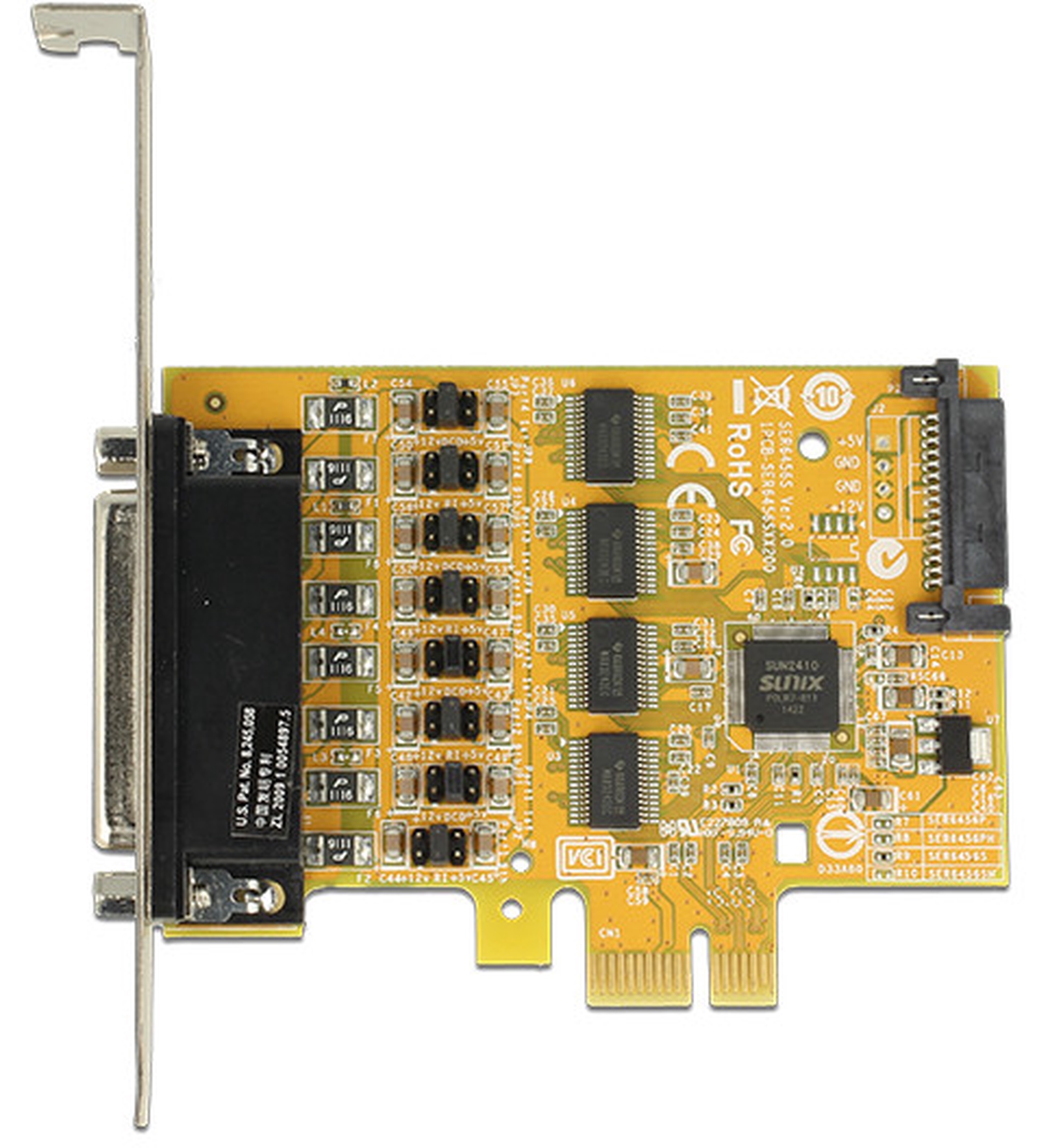

• Chipset: SUN2410
• Data transfer rate up to 115.2 Kb/s
• FIFO: 128 byte
• Compatible with 16C950 UART
• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)
• Electrical power per port: 5.5 watt (5 V / 1.1 A)
• Electrical power per port: 13.2 watt (12 V / 1.1 A)

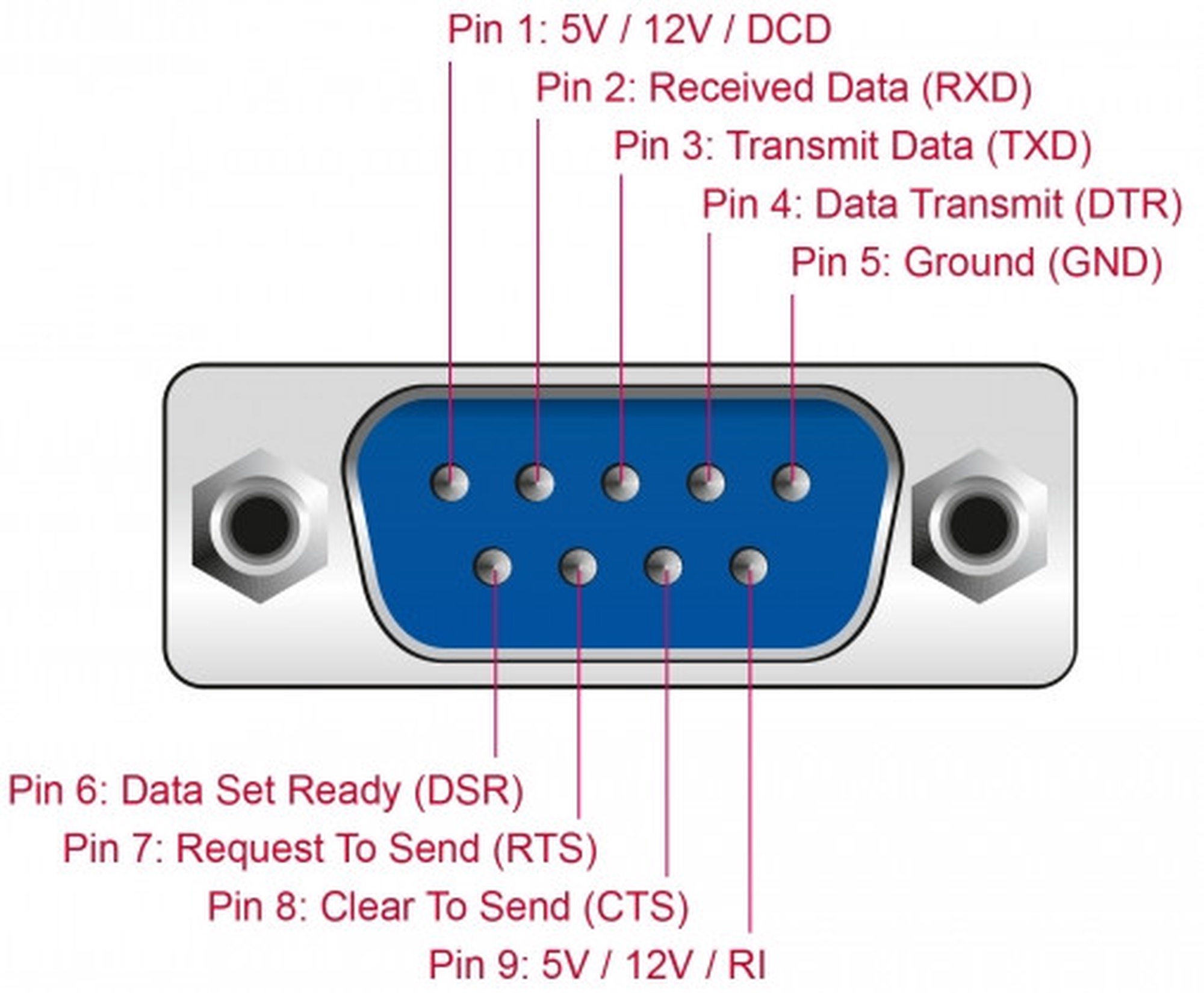

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard
• Windows WHQL certified

System requirements:
• Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot
• Power supply with a free SATA power connector

Package content:
• PCI Express card
• Low profile bracket
• 1 x serial connecting cable (ca. 30 cm)
• 8 x thumbscrew
• Driver CD
• User manual
