Išplėtimo kortelė Delock

Prekės aprašymas anglų kalba:

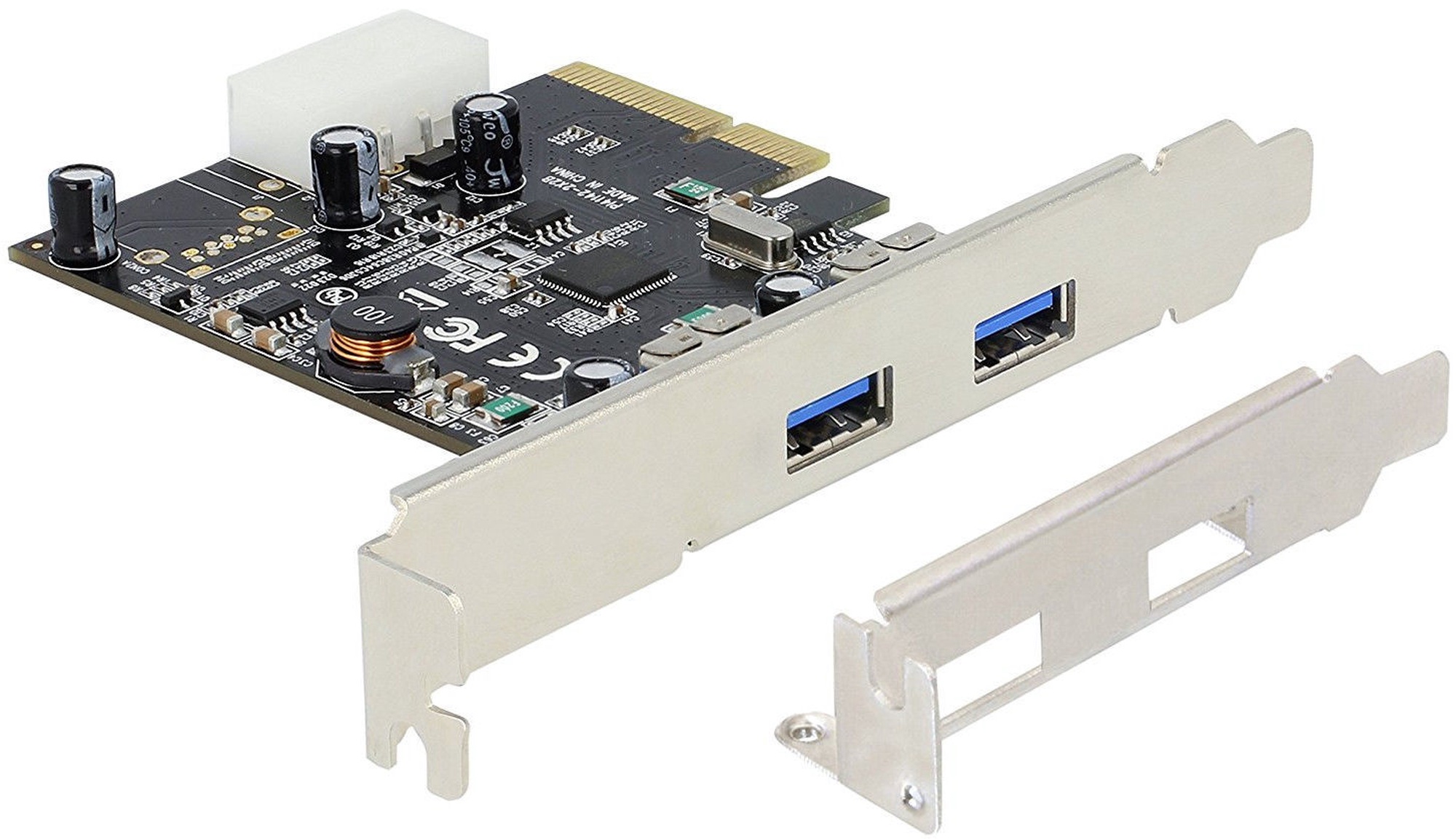

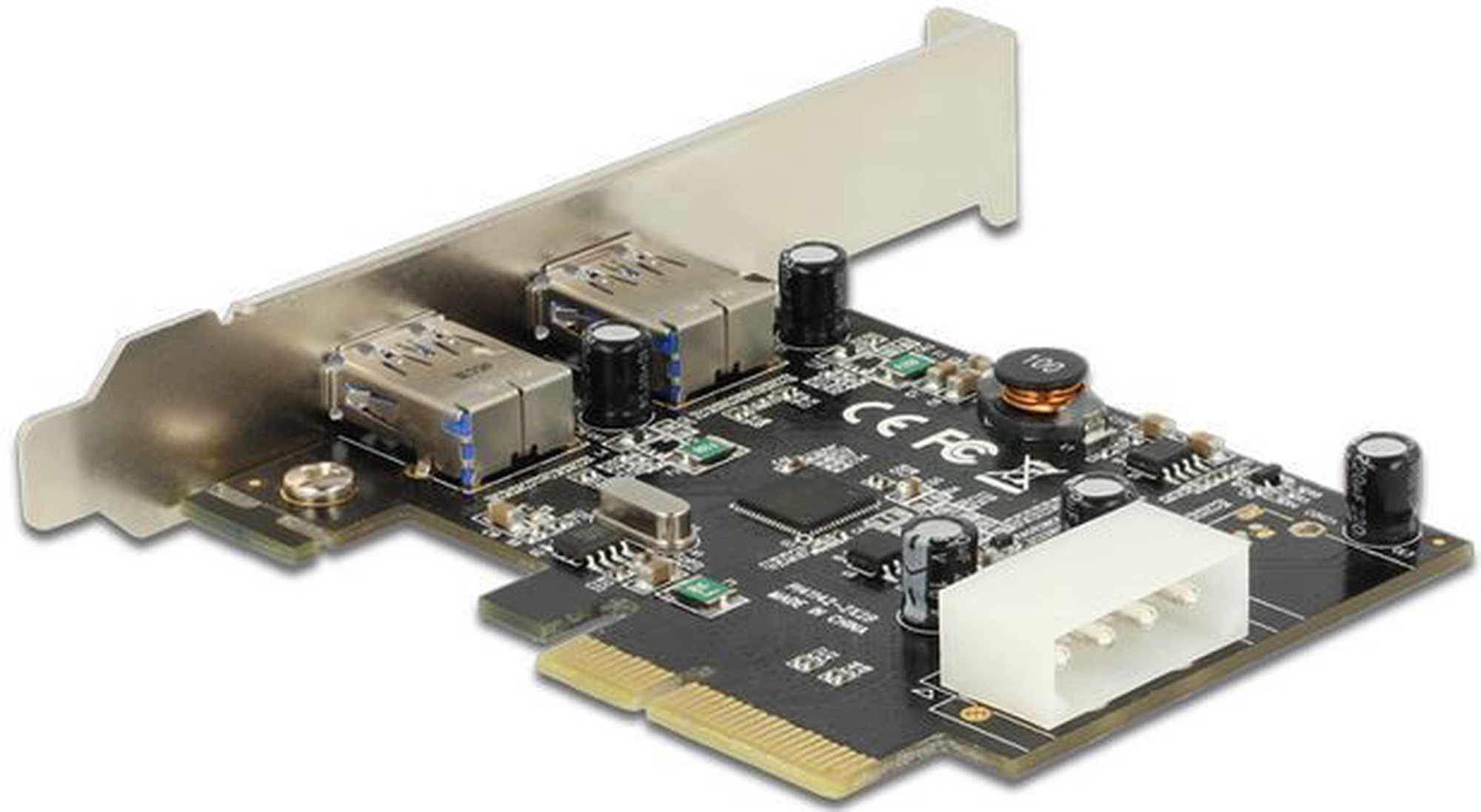

This PCI Express card by Delock expands the PC by two external USB 3.1 ports. Different USB devices, such as docking stations, card readers, external housings etc., can be connected to the card.


Specification

• Connectors:
external:
2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
internal:
1 x 4 pin power connector
1 x PCI Express x2, V3.0
• Chipset: Asmedia ASM1142
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via 4 pin power connector
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1

System requirements

• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card SuperSpeed USB 10 Gbps
• Low profile bracket
• Driver CD
• User manual

Package

• Retail Box
