Išplėtimo kortelė Delock

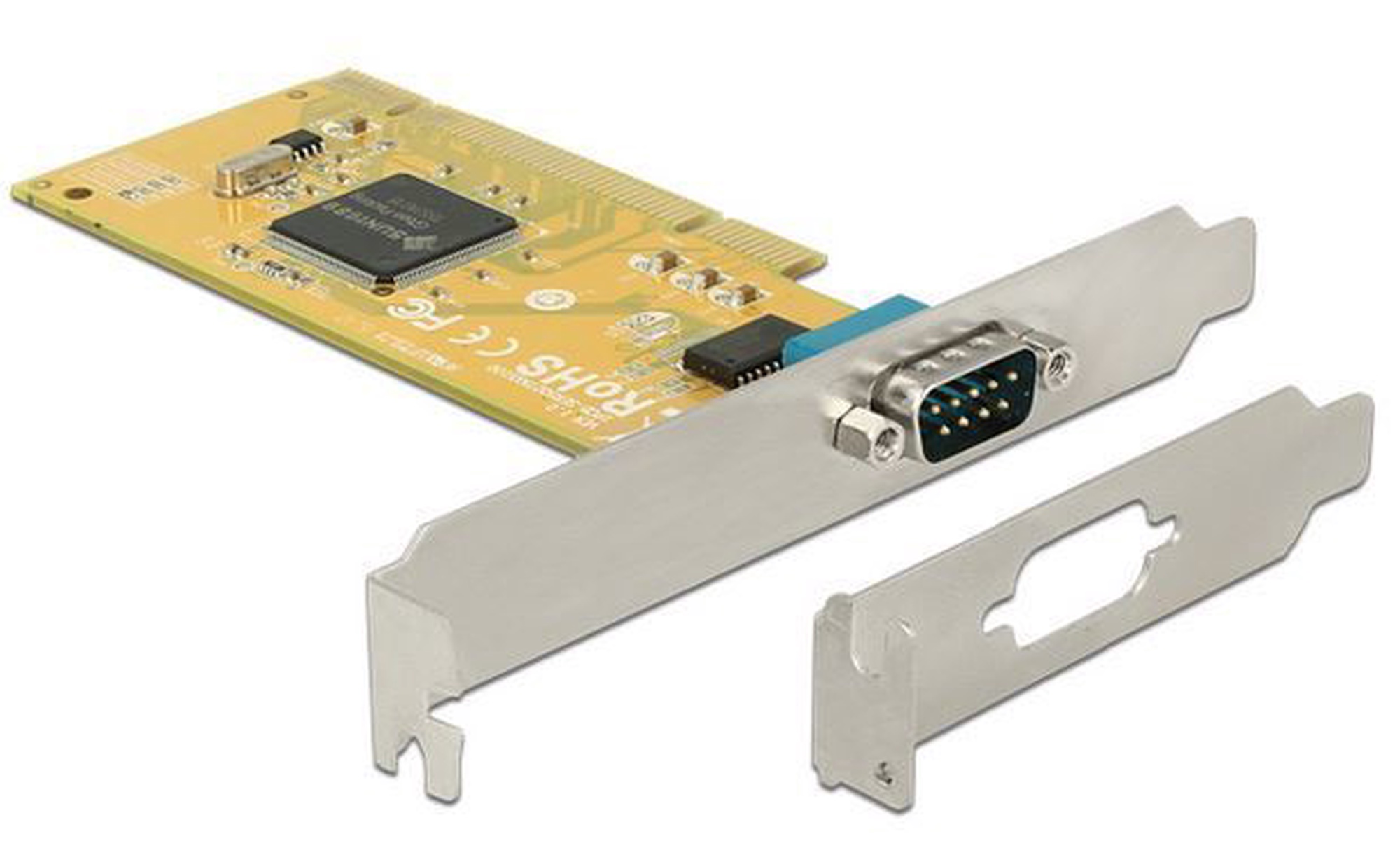

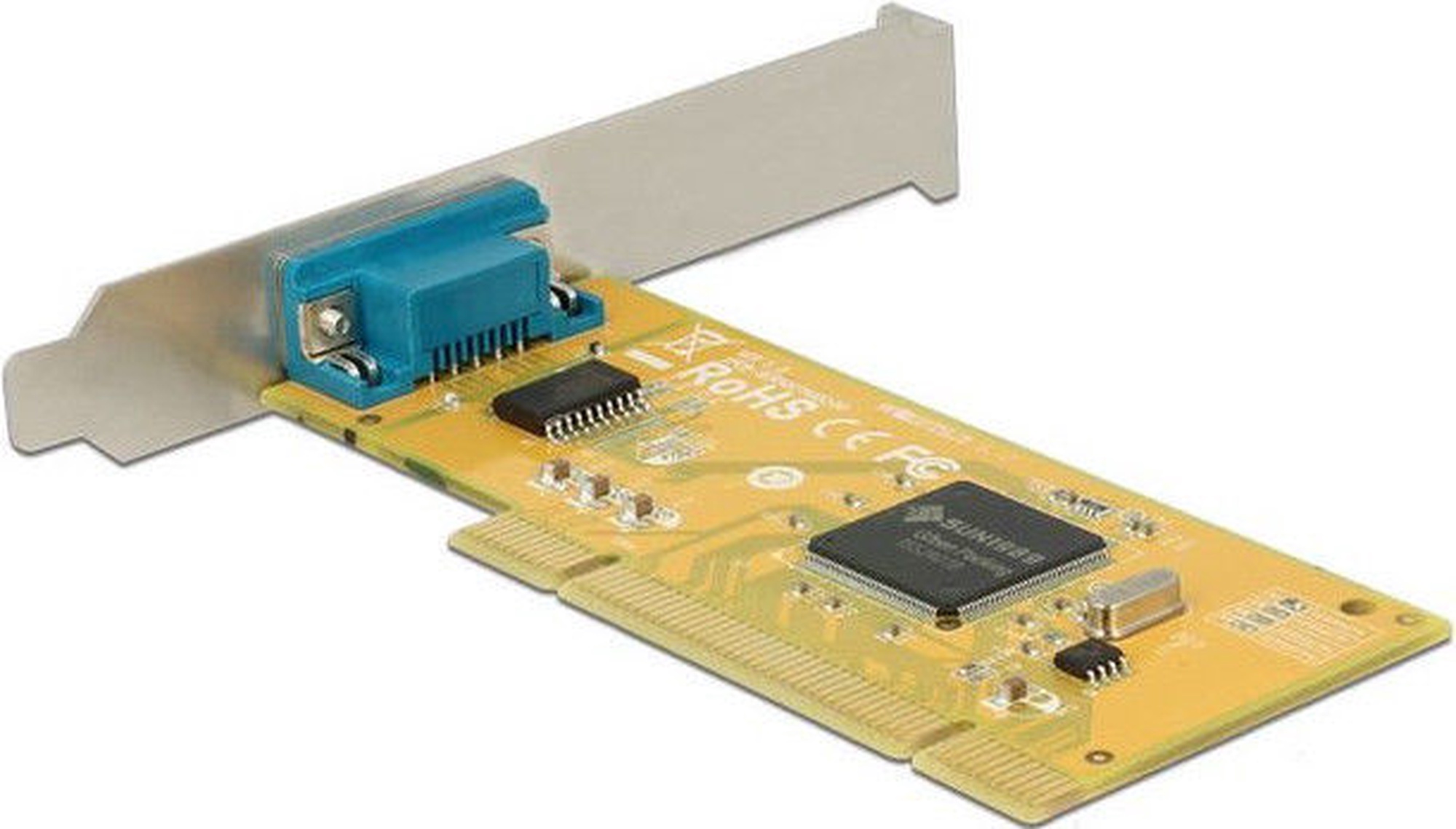

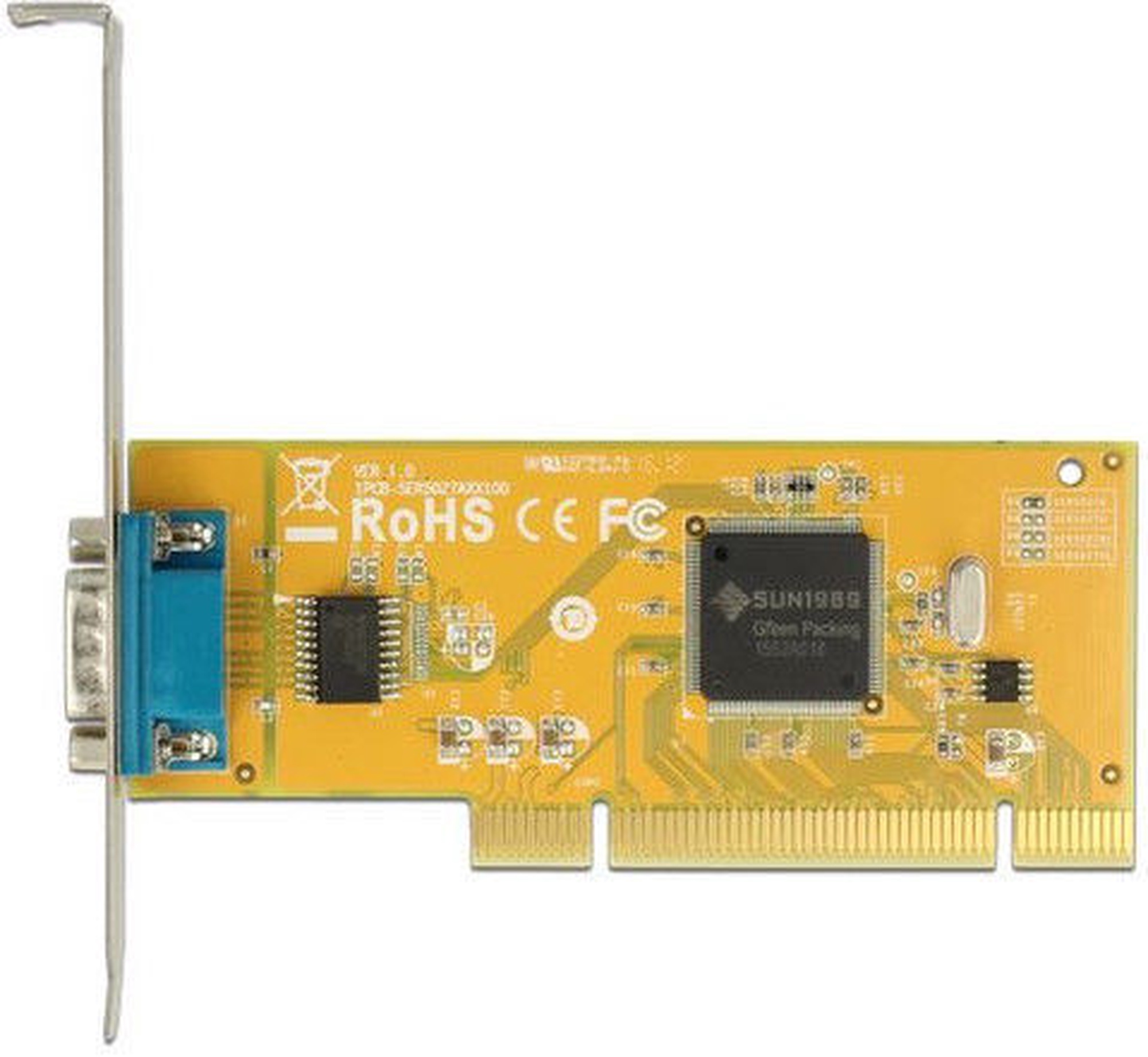

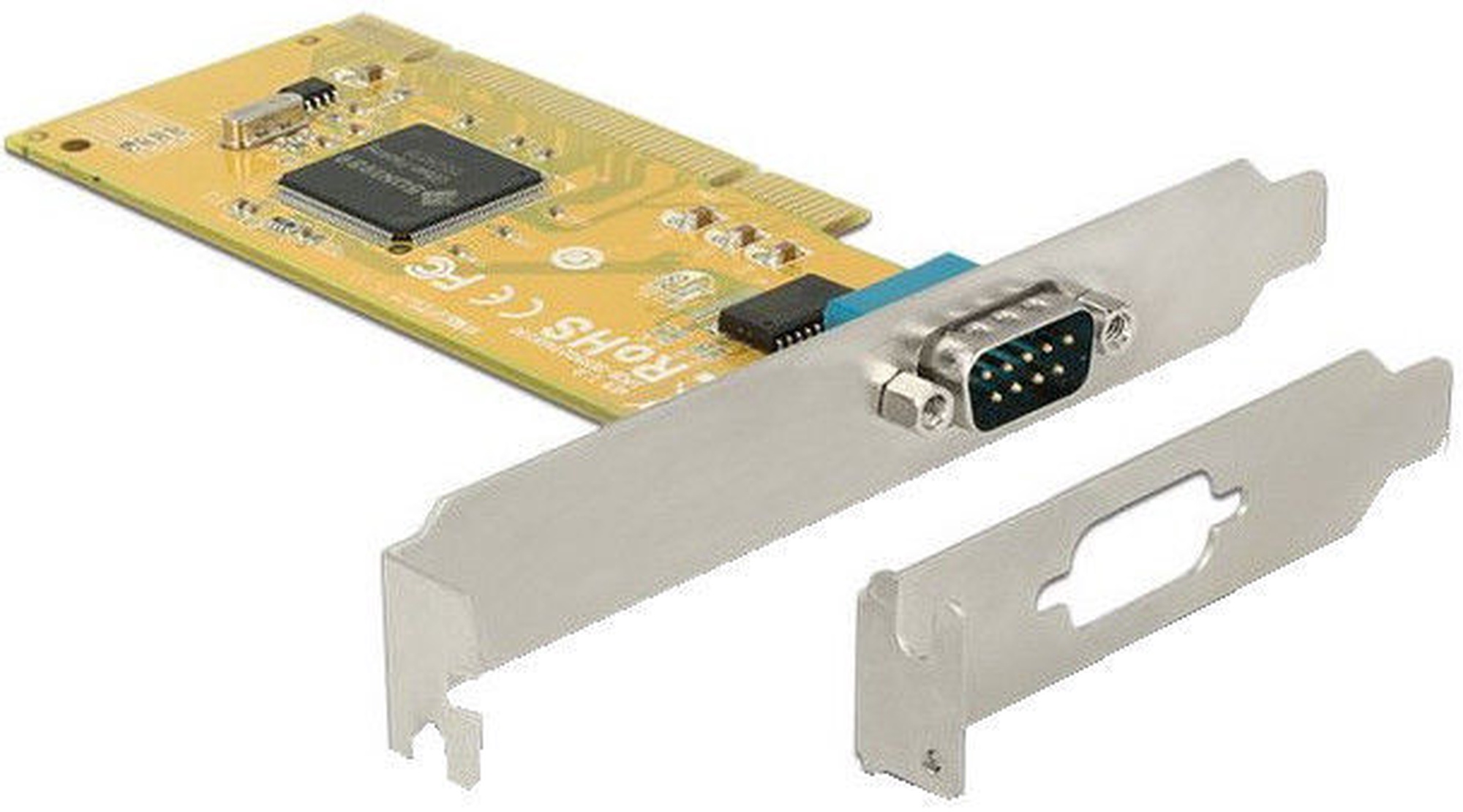

This PCI card by Delock expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI card can be also installed into a Mini-PC.

• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x 32-Bit PCI standard 3.0
• Chipset: SUN1989
• Compliance with PCI 33 MHz Ver. 3.0/2.3/2.2./2.1 specification
• Supports both 64-bit & 32-bit PCI bus slots and 3.3 V & 5 V power
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• ±2 kV ESD protection for all serial signals
• Data transfer rate up to 115.2 Kb/s
• FIFO: 128 byte
• Compatible with 16C950 UART
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 ~ 95 %

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.38
• PC with one free PCI slot

• PCI card
• 1 x low profile bracket
• Driver CD
• User manual

• Retail Box
