Išplėtimo kortelė Delock

Prekės aprašymas anglų kalba:

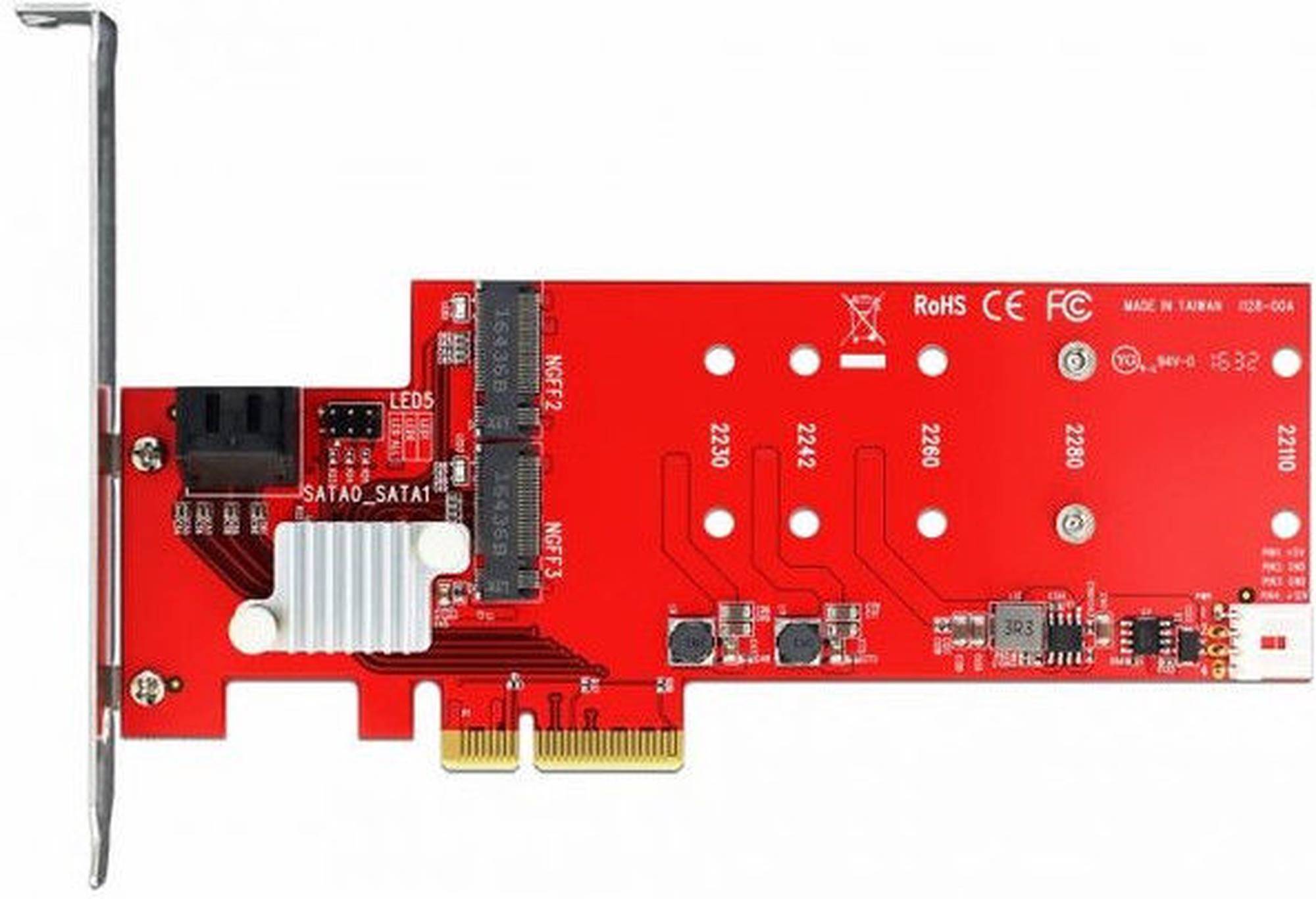

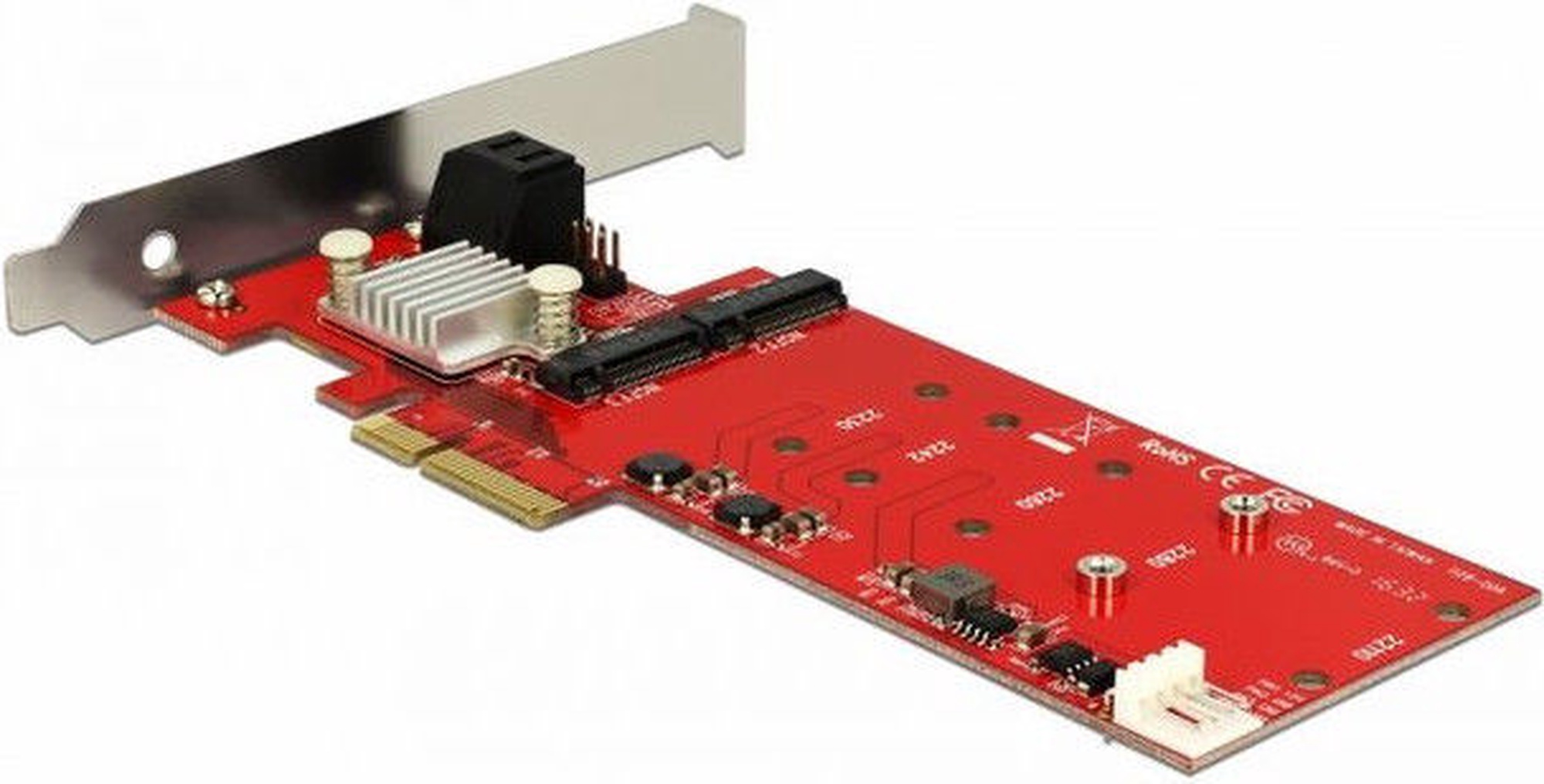

This PCI Express card by Delock expands the PC by two M.2 slots as well as two SATA connectors. Up to two M.2 modules in 22110, 2280, 2260, 2242 or 2230 format can be installed on this card and up to two SATA SSDs or HDDs can be connected. Therefor the card provides different possible combination for RAID. The card supports a hyperduo function. With this function it combines an SSD and an HDD to use the advantages of both data mediums, the speed of an SSD and the capacity of an HDD.


Specification

• Connectors:
internal:
2 x 67 pin M.2 key B slot
2 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x4, V2.0
1 x 4 pin power connector (optional for power supply)
• Interface: SATA

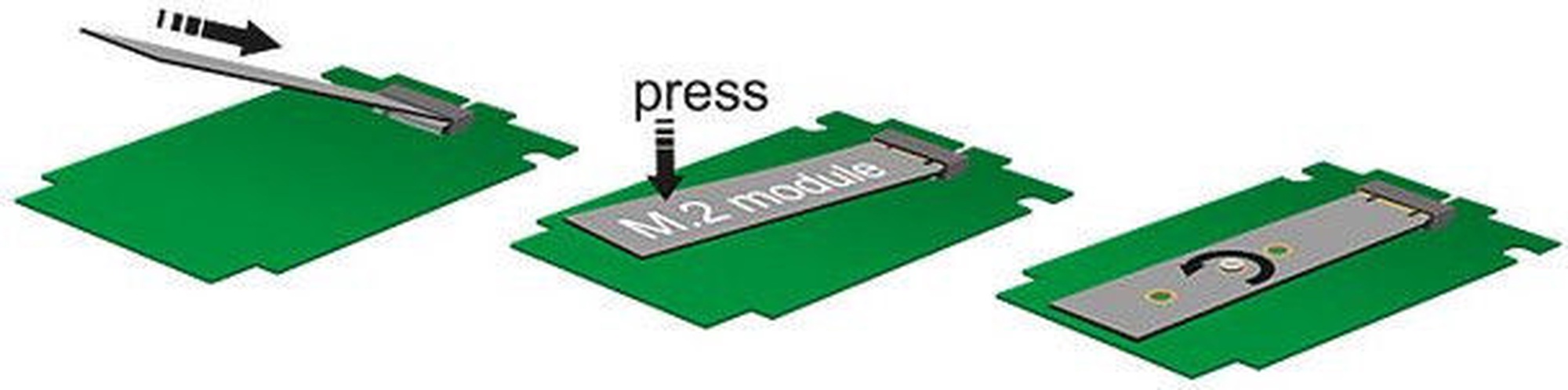

• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B or key
B+M based on SATA

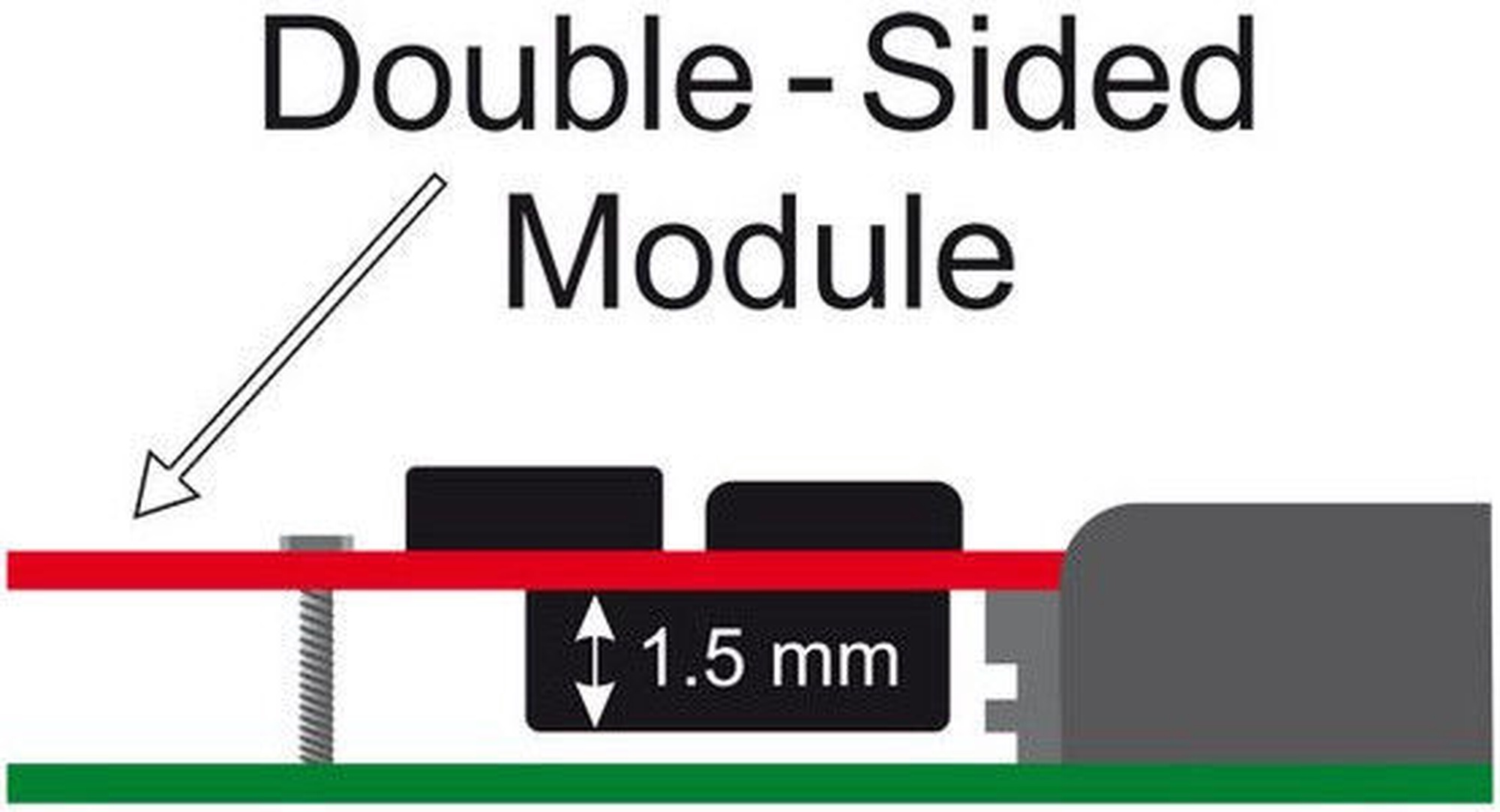

• Maximum height of the components on the module: 1.5 mm, application of
double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, RAID 1, RAID 10, HyperDuo Virtual Disk (Safe/Capacity)

System requirements

• Linux Kernel 3.2 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card

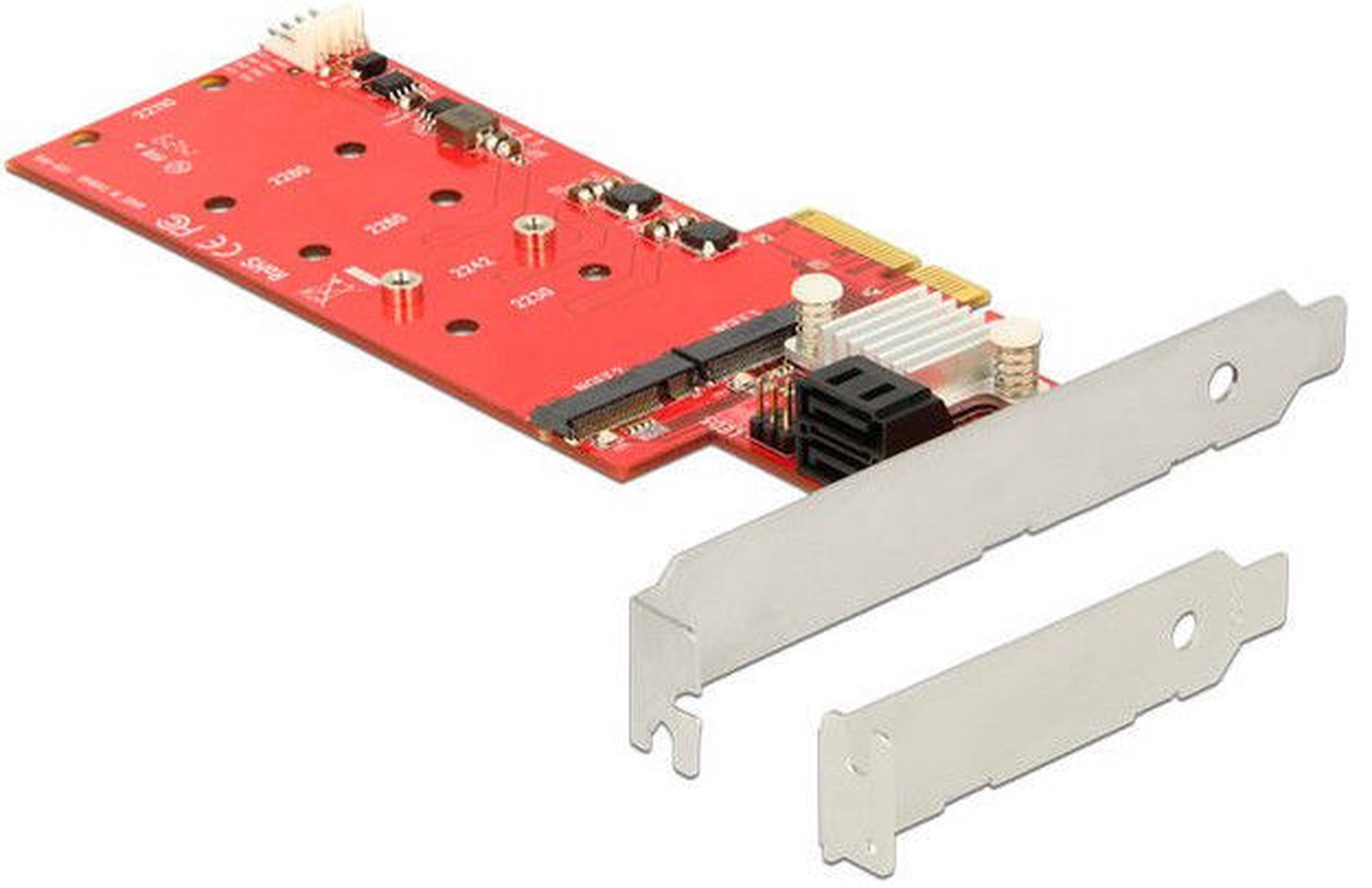

• Low profile bracket
• 2 x fixing screw
• Driver CD
• User manual

Package

• Box
