Išplėtimo plokštė S.USV

Prekės aprašymas anglų kalba:


Behind the name S.USV hides a German brand, which specializes in accessories for the Raspberry Pi and other popular microcomputers. The main focus is placed on an uninterruptible power supply of the Pi. With the variants "Pi basic" and "Pi advanced" S.USV could quickly make a name among enthusiasts and fans of the Raspberry Pi .

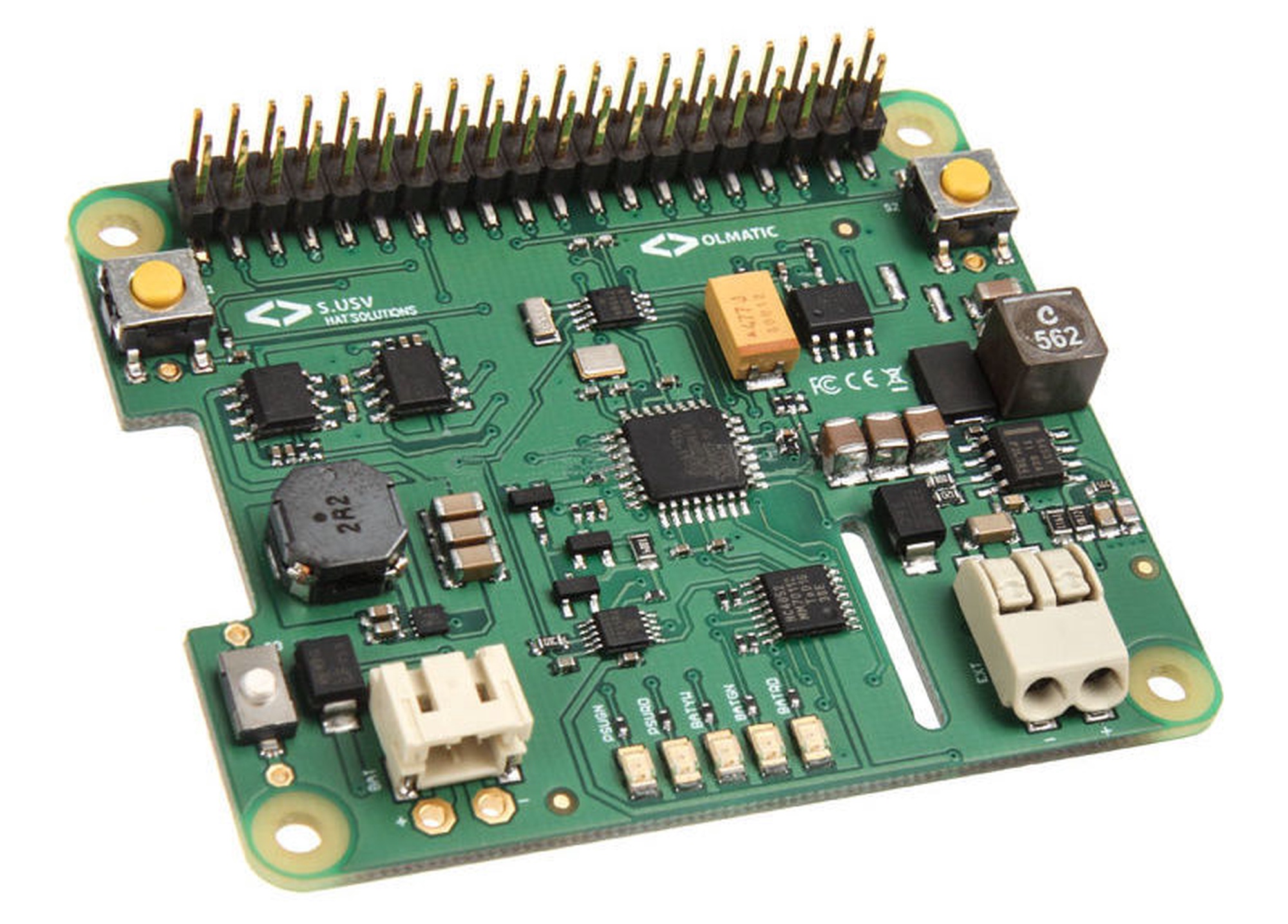

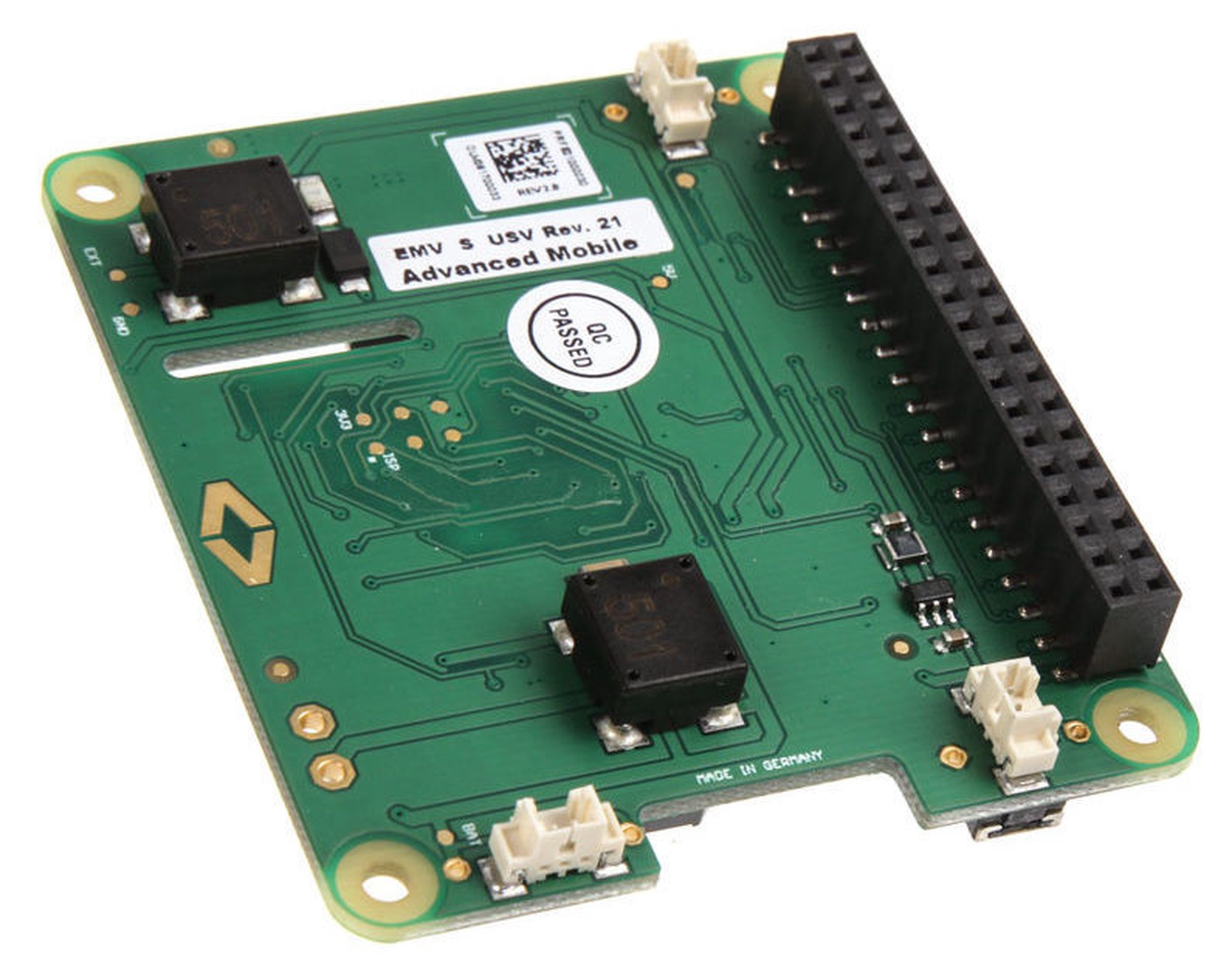

The here offered "Pi advanced mobile" variantis an advanced power supply add-on module with integrated and adjustable charging function for the Raspberry Pi, with the main focus on the uninterruptible power supply of the single-board computer. With the mobile version of the small computer can also be operated in battery mode with the S.USV. Another special feature is the integrated real-time clock , which also supplies the mini-computer with the correct time after a restart. Power supply via GPIO interface For example, a significantly faster battery charging time of the S.USV can be achieved by setting the charging current to 1A (instead of the standard 300 mA). As a fully functional plug-and-play solution, the S.USV Pi advanced mobile power is supplied directly via the 40-pin GPIO interface of the Raspberry Pi and thus uses a common voltage source. As a result, no further wiring or power supplies are necessary.

In order to prevent loss of data on the Raspberry Pi after a power failure, the module is equipped with a long-lasting LiPo batteryequipped, which covers the necessary voltage range via a boost switching power converter. For example, if the power of the mini-computer falls below an adjustable voltage threshold, the S.USV Pi advanced mobile will automatically switch to battery power and keep the functionality of the Raspberry Pi constant for a user-settable period of time or drive the single-board computer in the event of a long-term failure Power down safely. With additional batteries, the duration of the power supply can be extended with the S.USV.

The uninterruptible power supply of the Raspberry Pi is guaranteed by a fully integrated monitoring system with a wide range of operating options. All possible operating states of the Raspberry Pi are monitored internally and can be checked and controlled via a software including smartphone app .

The "Pi advanced mobile" version also offers a mains input for the extended voltage range of 7-24 volts.

Technical details:

• Dimensions: 65 x 56.5 mm (W x D)
• Uninterruptible power supply: 5 Volt / 2,500 mA
• Extended voltage range: 7-24 volts / 3,500 mA
• Secondary output power: 5 volts / 3,500 mA
• Interface: 40 pin GPIO / I2C
• Compatibility: Pi 3 and Pi 2 Model B, Pi 1 A +, Pi 1 B +
• Special Features:
  Extended Voltage Range
  ID EEPROM
  Monitoring - System
  Mobile Application

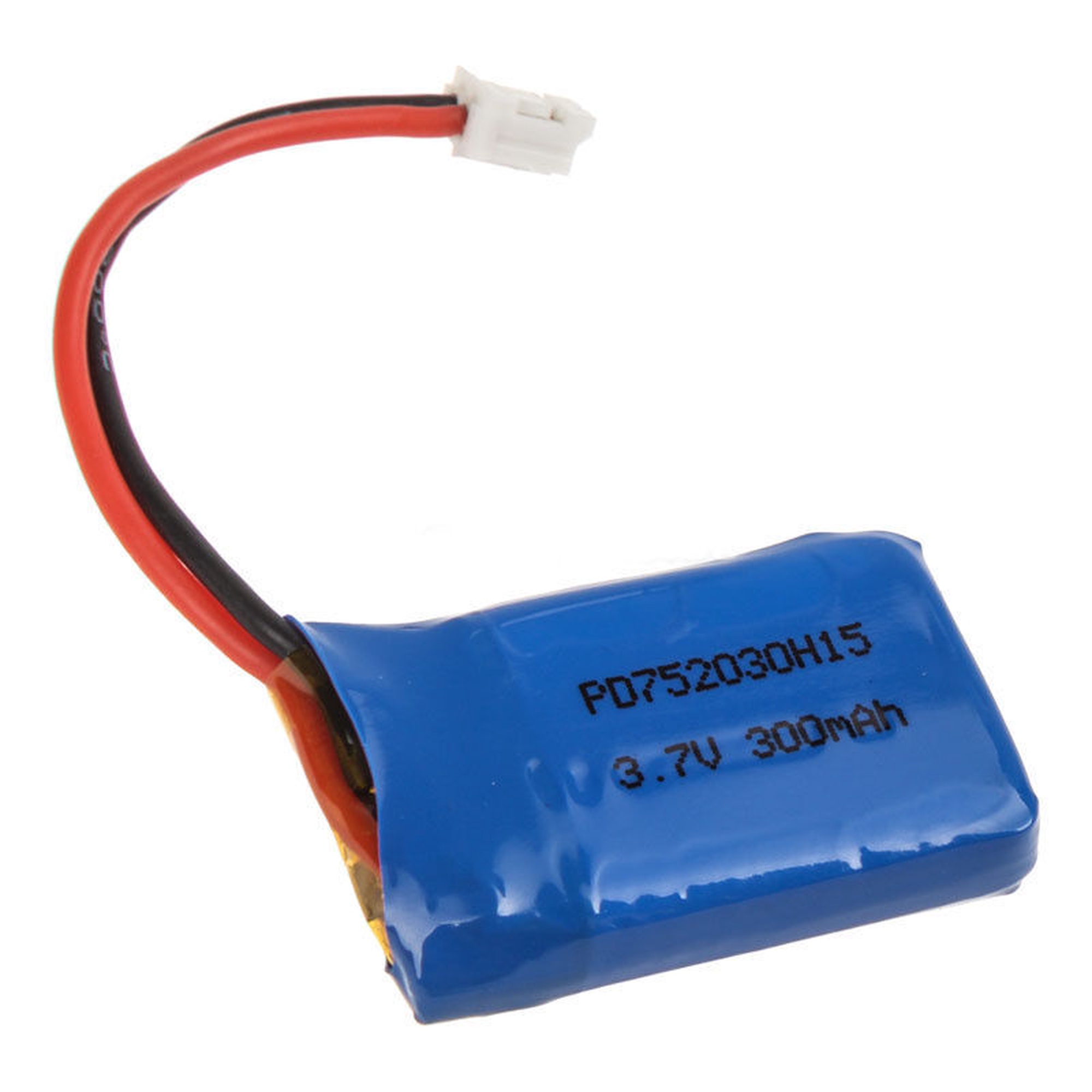

  Durable LiPo battery with 300mAh
  Battery Management
  Battery Monitoring
  Real Time Clock
  Raspberry Pi Supply Switch
