Jungčių stotelė Club 3D

Prekės aprašymas anglų kalba:

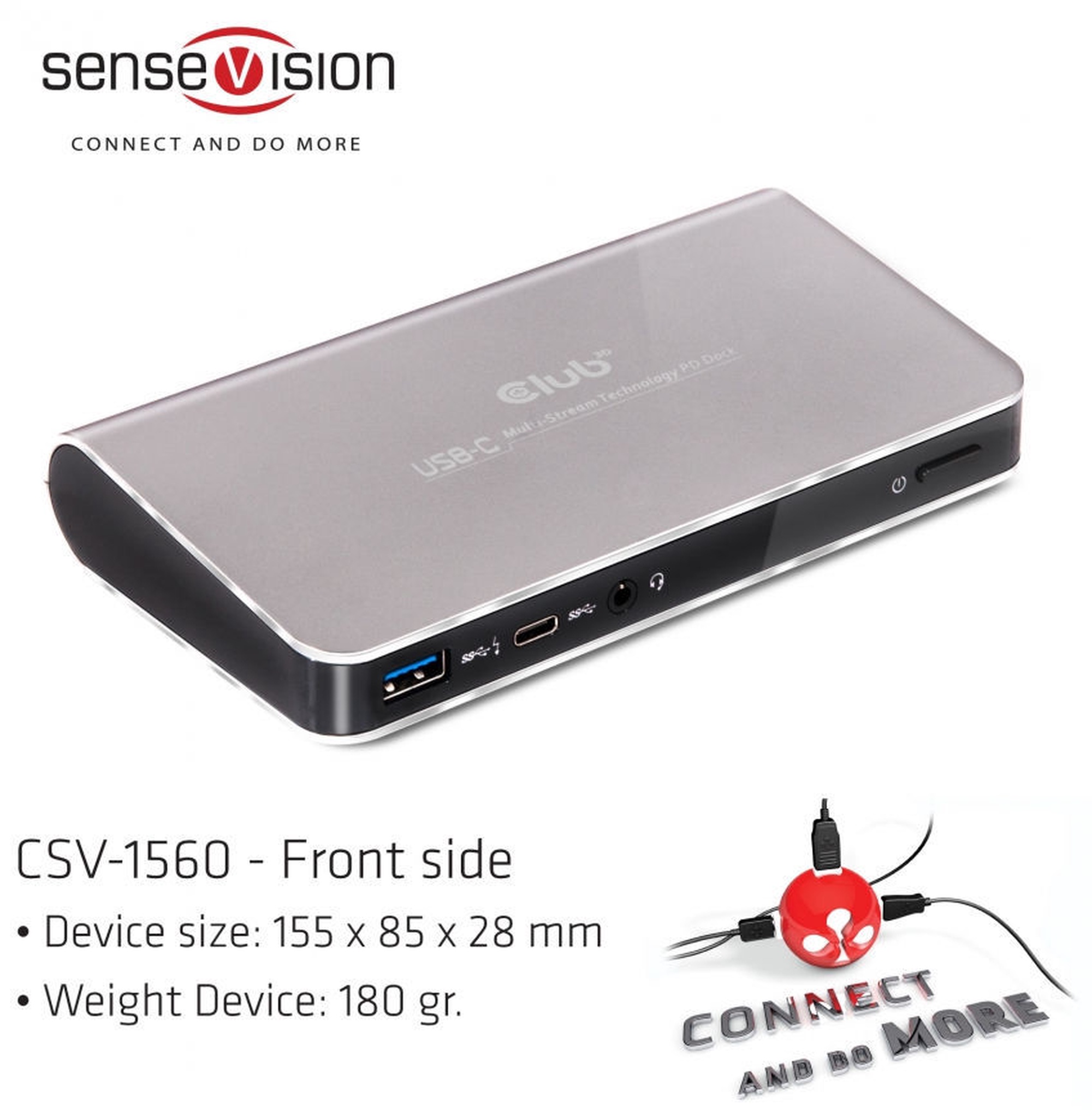

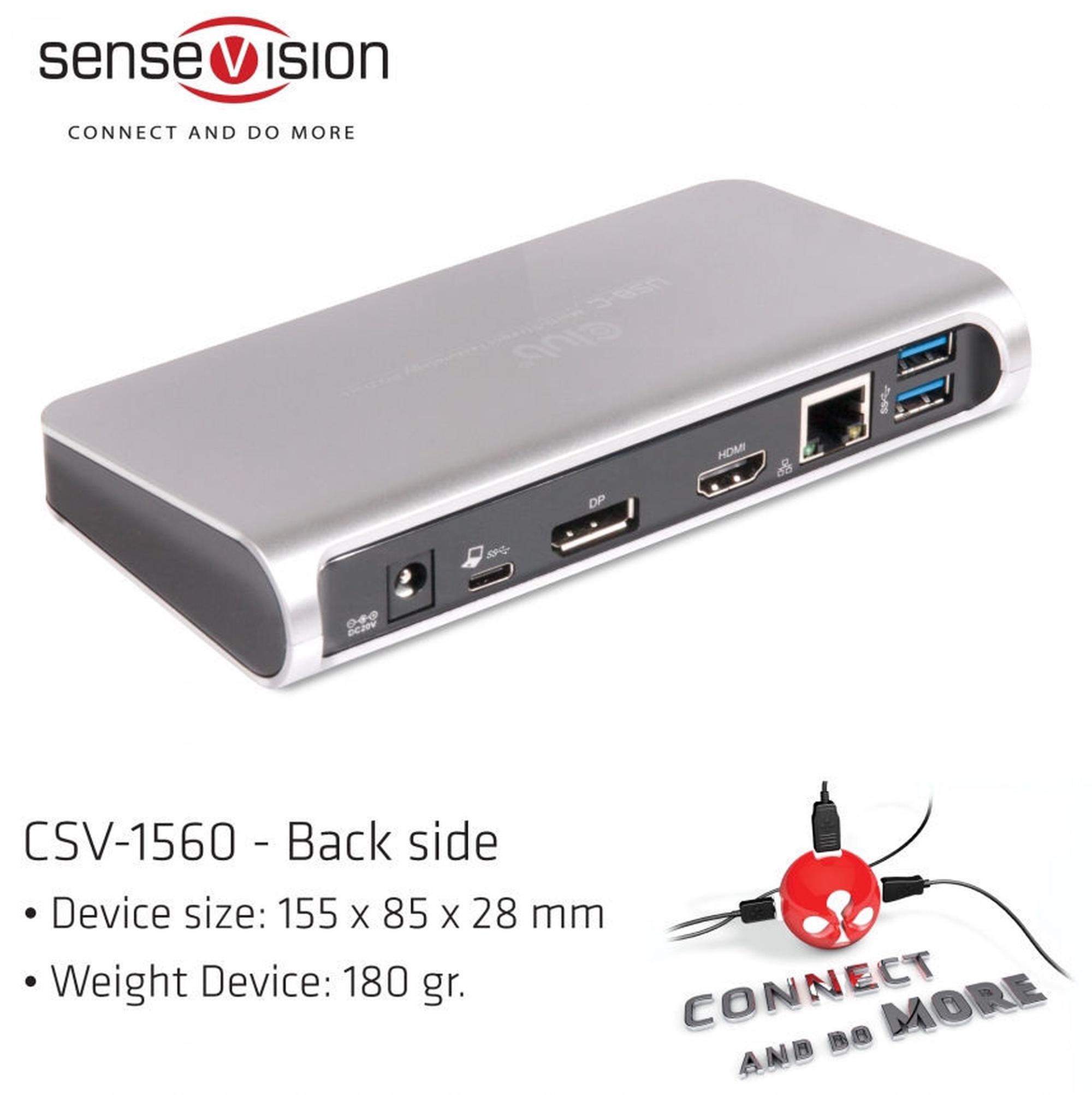

CSV-1560 The Universal USB Type C MST Charging Dock is designed for extra connectivity demands. With the CSV-1560, you can extend the connection of a computer to more USB peripherals, Ethernet network, speaker and the microphone via USB-C interface. Adopting PD Charging technology, upstream charging function through USB-C interface, you can charge the connected cell phone / tablet / laptop.

With the built-in USB 3.0 ports, the dock enables you to enjoy the super speed data transmission between USB peripherals. With the DP or HDMI ports, you can mirror your primary screen, or extend the content. When the system supports MST mode, you can display identical or different content on the external monitors as you wish.

Enhanced expansion capability plus the stylish appearance, this dock with video is the most versatile accessory that also complements your (home)office space.

Charging
Laptops / UltraBooks / Tablets often have limited connectivity possibilities. By adopting PD Charging technology and upstream-charging function through USB Type C interface the Club3D USB Type C MST Charging Dock offers unique functionality. It means you can charge your source Laptop / Tablet thru the Docking Station, as well as make use of all of the (downstream) features of the Docking Station at the same time.

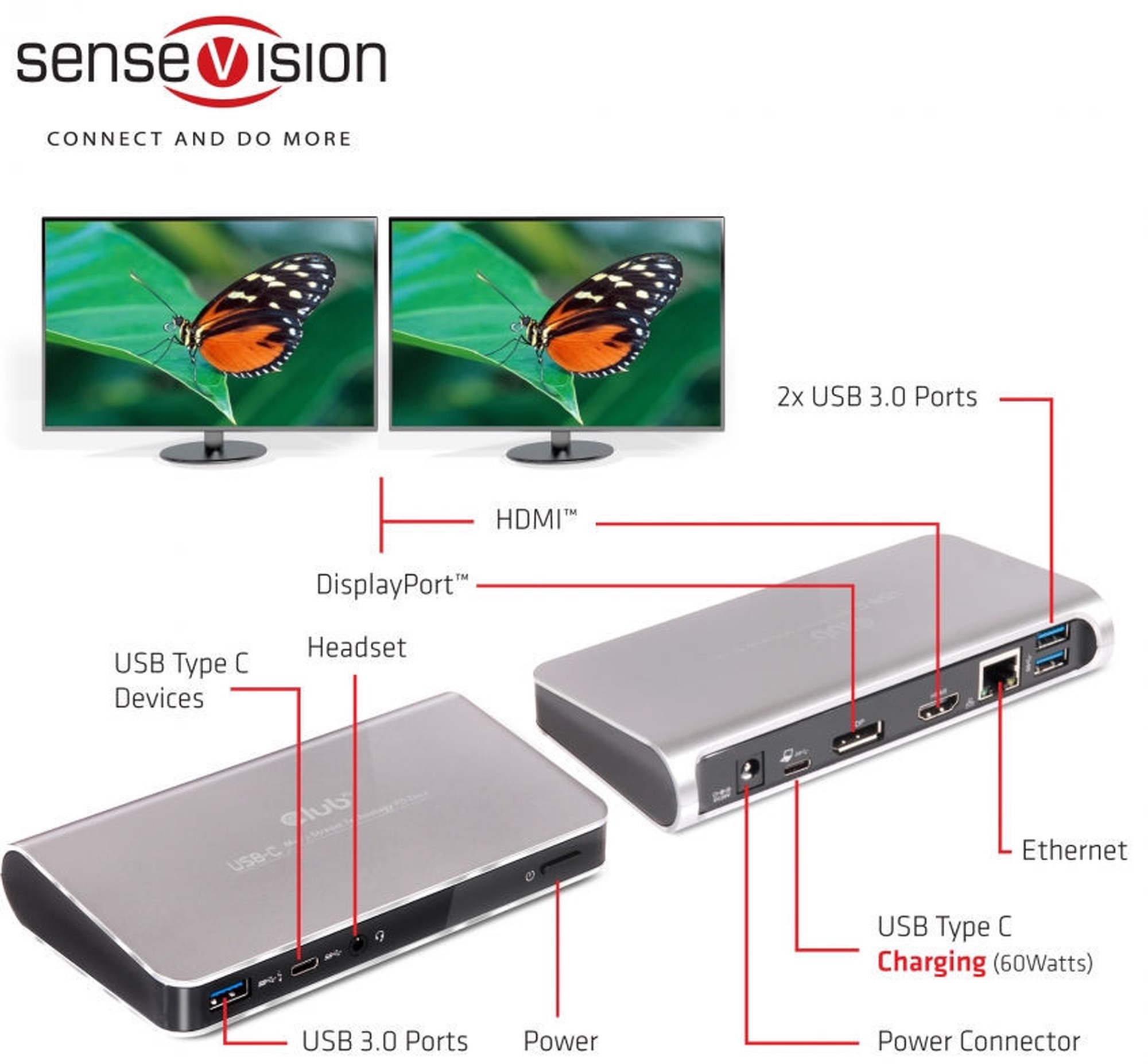

Give your Ultrabook more displays
Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB 3.0 port available you can now drive an HDMI and/or DisplayPort screen simultaneously.

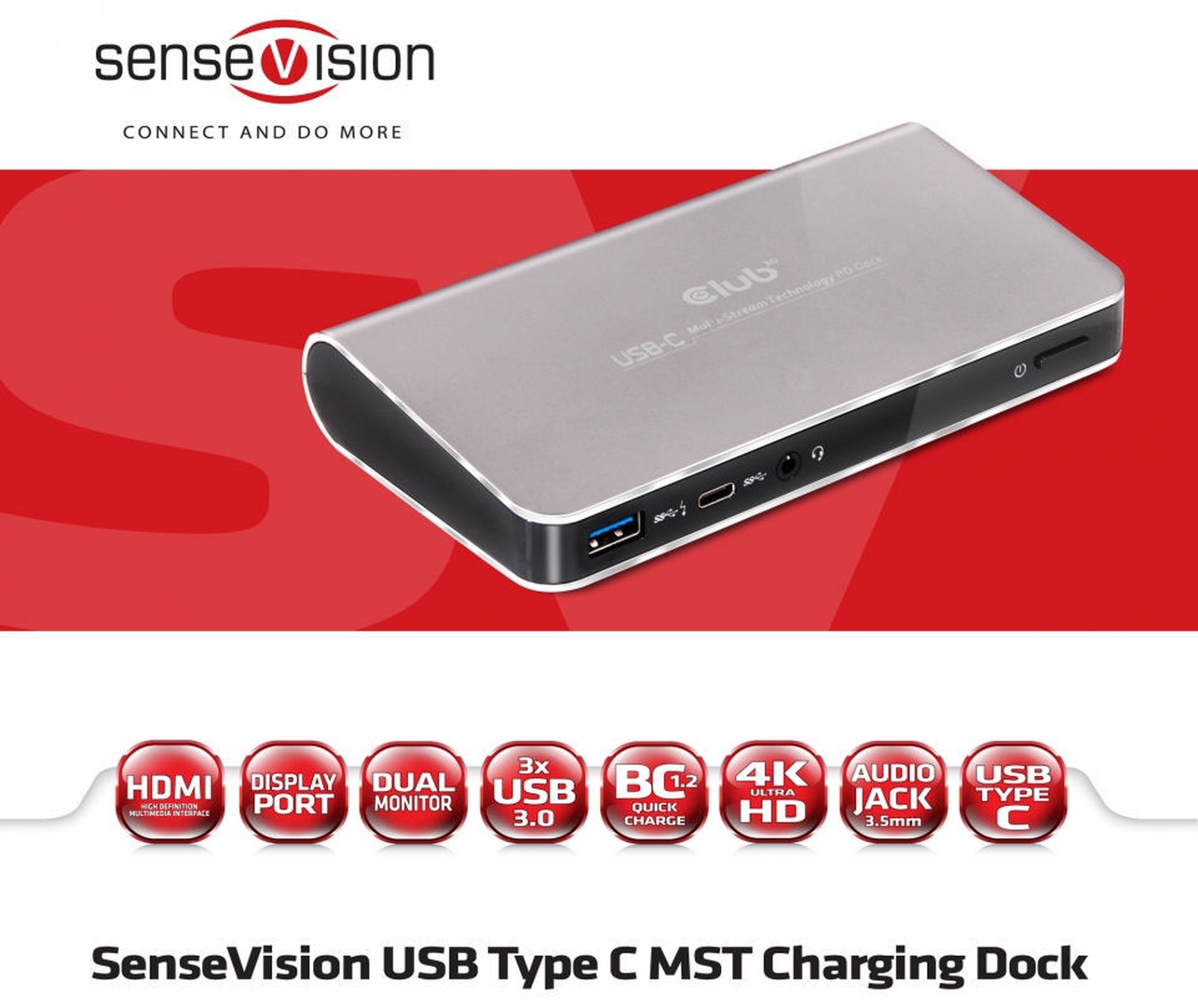

USB Type C MST Charging Dock

Features:

• Video output; USB Type C output on source system needs to have Displayport ALT Mode support
• Single display - DP output: Supports 4K resolution up to 3840 x 2160 @ 30Hz, - HDMI™ output: Supports 4K resolution up to 3840 x 2160 @ 30Hz
• Dual display - Supports resolutions up to 2 x 1920 x 1200 @ 60Hz
• SST; In SST mode, the external monitors connected will receivethe same output (Mirror)
• MST; In MST Mode you can use Mirror mode or Extended mode and set the primary display
• Supports audio 2.1 channel
• Supports Gigabit Ethernet 10/100/1000
• Supports Upstream Charging up to 60 Watt
• Supports Downstream Charging BC 1.2 fast charge
