Kompiuterio korpusas AeroCool, juoda sp.

Prekės aprašymas anglų kalba:


Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.

The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.

In addition, an insulation can provide even lower external noise. This modified version of the Aerocool V3X Advance Black Edition Midi Tower connects both approaches and provides the housing with pre-installed insulation.

The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.

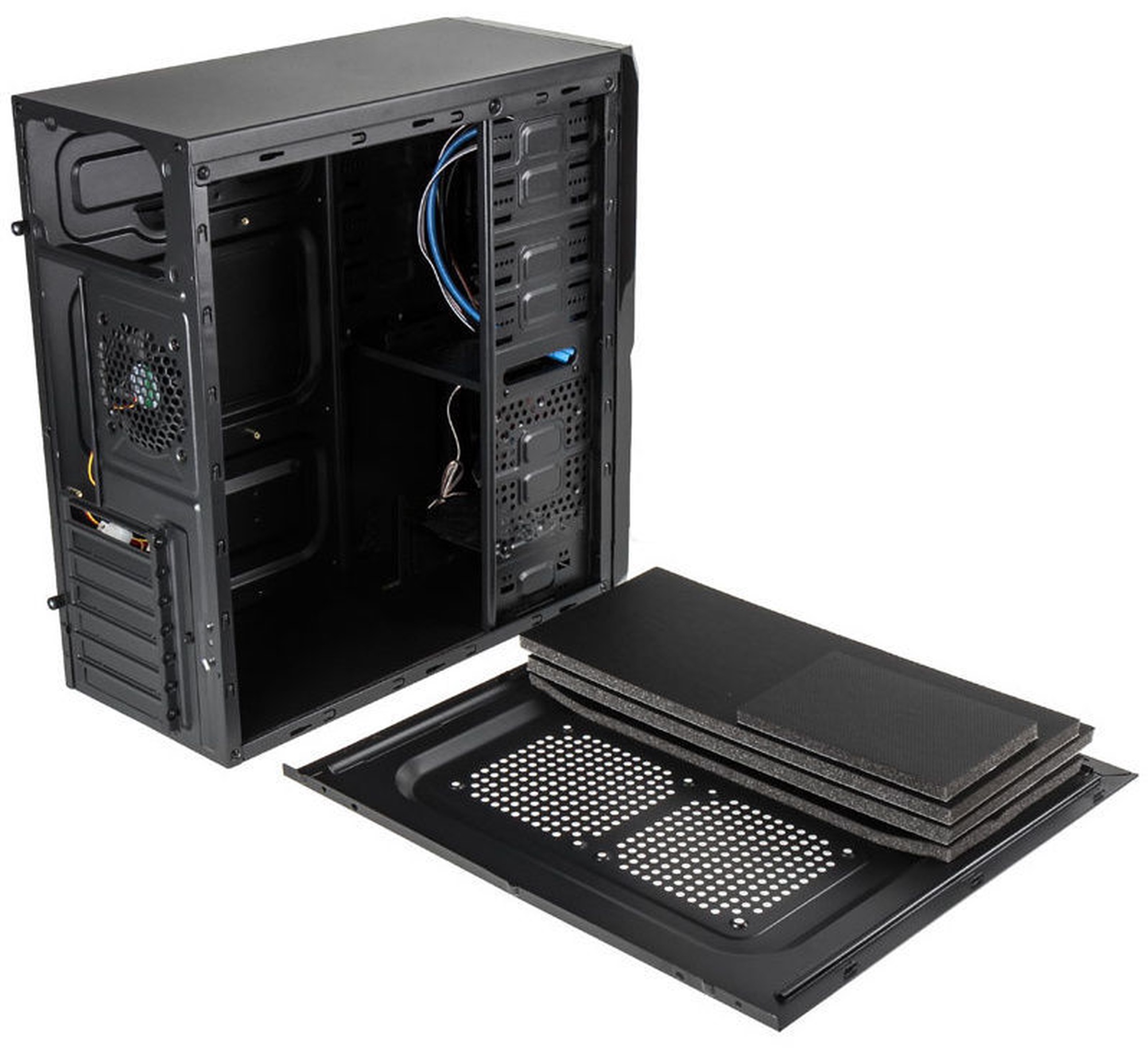

When delivered, the Aerocool V3X Advance Black Edition Midi Tower has been equipped with insulating mats at all mandatory locations to reduce component noise. These include the right side panel, the left side panel, the front, the bottom, the lid and the middle back. Another mat is loosely in the housing. This is also tailored to fit and can be installed as needed. It is intended for the upper back.

All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Aerocool V3X Advance Black Edition Midi Tower and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.

Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the installed fans should be throttled with the built-in control.

Further information on the material specifications of the insulation material can be obtained from the data sheet .

Note:Please note that due to the insulating mats the space inside the housing may be lower. Under certain circumstances, the laying of cables behind the mainboard tray can only be limited in comparison to the uninsulated version.

Technical details:

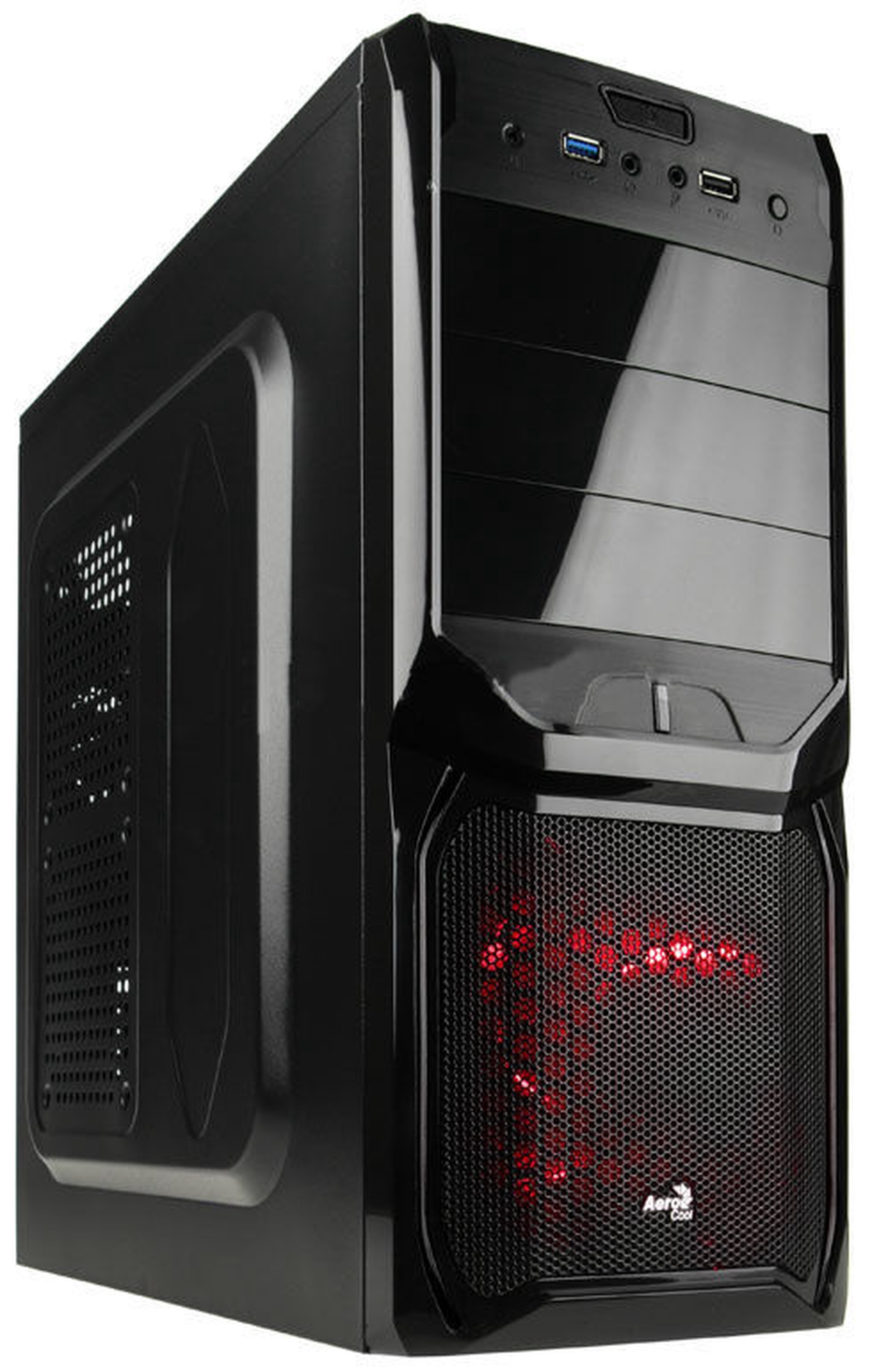

• Aerocool V3X Advance Black Edition Midi-Tower, black - insulated
• Dimensions: 176 x 412 x 412 mm (W x H x D)
• Material: steel
• Color: Black
• Form factor: ATX, Micro-ATX
• Total fan possible:
  1x 120 mm (front)
  1x 80 mm (rear)
  2x 120 mm (left side panel)
• Preinstalled:
  1x 120 mm (front side, red LEDs, 1200 rpm, 143.3 m³ / h, 33 dB (A), 1.17 mm H2O)
  1x 80 mm (rear side, 2,300 rpm, 143.3 m³ / h, 38 dB (A), 1.17 mm H2O)
• Drive bays:
  3x 5.25 inches (external)
  4x 3.5 inches (internal)
  2x 2.5 inches (internal)
• Power supply: 1x standard ATX (optional)
• Expansion Slots: 7

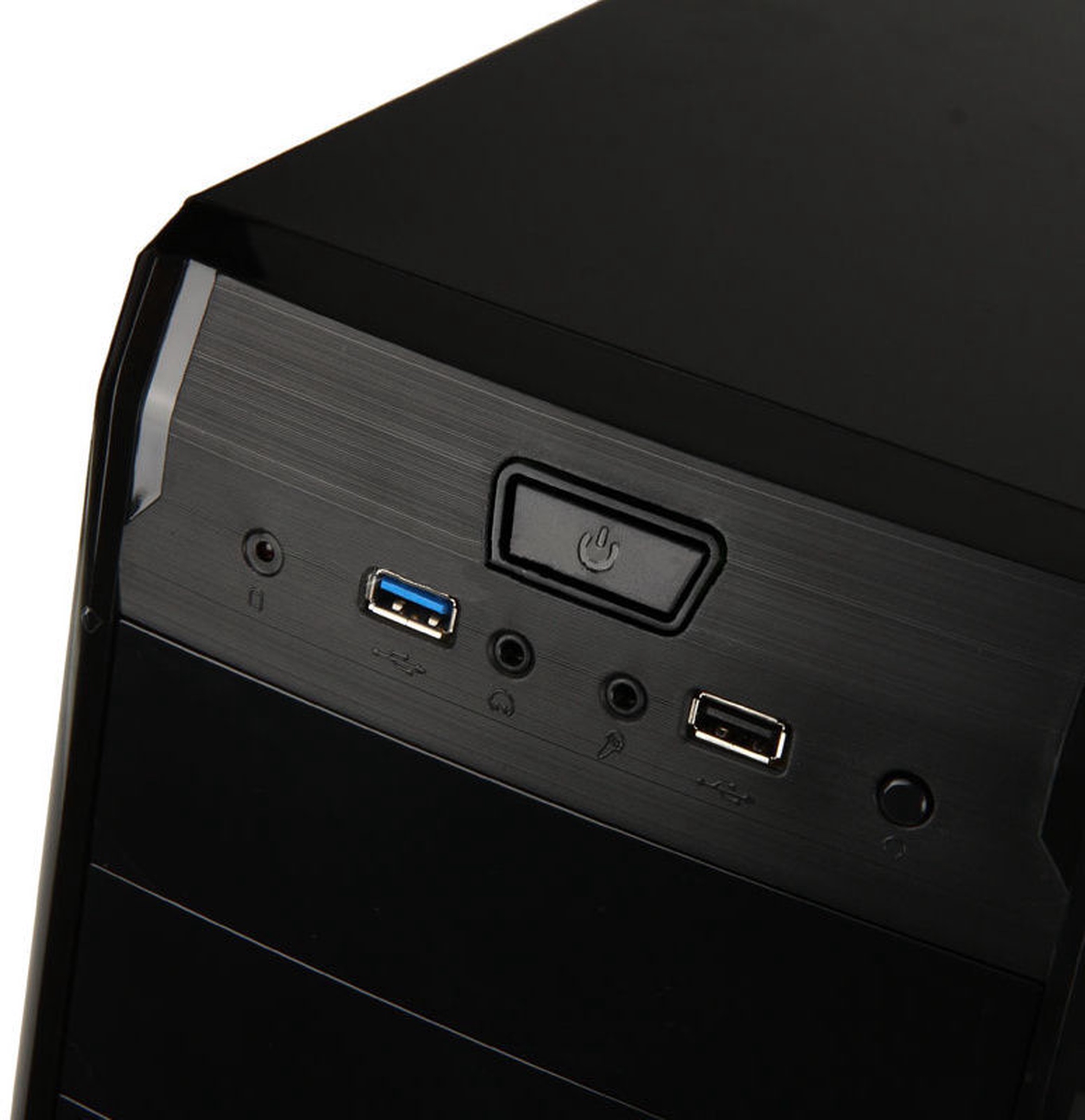

• I / O panel:
  1x USB 3.0 (internal connection)
  1x USB 2.0
  1x each audio in / out
• Maximum graphics card length: 350 mm
• Maximum CPU cooler height: 170 mm
• Insulation (glued):
  1x front side panel (left)
  1x side panel (right)
  3x floor
  1x cover
  1x back (bottom)
• Insulation (enclosed):
  1x Rear (top) 1x Front
  1x Rear Side (left)
