Kompiuterio korpusas Assmann DN-19 12U-I-OD, balta sp.

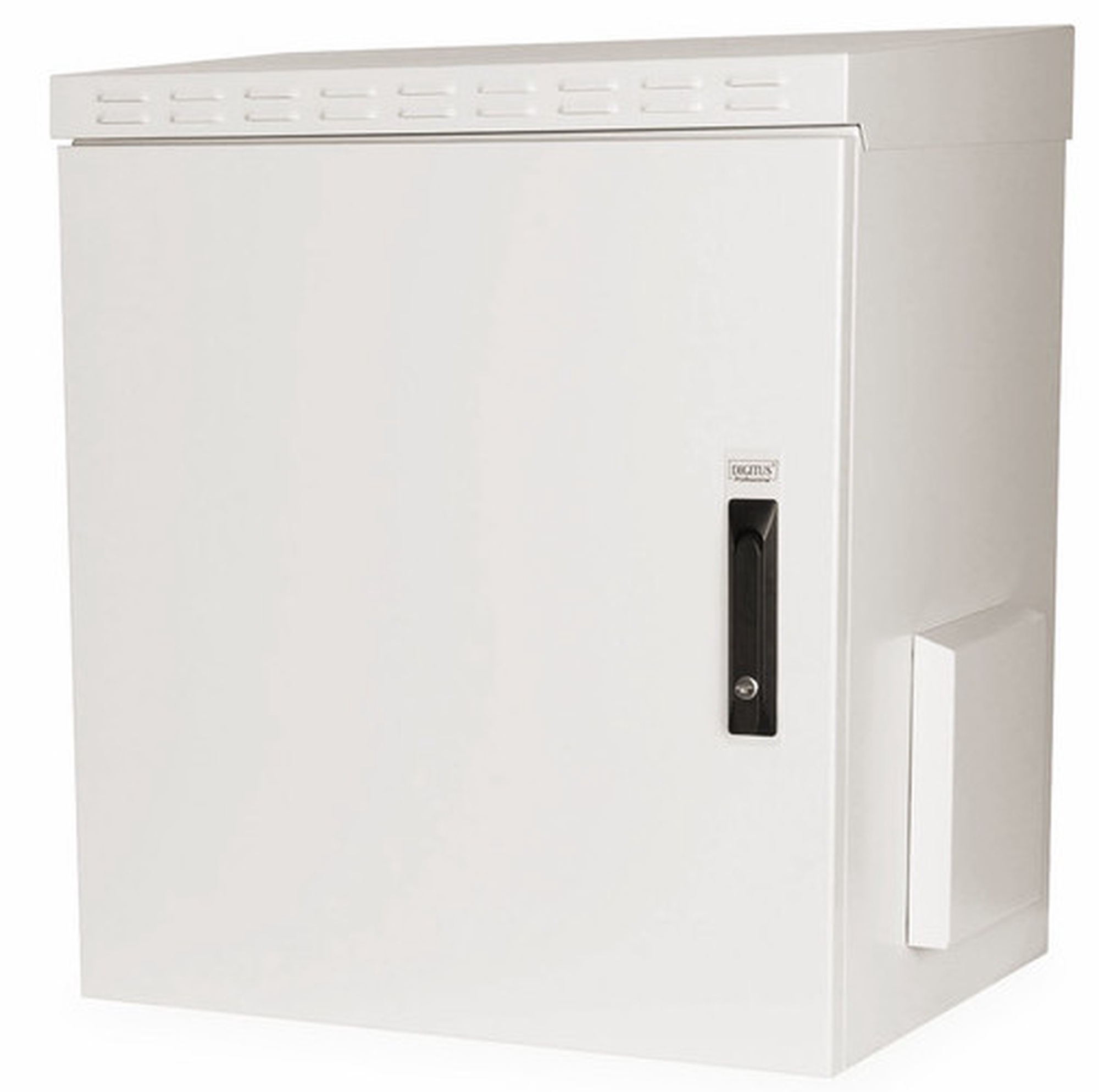

12U wall mounting cabinet, outdoor, IP55 713x600x450 mm, color grey (RAL 7035)

The DIGITUS® IP55 Outdoor Wall Mounting Cabinets are designed for industrial applications with protection against water and dust acc. to safety class IP55.

Protected against dust and water jets (IP 55)

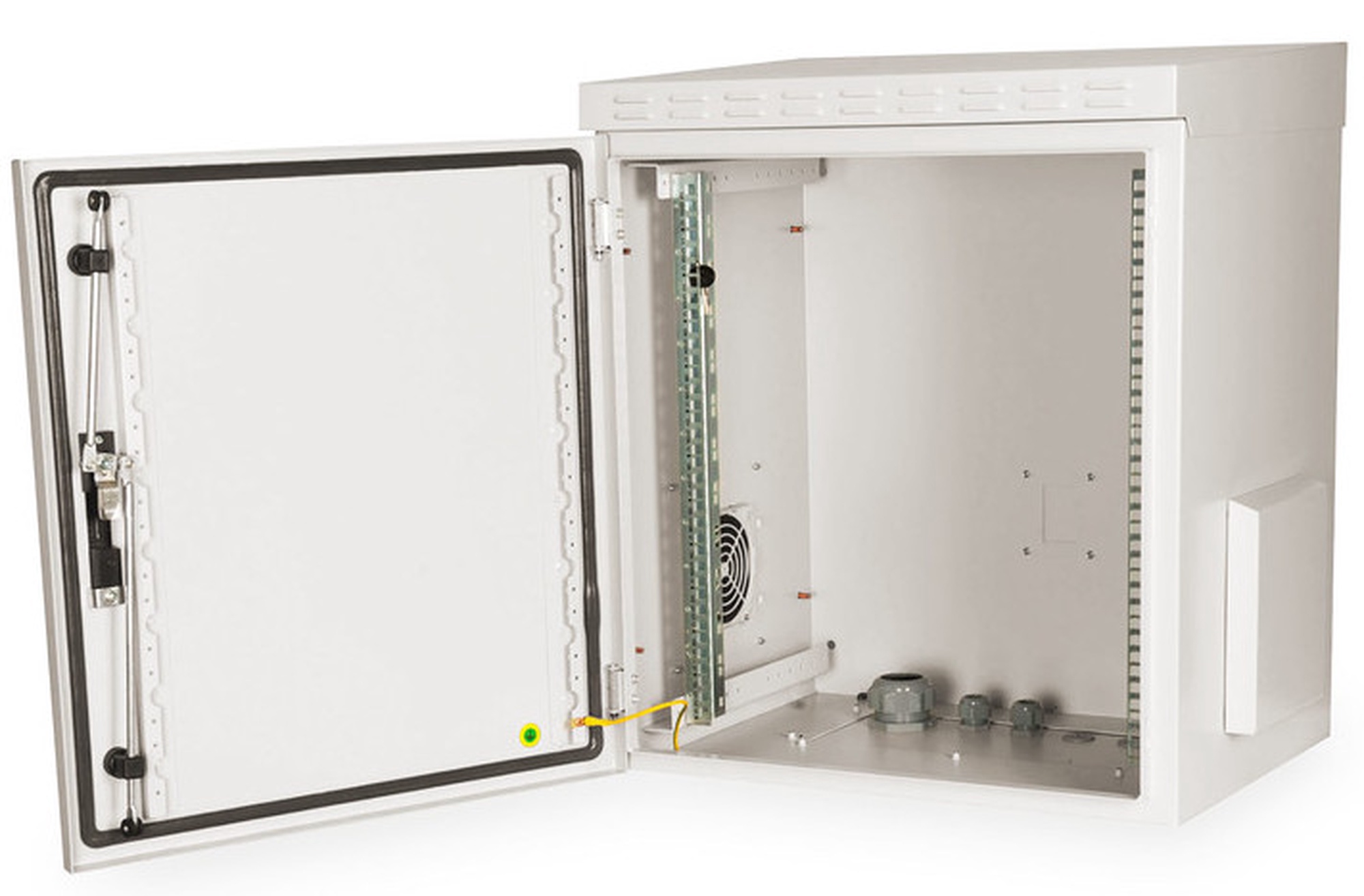

Steel front door with lockable pivot lever and 3-point-locking mechanism
Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
Free standing usage with additional plinth possible
The 483 mm (19") IP55 Outdoor Wall Mounting Cabinets are designed for industrial applications. They are based on the IP55 safety class which is conform to the EN 60529 and are therefore protected against water-and dirt ingress.Best performance is provided e.g. via the 3-point-locking system with lockable swing handle and isloated cable entries. Integrated air ventilation inlets ensure the entry of fresh air (protection against water and dust acc. to IP54). Application areas are open areas which are under the effect of the environment (Rain, dust, sleet, snow, and splashing water). The cabinets can be used together with a plinth for free standang applications (rear holes for wall mounting can be closed via plugs that are taken from the base of the cabinet when installing the plinth).

Technical Details
Safety class rating IP 55
Lockable steel front door with pivot lever
140° door opening angle
3-point-locking-mechanism on the front door
Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
1.5 mm strong sheet steel with a high loading capacity, powder coated
Single welded housing for more strength

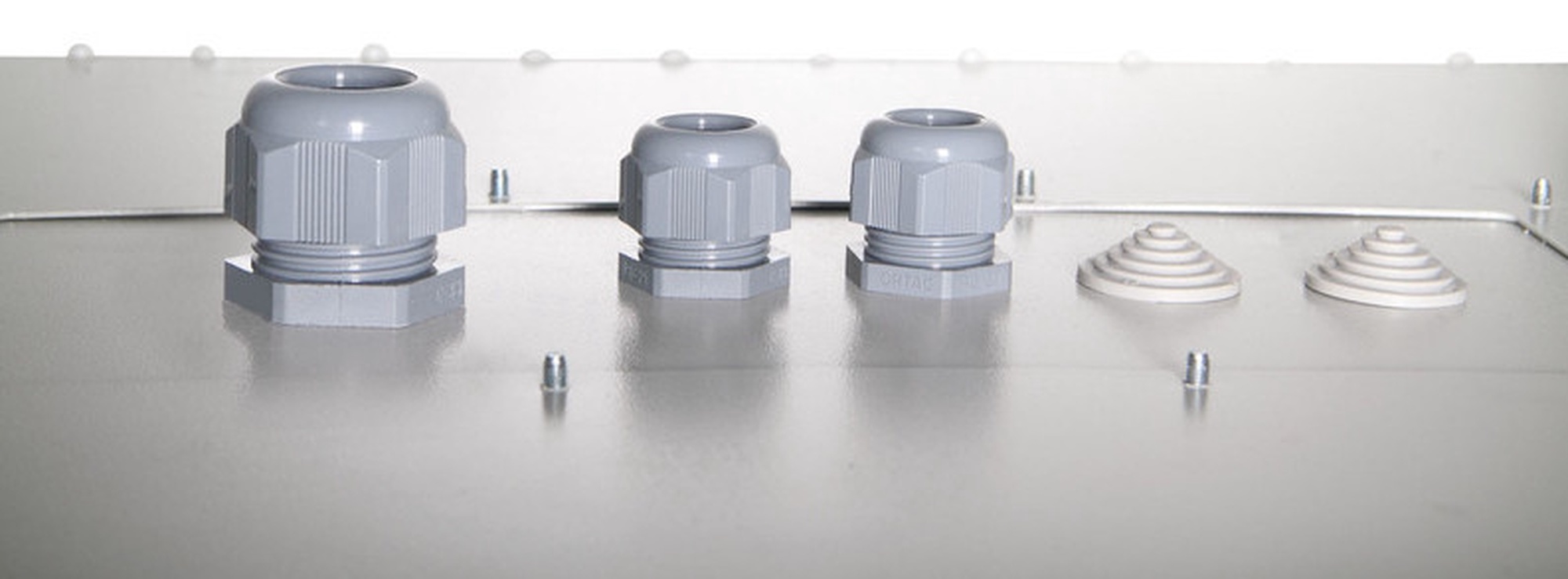

Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)

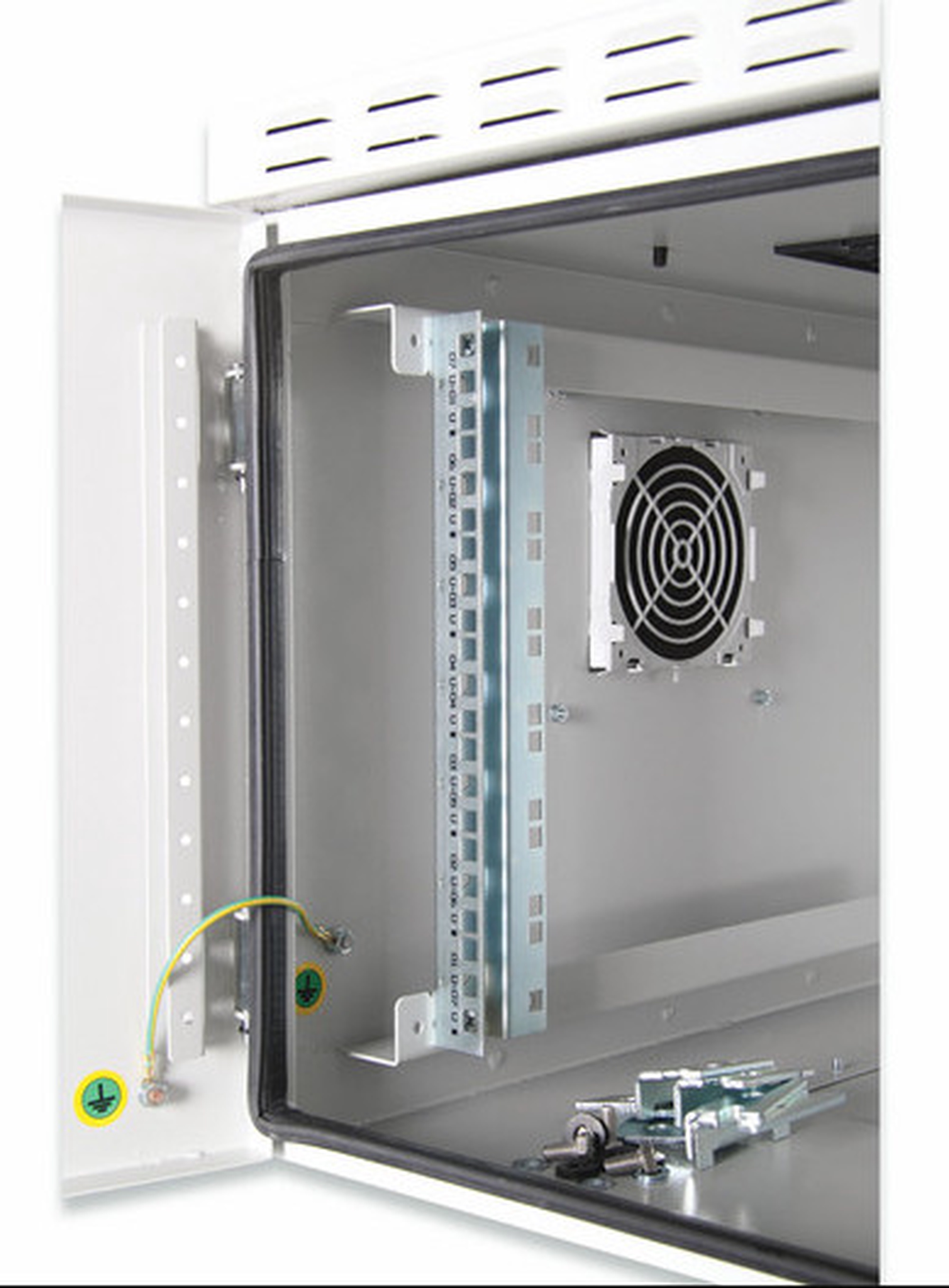

Roof canopy offers protection for suitable fan units and takes care of deaeration and hot air
incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
Equipment mounting depth min.-max.: 142-342 mm
Distance of installation holes to wall mount (H x W) in mm: 520 x 550
IP protection class: IP55
Color: light grey, RAL 7035
Depth: 450 mm
Front door: Steel door, closed, single opening
Units: 12
Load capacity: 100 kg
Mounted: no
Cabinet type: Wall mounting cabinet, outdoor
Width: 600 mm
