Kompiuterio korpusas Impactics, sidabro sp.

Prekės aprašymas anglų kalba:

Essentially, the D3NU1 is a heatsink in the form of a miniature enclosure designed for passive cooling. In order to accommodate the groundbreaking miniaturized complete systems NUC (Next Unit of Computing) from Intel in an optically adequate dwelling and also to go technically on the whole Impactics offers the mini cases in two colors and different versions.

So small, can this really be a computer? That's probably the first question one faces with Intel's Next Unit of Computing (NUC). And the answer is: yes, even with already integrated, powerful CPU. After all, it's one thing to power your display with high-performance components. On the other hand, it is completely different, to realize the whole in a tiny miniature system and yet not to sacrifice power. The form factor of the NUC standard of 10.16 x 10.16 x 5.08 cm can definitely be described as outstandingly small. Just 25 mm space between the mainboard and caseback.

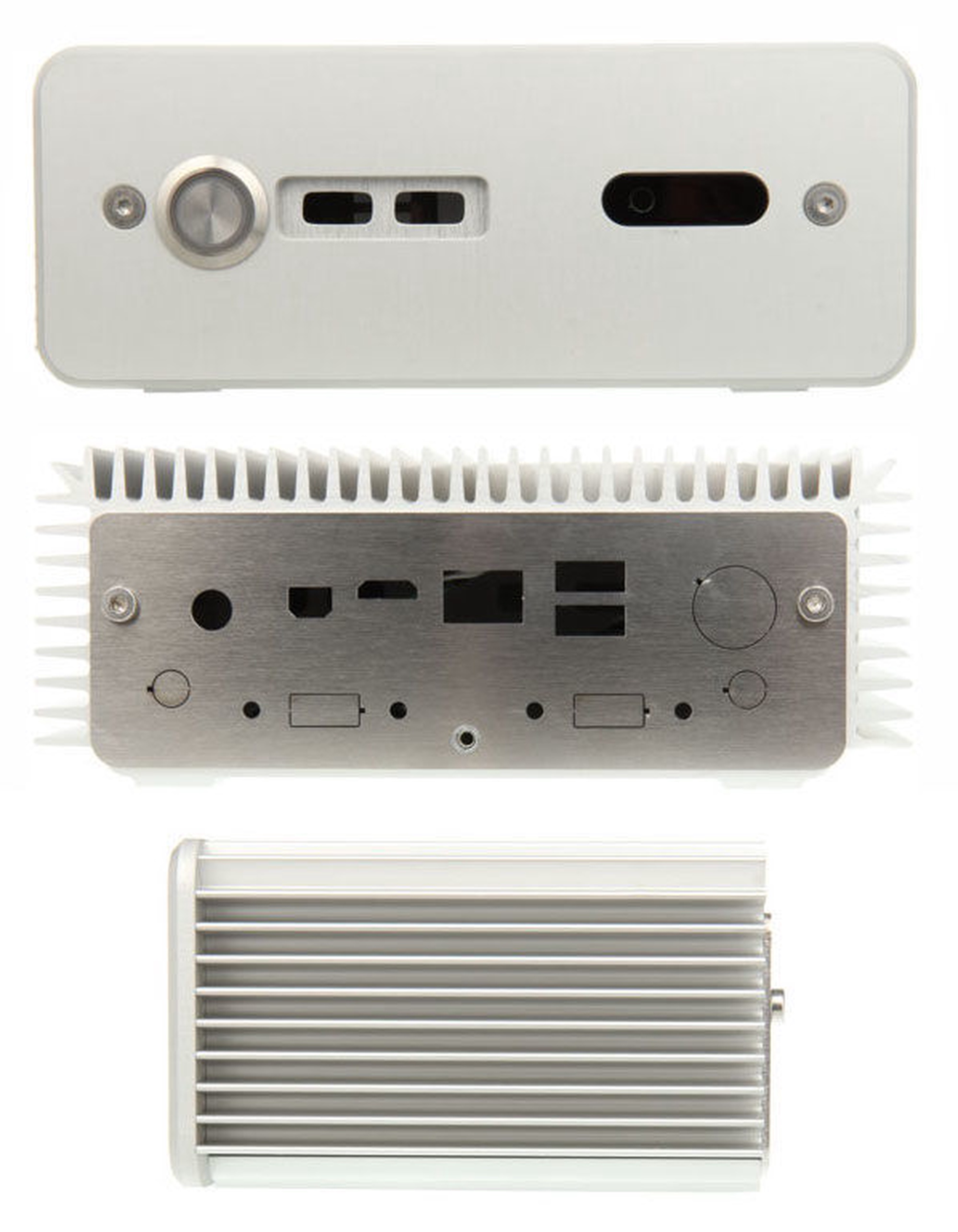

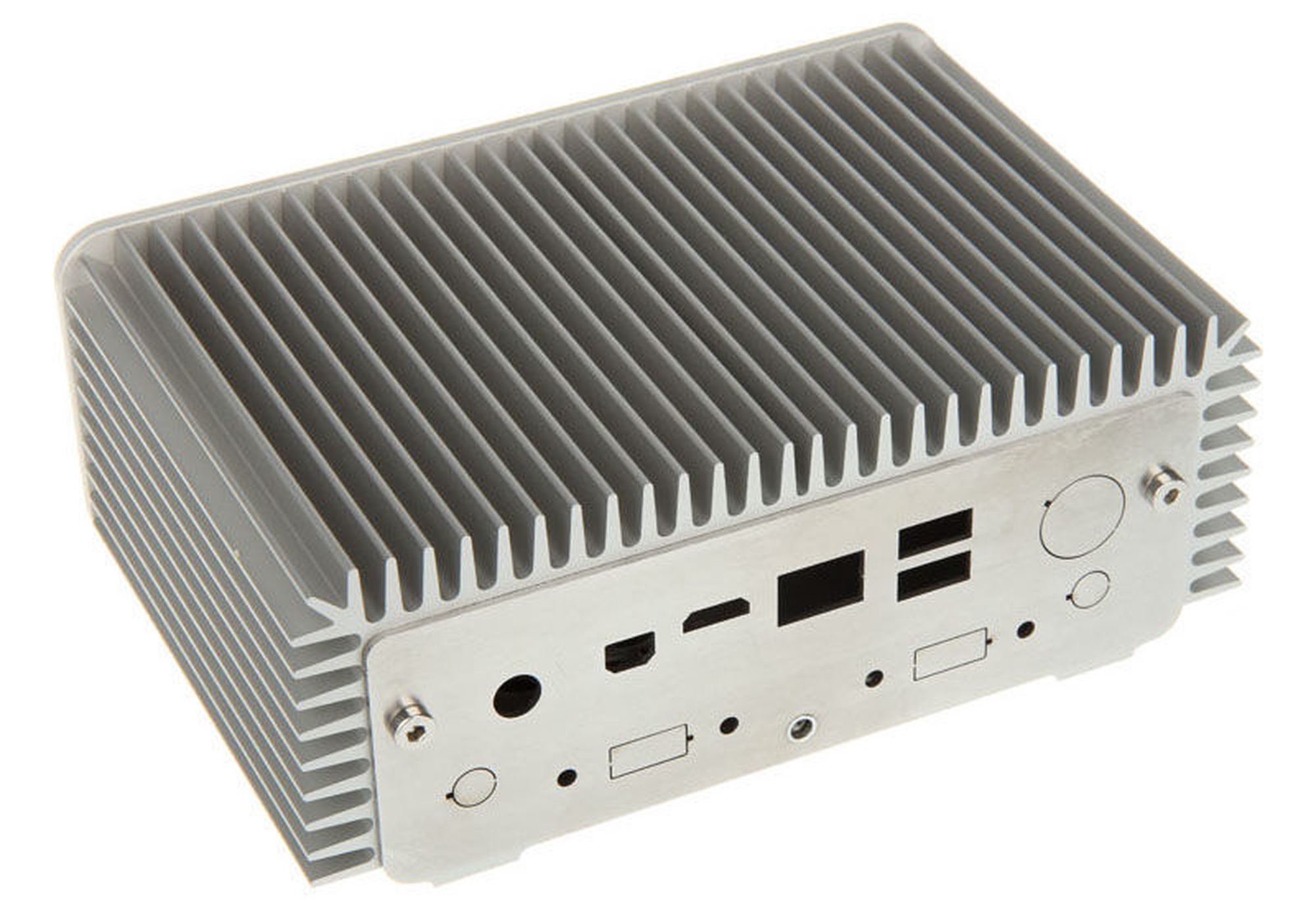

The D3NU1 has all of the required cut-outs required by a NUC-series motherboard such as the D54250WYB or Intel's D34010WYB on I / O ports. These are cutouts for the USB, HDMI, Mini DisplayPort and LAN ports on the back and two more for the USB ports on the front. Optionally, in this version at the bottom, pre-cut bezels can be removed to accommodate two more USB ports (but not if a drive is installed) or two WLAN antenna ports.

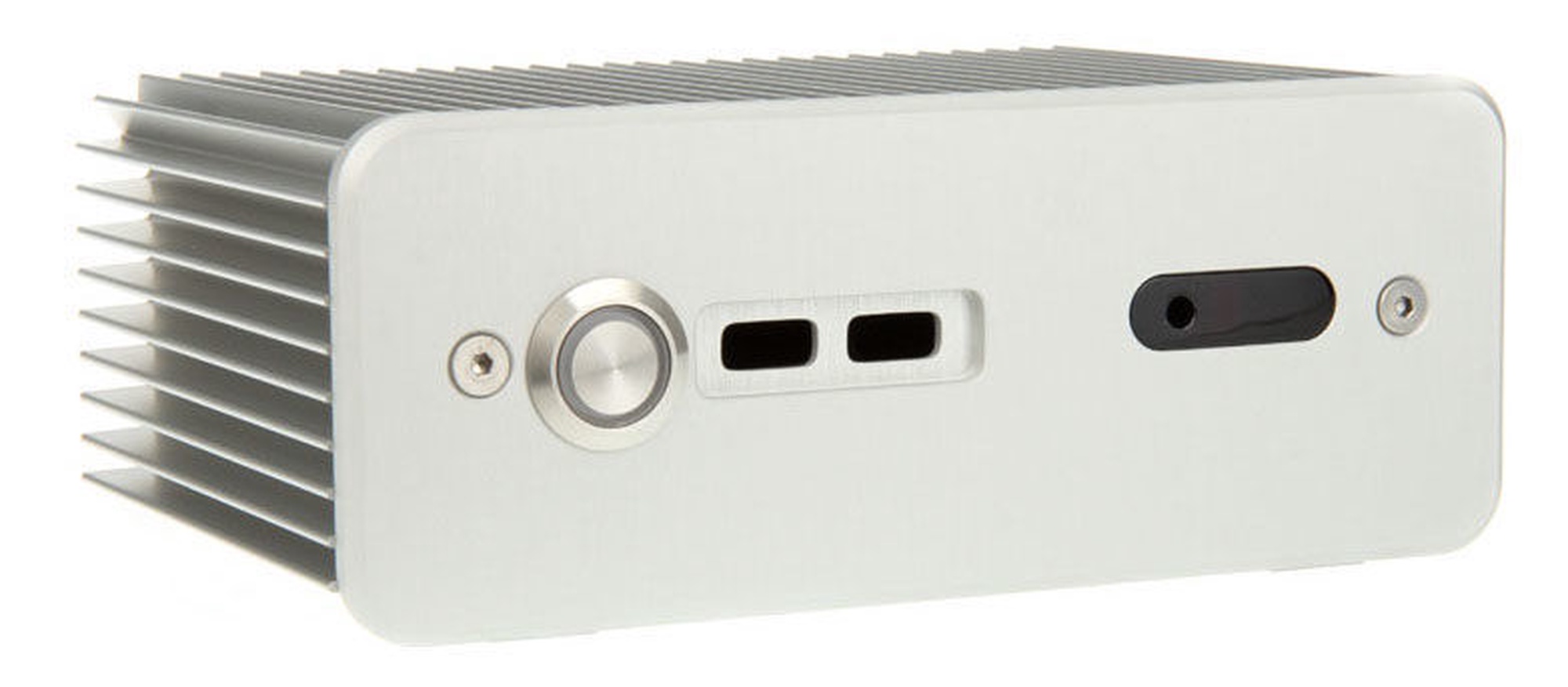

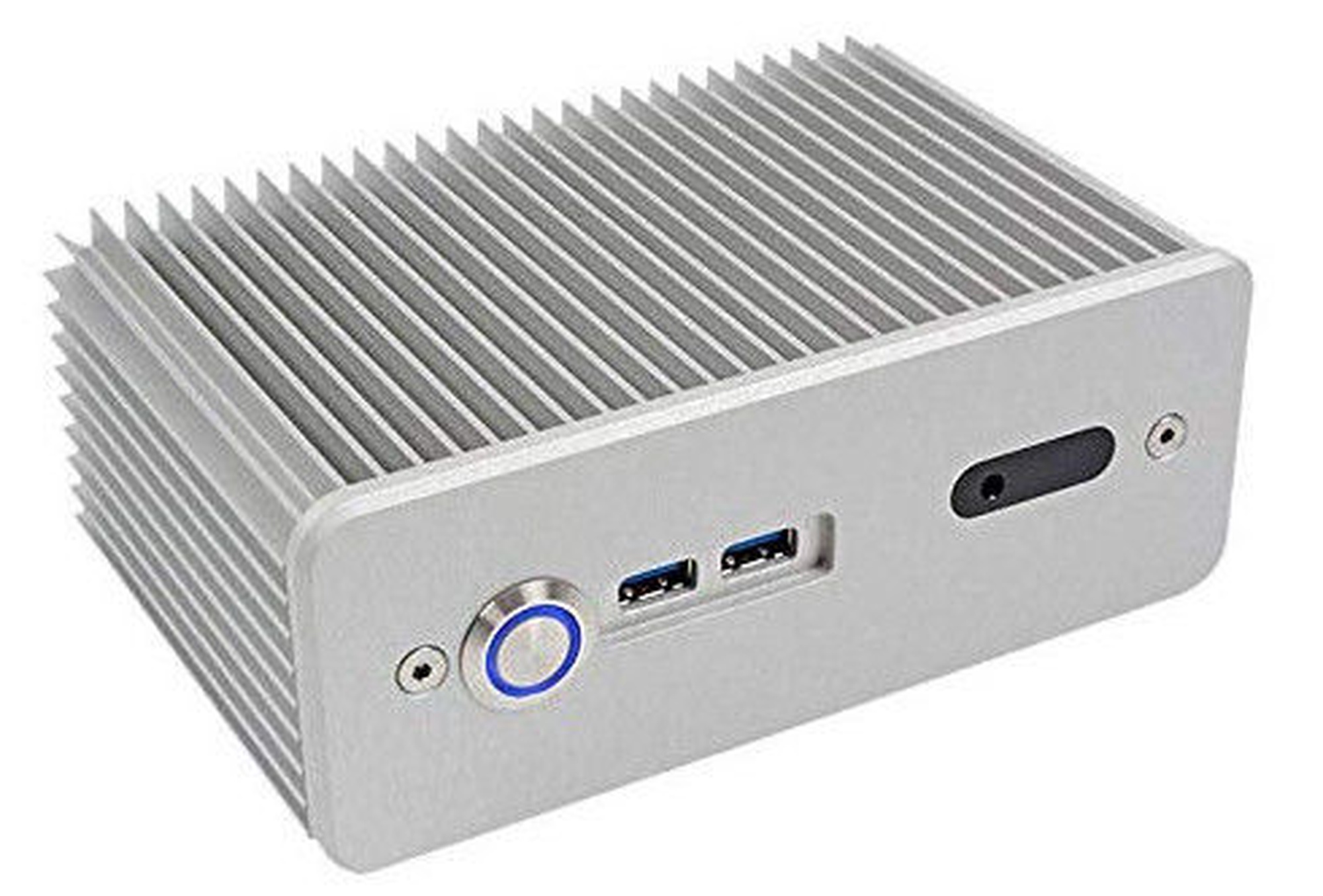

The principle of the Winzling provides to insert the mini-board and then to equip the two chips with the supplied copper heat sink. This is then connected to the outside, removable cooling fins of the housing and in this way, the heat of the CPU through the housing itself. So the processor is operated efficiently and completely silently. In addition, in addition to the support of a front-audio port (mono only) and an IR receiver, this IR version also offers an additional 2.5-inch drive. In addition, the power switch has a blue ring LED, which enhances the small housing optically again.

Technical details:

• Dimensions: 170 x 67 x 114 mm (W x H x D)
• Weight: 1.38 kg
• Material: electrolytic copper, aluminum, chromed steel
• Color: Silver
• Standard: Intel "Next Unit of Computing" (NUC)
• Recess for external connections:
  1x HDMI
  1x Mini DisplayPort
  1x LAN
  4x USB
  1x power supply
  1x Audio
  2x USB (pre-punched)
  2x WLAN antennas (pre-punched)
• Power supply: external power supply (optional)
• Compatibility:
  Intel D54250WYB
  Intel D34010WYB
• Features: Space for a 2.5-inch drive, Blue LED Power Switch, LAN, HDMI, Mini DisplayPort, Audio port in the front

Technical details:

• Dimensions: 170 x 67 x 114 mm (W x H x D)
• Color: Black
• Standard: Intel "Next Unit of Computing" (NUC)
• Recess for external connections:
  1x HDMI
  1x Mini DisplayPort
  1x LAN
  4x USB
  1x power supply
  1x Audio
  2x USB (pre-punched)
  2x WLAN antennas (pre-punched)
• Power supply: external power supply (optional)
• Compatibility:
  Intel D54250WYB
  Intel D34010WYB
• Features: mSATA cooler, LAN, HDMI, Mini DisplayPort, audio port in the front
