Kompiuterio korpusas Lian Li O11, balta sp.

Lian Li O11 Dynamic Mini, Midi-Tower, Tempered Glass

The Lian Li O11 Dynamic Mini developed with Roman "der8auer" Hartung is not only a smaller, but also an extremely versatile variant of the popular O11 Dynamic. Thanks to the exchangeable rear panel, the size of the mainboard tray, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in the second chamber.
The features of the Lian Li O11 Dynamic Mini Midi-Tower at a glance:
Extremely versatile housing with a modular back panel
Space for mainboards in ATX, Micro-ATX or Mini-ITX form factor
Front and side part made of tempered glass
Lid and right side made of aluminum
I / O panel with one USB-C and two USB 3.0 ports
Graphics cards up to 395 mm in length
Three installation slots for large radiators
Up to nine 120 mm fans possible
Suitable for SFX and SFX-L power supplies
Including three different pump brackets
O11 Dynamic Mini: Modular housing with a stylish design

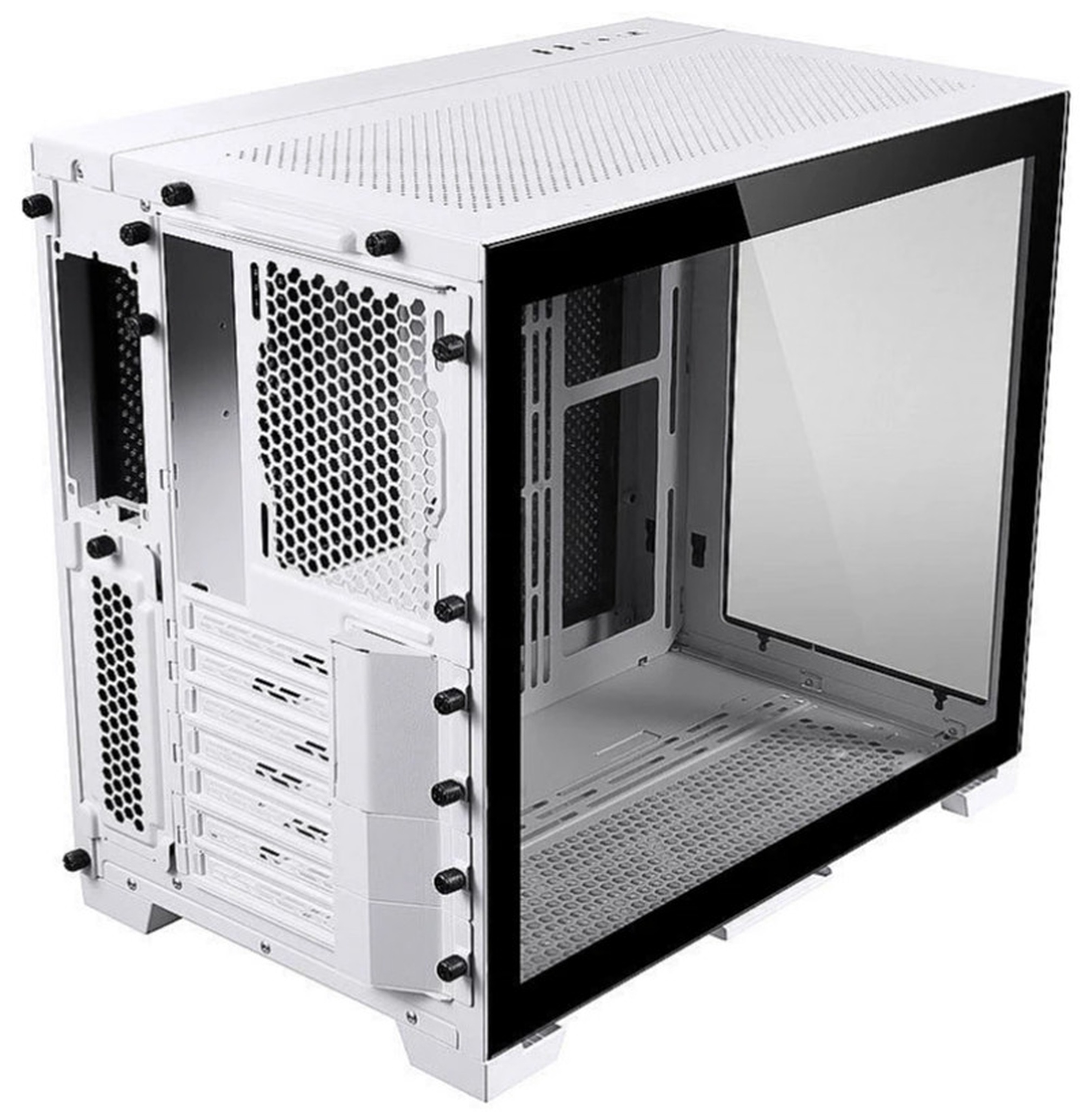

The Lian Li O11 Dynamic Mini is extremely versatile thanks to its modular back panel . Various modules are included in the scope of delivery of the housing with which the rear side can be changed. This has a great influence on the choice of components. The smaller the mainboard, the more space there is for other components.

7 slots

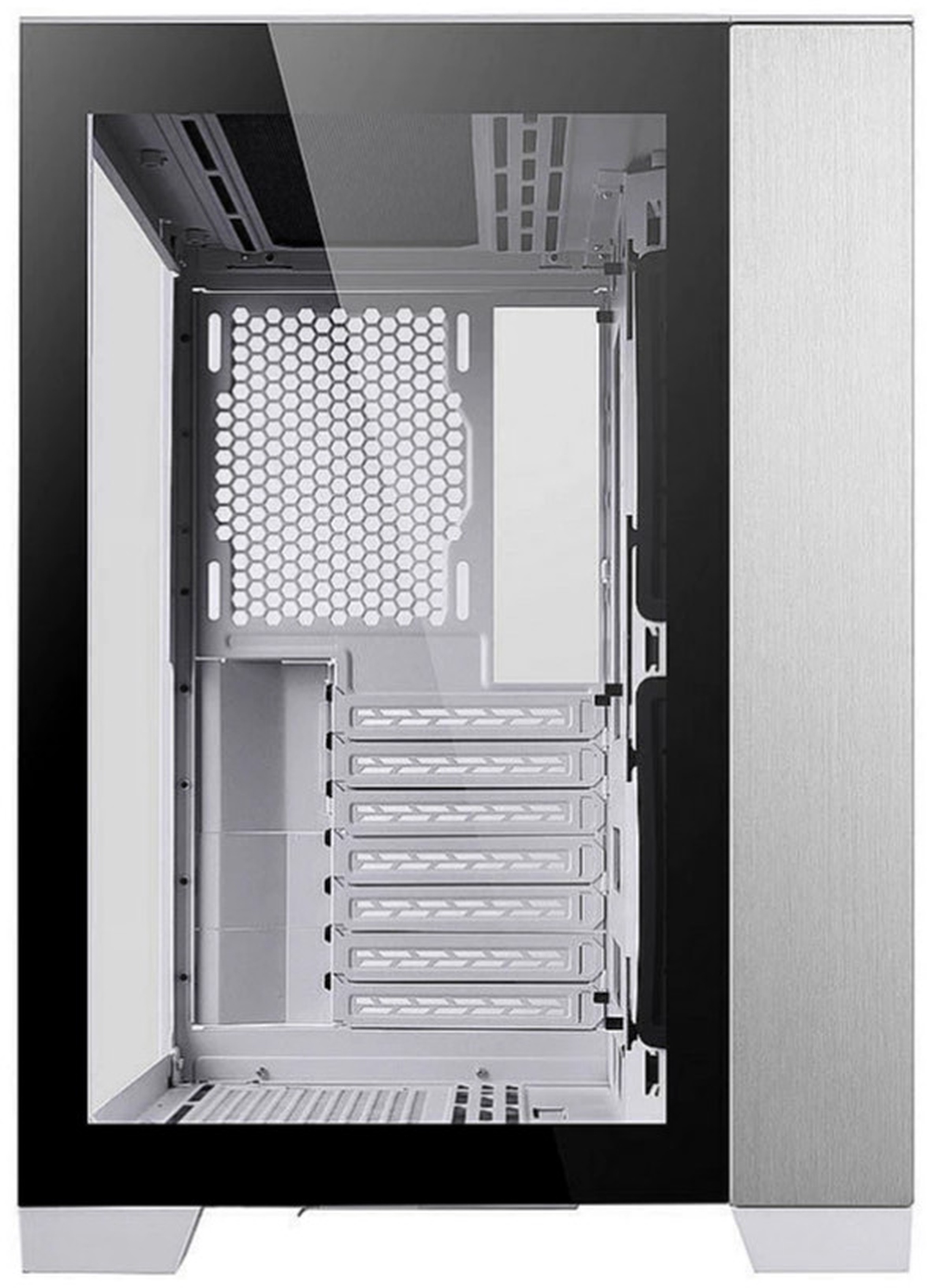

The rear panel with seven expansion slots is suitable for installing ATX mainboards. Only fans can be mounted on the top. Radiators fit right next to the mainboard and on the bottom of the case.

Mainboards: ATX, Micro-ATX, Mini-ITX
Expansion slots: 7
Lid: only fan (up to 25 mm)
Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
Floor (ATX): max. 360 mm radiator or 120 mm fan
Floor (Micro-ATX / Mini-ITX): max. 360/280 mm radiator or 140 mm fan
5 slots
The rear panel with five expansion slots is suitable for the installation of Micro-ATX mainboards. These are now located further down, so that a radiator can also be attached to the lid.

Mainboards: Micro-ATX, Mini-ITX
Expansion slots: 5
Lid: max. 360 or 280 mm radiator (up to 65 mm)
Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
Floor (Micro-ATX): max. 360 radiator or 120 mm fan
Floor (Mini-ITX): max. 360 or 280 mm radiator or 140 mm fan
3 slots
The rear panel with three expansion slots offers free options for the graphics card and is suitable for the installation of mini-ITX mainboards. Above and below there is plenty of space for radiators.

Mainboards: Mini-ITX
Expansion slots: 3
Lid: max. 360 or 280 mm radiator (up to 100 mm)
Side: 280 mm radiator up to 65 mm or 240 mm radiator up to 85 mm
Floor: max. 360/280 mm radiator or 140 mm fan (up to 75 mm)

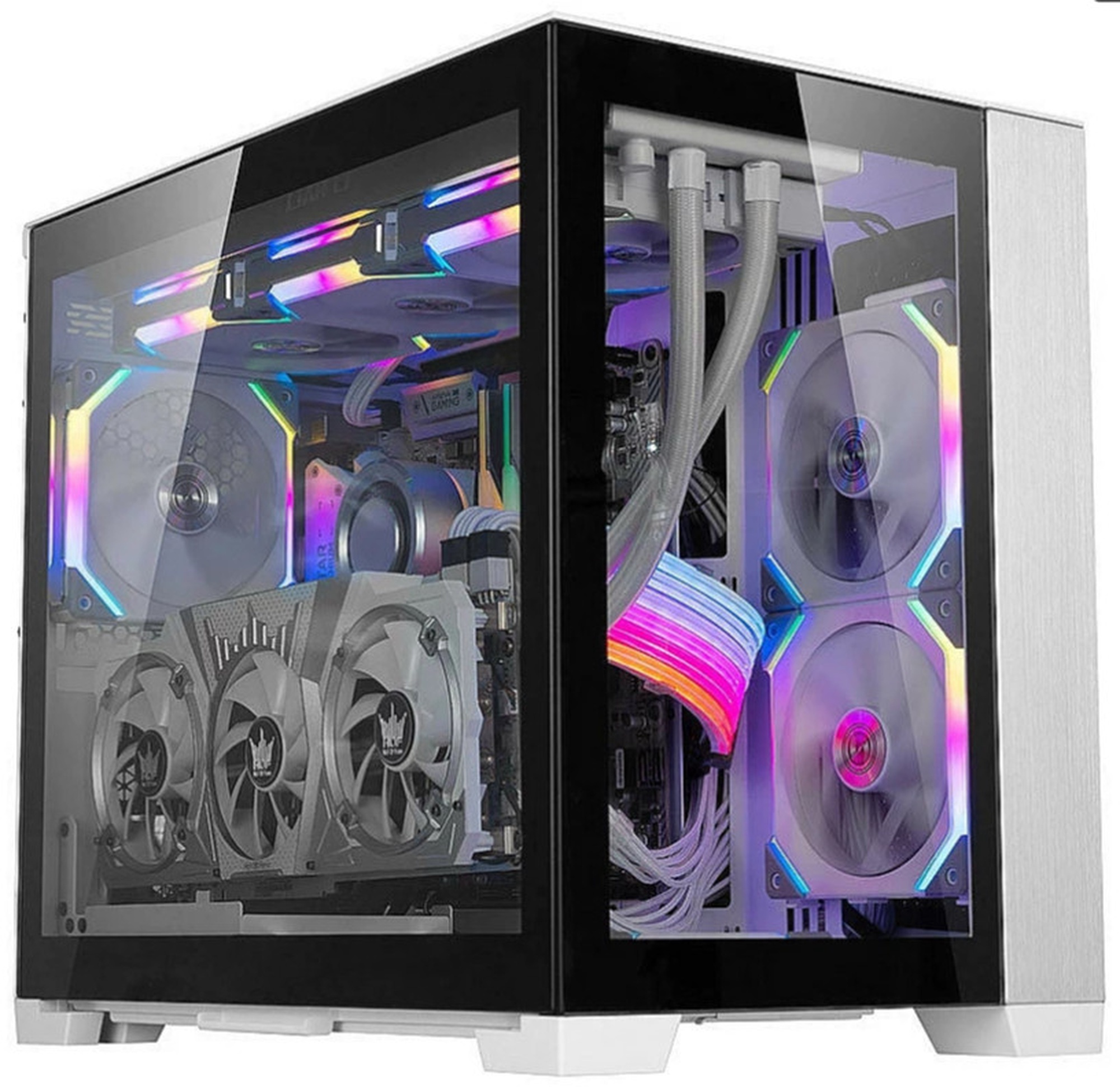

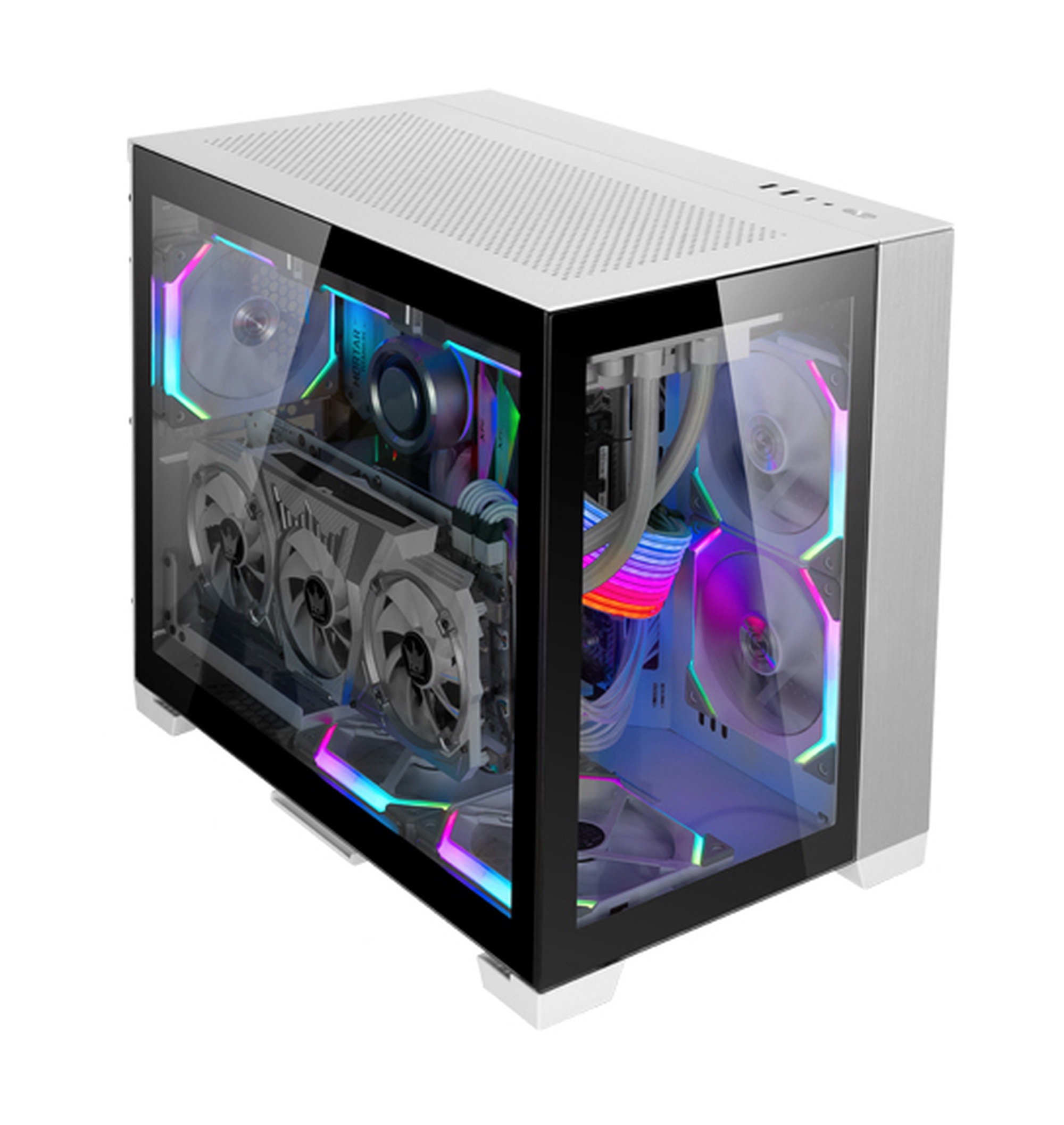

Space for a powerful gaming system
There is space for a 120 mm fan on the rear wall. The bottom, lid and side air inlets are equipped with magnetic dust filters so that the housing stays clean. The Lian Li O11 Dynamic Mini is suitable in every variant for CPU coolers up to 170 mm high , so that there are practically no limits to the selection of a powerful processor cooler . With a full 395 mm, extremely large graphics cards can also be installed.

Hard drives and SSDs

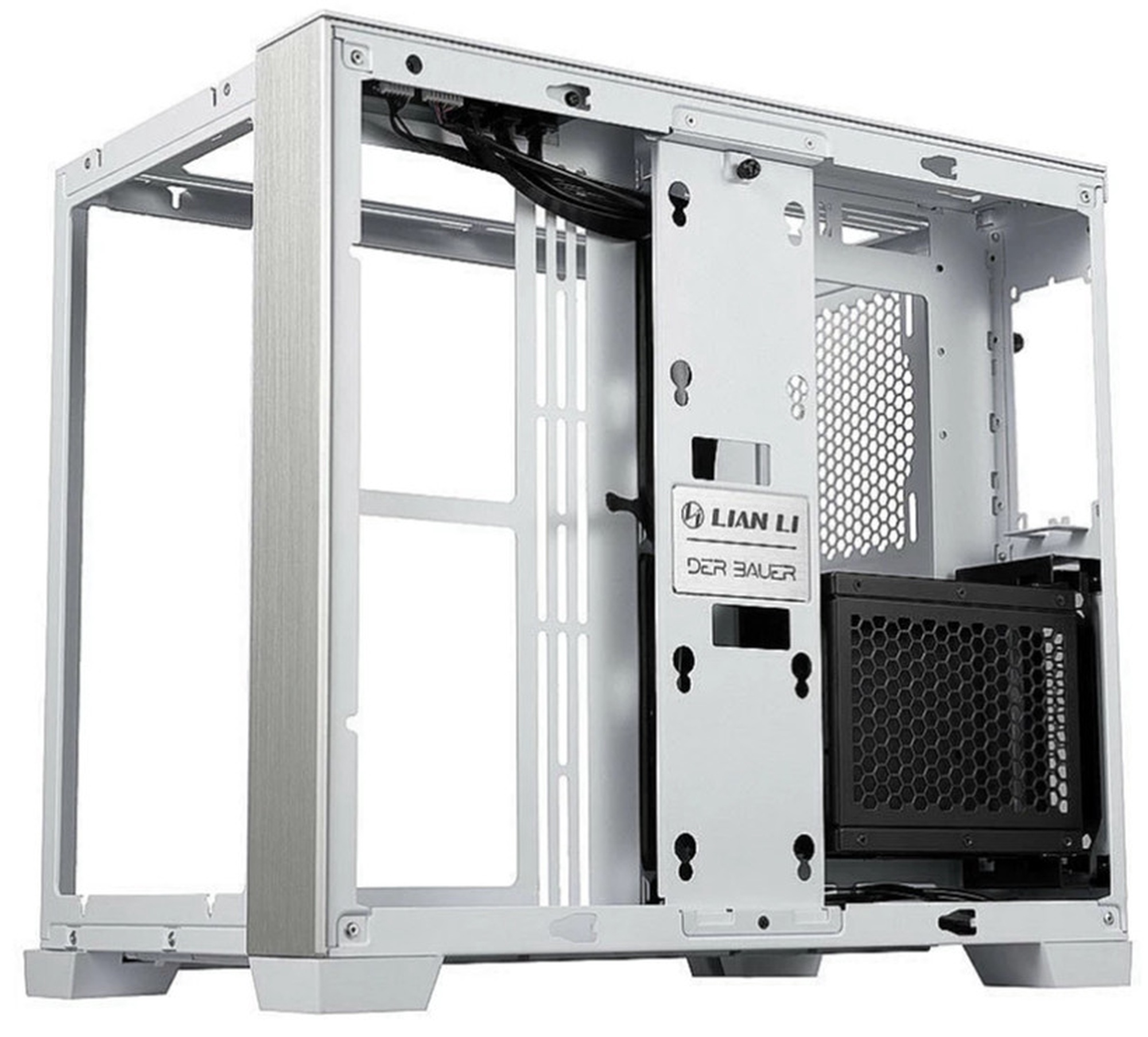

The power supply unit and the drives are housed in the right chamber of the O11 Dynamic Mini. Power supplies in the SFX and SFX-L format are supported. In addition, the housing offers space for a total of four drives:

2x 3.5 / 2.5 inches and 2x 2.5 inches
Design, material and connections

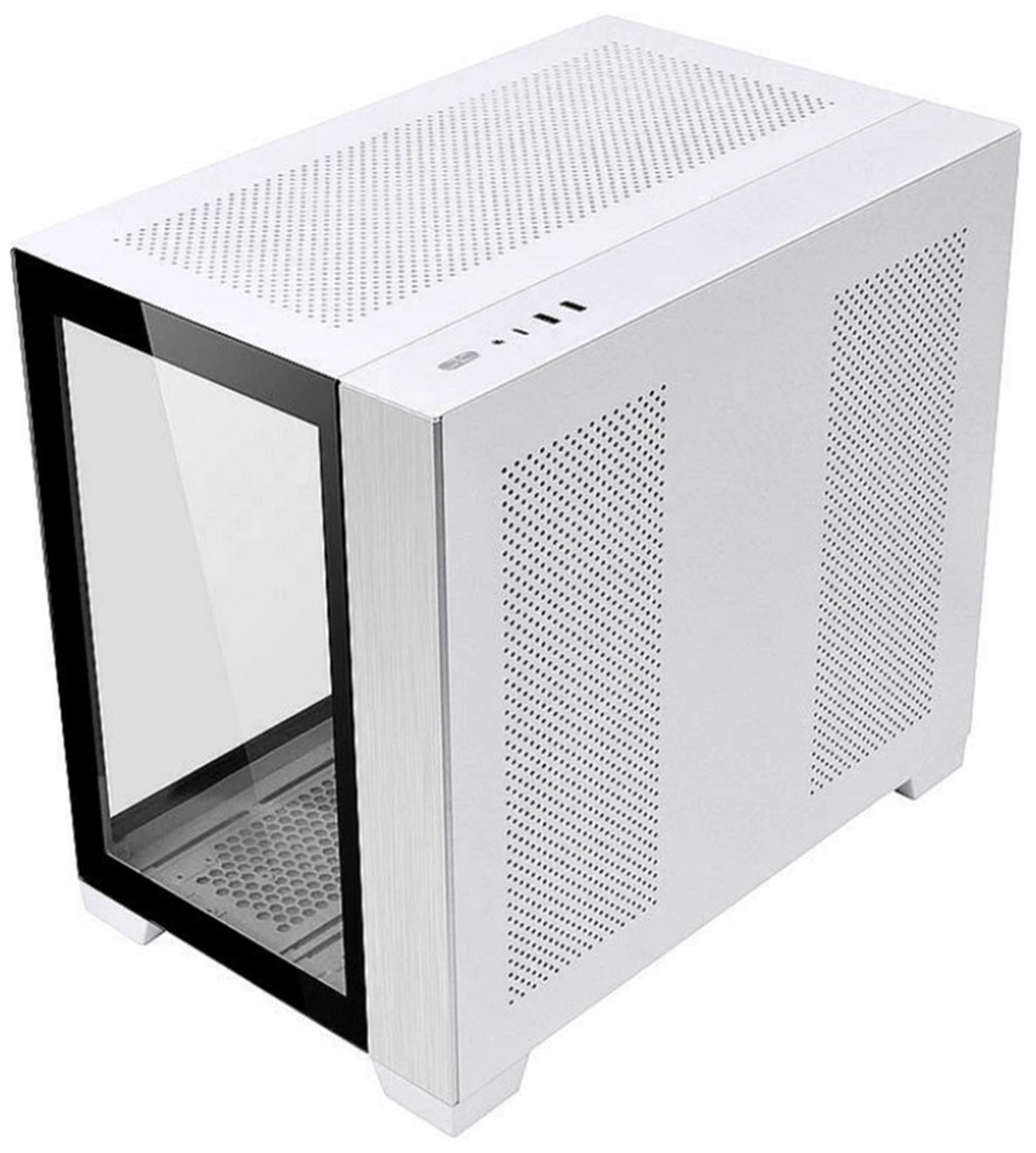

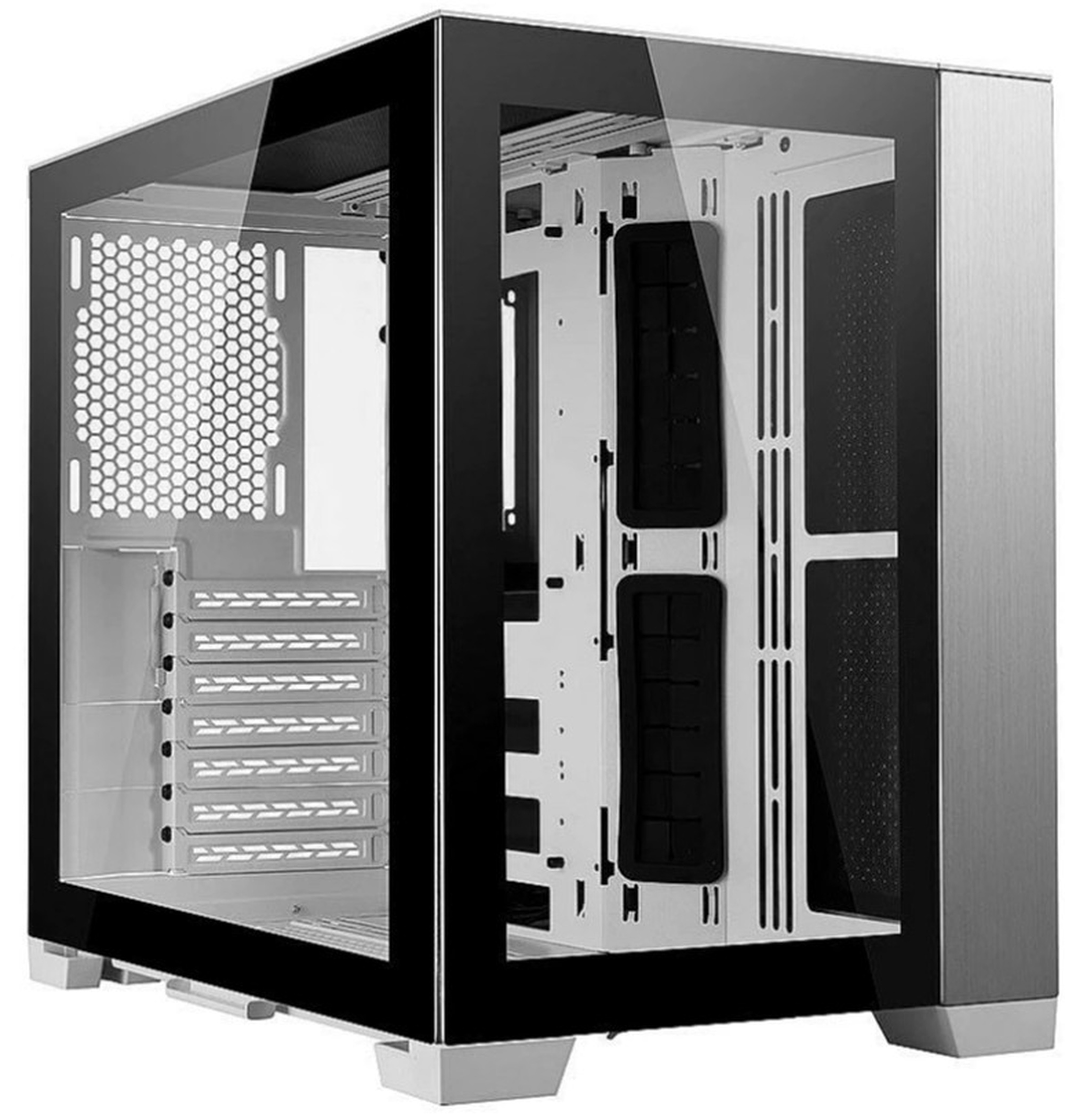

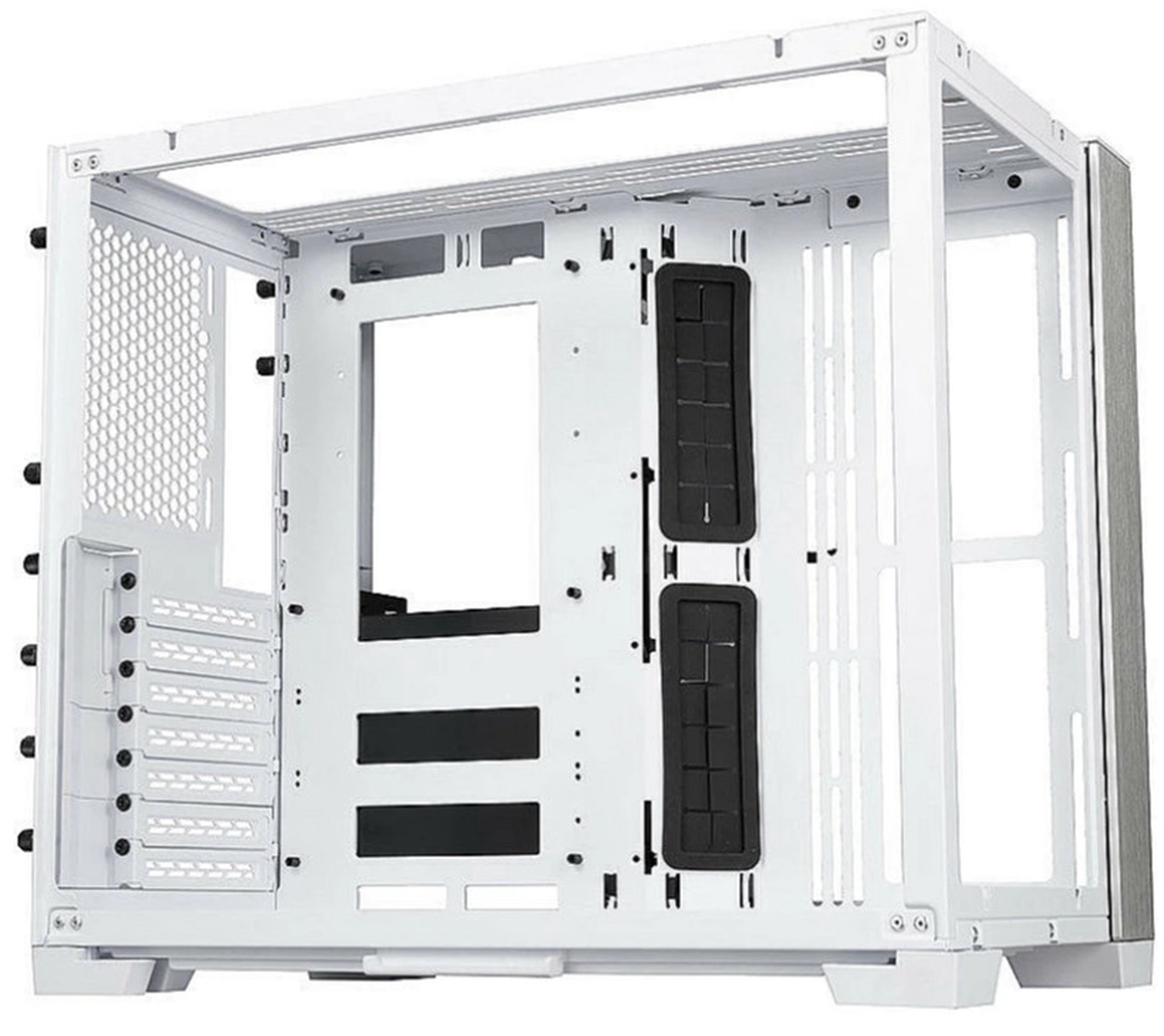

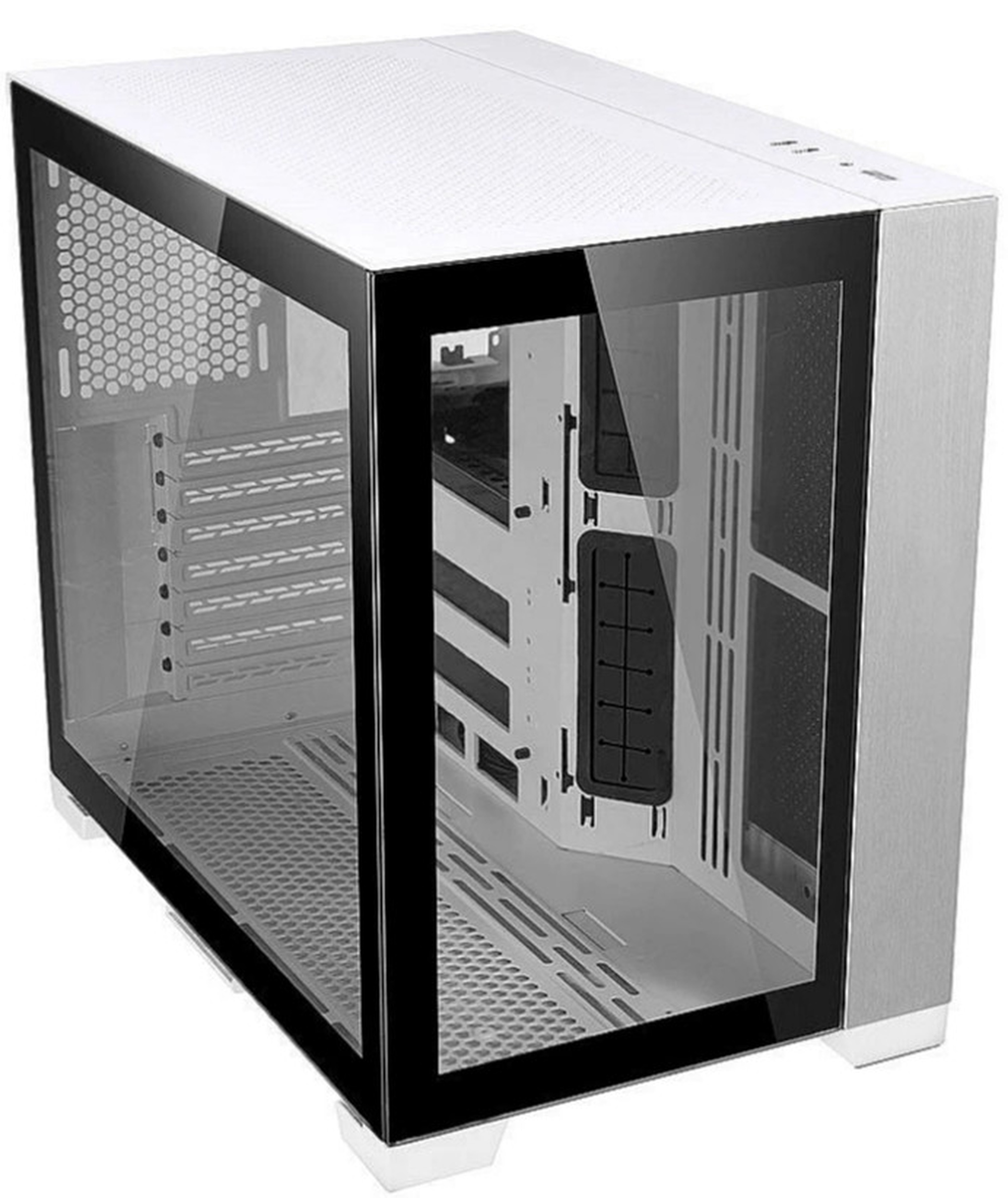

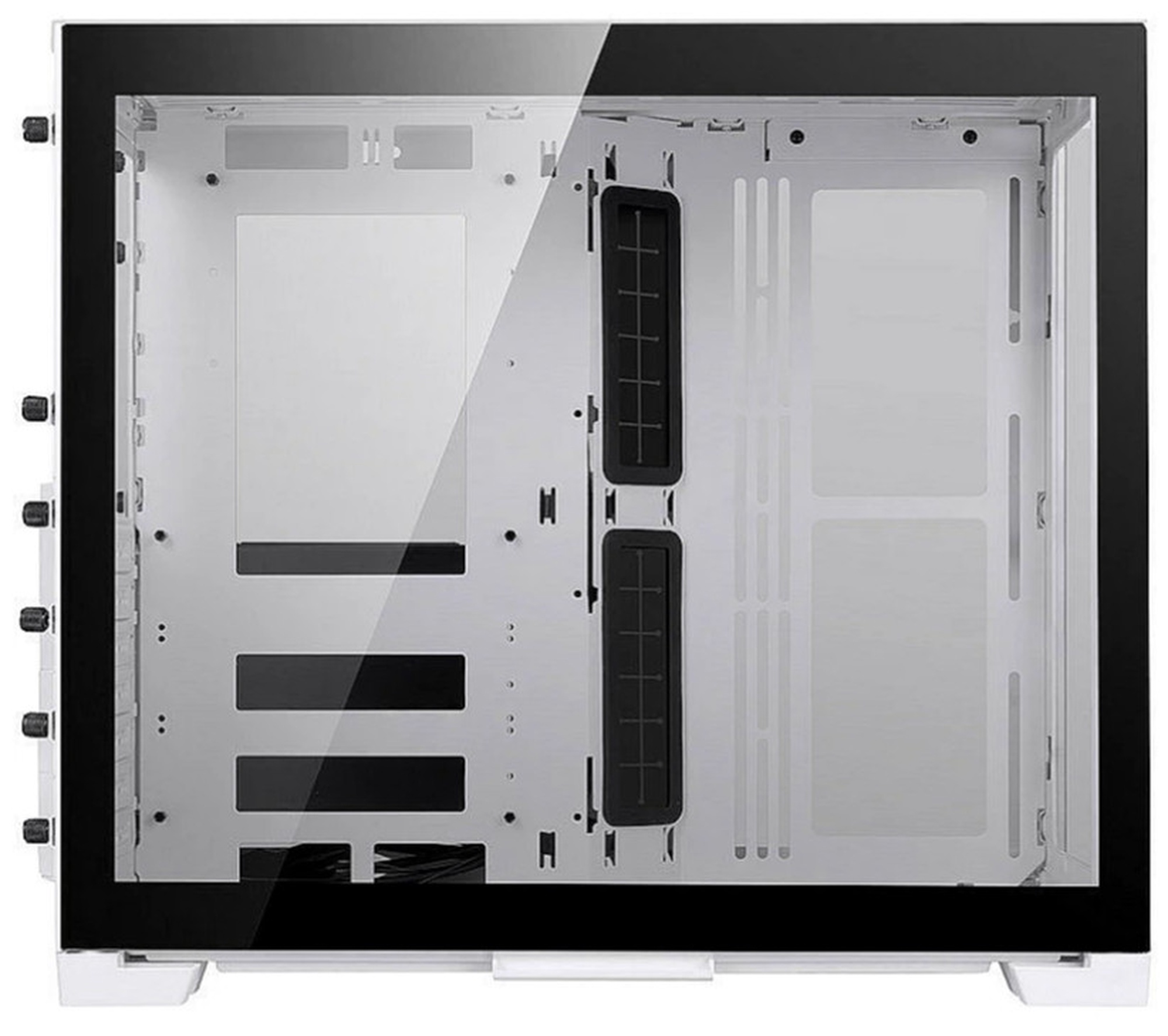

The Lian Li O11 Dynamic Mini offers the distinctive, stylish design that makes the O11 series so popular. It consists of a stable steel frame. Lid and right side part are made of aluminum with a white powder coating. The left side part and the front are made of 4 mm thick, tinted tempered glass and allow a view of the built-in hardware. A silver-colored decorative strip made of aluminum adorns the right side of the housing front. Connections and controls are easily accessible on the top of the Lian Li O11 Dynamic Mini:
2x USB 3.0 type A
1x USB 3.1 Type C
1x combined 3.5 mm jack (4-pin, TRRS)
Power button with integrated HDD LED
