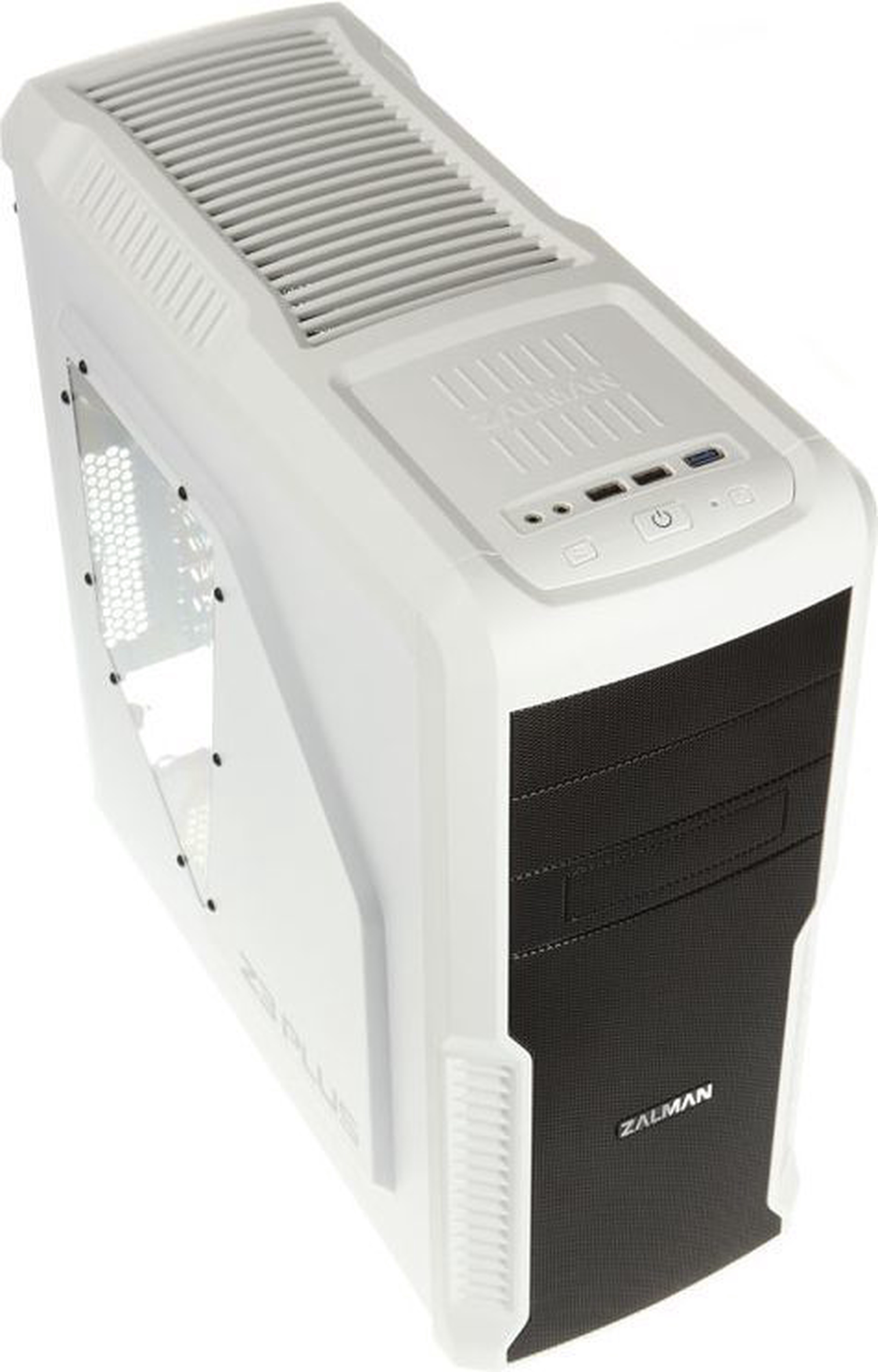

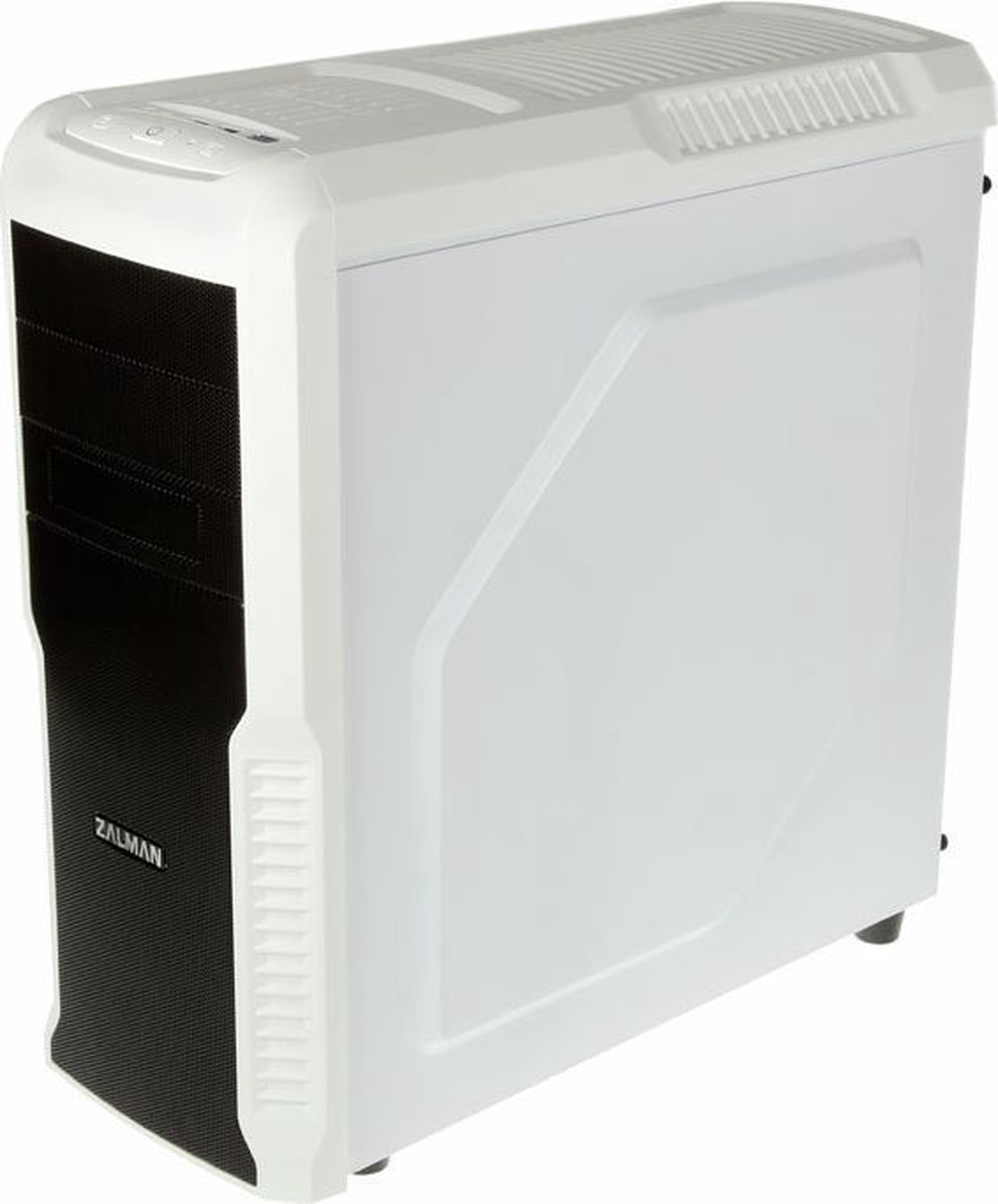

Kompiuterio korpusas Zalman, balta sp.

Preces apraksts angļu valodā:

Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.

The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.

In addition, an insulation can provide even lower external noise. With this modified version of the Zalman Z3-Plus Midi-Tower both approaches are connected and the housing is equipped with a pre-installed insulation.

The special feature of this compilation is that in addition to the pre-installed insulation mats, additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.

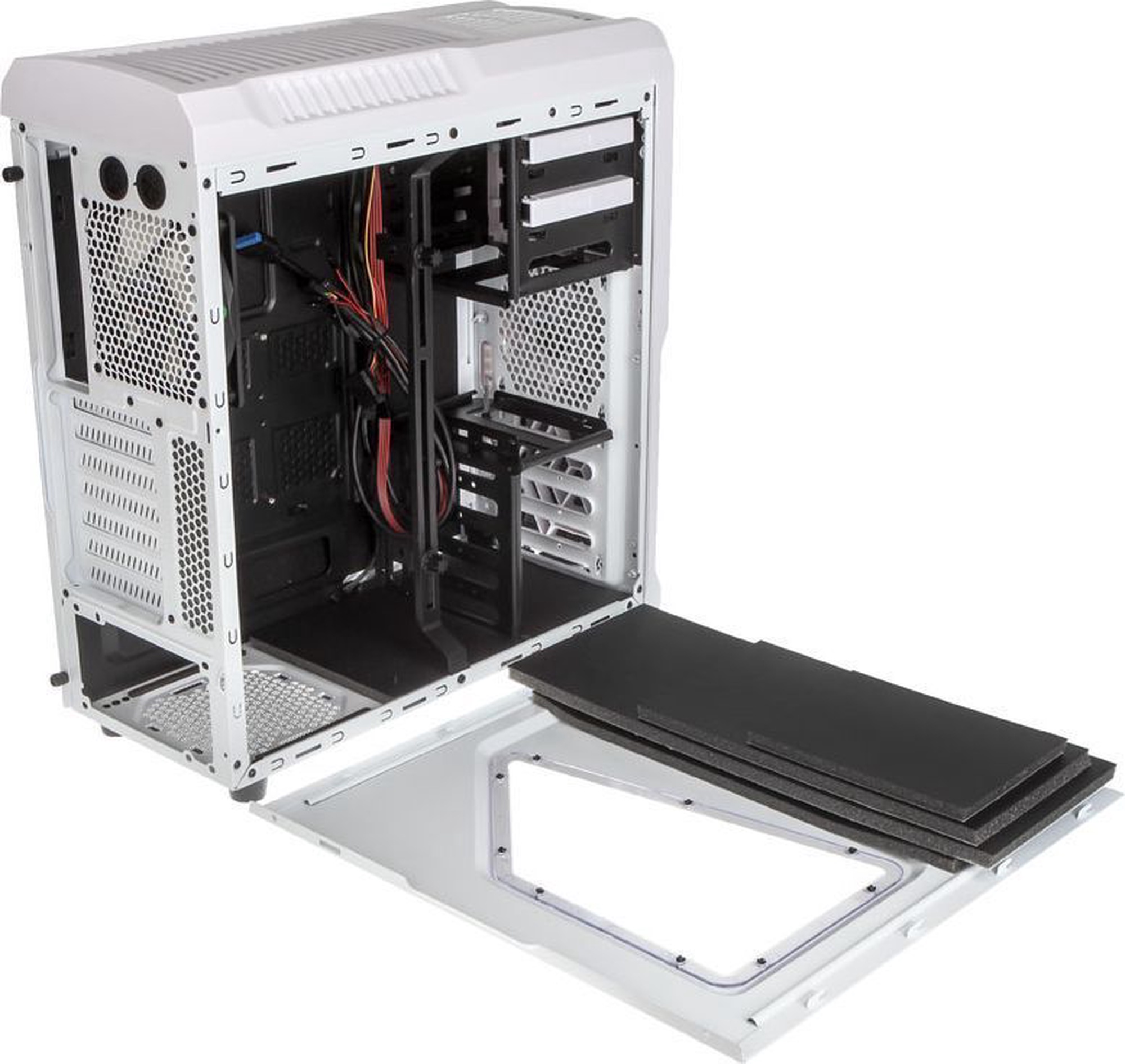

When delivered, the Zalman Z3-Plus Midi-Tower has been fitted with insulating mats at all mandatory locations to reduce component noise. These include the left side panel, the right side panel, the front and middle panels, the front cover and the center back. Three more mats are loosely in the housing. These are also tailored to fit and can be installed as needed. They are intended for the front, the back cover and the top back.

All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the PHANTEKS Zalman Z3 Plus Midi Tower and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.

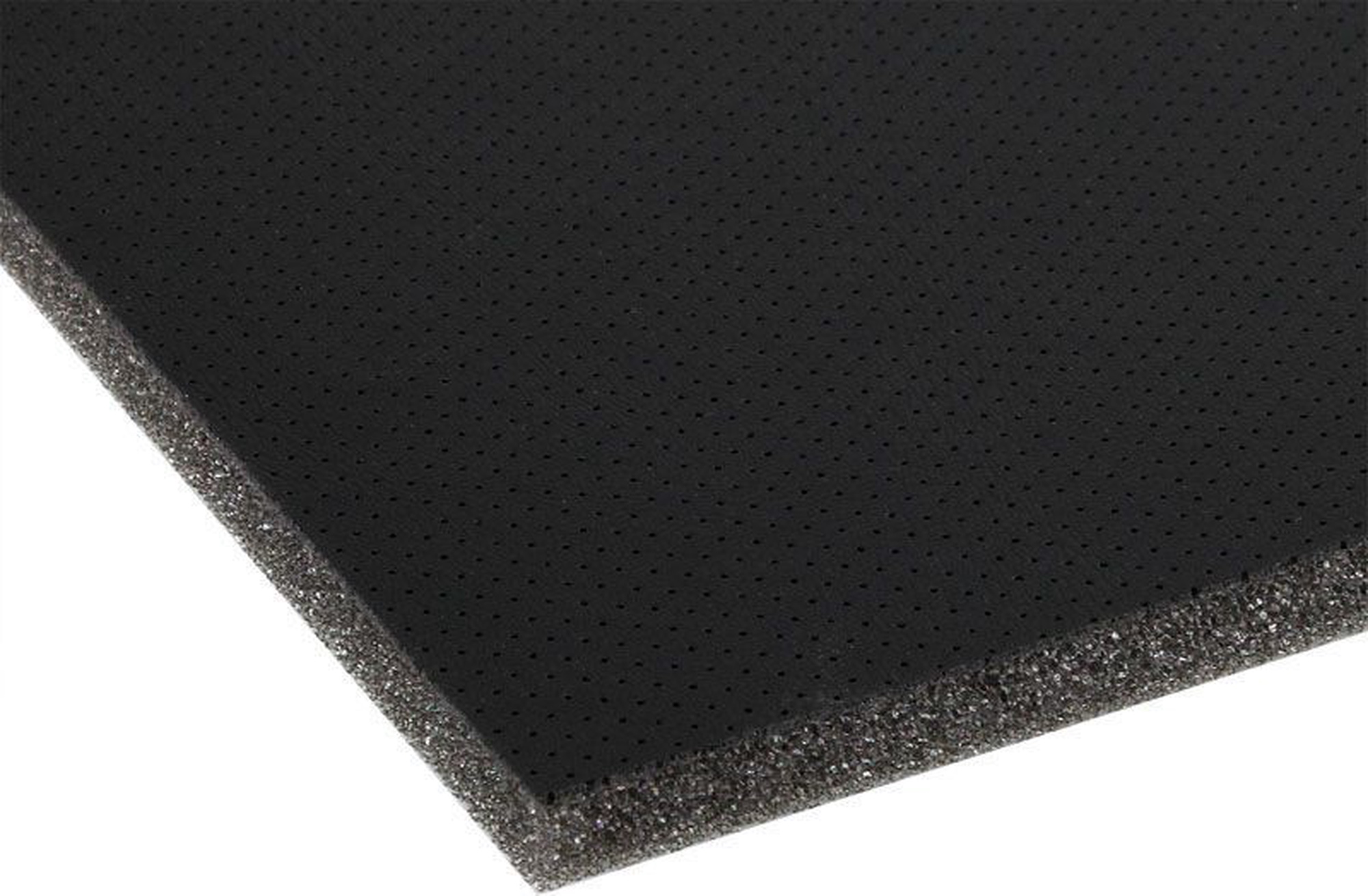

Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate. In addition, the built-in fans should be throttled with the built-in control.

Note: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray can only be limited in comparison to the uninsulated version.

Technical details:

• Zalman Z3-Plus Midi-Tower, insulated
• Dimensions: 192 x 465 x 430 mm (W x H x D)
• Material: steel (body), plastic (front, cover)
• Weight: about 6 kg
• Color: Black
• Form factor: ATX, Micro-ATX

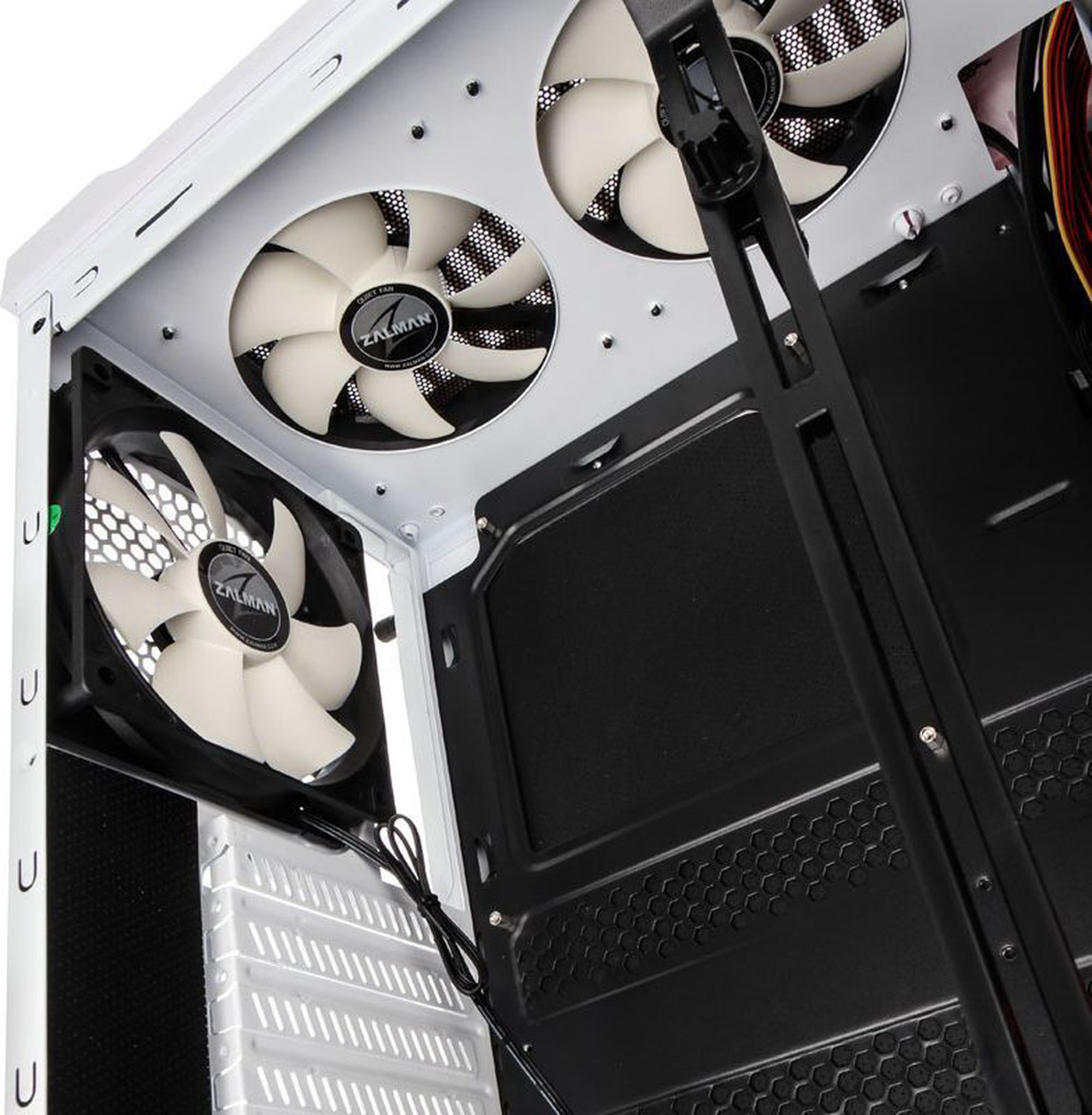

• Total possible fan:
  2x 120 mm (front)
  1x 120 mm (rear)
  2x 120 mm (cover)
• Pre-installed:

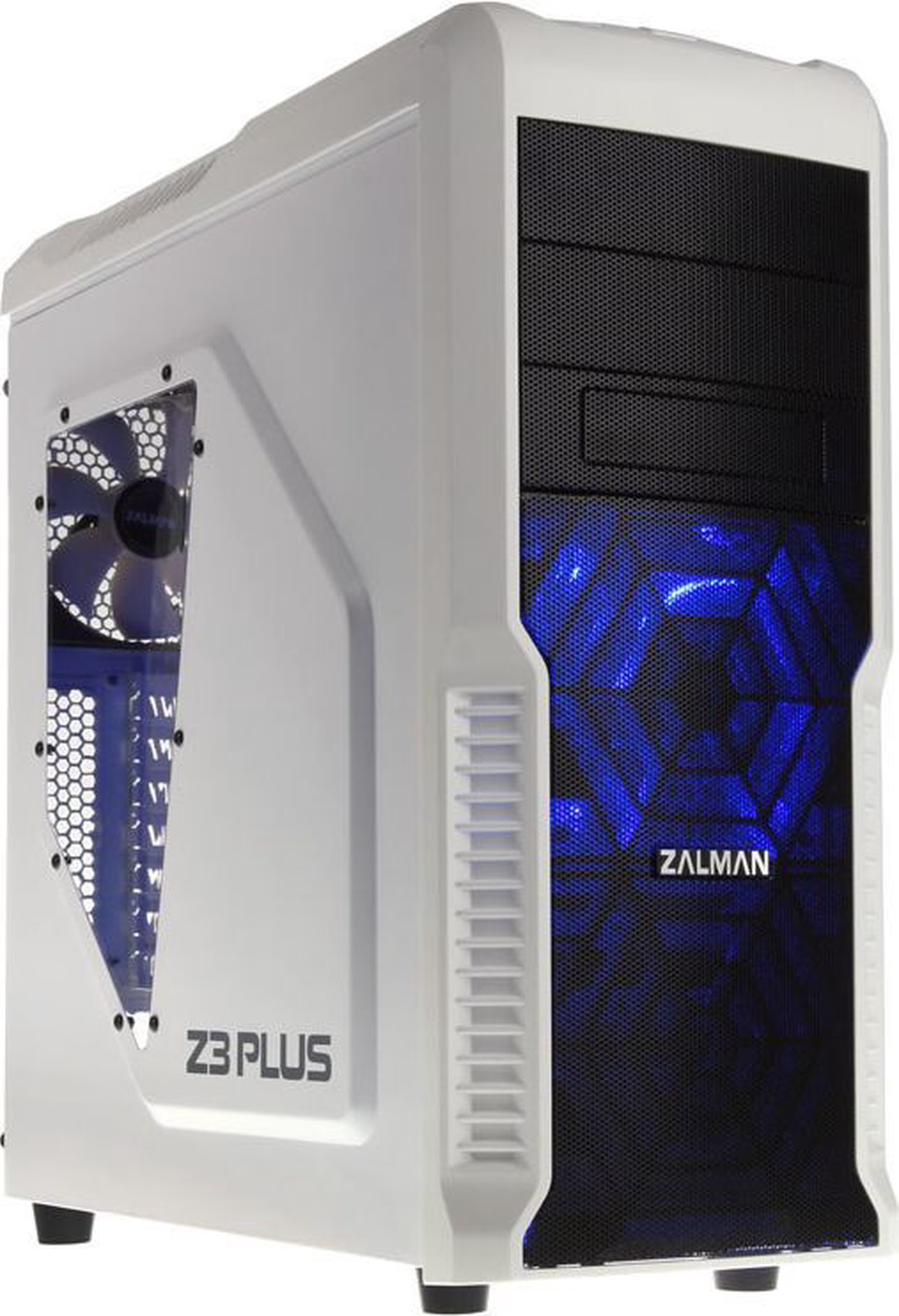

  1x 120 mm with LED lighting (front)
  1x 120 mm (back)
  2x 120 mm (cover)
• Filter: power supply

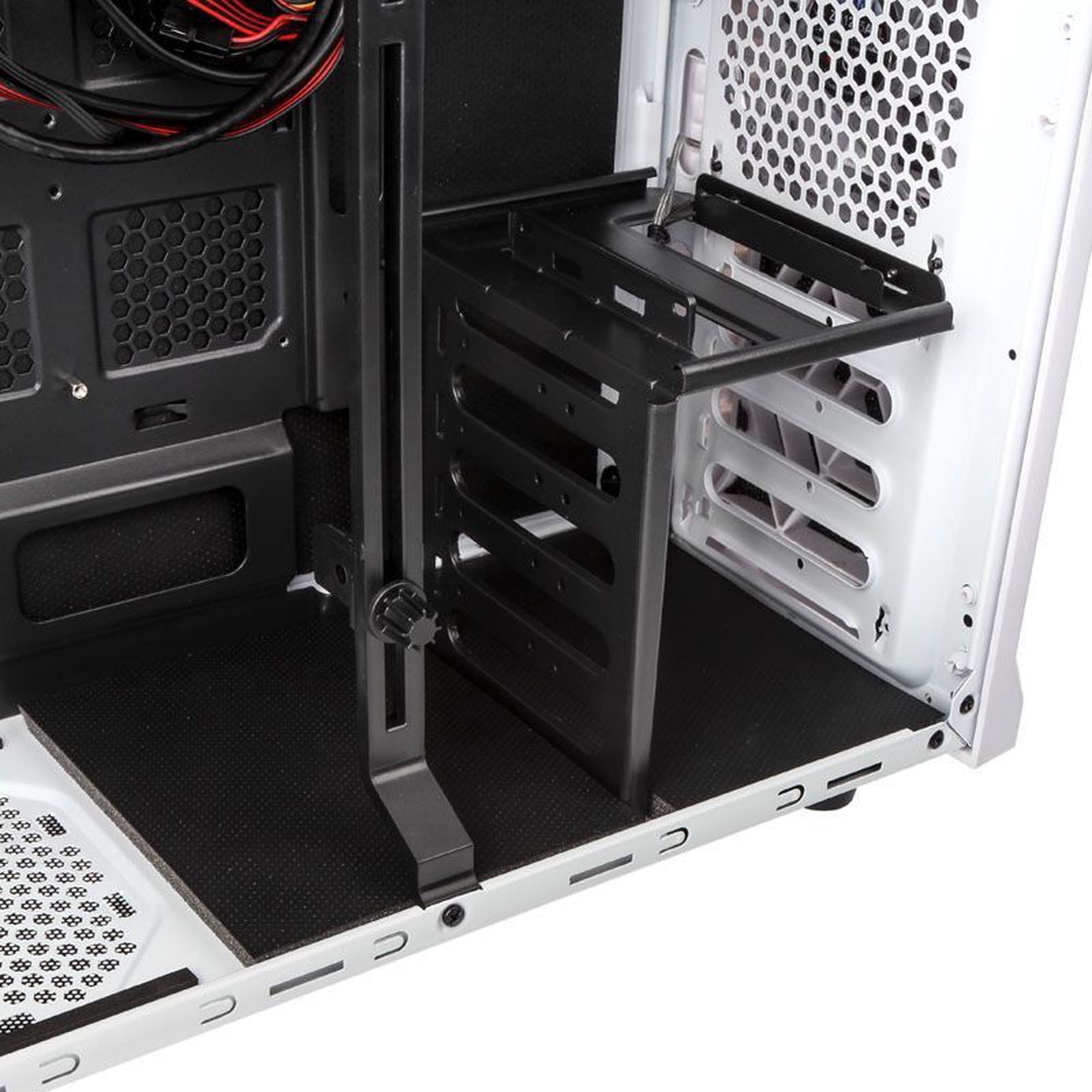

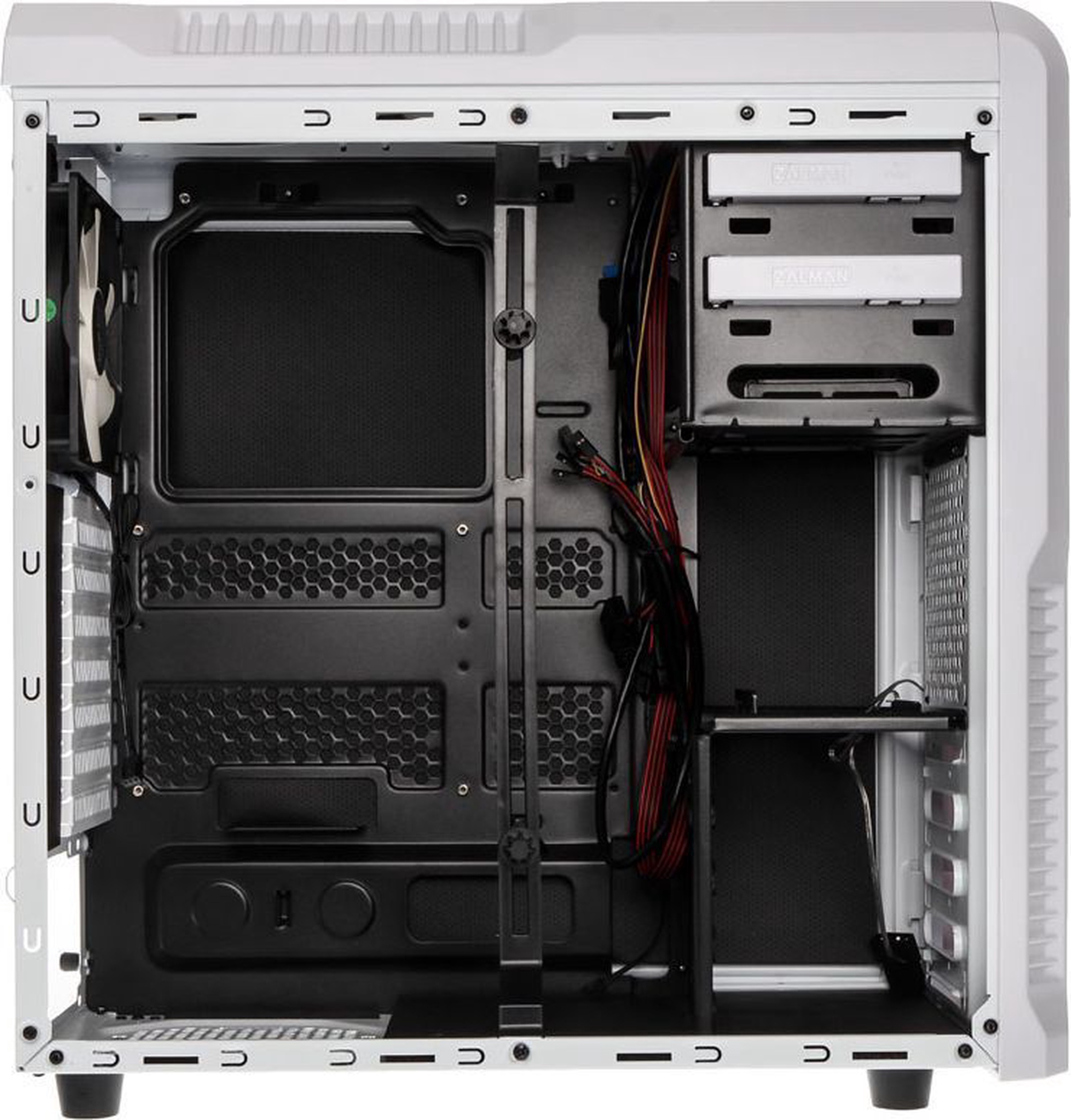

• Drive bays:
  2x 5.25 inches (external, tool-free)
  4x 3.5 inches (internal, HDD cage, tool-less)
  1x 2.5 inches (internal, + 4x instead of 3.5 inches in HDD cage with adapter)
• Power supply: 1x standard ATX (optional)
• Expansion Slots: 7

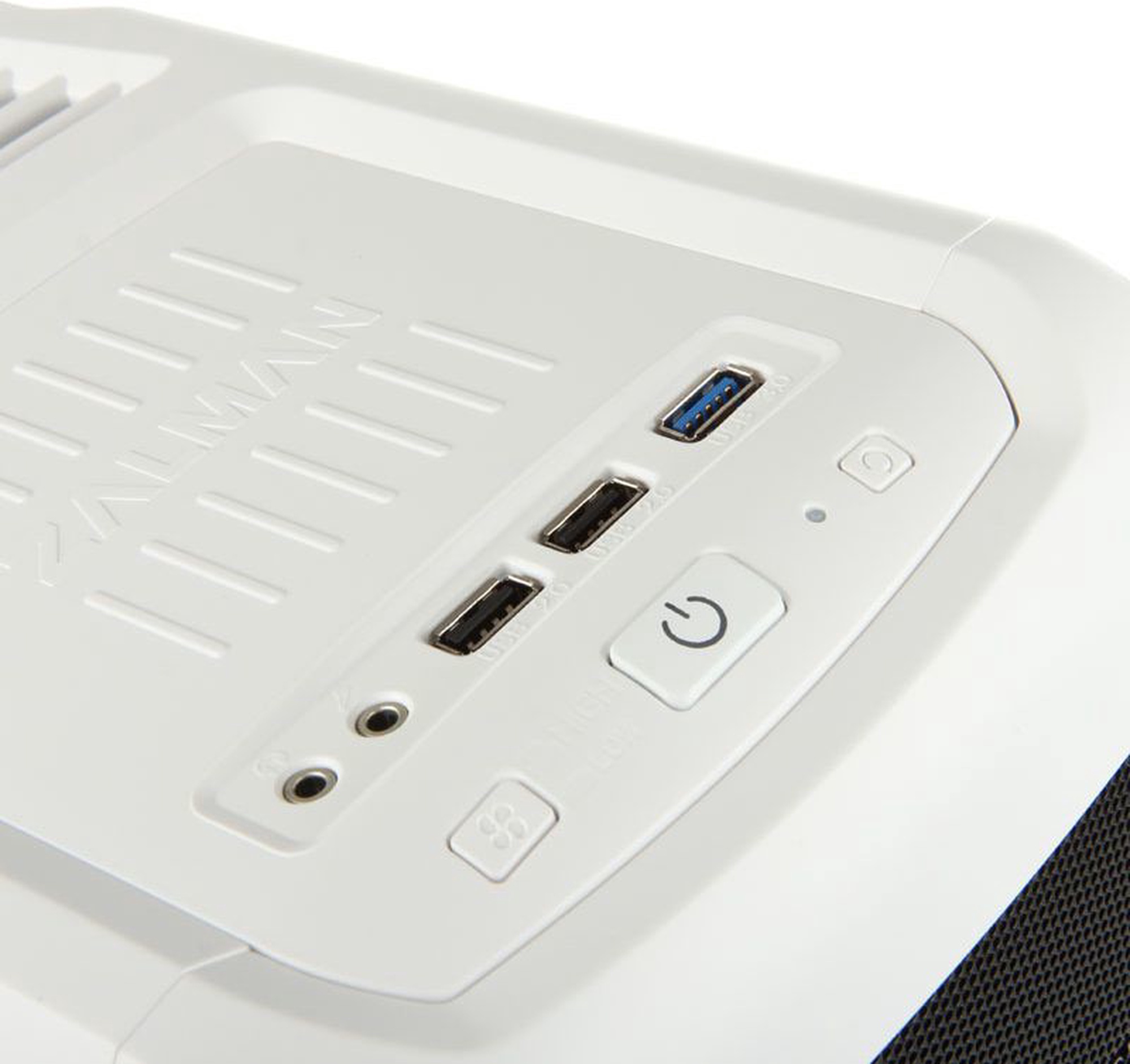

• I / O panel:
  1x USB 3.0 (internal connection)
  2x USB 2.0 (internal connection)
  1x per audio in / out
  1x ventilation control
• Maximum graphics card length: 360 mm
• Insulation (glued):
  1x side panel (right)
  1x side panel (left)
  1x cover (front)
  1x back (center)
  2x floor (front / center)
• Insulation (included):
  1x front
  1x cover (rear)
  1x back (top)
