Komutatorius (Switch) LevelOne FEP-0811W250

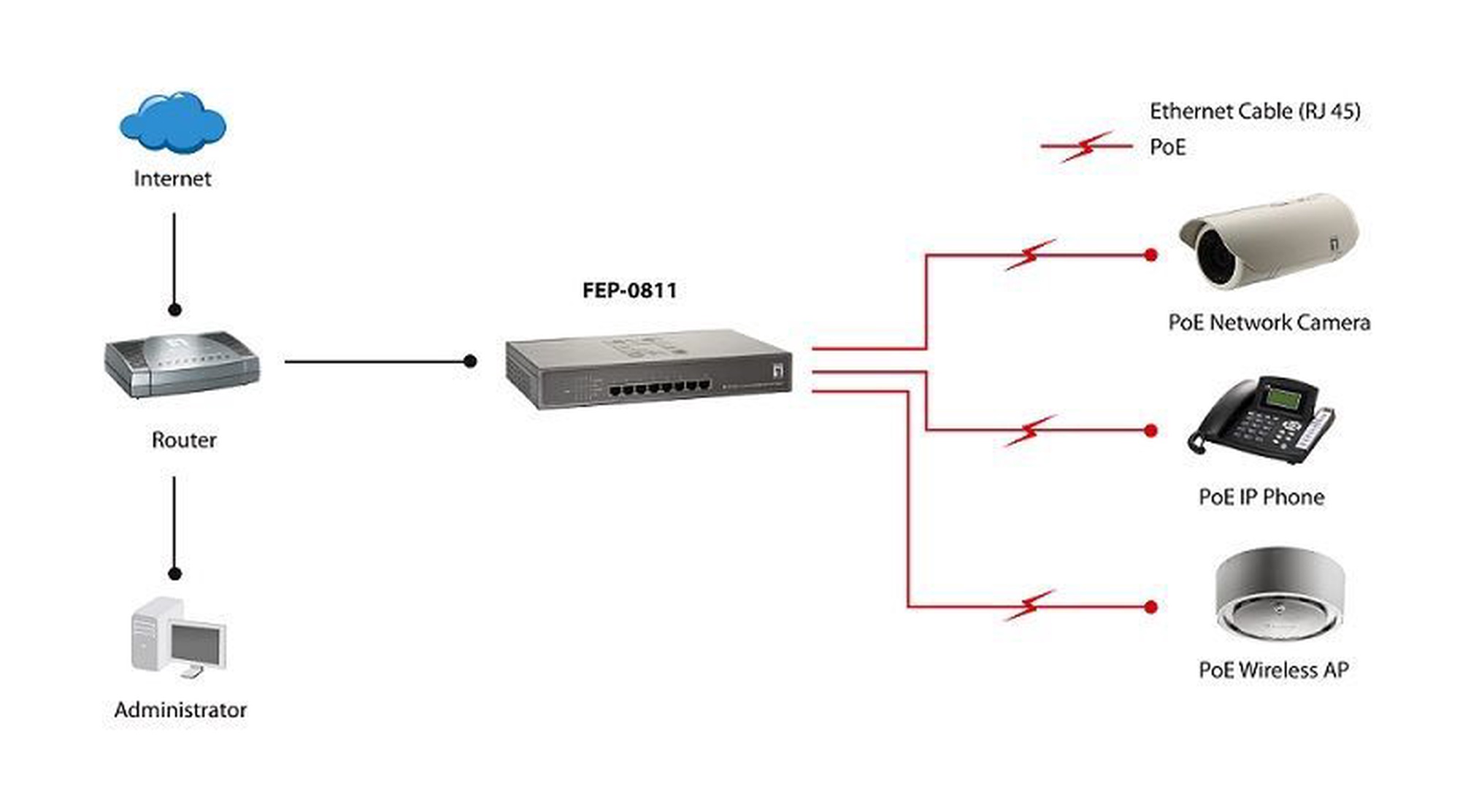

The LevelOne FEP-0811 series are unmanaged Fast Ethernet PoE switches with 8 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 120/250W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FEP-0811 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)

Buffer Memory: 64KB

Port:
8 x 10/100Base-TX RJ-45 PoE Ports
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP

Button/Knob: Power On / Off Switch
Indicator: Power, Active, 10/100M, PoE
Transmission Method: Store-and-Forward

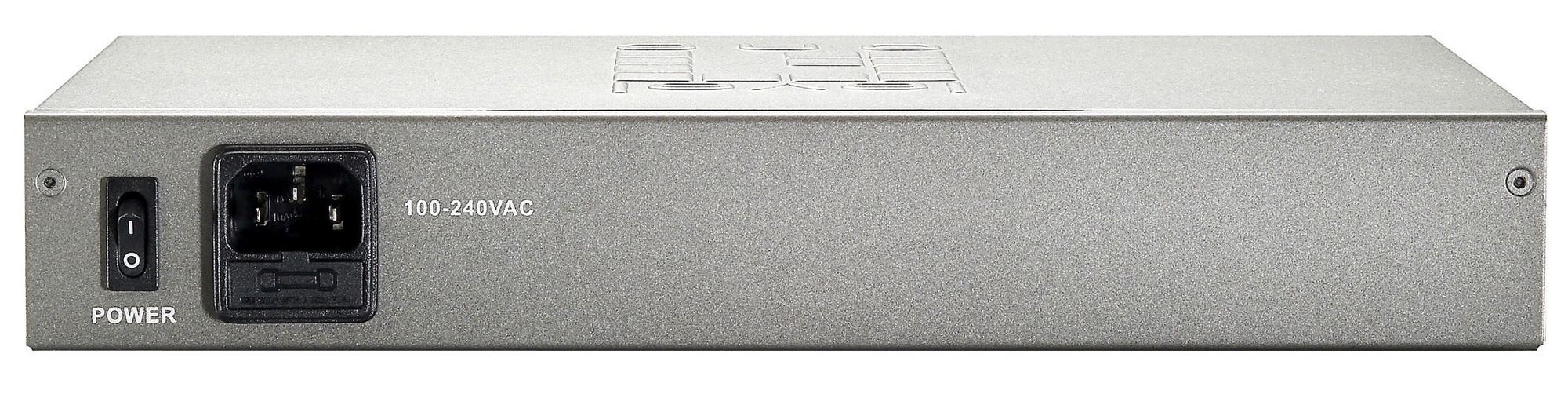

Power Input: 100-240V AC, 50-60 Hz, 2A Internal Power Supply

Power Consumption:
< 130W (FEP-0811)
< 250W (FEP-0811W250)

Backplane (Gbps): 1.6Gbps
MAC Address Table: 1K
Data Rate: 10/100Mbps

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

Mount: Desktop and 19-inch rack-mountable

PoE:
Power Budget: Max. 123.2W (FEP-0811)
Max. 245W (FEP-0811W250)
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 56V DC, Max. 15.4 watts (802.3af)
or 30 watts (802.3at)
Power Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
