Komutatorius (Switch) LevelOne FEP-0812W90

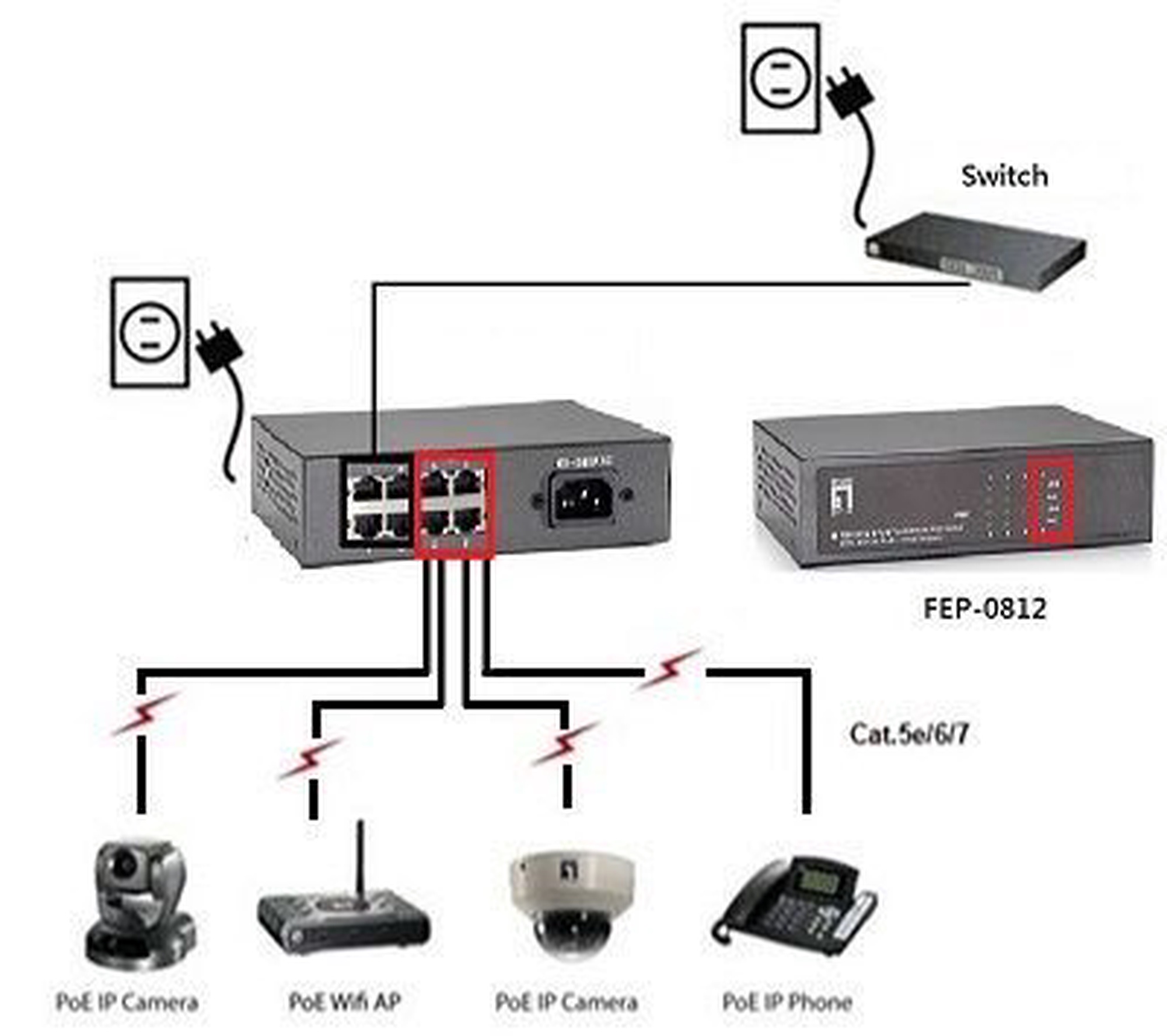

Four ports on the FEP-0812 are PoE enabled making it an ideal solution for most office users that have PoE enabled devices located around the office. These products can include a mixture of PoE IP Phones, PoE wifi APs and PoE IP Cam. It is the perfect answer for offices that are upgrading their office equipment and LAN infrastructure to include PoE capability. The switch automatically detects IEEE 802.3at/af compliant device connected and provides power and data over a single cable to these devices.

The FEP-0812 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.

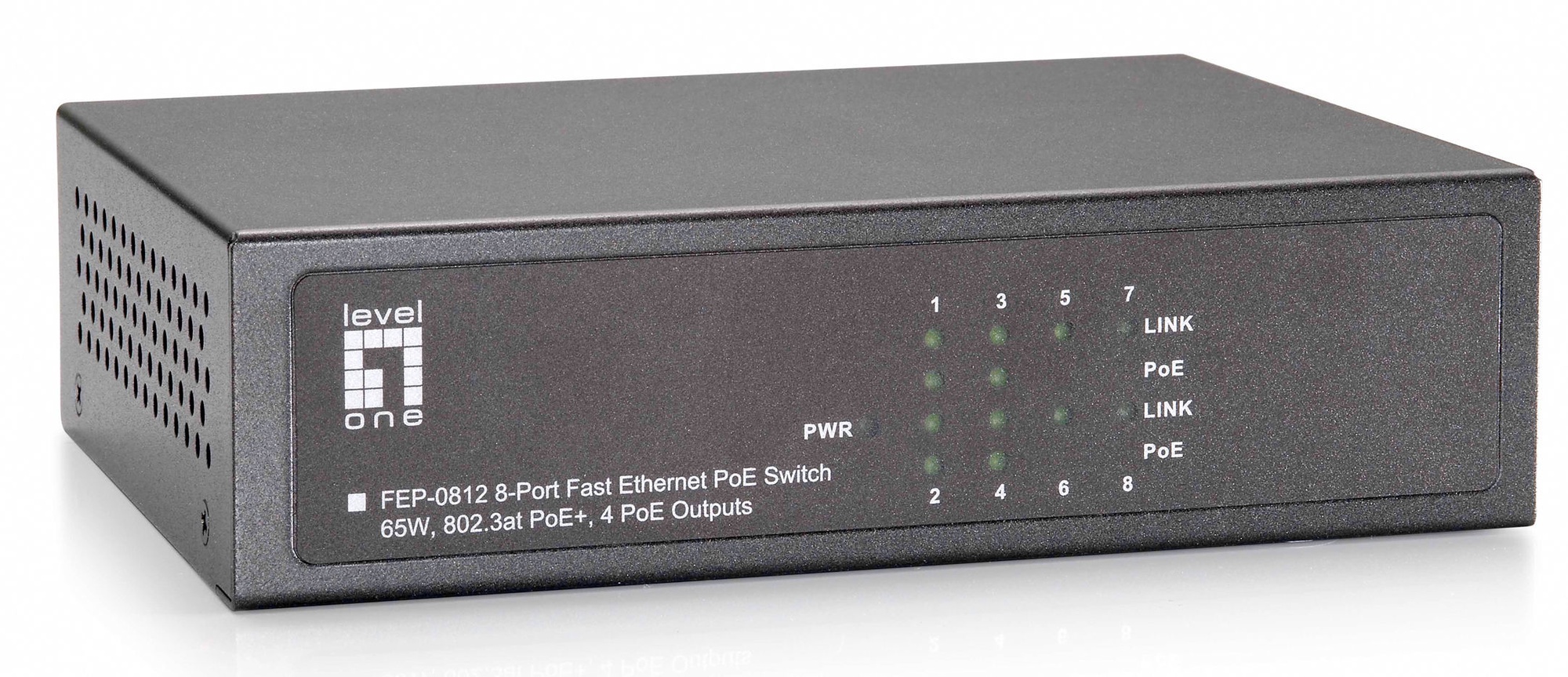

For instant error detection, the FEP-0812 is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)

Buffer Memory: 64KB

Port:

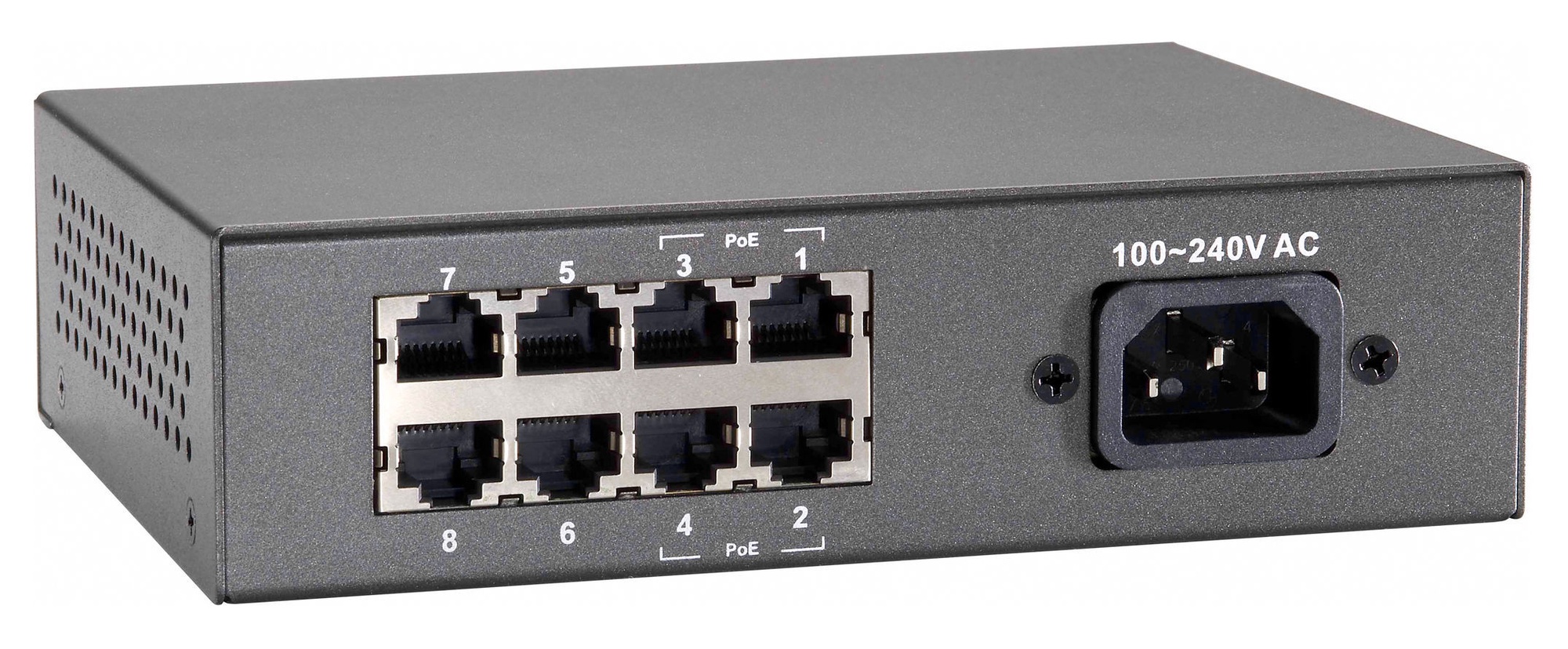

4 x 10/100Base-TX RJ-45 PoE 1~4 Ports
4 x 10/100Base-TX RJ-45 Uplink 5~8 Ports

Indicator: Power, Active, 10/100M, PoE

Transmission Method: Store-and-Forward

Power Input: 100-240V AC, 50-60 Hz, 2A Internal Power Supply

Power Consumption:
< 65W (FEP-0812)
< 90W (FEP-0812W90)
< 120W (FEP-0812W120)

MAC Address Table: 1K
Data Rate: 10/100Mbps
Operating Temperature (°C): Operating: 0°C ~ 40°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

PoE:
Power Budget:
Max. 60W (FEP-0812)
Max. 85W (FEP-0812W90)
Max. 115W (FEP-0812W120)
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 56V DC, Max. 15.4 watts (IEEE
802.3af) or 30 watts (IEEE 802.3at)
Power Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
