Komutatorius (Switch) LevelOne FEP-1601W150

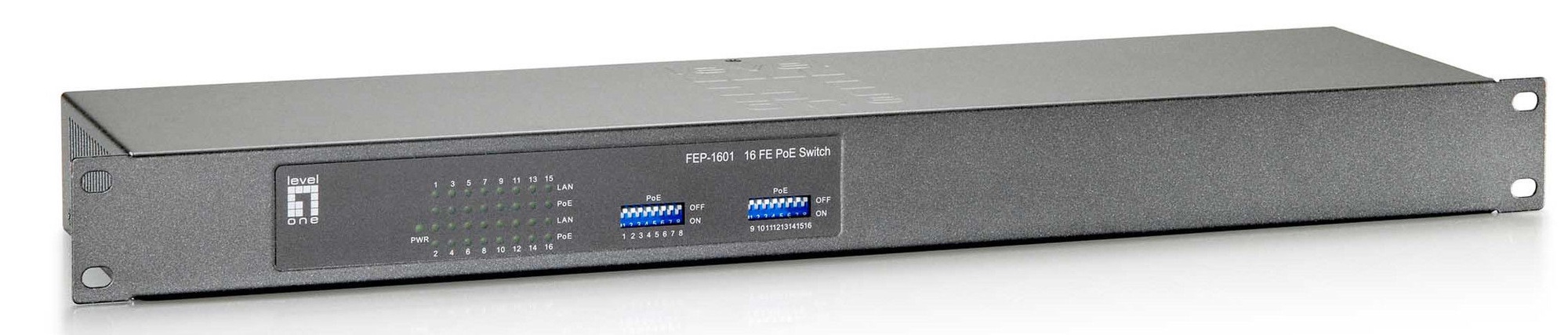

LevelOne 16-Port Fast Ethernet PoE Switch FEP-1601

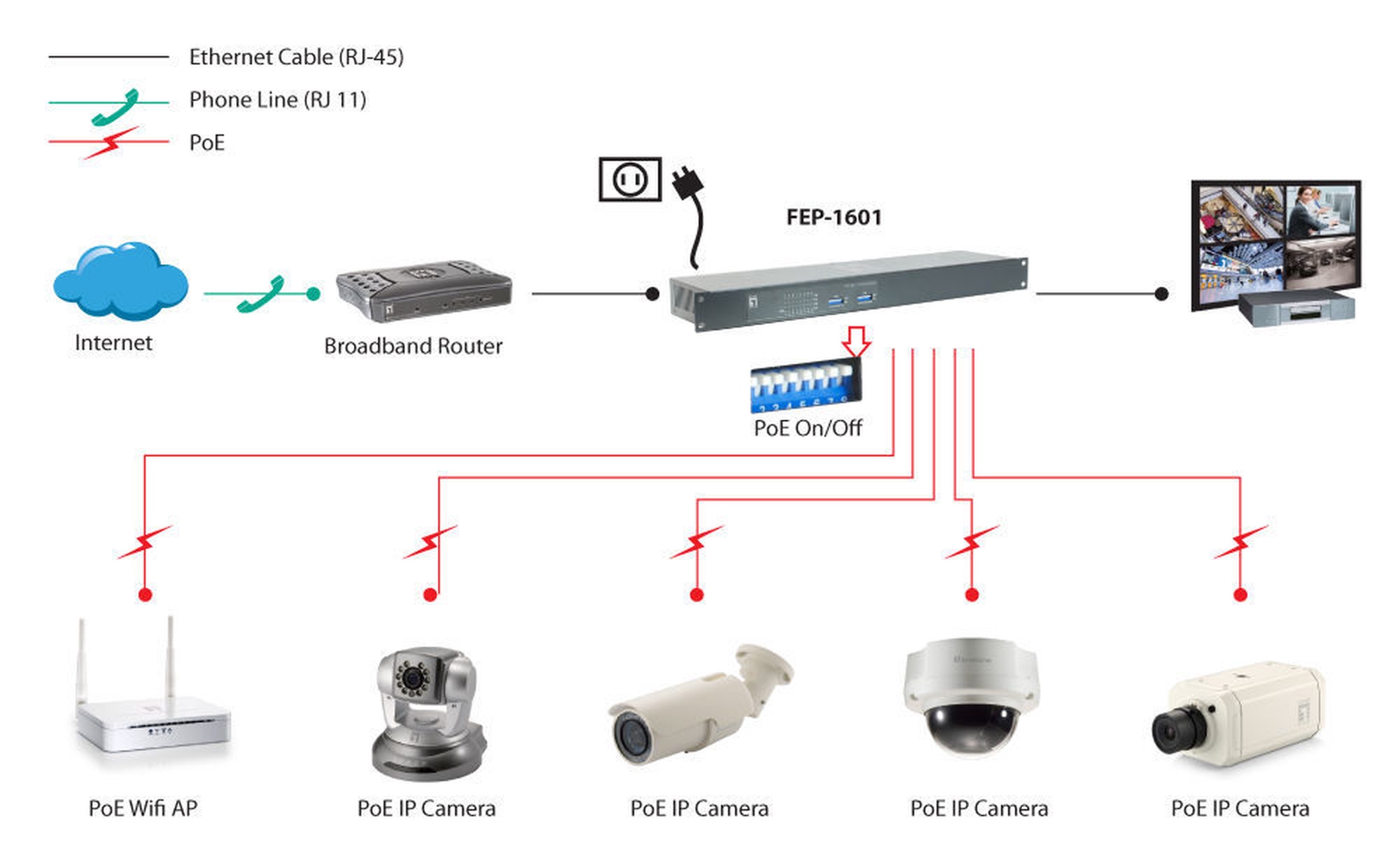

FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control

Buffer Memory: 160KB

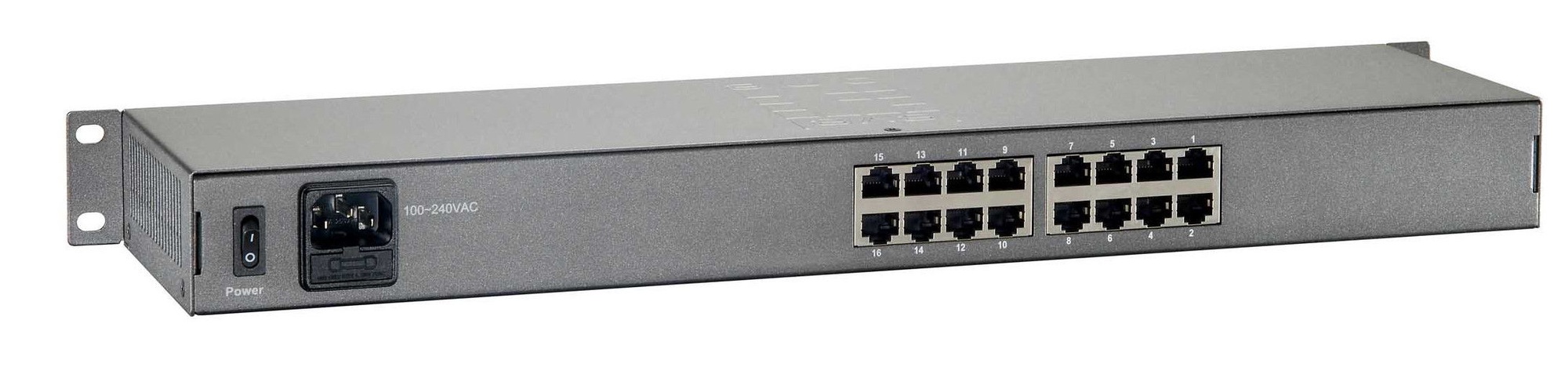

Port: 16 x 10/100Base-TX RJ-45 PoE Ports
Button/Knob: Power On/Off Switch , PoE Power On/Off Switch
Indicator: Power, Active, 10/100M, PoE
Transmission Method: Store-and-Forward
Power Input: 100-240V AC, 50-60 Hz, 5A, Internal Power Supply

Power Consumption:
< 120W (FEP-1601W120)
< 150W (FEP-1601W150)
< 250W (FEP-1601)
< 380W (FEP-1601W380)

Backplane (Gbps): 3.2Gbps
MAC Address Table: 4K
Data Rate: 10/100Mbps

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

Mount: Desktop and 19-inch rack-mountable

PoE:
Power Budget: Max.112W (FEP-1601W120)
Max.142W (FEP-1601W150)
Max.242W (FEP-1601)
Max.372W (FEP-1601W380)
Power Output: 56V DC, up to 30W per port
Protection: PoE over current & PoE circuit sorting protection,
Pin Assignment: 4/5(+), 7/8(-)

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
