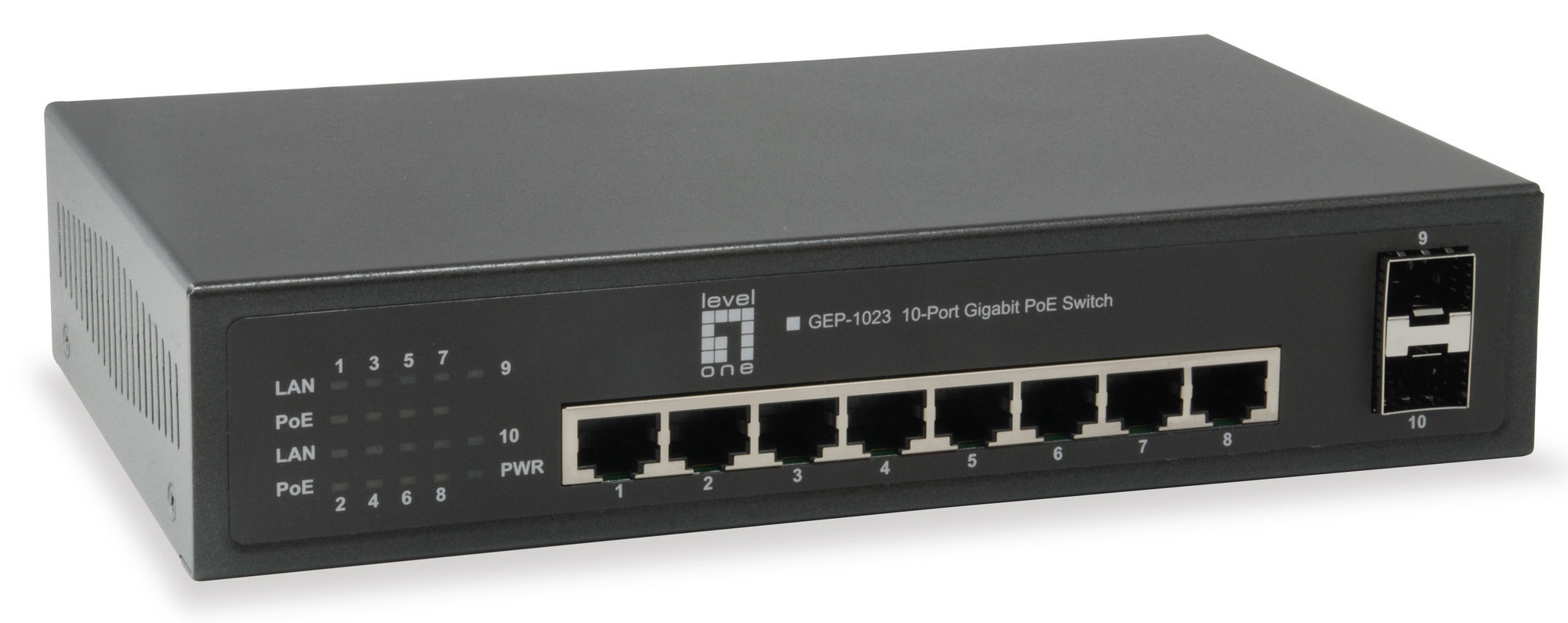

Komutatorius (Switch) LevelOne GEP-1023W65

It consists of 8 PSE/PoE ports. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.

The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity. The PoE switch can be wall-mounted.

Standards:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Buffer Memory: 1Mbit

Port:

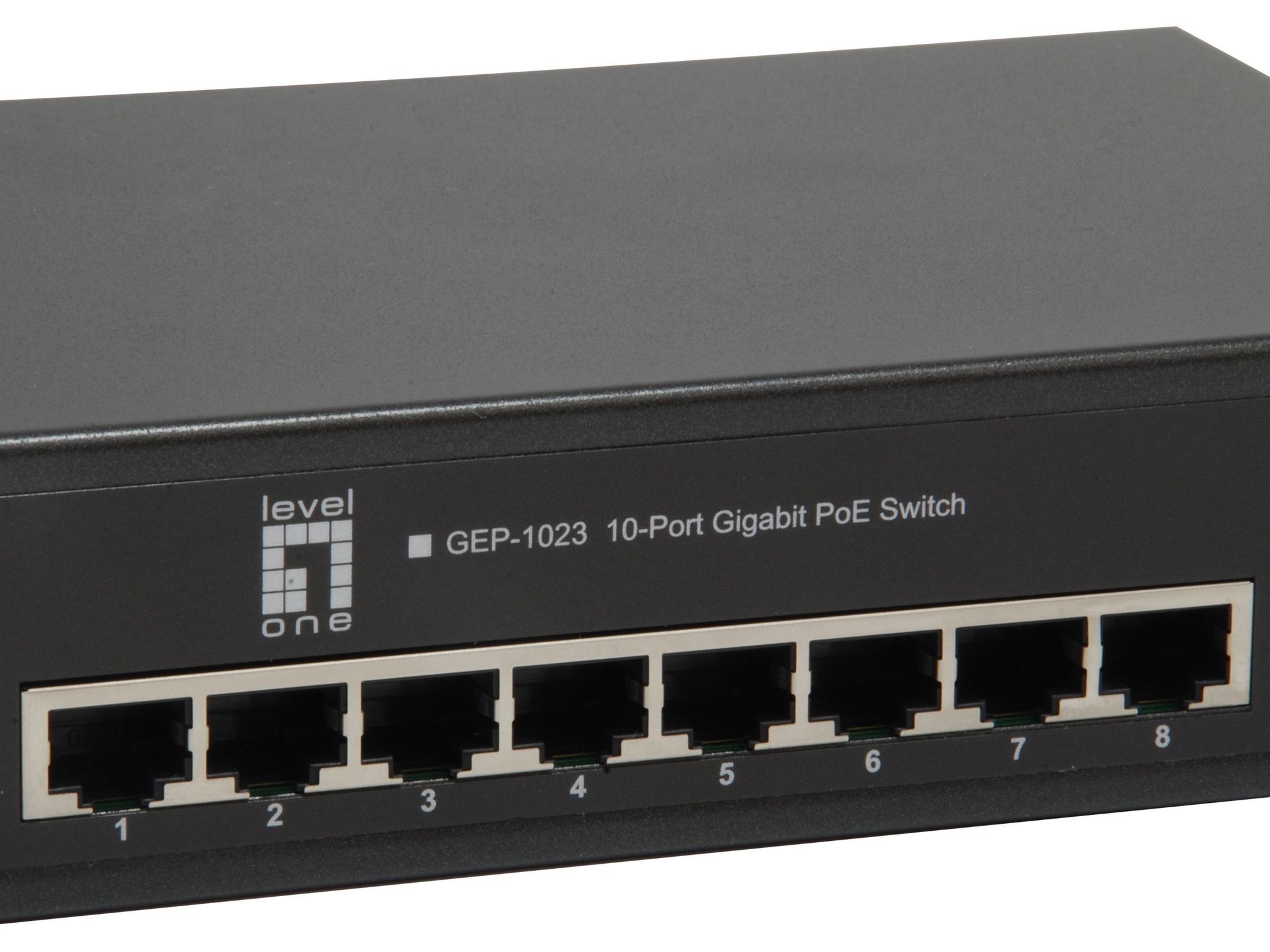

8 x 10/100/1000Mbps RJ-45 PoE Ports

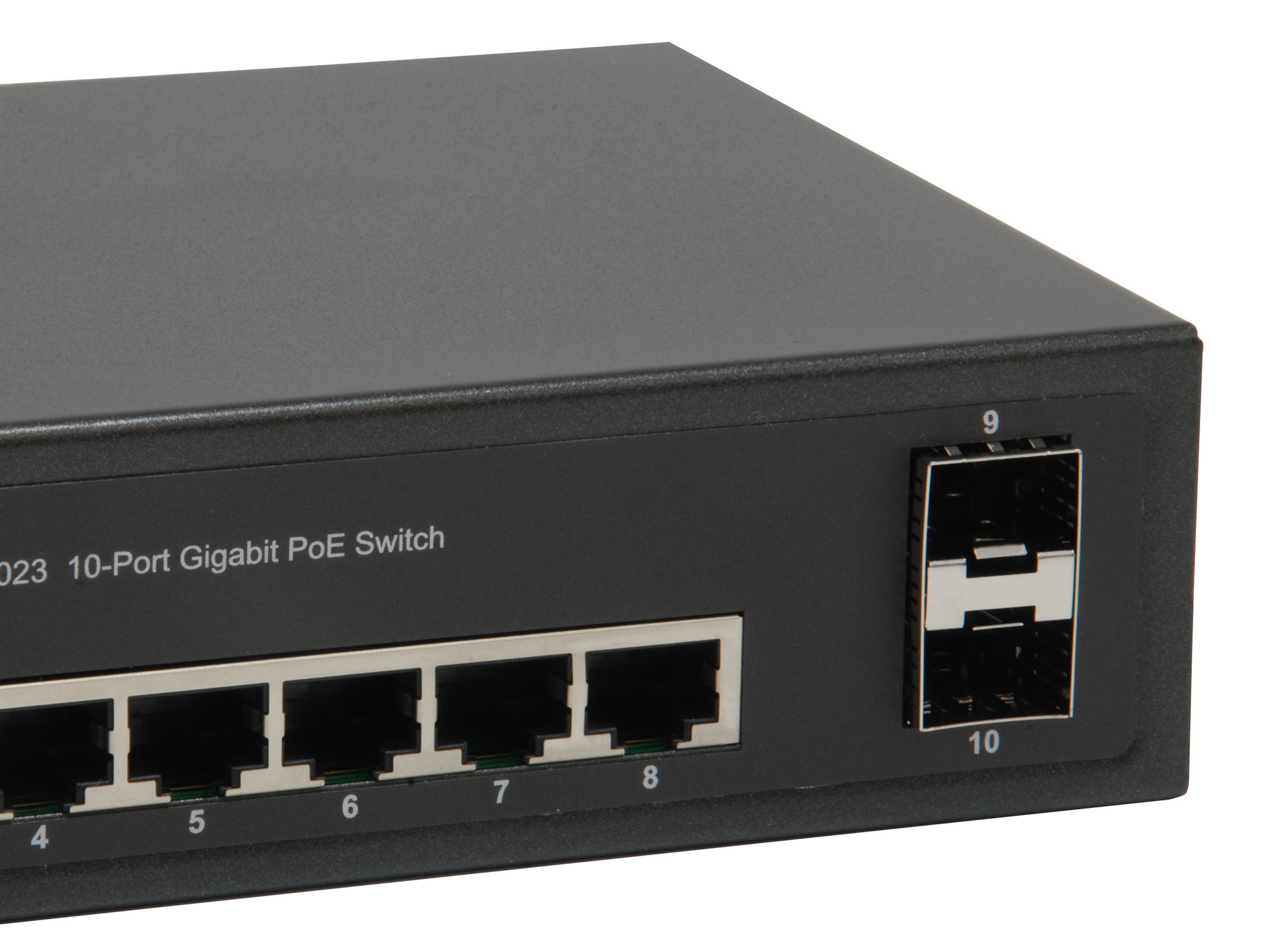

2 x 10/100/1000Mbps SFP Port

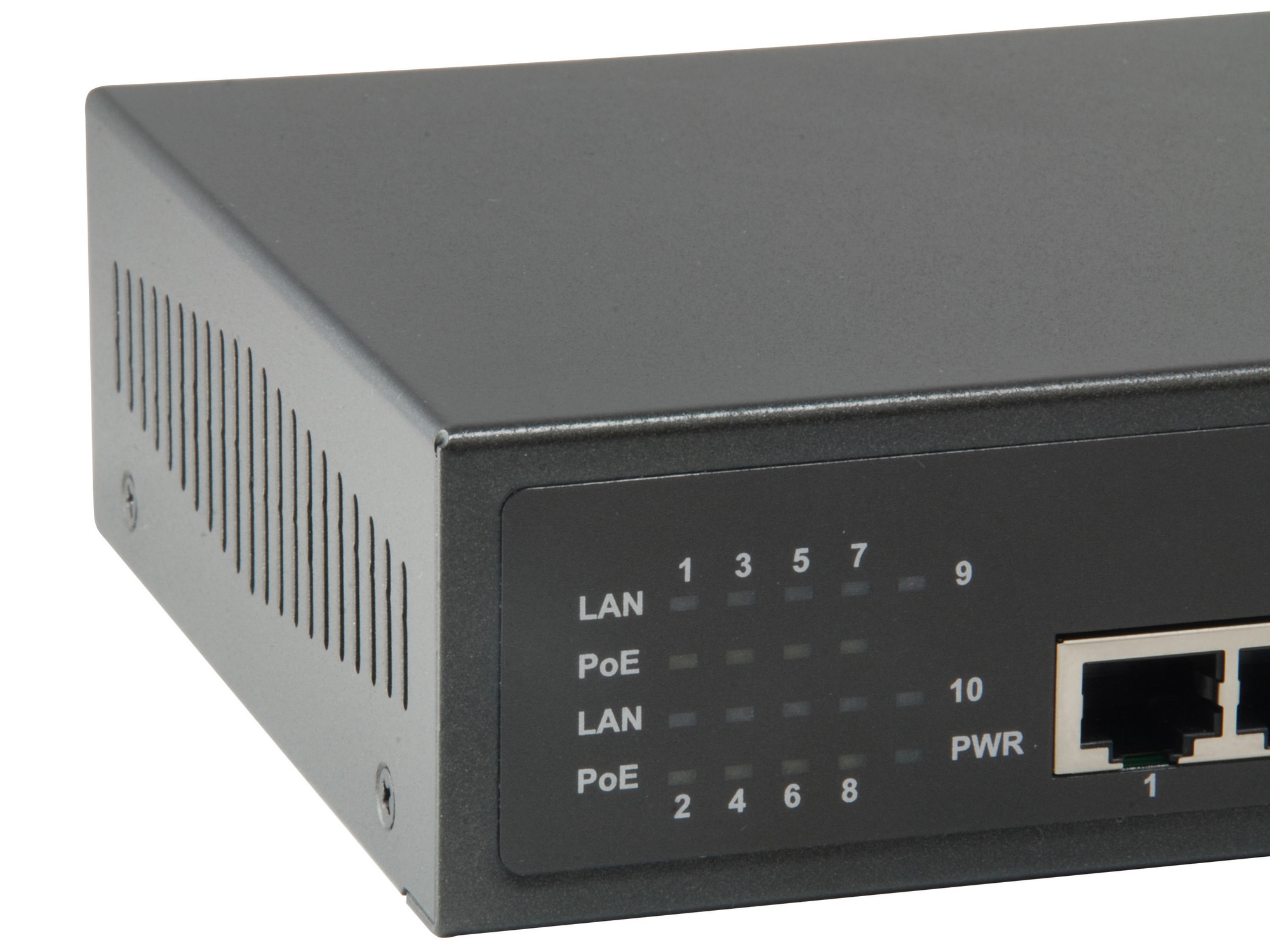

Indicator: Power, Uplink, LAN 1~8 port, PoE 1~8 port
Transmission Method:
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
1000Base TX Cat. 5e/6/7 UTP/STP

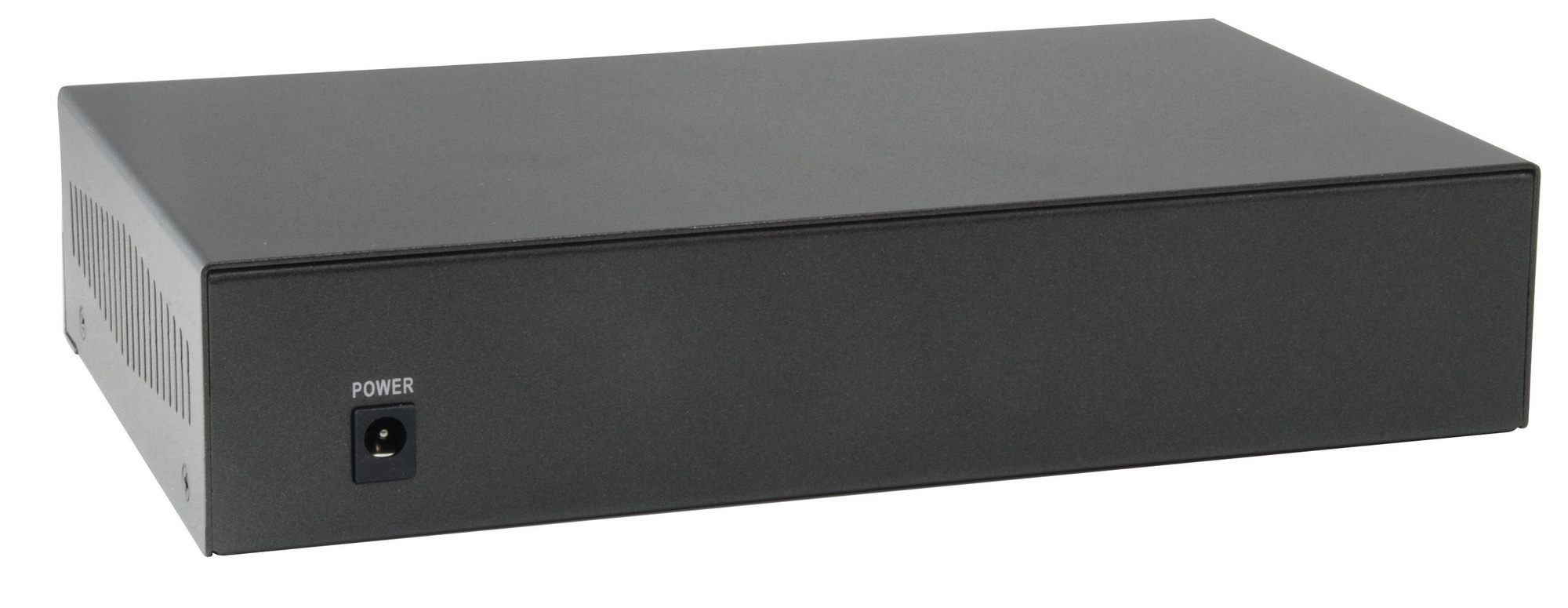

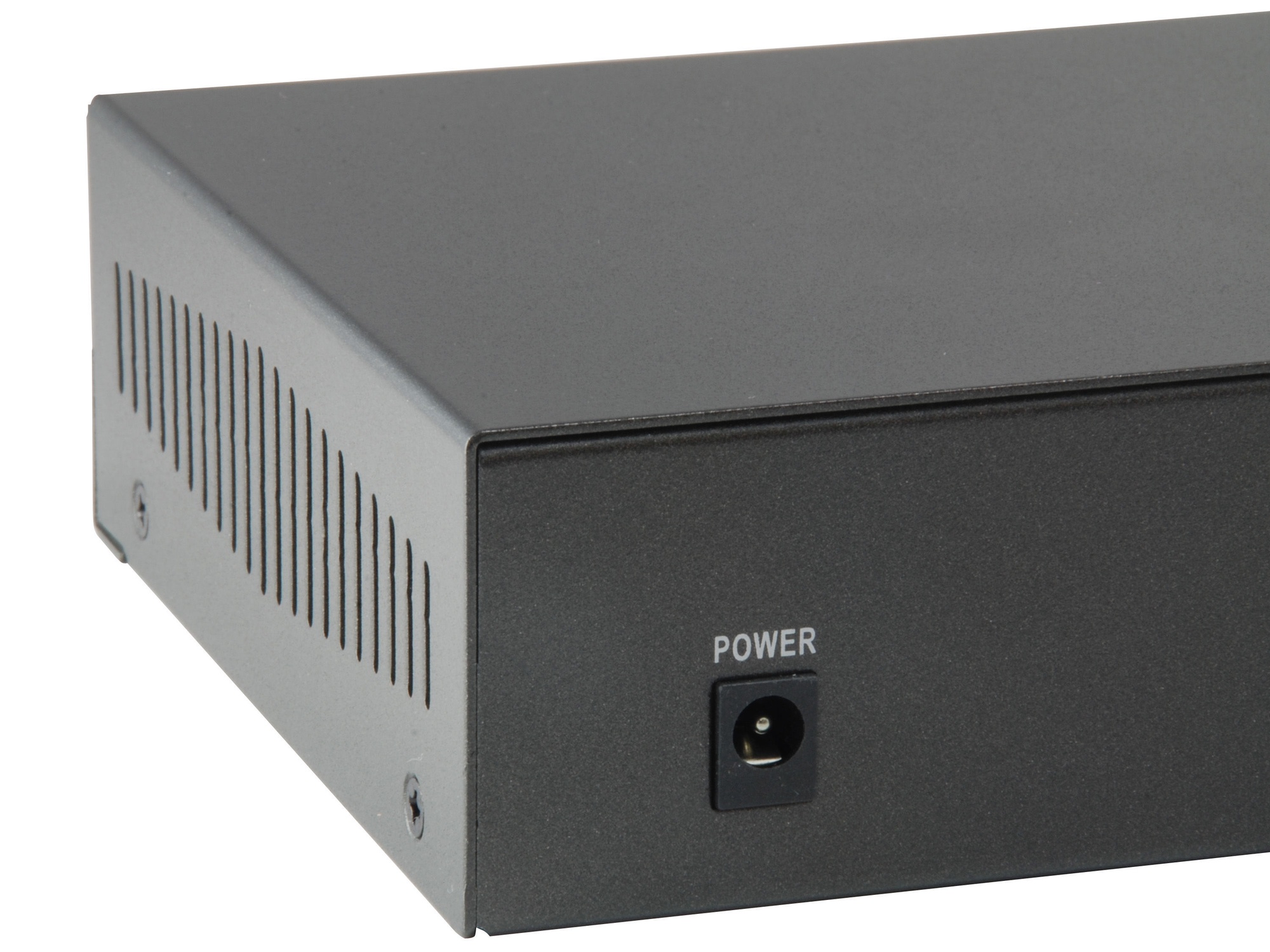

Power Input: AC Power input(100 ~240V), 50/60 Hz
Power Output: Per Port 56VDC, Max. 30 watts (802.3at)

Power Consumption:
GEP-1023W65: 65W
GEP-1023W90: 90W
GEP-1023W120: 120W

Backplane (Gbps): 20Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps

Heat Dissipation:
Operating Temperature 0° ~ 40°C
Storage Temperature -20 to 70 °C
Operating Temperature (°C): Operating: 5% ~ 90%

PoE: IEEE 802.3at/af Power over Ethernet/PSE Mode A

Packet Forwarding Rate:
10Mbps 14880pps,
100Mbps 148800pps,
1000Mbps 1488000pps

Jumbo Frame (K): 9K
Switching Capacity: 20Gbps
