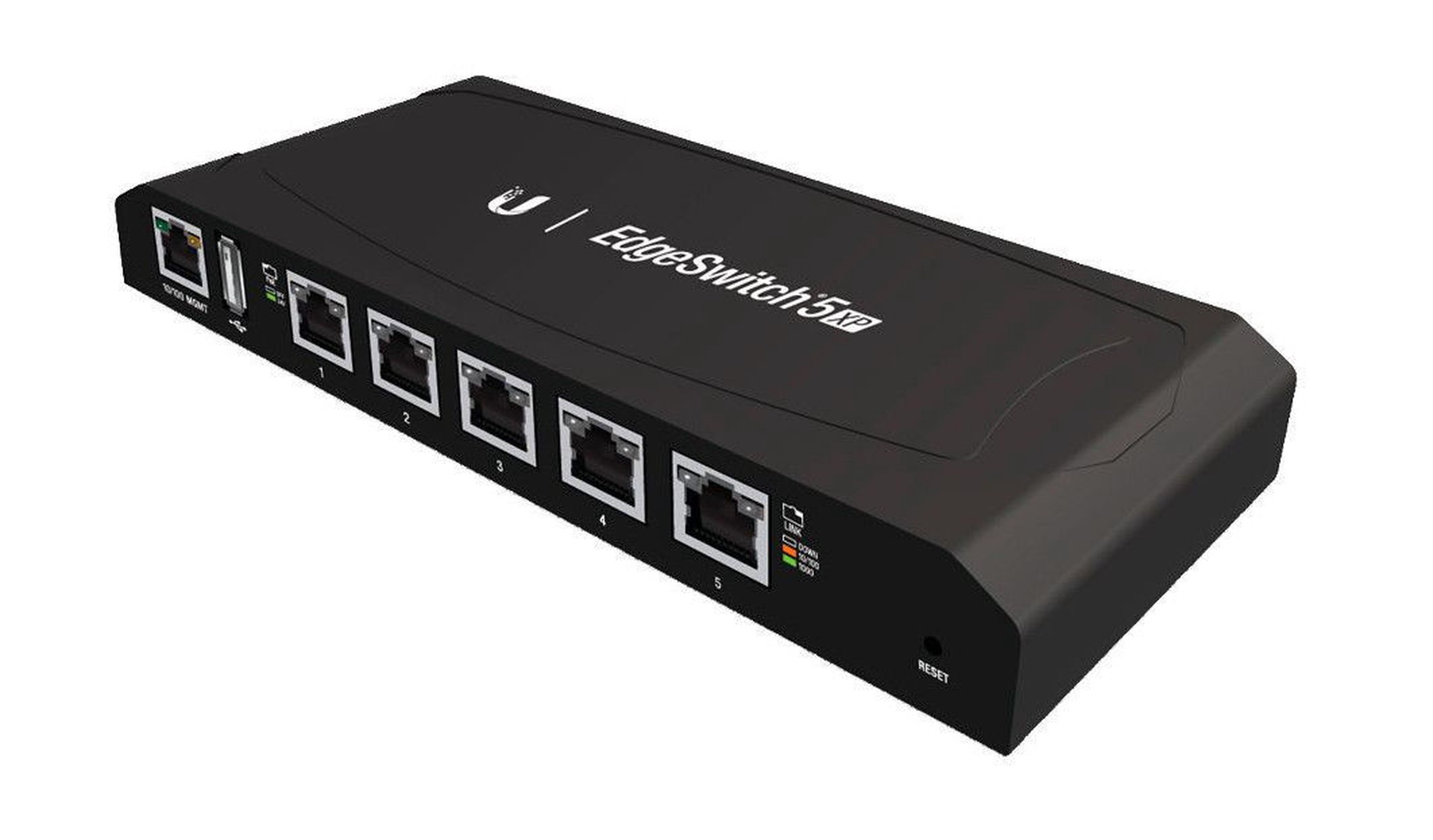

Komutatorius (Switch) Ubiquiti EdgeSwitch ES-5XP

Specifications

ES-5XP

Dimensions 197 x 87.5 x 27.3 mm

Weight 250 g

Power Input 24VDC, 2.5A Power Adapter (Included)

Max. Power Consumption 60 W

PoE Out Voltage Range 22-24VDC

Max. PoE Wattage Per Data Port 11.5 W

ESD Rating 24 kV Air / 24 kV Contact

PoE Method Passive

Button Reset

USB Port 2.0 Type A (Reserved for Future Use)

Processor MIPS 24K, 400 MHz

System Memory 64 MB

Code Storage 8 MB

Certifications CE, FCC, IC

Wall-Mount Yes

Operating Temperature -25 to 55°C (-13 to 131° F)

Operating Humidity 90% Non-Condensing


PoE Configurable Per Port

Management Port N/A

Data Ports Off/24V


LEDs Per Port

Management Port Power /Link/Activity

Data Ports PoE, Speed/Link/Activity


Networking Interfaces

Management Port (1) 10/100 Ethernet Port

Data Ports (5) 10/100/1000 Ethernet Ports
