Laidas Delock USB Type-C, RJ-45, 0.13 m

Prekės aprašymas anglų kalba:

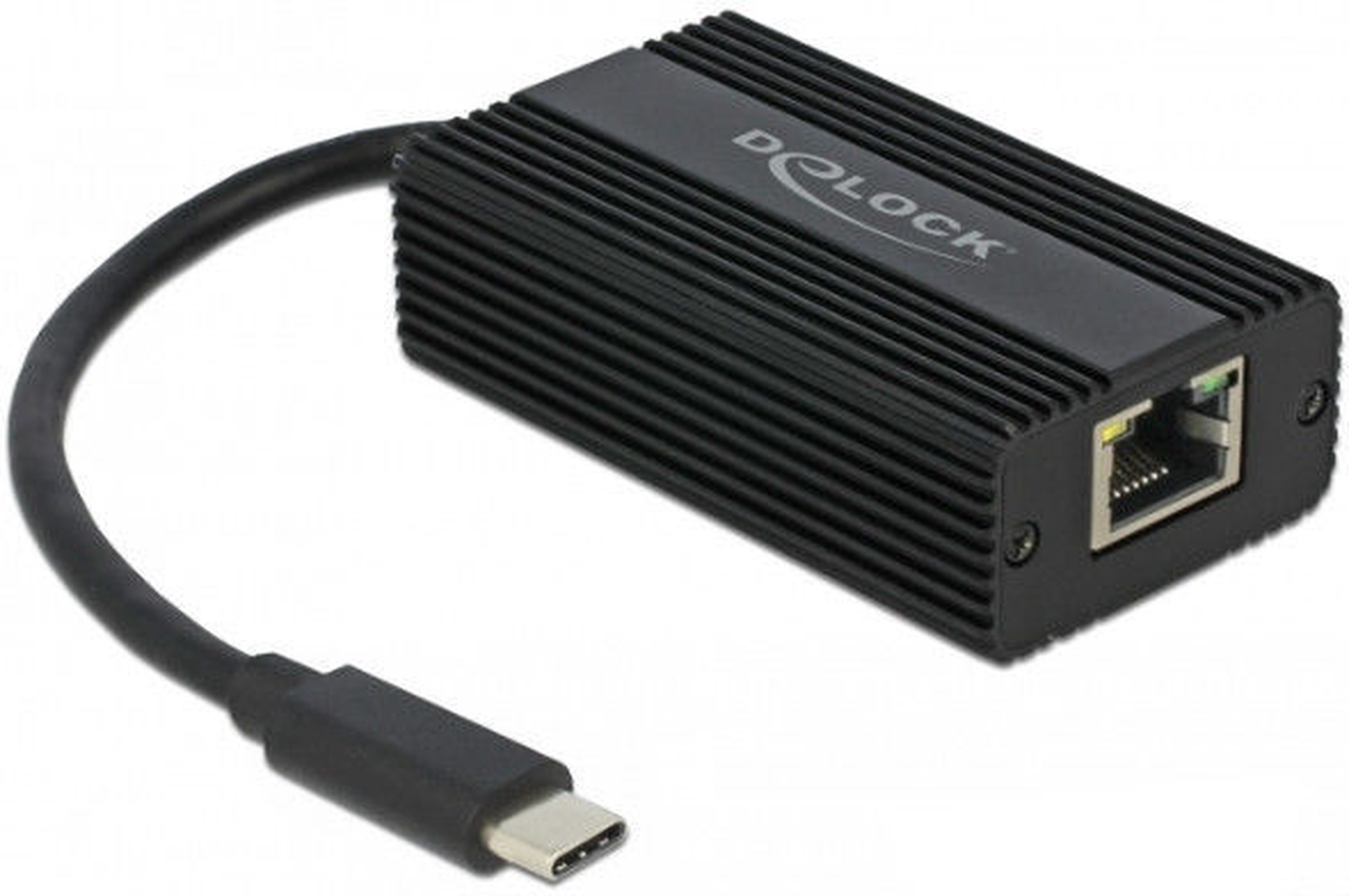

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Specification

• Connectors:
1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8156
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Compatible with:
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
IEEE 802.3bz: 2.5GBASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and
half duplex operation with back-pressure flow control
• Supports 9k Jumbo Frames
• LED indicator for power and activity
• USB bus powered
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 67.0 x 39.2 x 21.3 mm
• Cable length without connectors: ca. 13.5 cm

System requirements

• Linux Kernel 3.2 or above
• Mac OS 10.7 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
