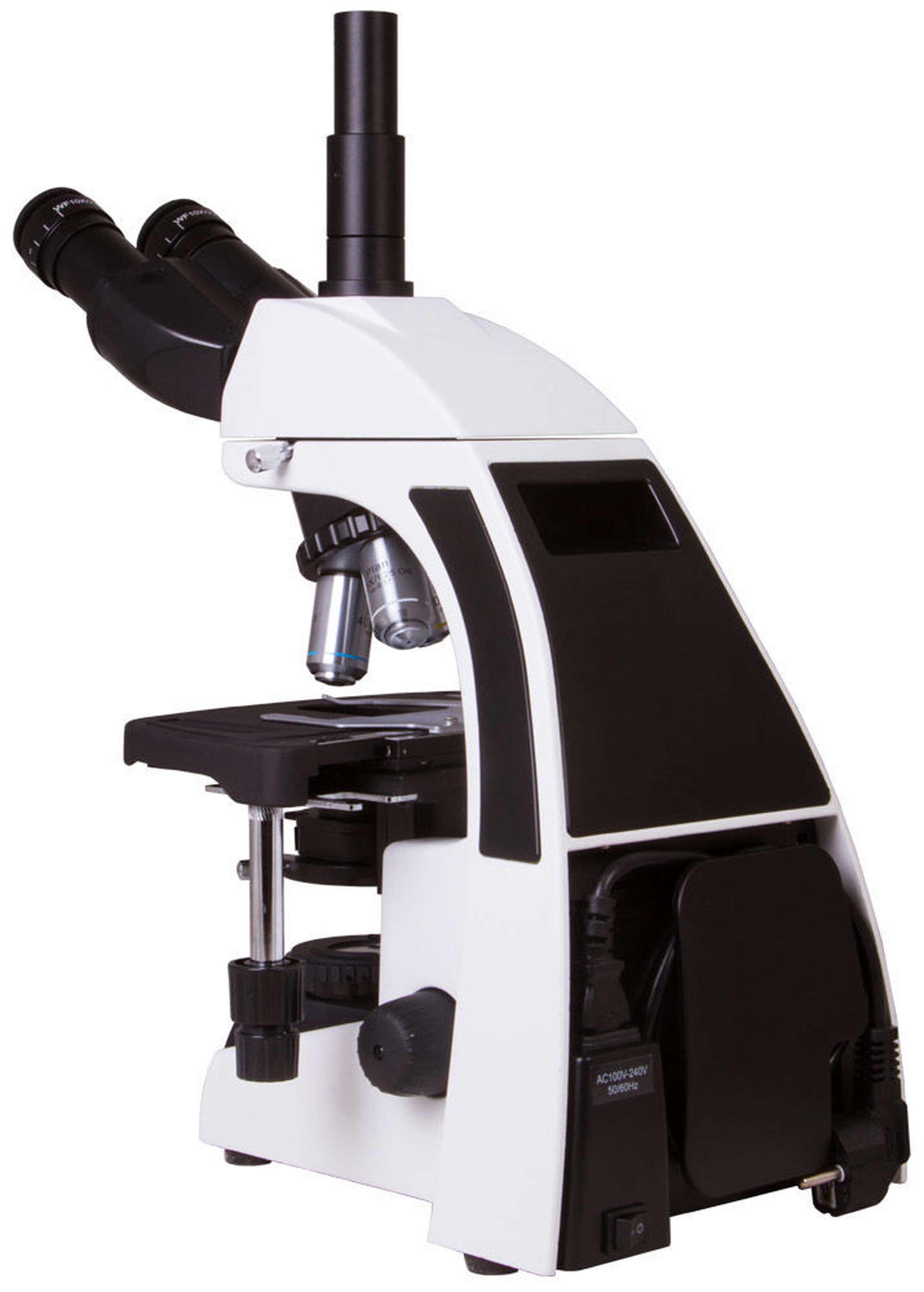

Levenhuk 1000T Trinocular Microscope

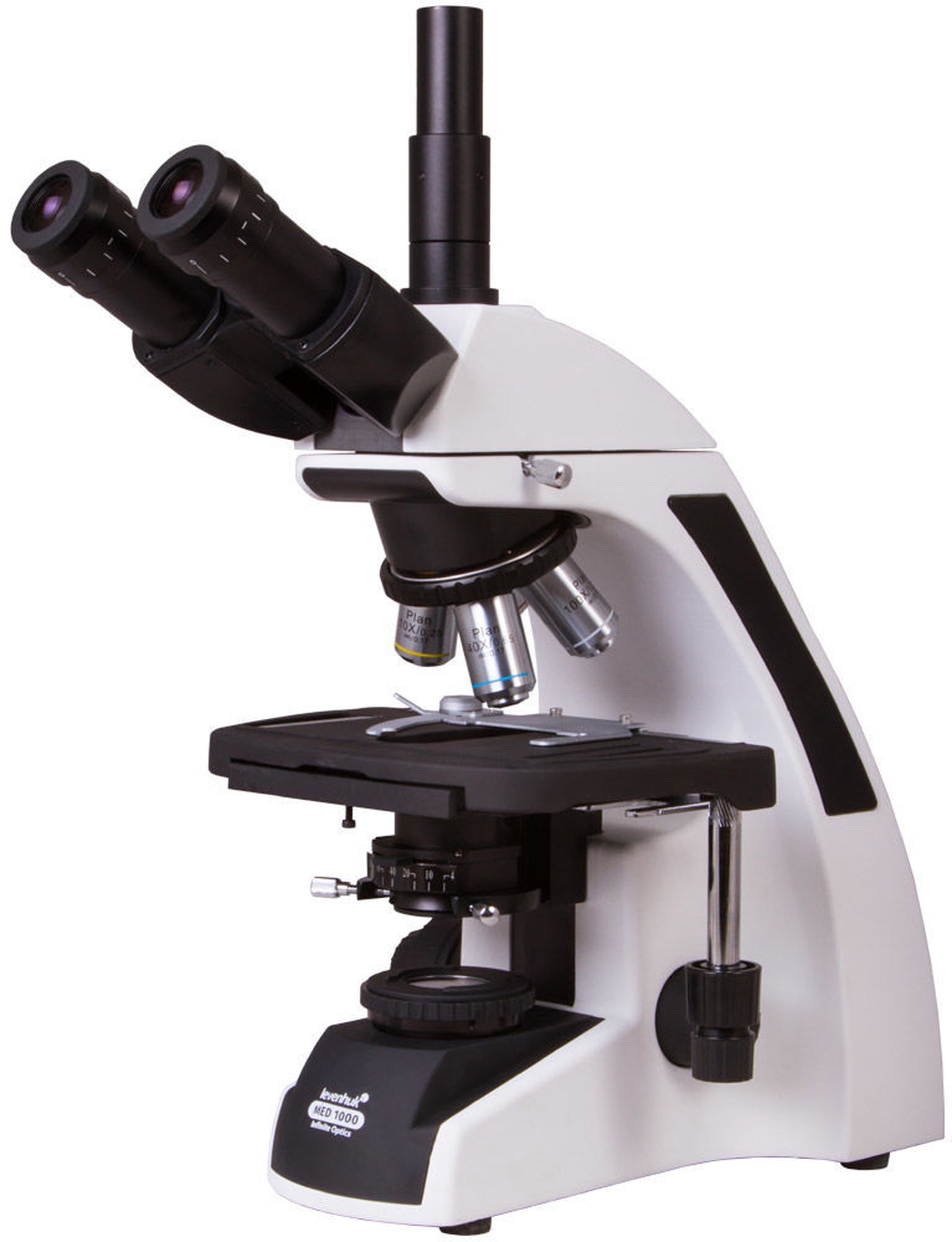

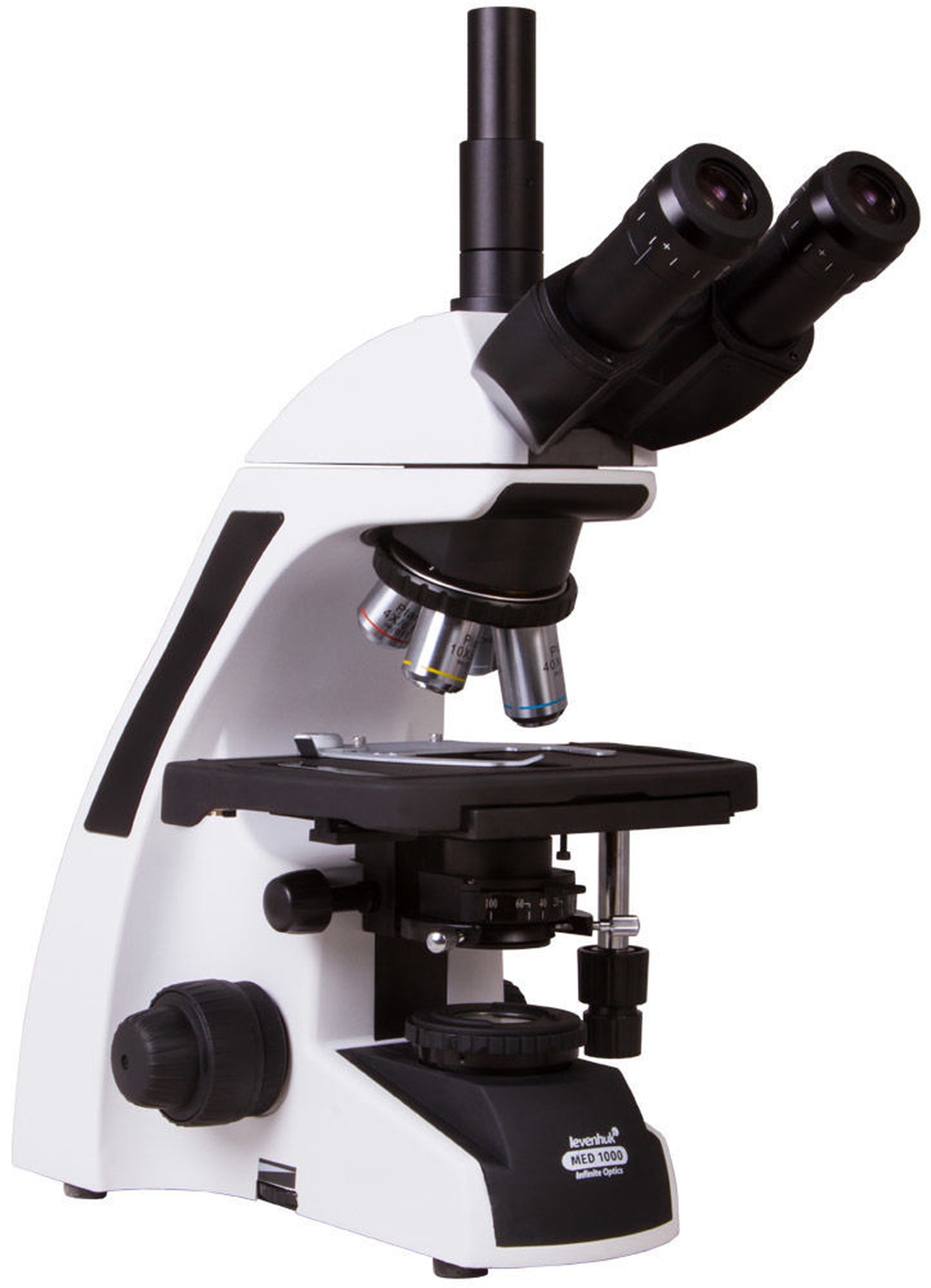

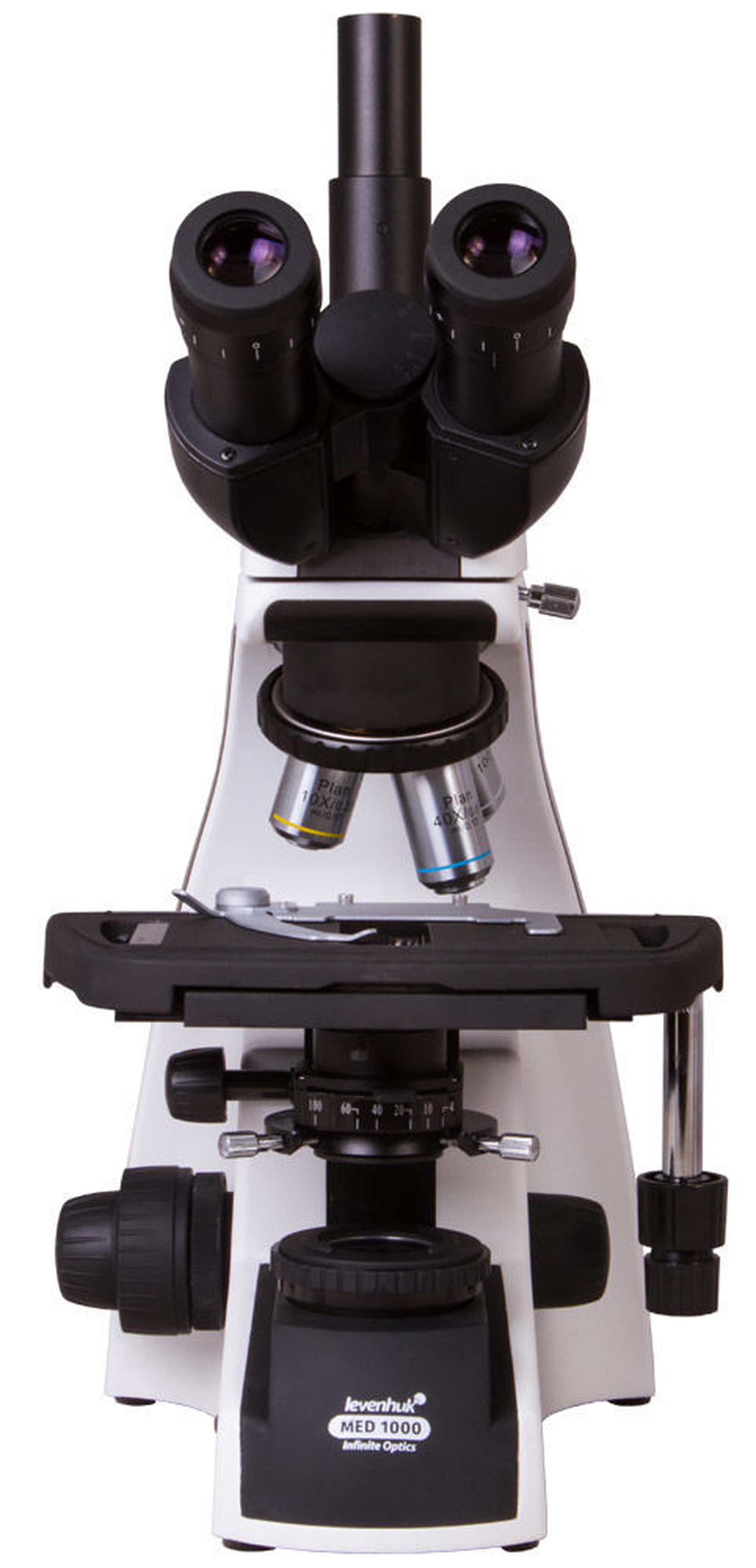

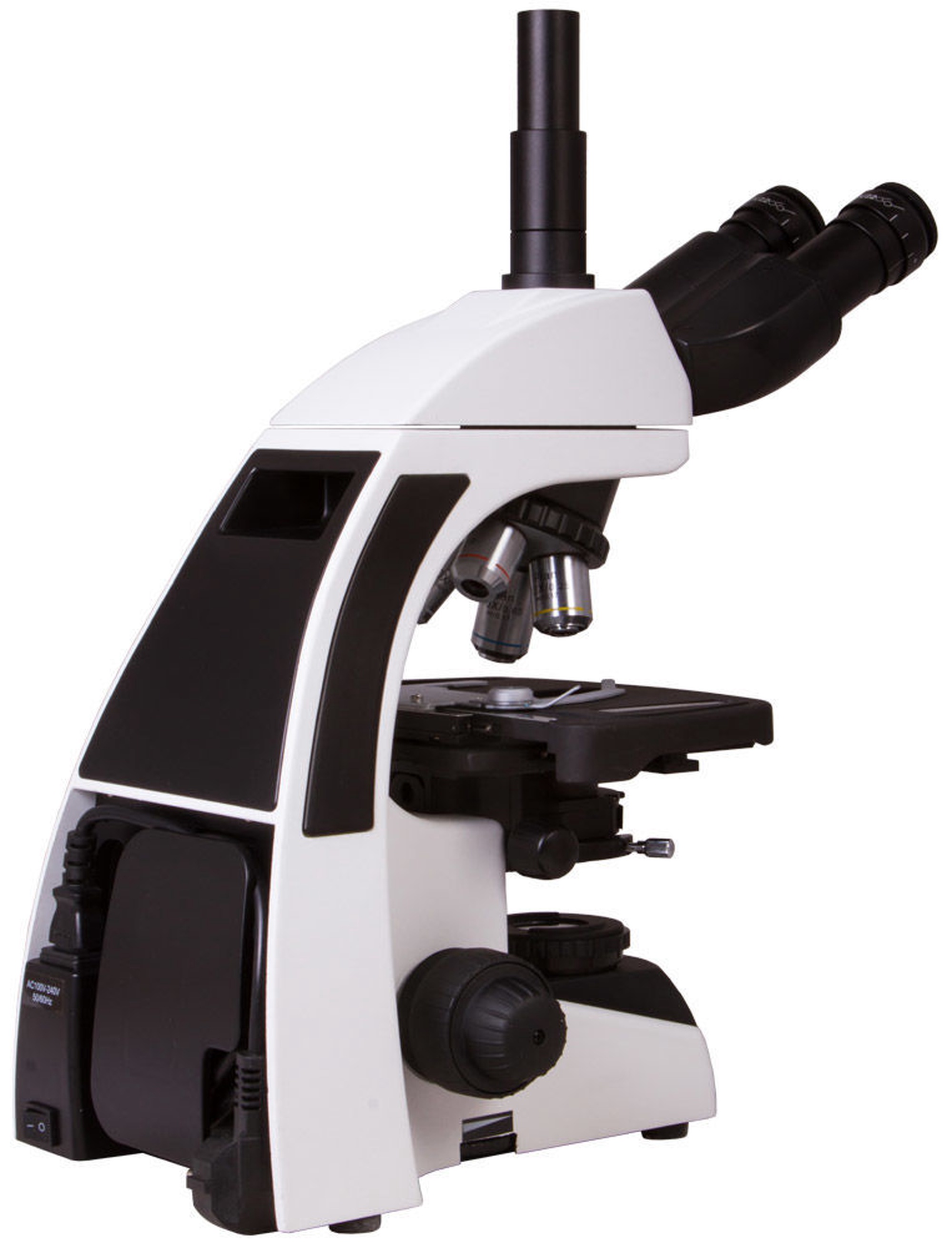

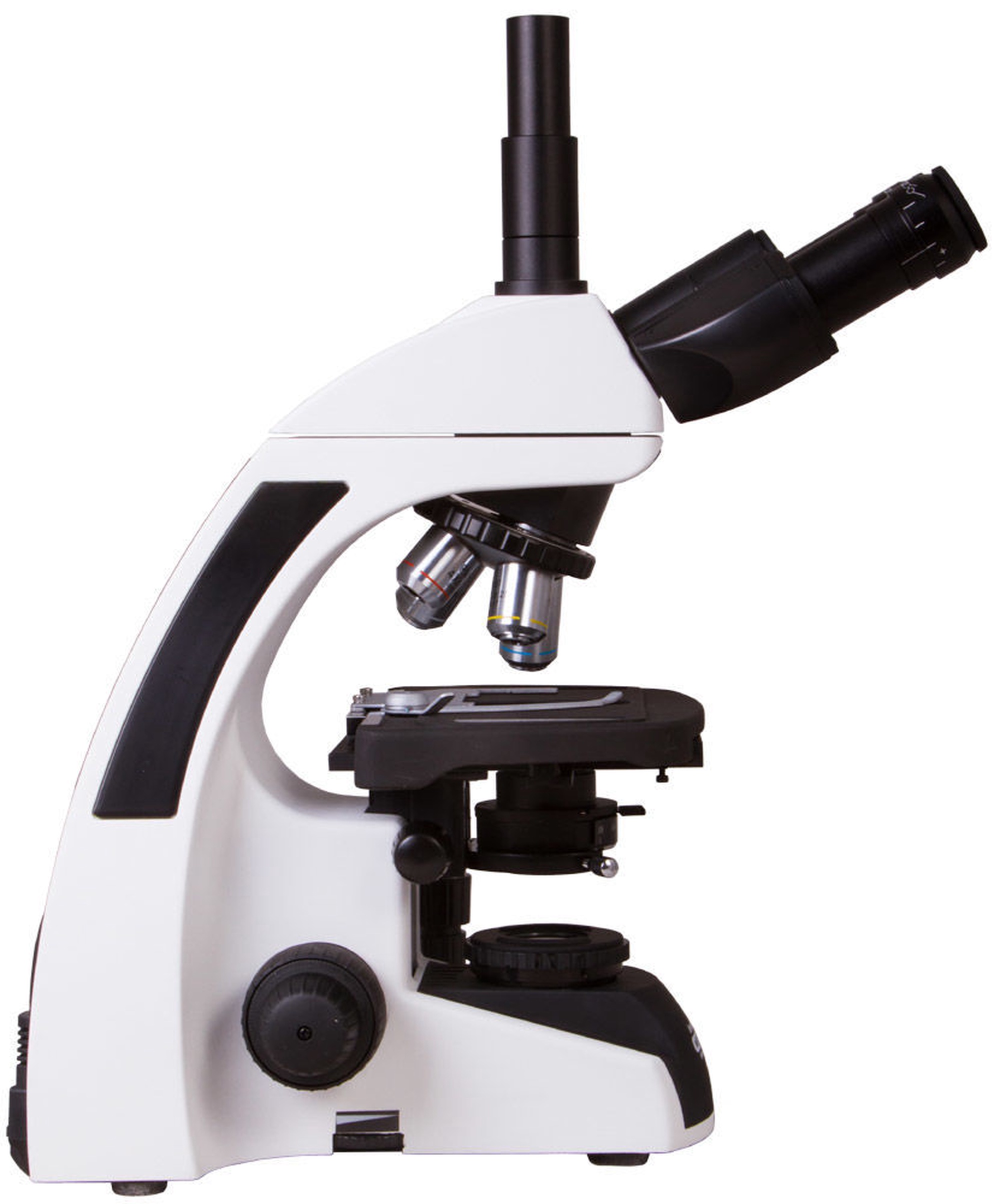

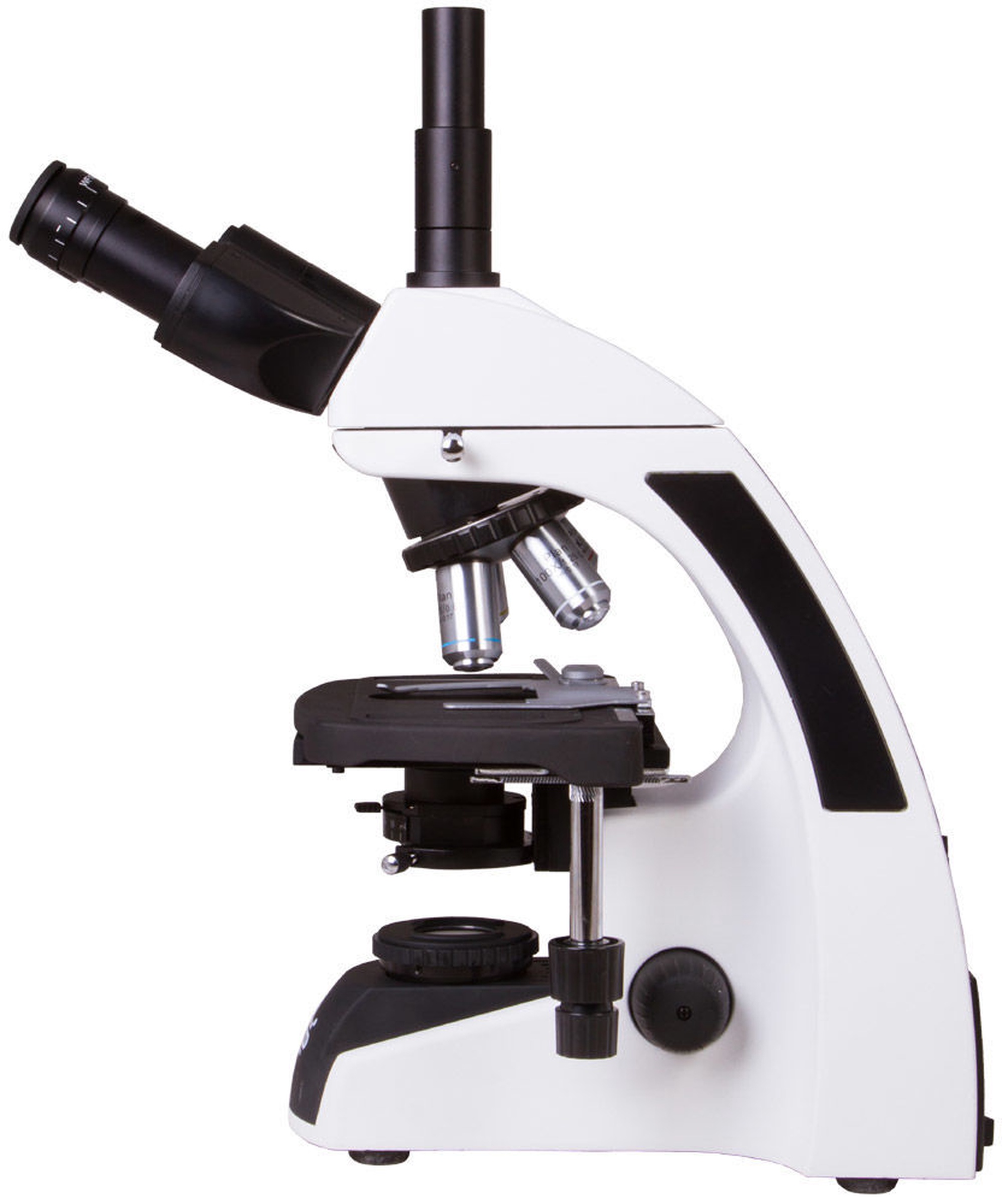

Levenhuk 1000T is a trinocular optical microscope with plan achromatic objective lenses; setting up the Köhler illumination is available. It will become a true treasure for those who use optical equipment in their professional field, specialists in medical and microbiology laboratories, educational and recreational institutes, research universities.

Microscopes in the Levenhuk MED 1000 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for receiving clear, high-contrast images with a high level of flatness.

One of the most important features of the infinity-corrected optical system is that it allows for installing any additional elements in the light path between objective lenses and an ocular tube. These elements include polarizing devices, epifluorescence lights, and DIC prisms with minimal deviations in the focus and correction of aberrations. All in all, the module principle of the design and simple use make Levenhuk MED 1000 optimal microscopes for applying them in different types of microscopy and working in hematological, histological, microbiological laboratories, and more.

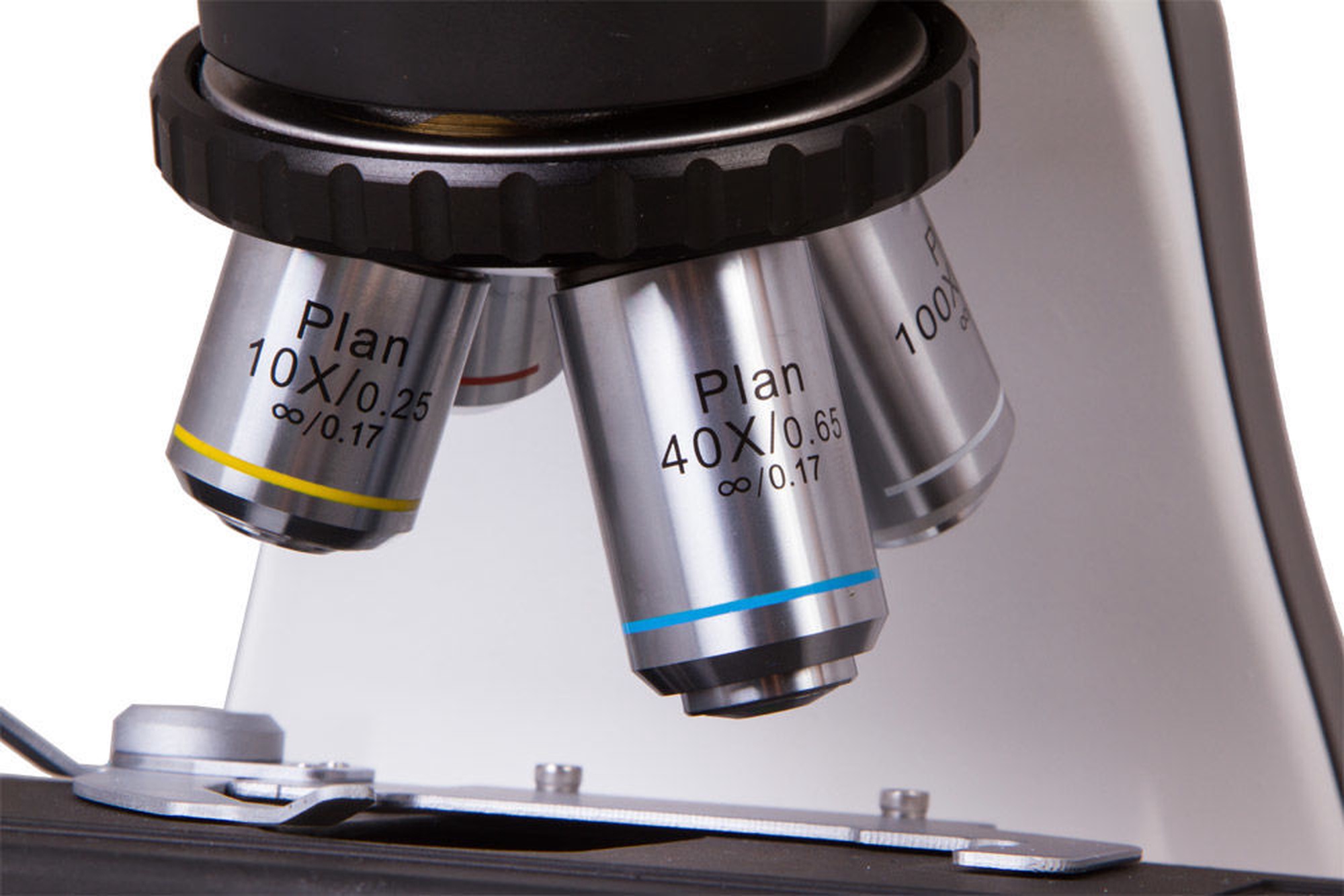

The main feature of this microscope is its optics. The revolving nosepiece includes four plan achromatic objective lenses that improve color rendering, reduce spherical aberrations, correct the field curvature (total square of the flat field of view is up to 95% diameter of the observed image). A 100x objective lens allows for observations using oil immersion. The included eyepieces with a wide field of view provide good visibility. The microscope magnification range is from 40x to 1000x.

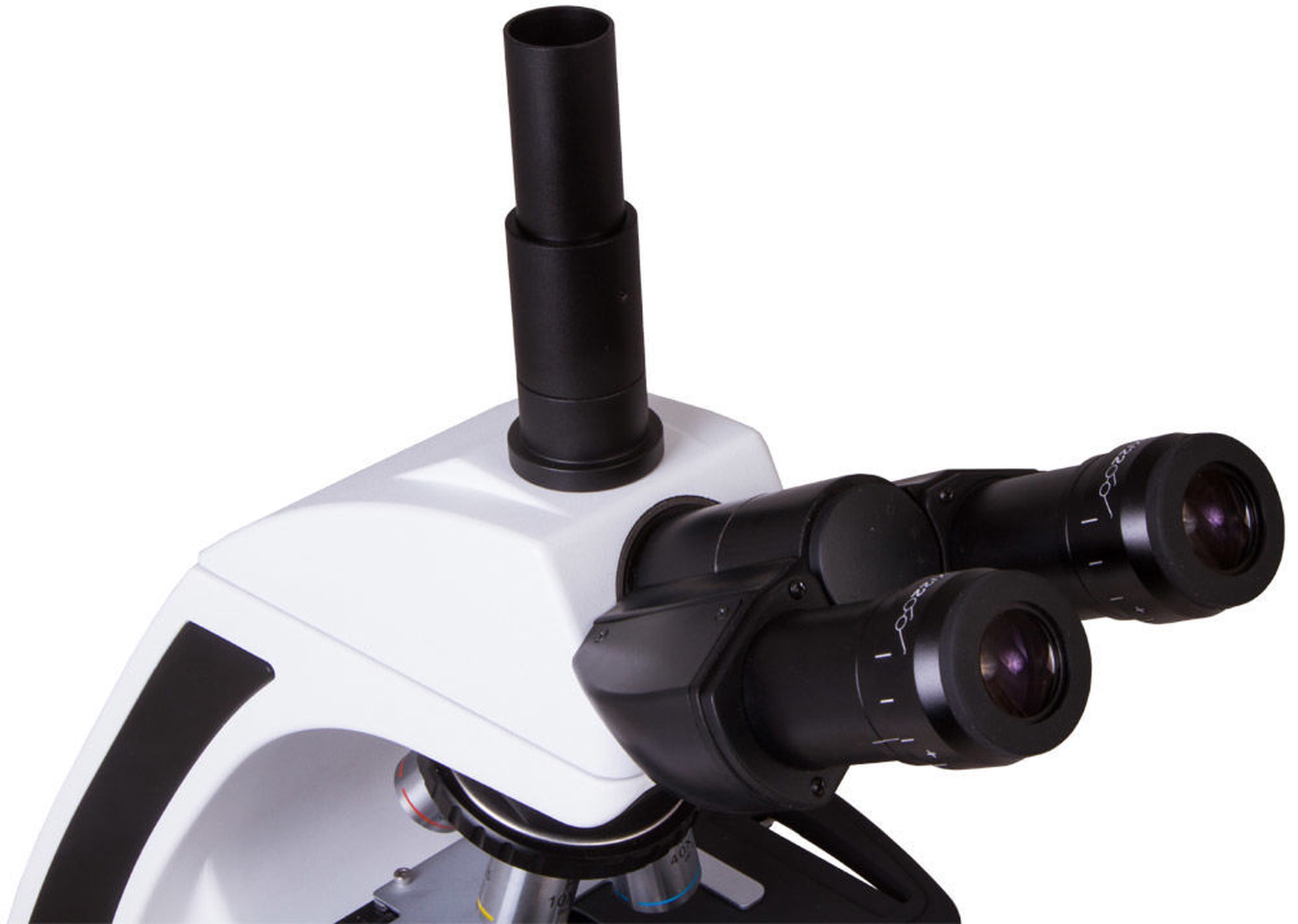

The trinocular head is supplied with a separate optical tube for installing a digital camera (purchased separately). You need a camera for taking pictures of specimens, creating video archives of your observations, and transferring an image to an external screen for demonstrating research to a wide audience. The head is 360° rotatable and its visual part is inclined at 30° for comfortable extended observations.

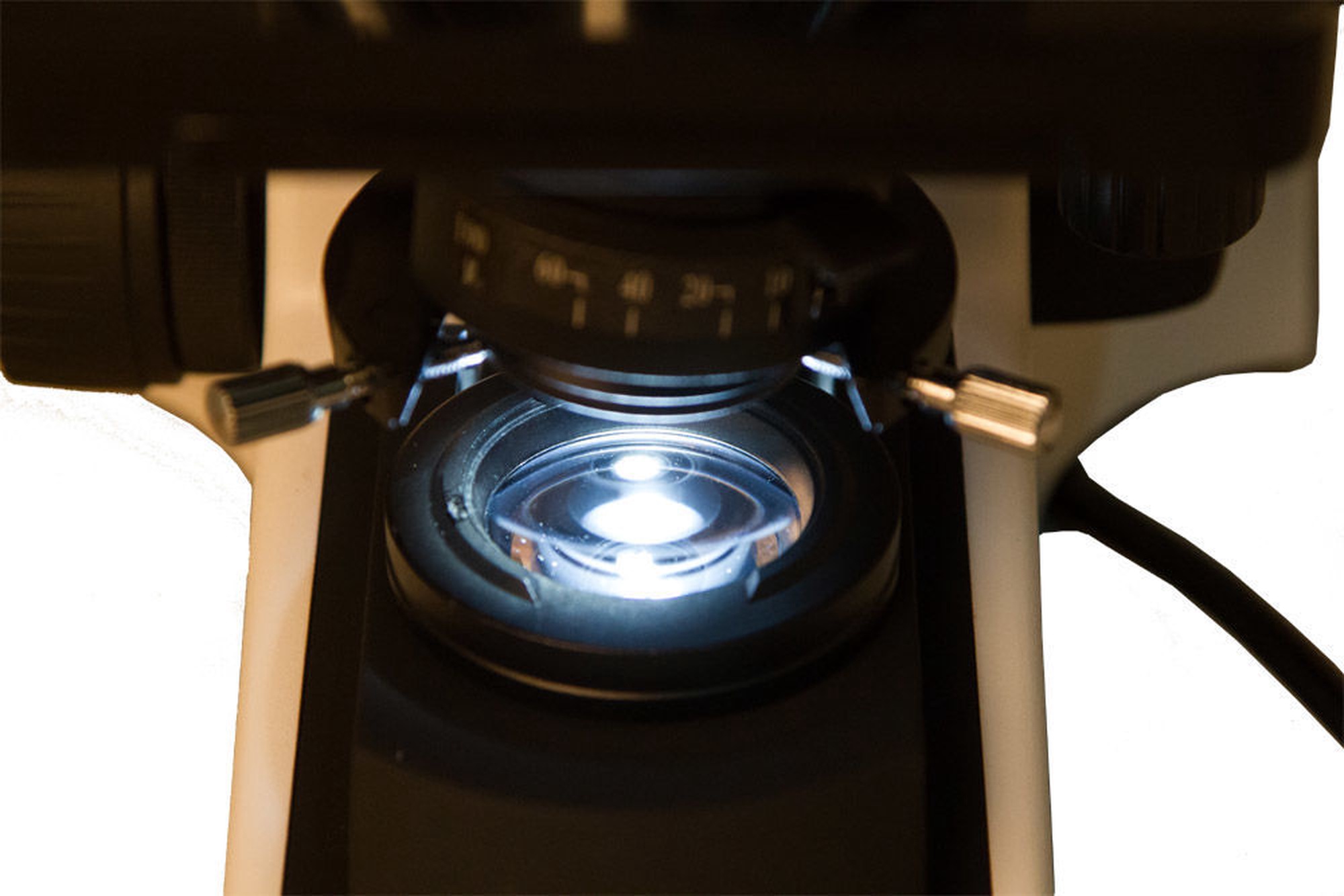

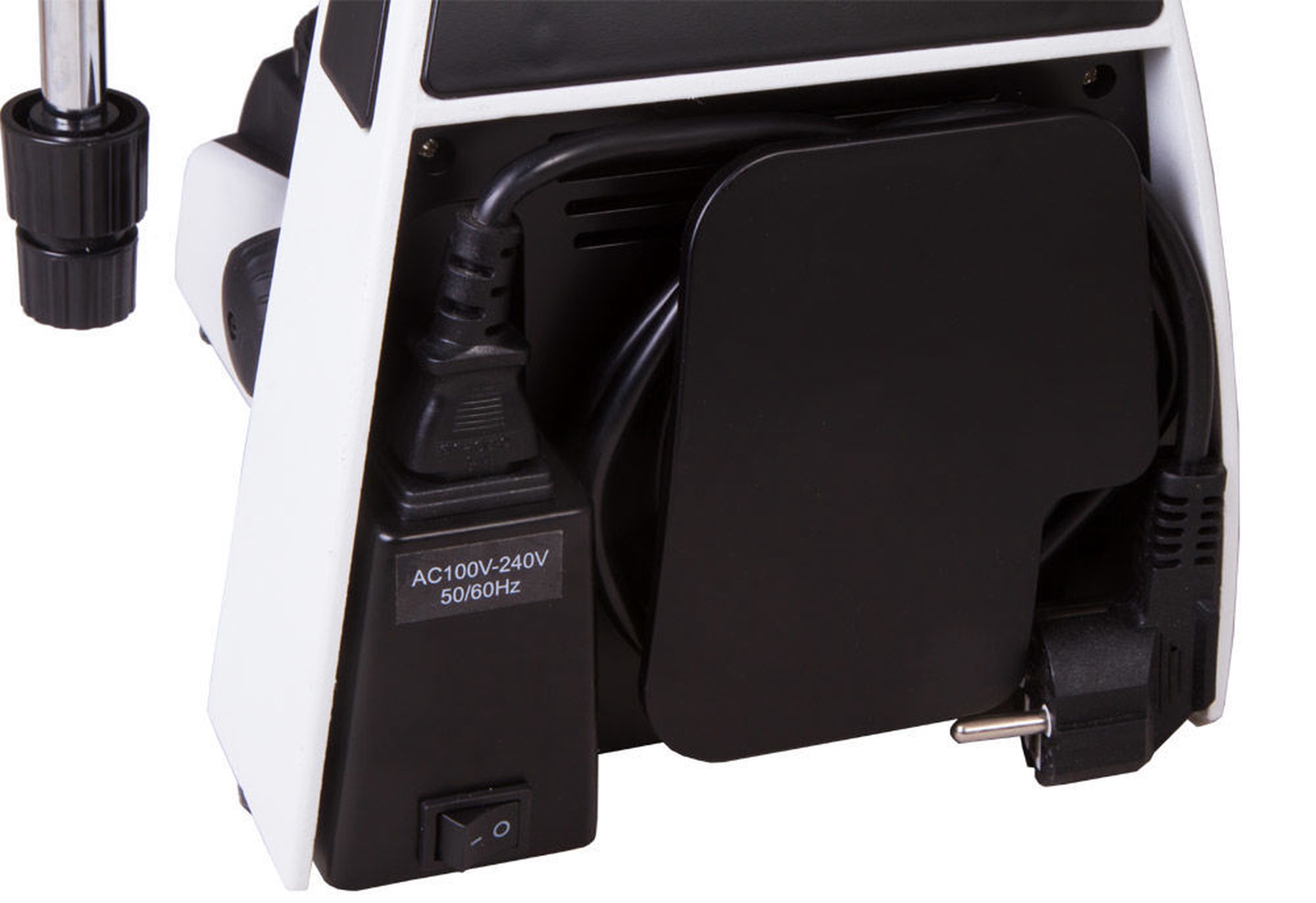

The illumination system of the microscope is also worth mentioning. All observations are carried out in transmitted light (a LED is located in the lower part of the microscope). An Abbe condenser with an iris diaphragm and light filter are used for adjusting Köhler illumination. It is powered by an AC supply.

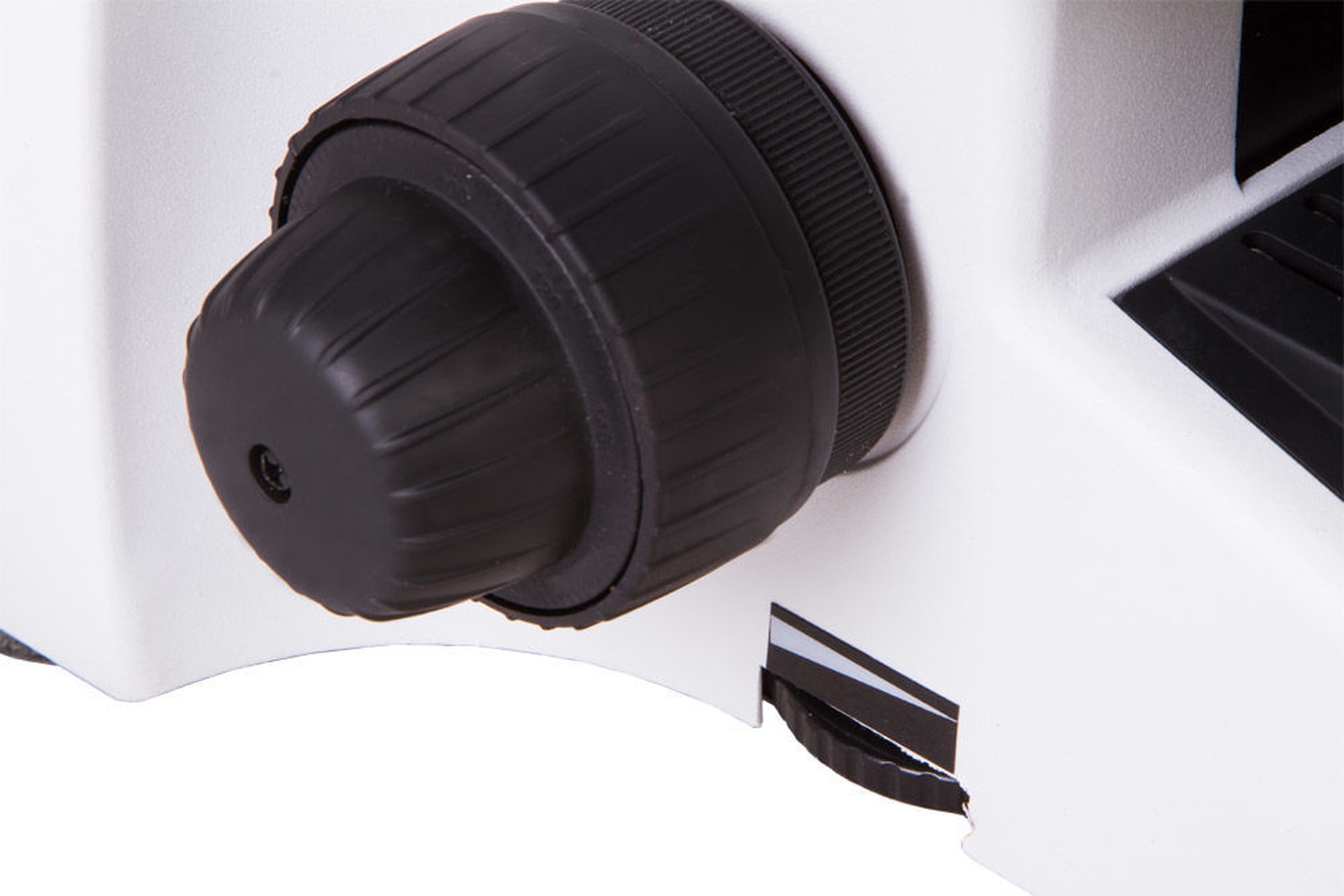

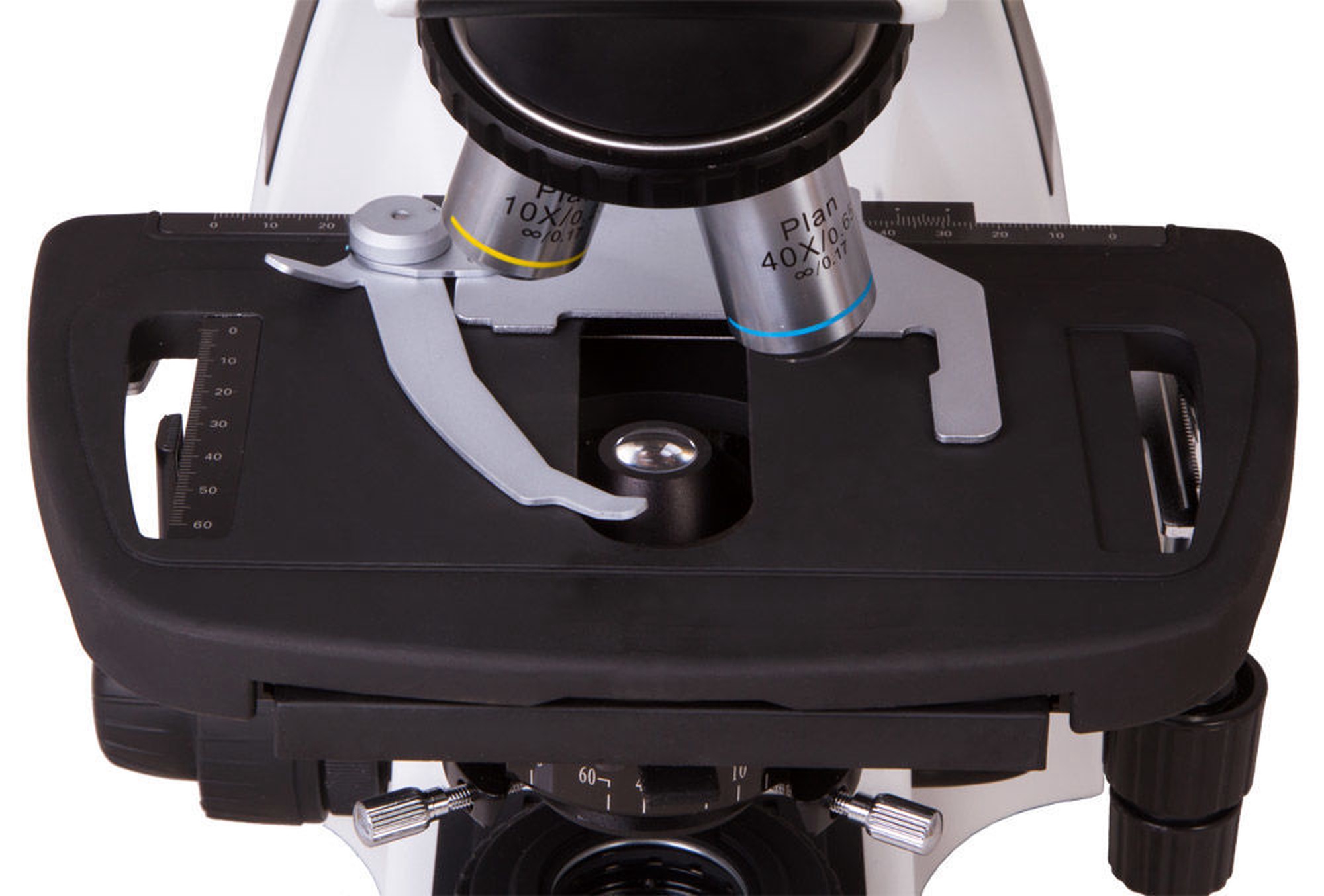

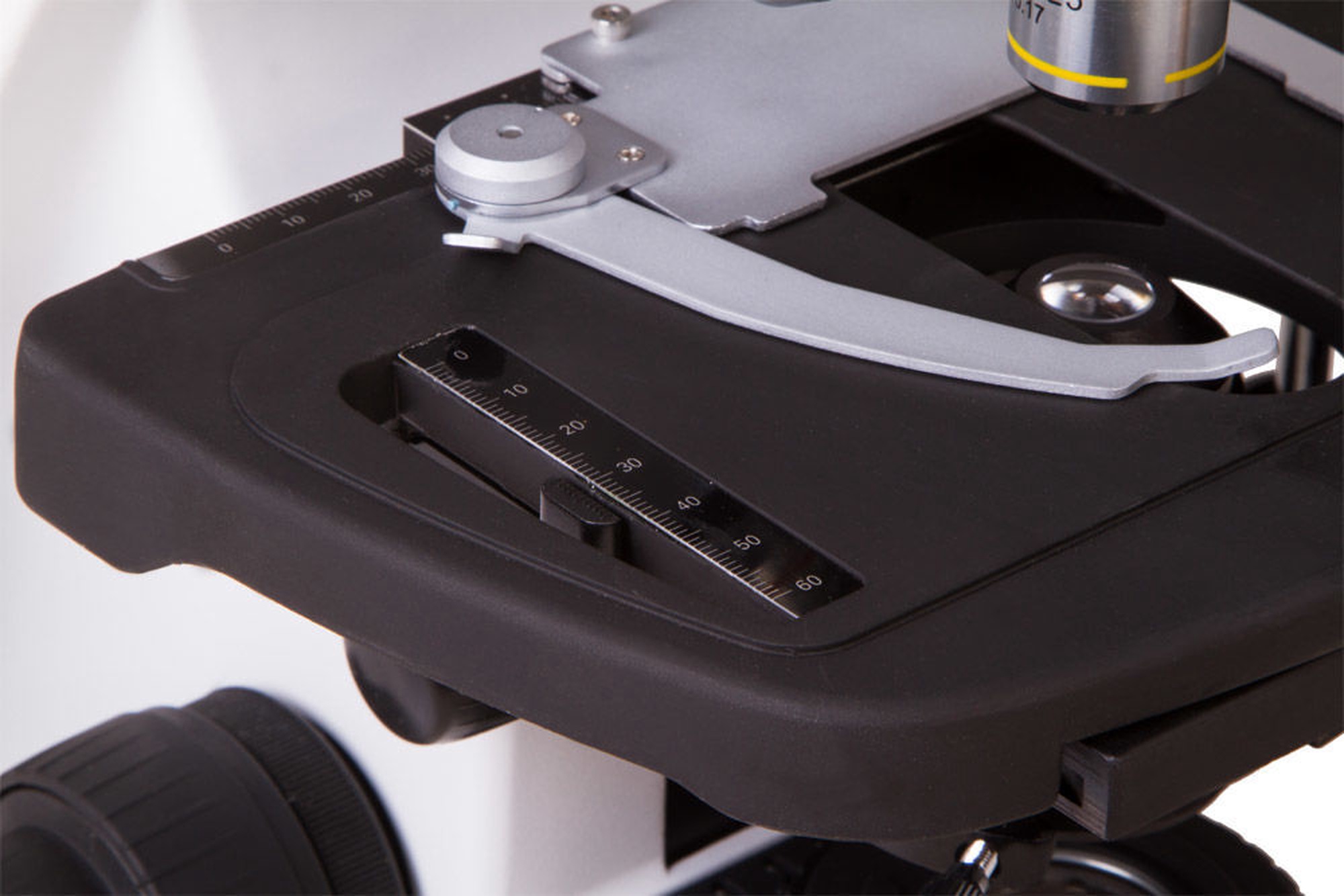

A mechanical stage is movable; its surface is securely protected with graphite coating. The mechanism of coarse and fine focusing adjustment is used for sharpness adjustment; its knobs are located on the body.

The kit includes a dust cover for practical storage. Optional accessories in the Levenhuk MED series (purchased separately) allow upgrading your microscope in no time.

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head
• Plan achromatic lenses focused at infinity: 4x, 10x, 40xs, 100xs (oil immersion) with an anti-fungal coating

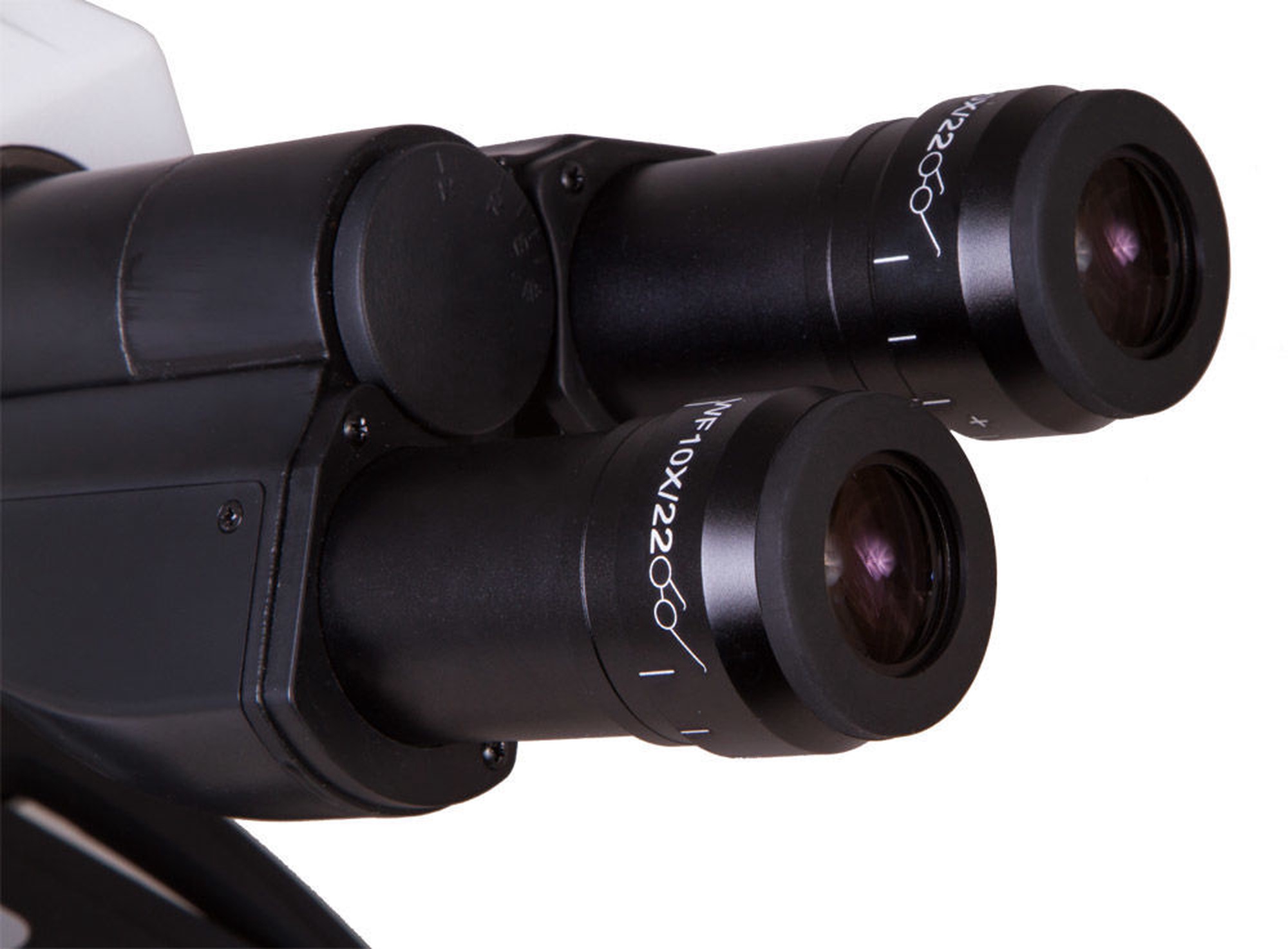

• Wide-field eyepieces: WF10xx/20mm (2 pcs.) with an anti-fungal coating

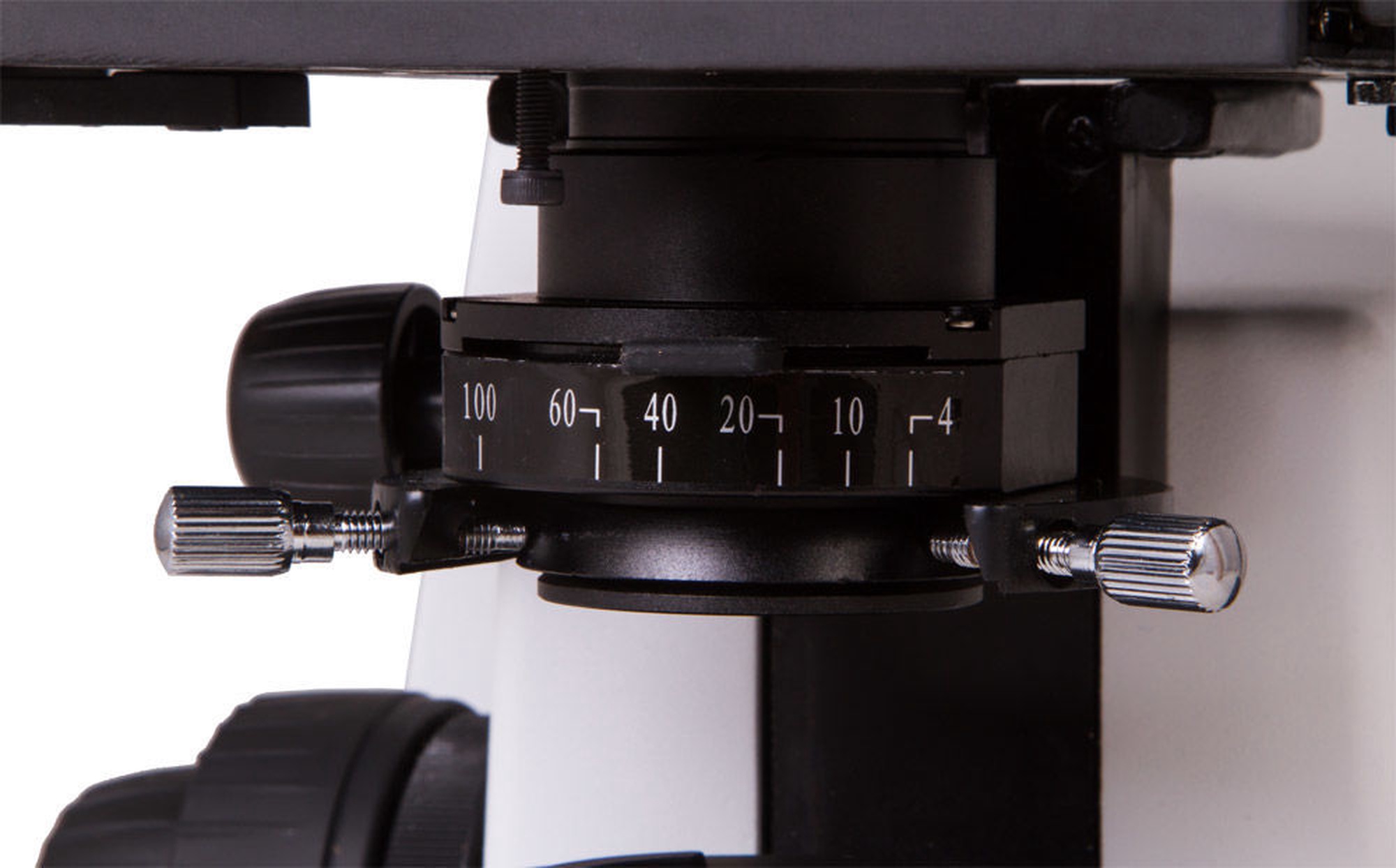

• Abbe N.A. 1.25 condenser with an iris diaphragm

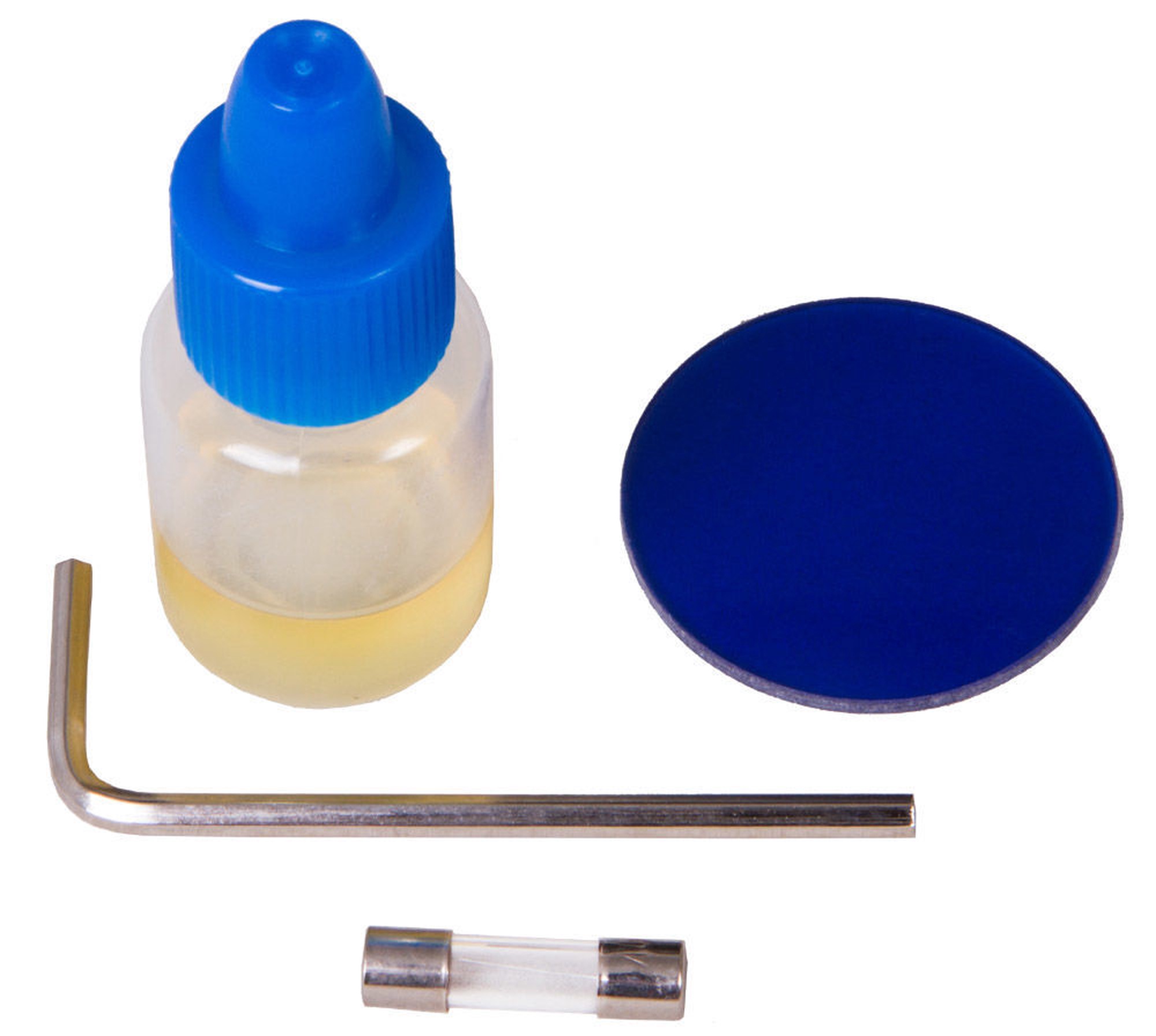

• Blue filter
• Vial of immersion oil
• C-mount for camera
• Dust cover
• Power cablecable (145cm)
• LED (3W)
• Fuse (1 pcs)
• Allen key (1pcs)
• User manual and warranty
