Mikrotik mUPS Gigabit PoE Injector

Mikrotik mUPS Gigabit PoE Injector
Prekės aprašymas anglų kalba:

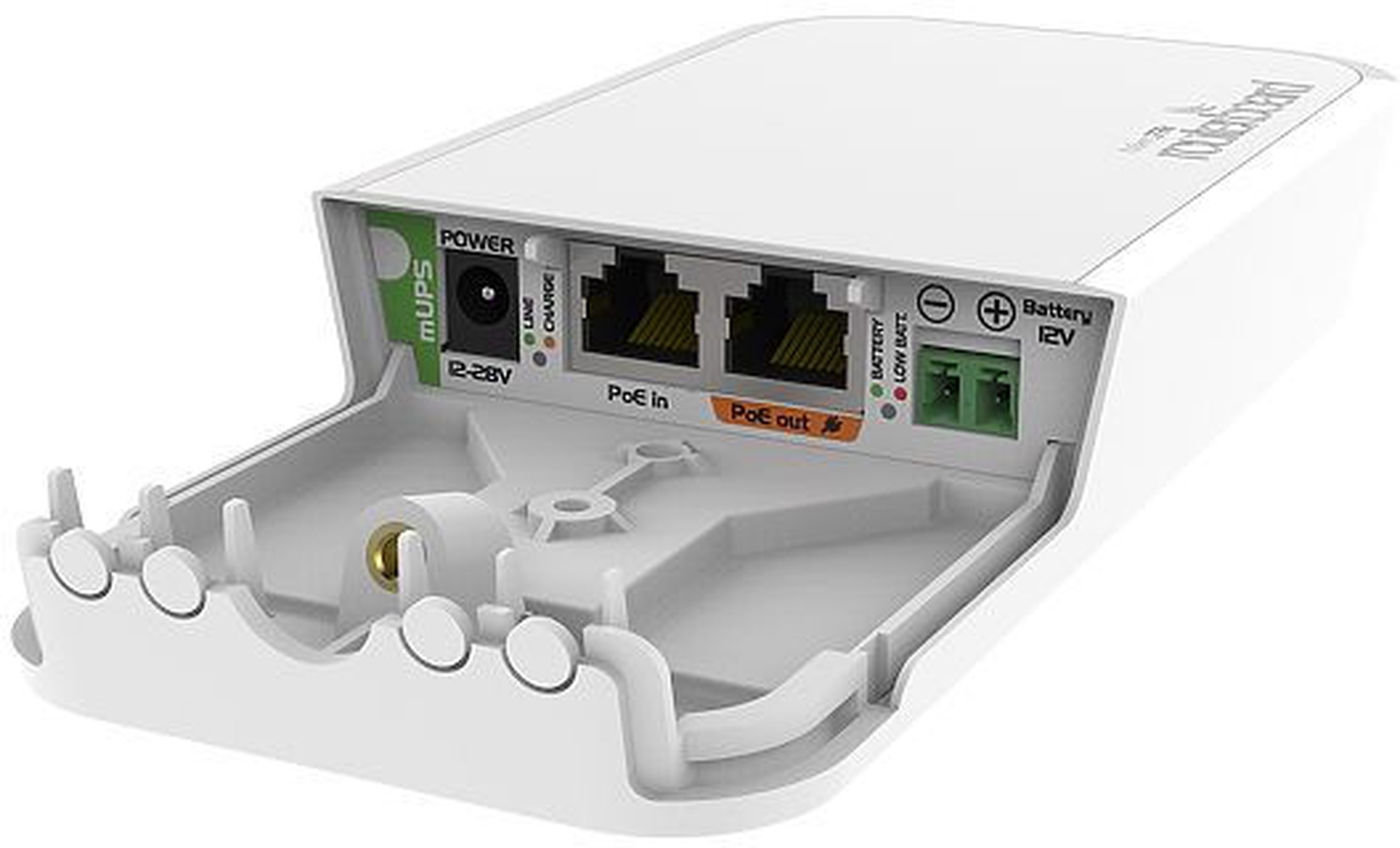

The mUPS is a PoE injector with battery backup capability with a 12 V battery connector. It works just like a Gigabit PoE injector, but when power is lost, it switches over to the 12 V battery. Even if your power source is 28 V, the connected RouterBOARD will not reboot when the power source is lost, it will switch over to the 12 V battery transparently. The LEDs
indicate DC line or battery usage, the charging of battery and low battery level (<50%).

In RouterOS it is possible to detect when running on battery power by monitoring the input voltage with scripting, since the voltage will change without a RouterOS reboot.

The mUPS is a simple and compact device to make your network more reliable, or for situations where stable power input is not available, like solar or automotive installations.
You can use the mUPS with any single 12 V battery (AGM, Gel, Lead Acid, regular car batteries, deep cycle marine batteries,etc.).

For example, when using a typical 7Ah battery, our popular wAP access point would work up to 20 hours and the LHG would work for up to 10 hours when powered only by the battery (if
ambient temperature above 10C). Please note that in low ambient temperature your baterry capacity will be lower than nominal. You can refer to your battery datasheet for exact data.
