Multitesteris InLine

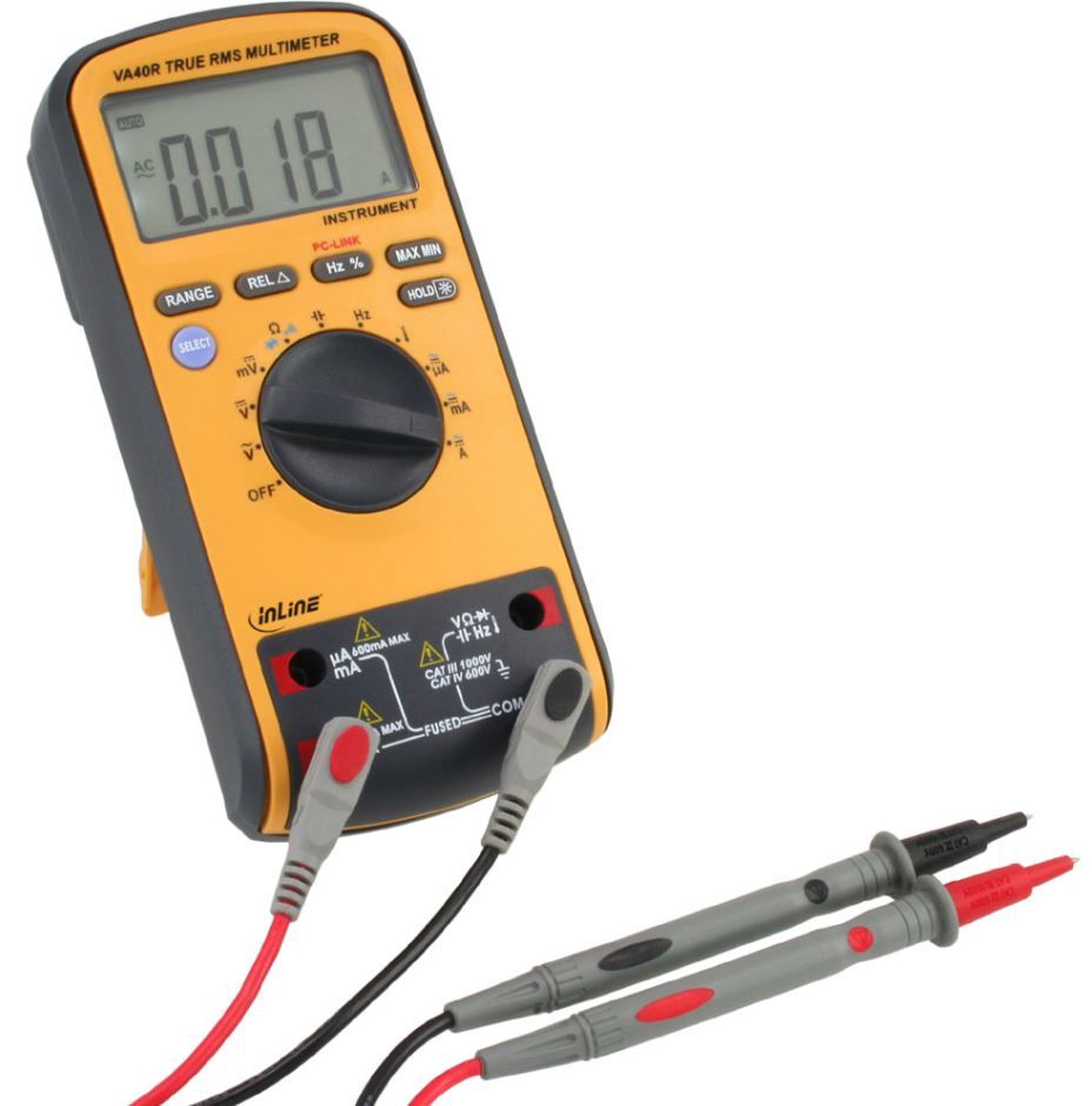

Product information "InLine® Digital Multimeter with USB to PC data transfer and RMS measurement"
Digital Multimeter with PC interface for capturing and logging of measured values. This device complies with IEC 61010-1:2001, CAT III 1000V and CAT VI 600V overvoltage standards
Display: 4 digits, Resolution 6000 counts
with a USB port to connect to the PC (Windows software)
True RMS measurement
Relative measurement
Automatic shutdown
Data hold
LED backlight
Auto / manual ranging
Low-Power display
Diode / continuity test
Measurement range / tolerances:
DC Voltage: 600mV / ± 0.5%, 6V/60V/600V / ± 0.8%, 1000V / ± 1.0%
AC Voltage: 600mV / 6V/60V/600V / ± 1.0%, 1000V / ± 1.5%
DC Current: 600µA/6000µA/60mA/600mA/6A/10A / ± 1.5%
AC Current: 600µA/6000µA/60mA/600mA / ± 1.8%, 6A/10A / ± 3.0%
Resistance: 600Ohm/6KOhm/60KOhm/600KOhm / 6MOhm / ± 0.5%, 60Mohm / ± 1.5%
Capacitance: 60nF / ± 3.0%, 600nF/6µF/60µF/300µF / ± 5.0%
Logic frequency: 1Hz ~ 1MHz ± (0.1% +3)
Linear frequency: 6Hz ~ 10kHz ± (0.05% +8)
Duty Cycle: 1 % ~ 99%
Temperature: -55°C ~ 0°C / ± 5.0%, 1°C ~ 1000°C requires ± 2.0%
Requires 1x 9V block battery
Dimensions: 190x90x40mm, weight: ~500g
Packing content: multimeter, test stripping, USB connection cable with coupler, 9v batterie, temperature sensor, software CD
