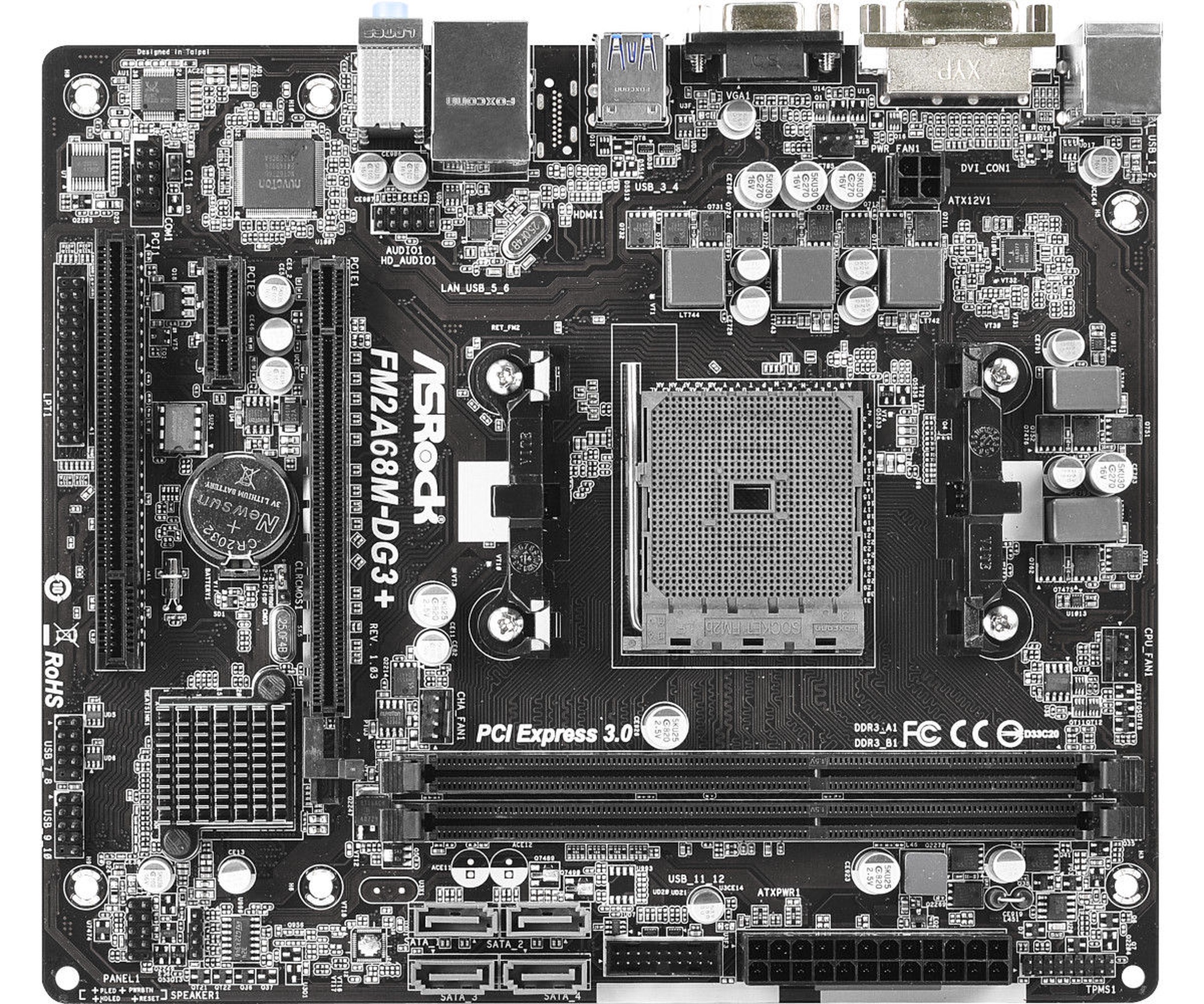

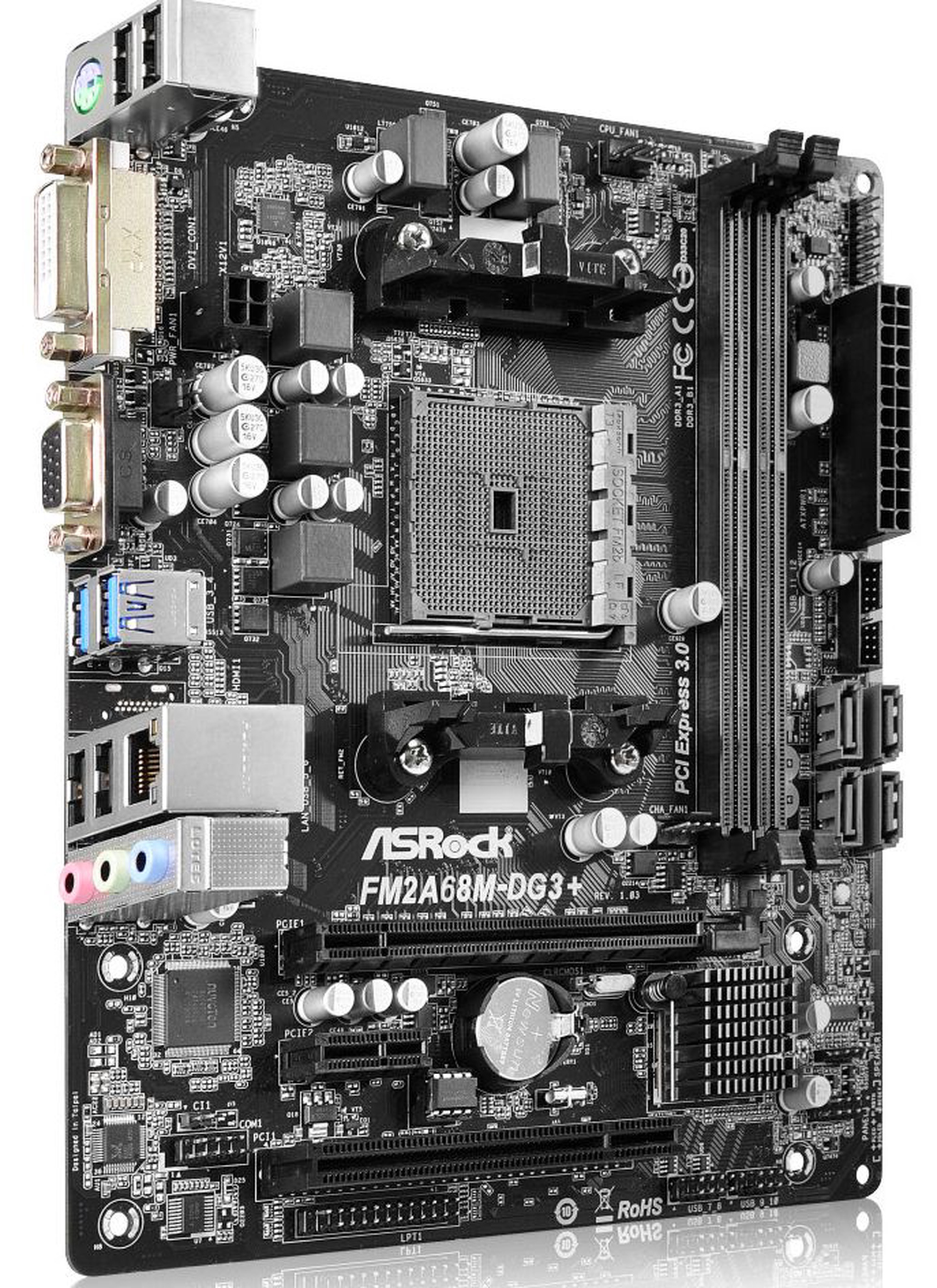

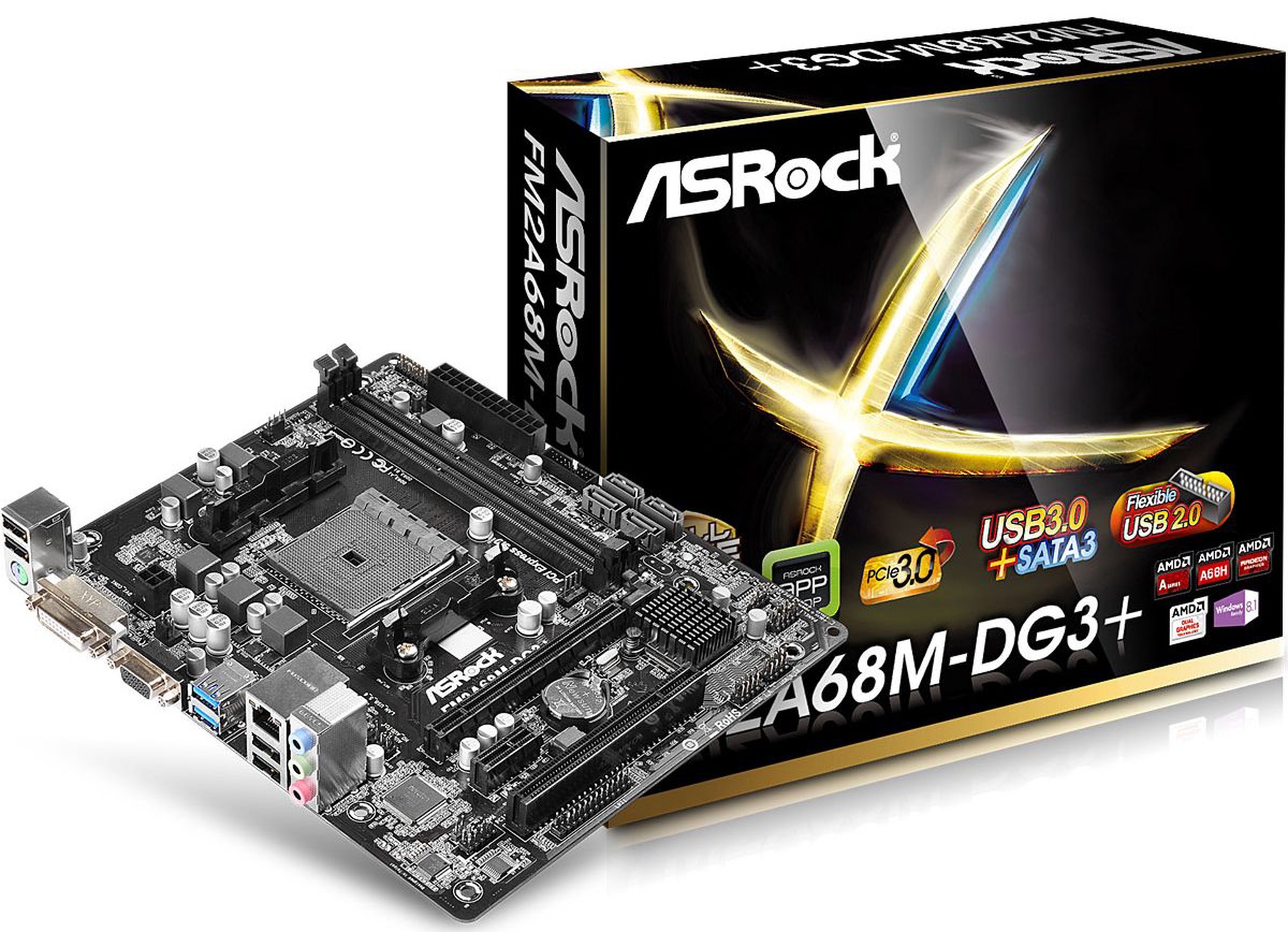

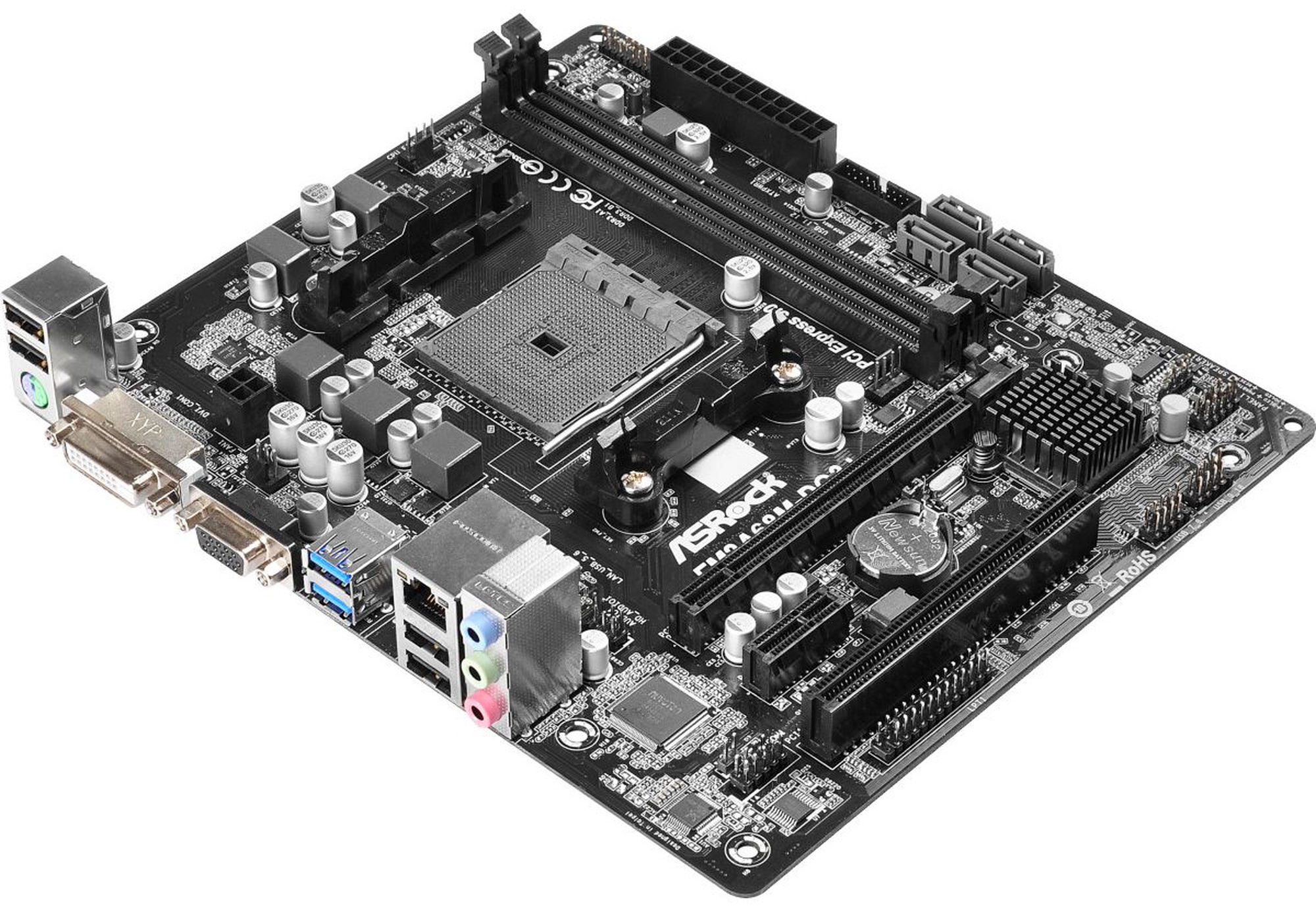

Pagrindinė plokštė ASRock FM2A68M-DG3+

Prekės aprašymas anglų kalba:

• Support for Socket FM2+ 95W / FM2 100W processors
• All Solid Capacitor Design
• Supports Dual Channel DDR3 2400+(OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x PCI, Supports AMD Dual Graphics
• Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU

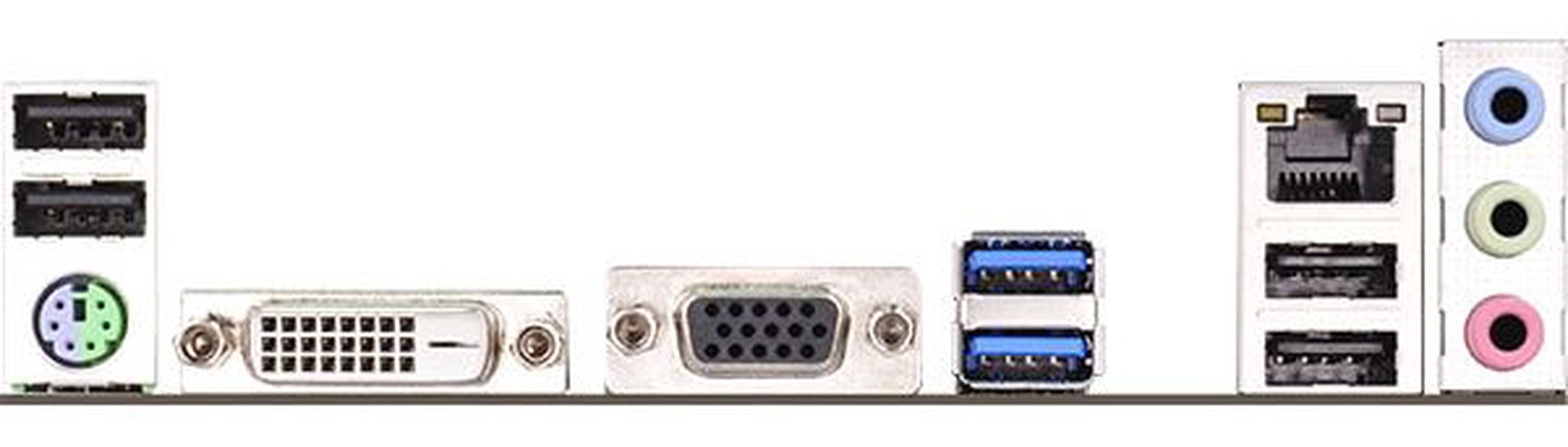

• Graphics Output Options : D-Sub, DVI-D
• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
• 1 x Print Port Header, 1 x COM Port Header
• 4 x SATA3, 2 x USB 3.0, 10 x USB 2.0 (6 Front, 4 Rear)
• Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost

Flexible USB 2.0
Besides two front USB 2.0 headers, there’s also an additional 19-pin Flexible USB 2.0 header on the motherboard to support a front USB 3.0 panel with USB 2.0 data rate.
Since most computer cases nowadays only have built-in front USB 3.0 panels for 19-pin headers, ASRock has decided to add this Flexible USB 2.0 header so that the two front USB ports will not be wasted.

High Expandability
Two USB 3.0 5Gb/s ports plus 4 SATA3 6Gb/s ports for supporting all of your peripherals with fast data transfer speed.

Next-Gen PCIe 3.0
This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance. (Available only with AMD FM2+ CPUs)

All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
