Prekės informacija
Gaminio savybės
Bendrosios charakteristikos
|
|
Prekės tipas
|
Pagrindinės plokštės
|
|
Prekės ženklas
|
Gigabyte
|
|
Modelis
|
B450M H
|
|
Lustas (chipset)
|
AMD® B450
|
Pagrindinės plokštės matmenys
|
|
Ilgis
|
244 mm
|
|
Plotis
|
205 mm
|
|
Plokštės dydis
|
Micro-ATX
|
Procesorius
|
|
Procesoriaus tipas
|
AMD
|
|
Procesoriaus lizdo tipas
|
AM4
|
|
Procesoriaus lizdų skaičius
|
1
|
Operatyvioji atmintis
|
|
Operatyviosios atminties lizdų kiekis
|
2
|
|
Operatyviosios atminties tipas
|
DDR4
|
|
Maksimalus operatyviosios atminties kiekis (RAM)
|
32 GB
|
|
Operatyviosios atminties taktinis dažnis
|
2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.)
|
Garsas, vaizdas ir tinklo plokštė
|
|
Garso plokštės modelis
|
Realtek ALC887
|
|
Tinklo plokštė
|
Realtek GbE
|
|
AMD CrossFire
|
Ne
|
|
nVidia SLI
|
Ne
|
Kietojo disko ir optinių įrenginių pajungimas
|
|
SATA 3 jungtys
|
4
|
Išplėtimo lizdai
|
|
PCI Express 1X jungtys
|
2
|
|
PCI Express 16X jungtys
|
1
|
|
PCI jungtys
|
0
|

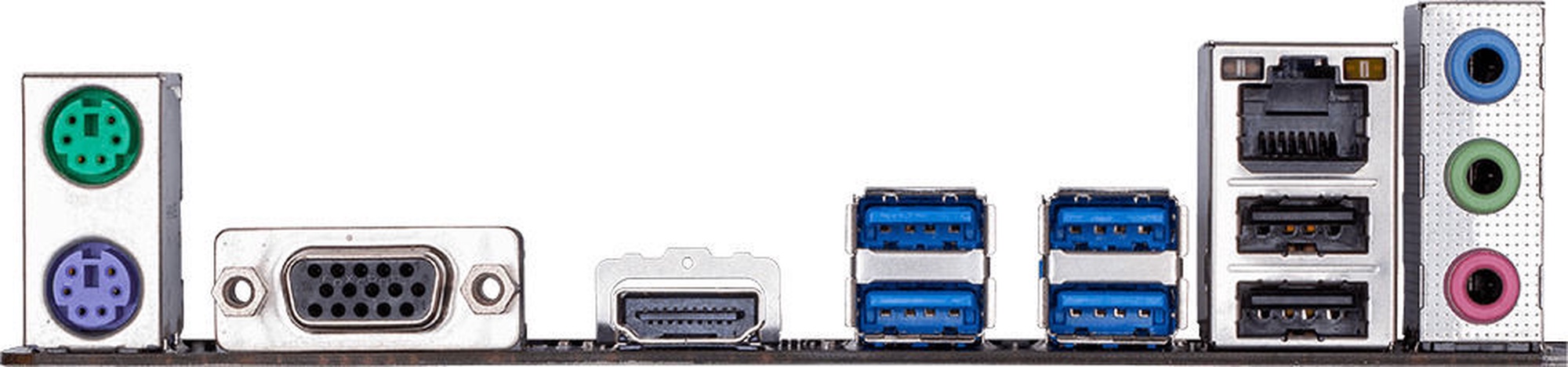

Galimos galinės dalies jungtys
|
|
USB 2.0 jungčių skaičius
|
2
|
|
USB 3.x jungčių skaičius
|
4
|
|
Ethernet LAN (RJ-45) lizdas
|
Taip
|
|
D-Sub jungtys
|
1
|
|
HDMI lizdų skaičius
|
1
|
|
PS/2 jungtys
|
2
|
Papildomai
|
|
Privaloma garantija
|
24 mėn
|
|
Papildoma informacija
|
APP Center. AutoGreen. Cloud Station. EasyTune. Fast Boot. Game Boost. ON/OFF Charge. RGB Fusion. Smart Backup. Smart Keyboard. Smart Survey. System Information Viewer. USB Blocker. Q-Flash. Xpress Install
|
Prekės aprašymas anglų kalba:
GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen™ 3000 Processors and are backwards compatible with AMD Ryzen™ 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems.
AMD StoreMI technology
GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
CONNECTIVITY
Fast Onboard Storage with NVMe
PCIe Gen3 x4 80mm M.2 (Up to 32 Gb/s)
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Real-Time Network Monitoring
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Temperature Sensors
Fan Pin Headers
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
■ 5 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
PERFORMANCE
Immersive VR
Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.
Supports RGB Light Strips in 7 Colors
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!
* LED strips not included.
* Lighting effects may vary by model.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket
The Industry's Leading Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
