The Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700 / 5700XT Reference is a high-quality and powerful heat sink for custom water cooling that fits on AMD graphics cards of the type RX 5700 / 5700XT in the reference design. Thanks to the optimized channel structure and nickel-plated electrolytic copper block, efficient cooling of the GPU, memory and voltage converter is guaranteed. The heat sink with its cover made of acrylic glass ensures a transparent and high-quality look and the integrated digitally addressable RGB LED lighting provides a visual highlight. The Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700 / 5700XT Reference water cooling block at a glance:

• Suitable for AMD RX 5700 and 5700XT models in reference design
• Effective heat dissipation through nickel-plated electrolytic copper base
• Impressive look thanks to transparent acrylic glass lid
• Integrated digitally addressable RGB LED lighting with 3-pin RGB connector (5VDG, 5V)
• Four G1 / 4-inch connections for integration into the circuit

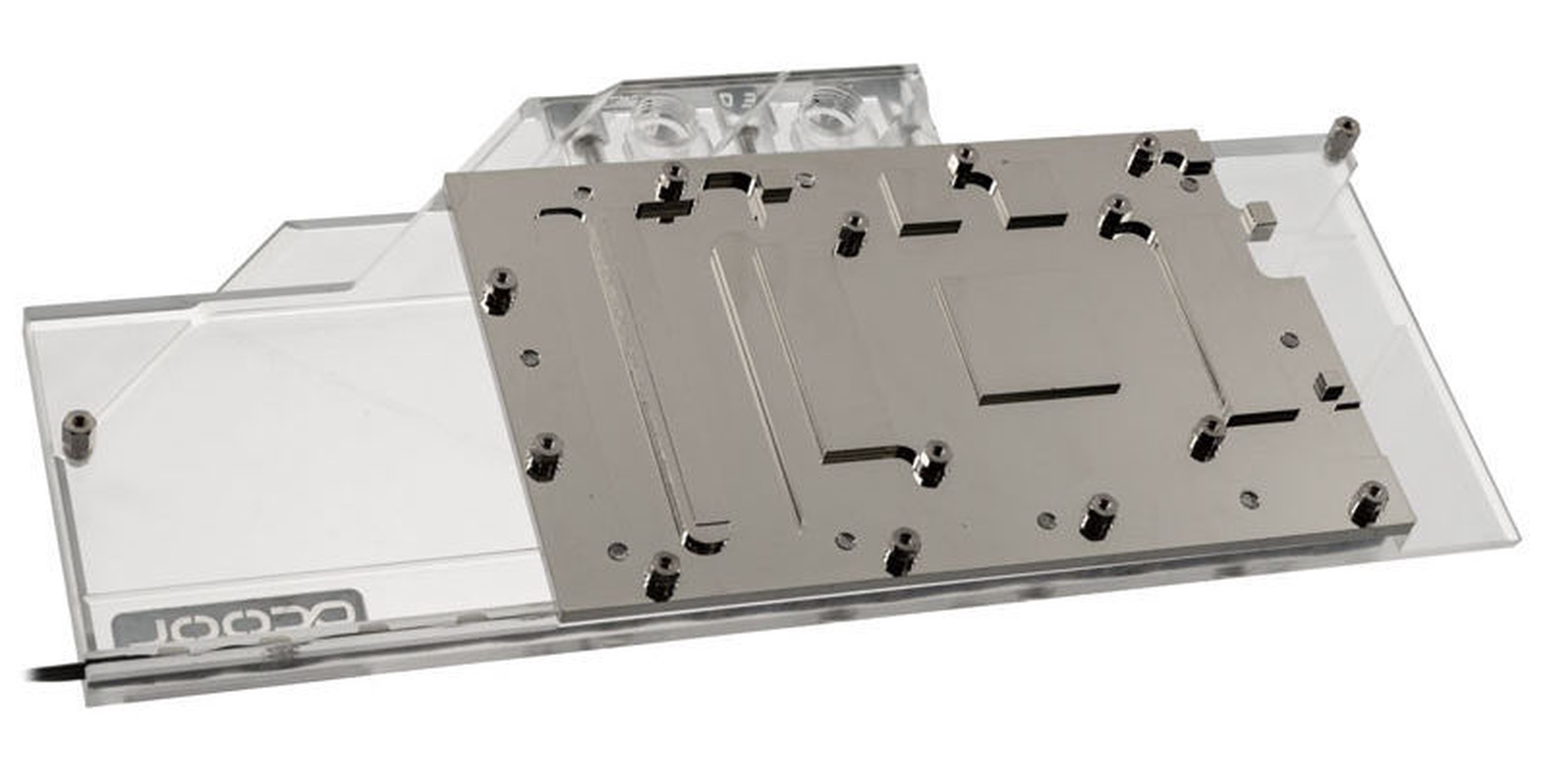

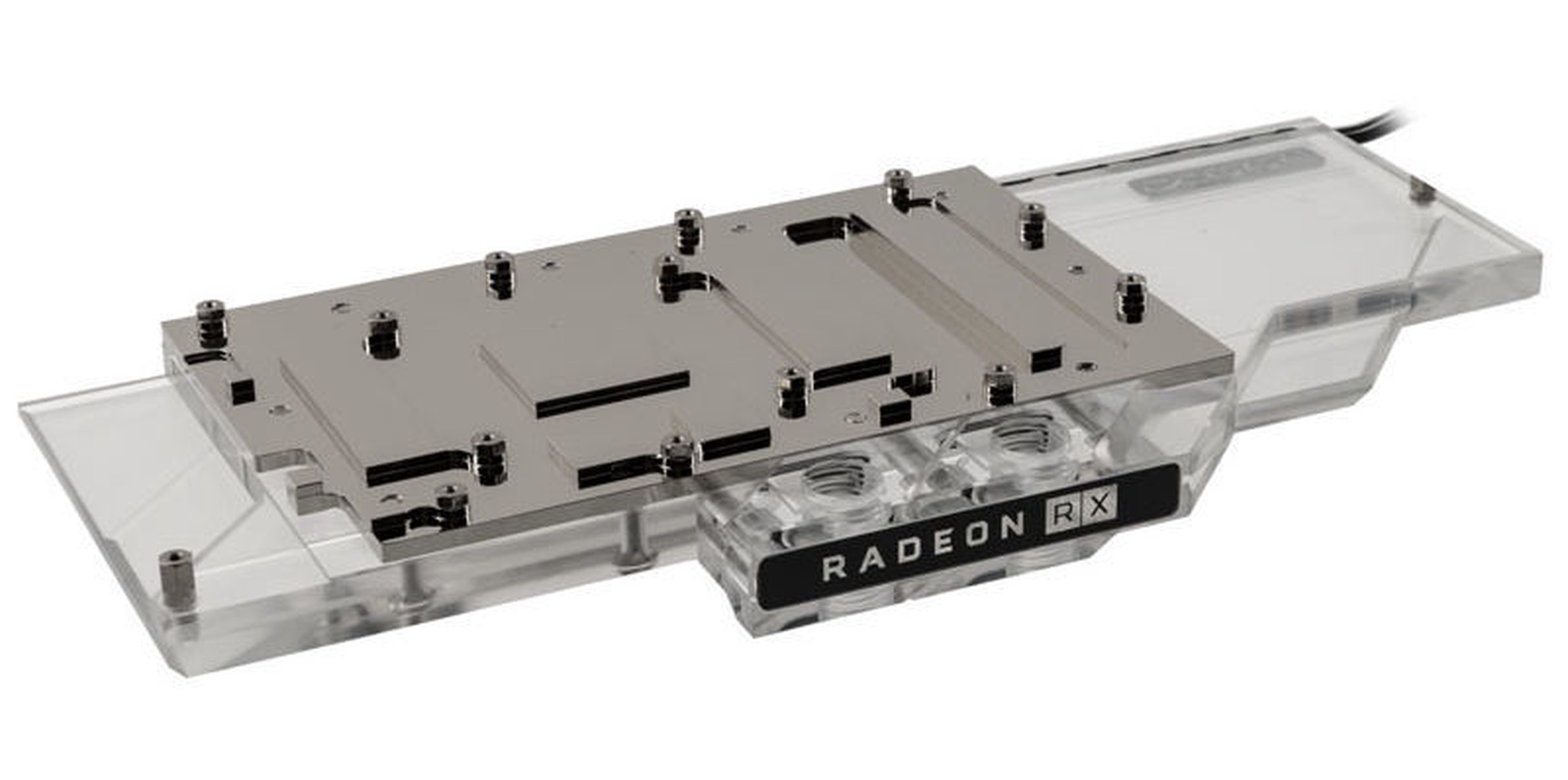

Alphacool Eisblock Aurora Plexi GPX-A AMD Radeon RX 5700 / 5700XT Reference water cooling block in detail This cooler is a full block design that covers and effectively cools all relevant components of the graphics card - i.e. the GPU, the memory and the voltage converter . Nickel- plated electrolytic copper and an optimized channel structure as well as a cooler with cooling fins only 0.6 millimeters thick are used to optimally transfer the heat.

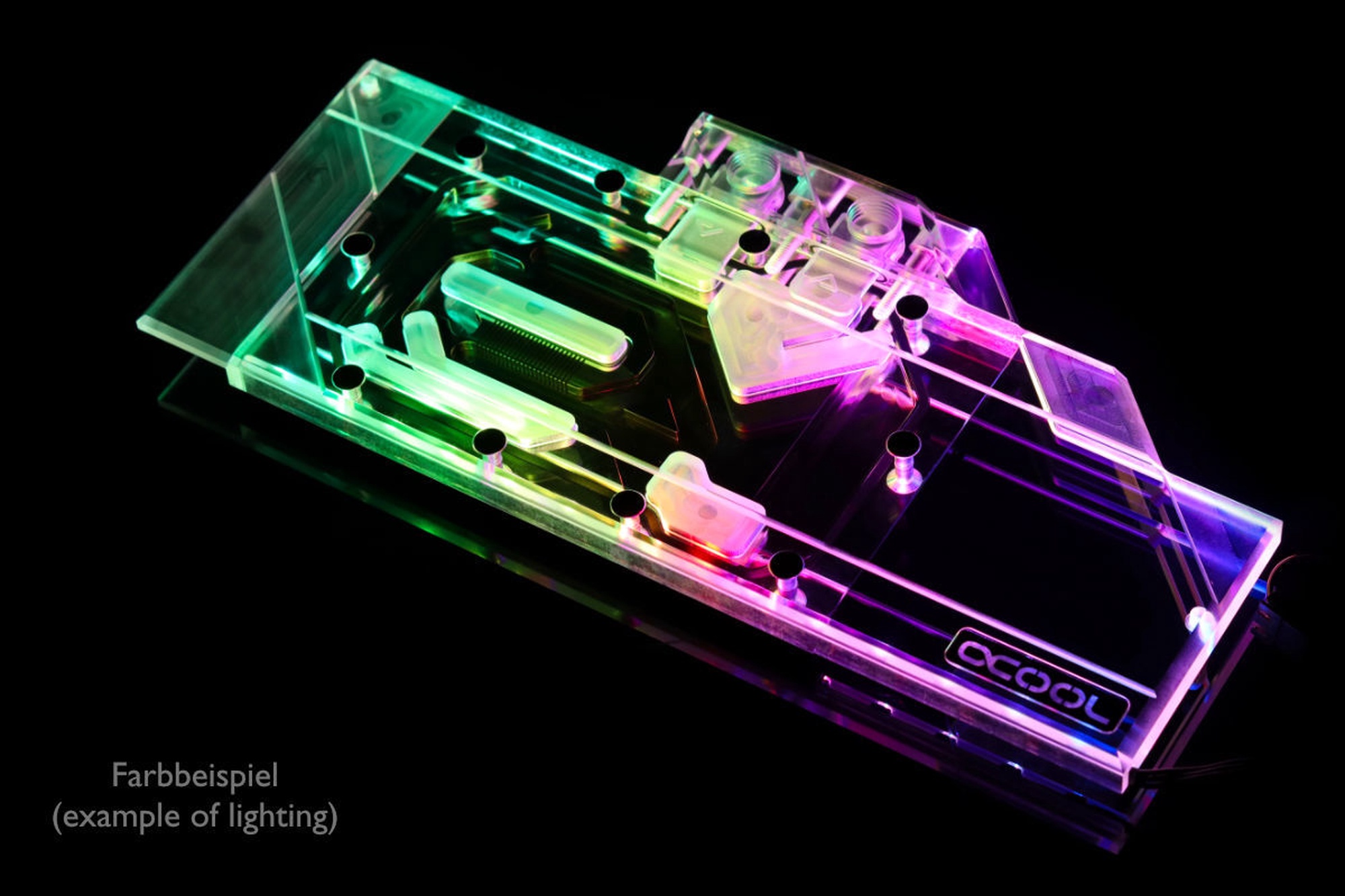

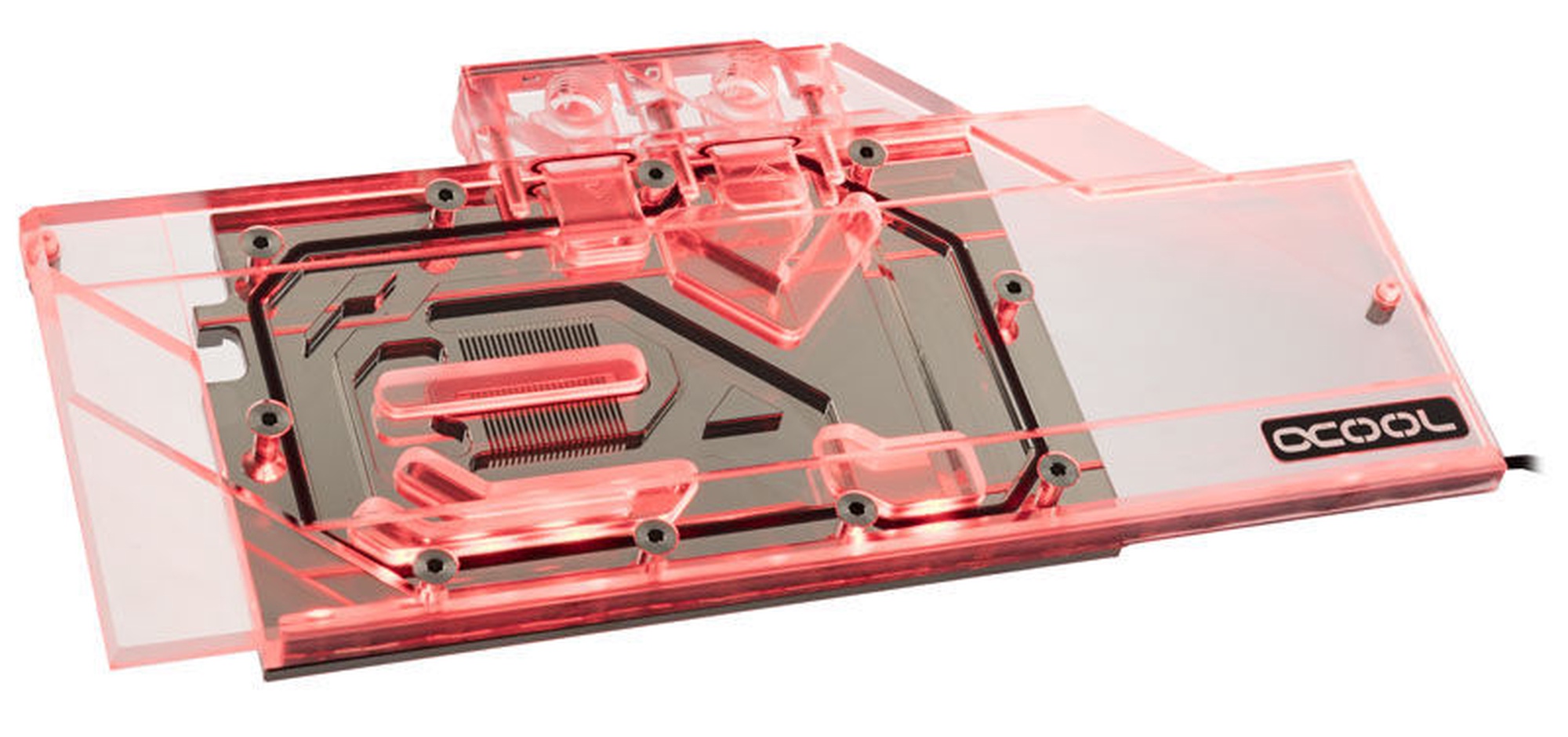

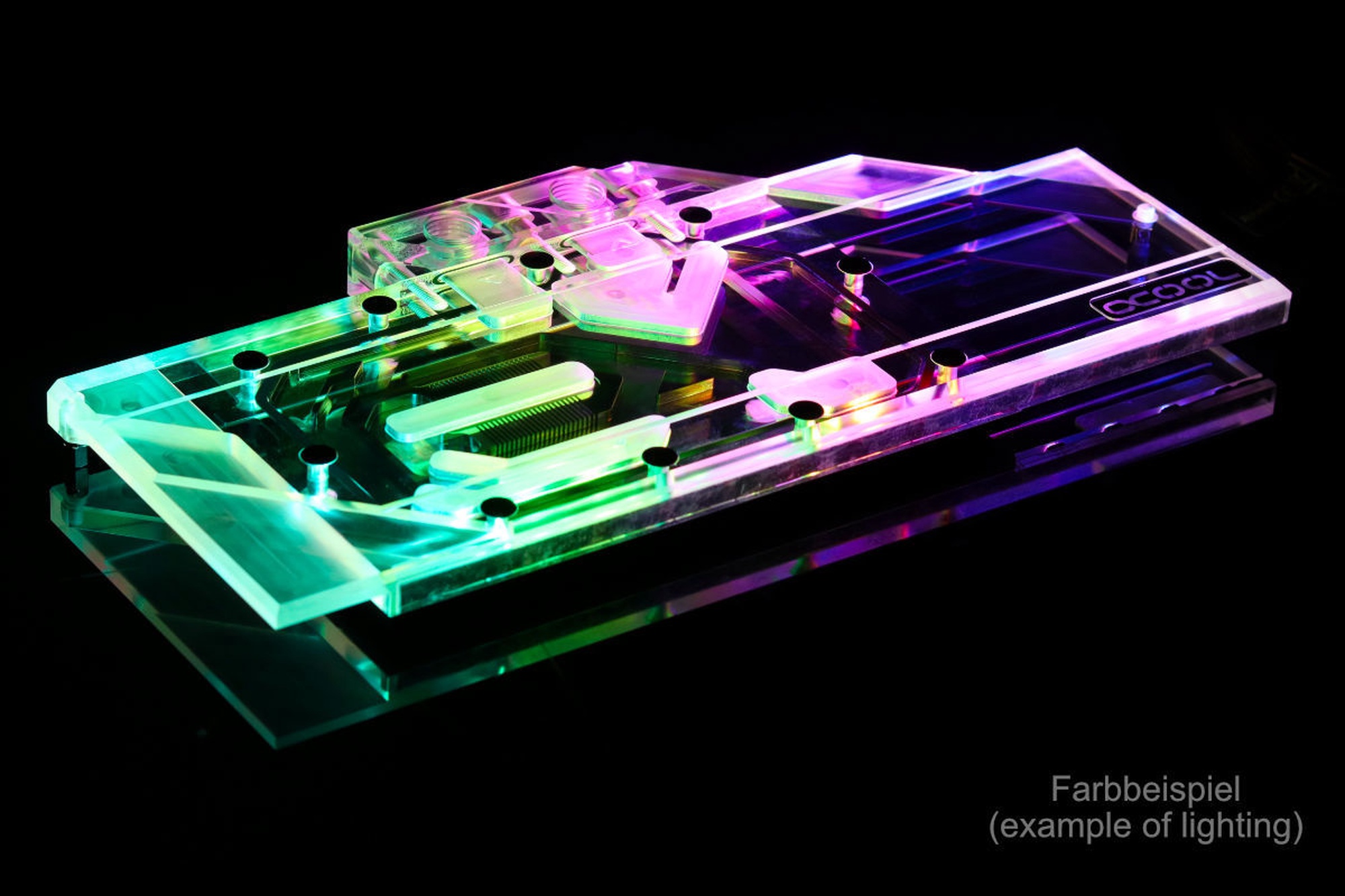

The lid made of acrylic glass gives the cooler a transparent and high-quality look and the integrated digitally addressable RGB LED lighting ensures a visual highlight.

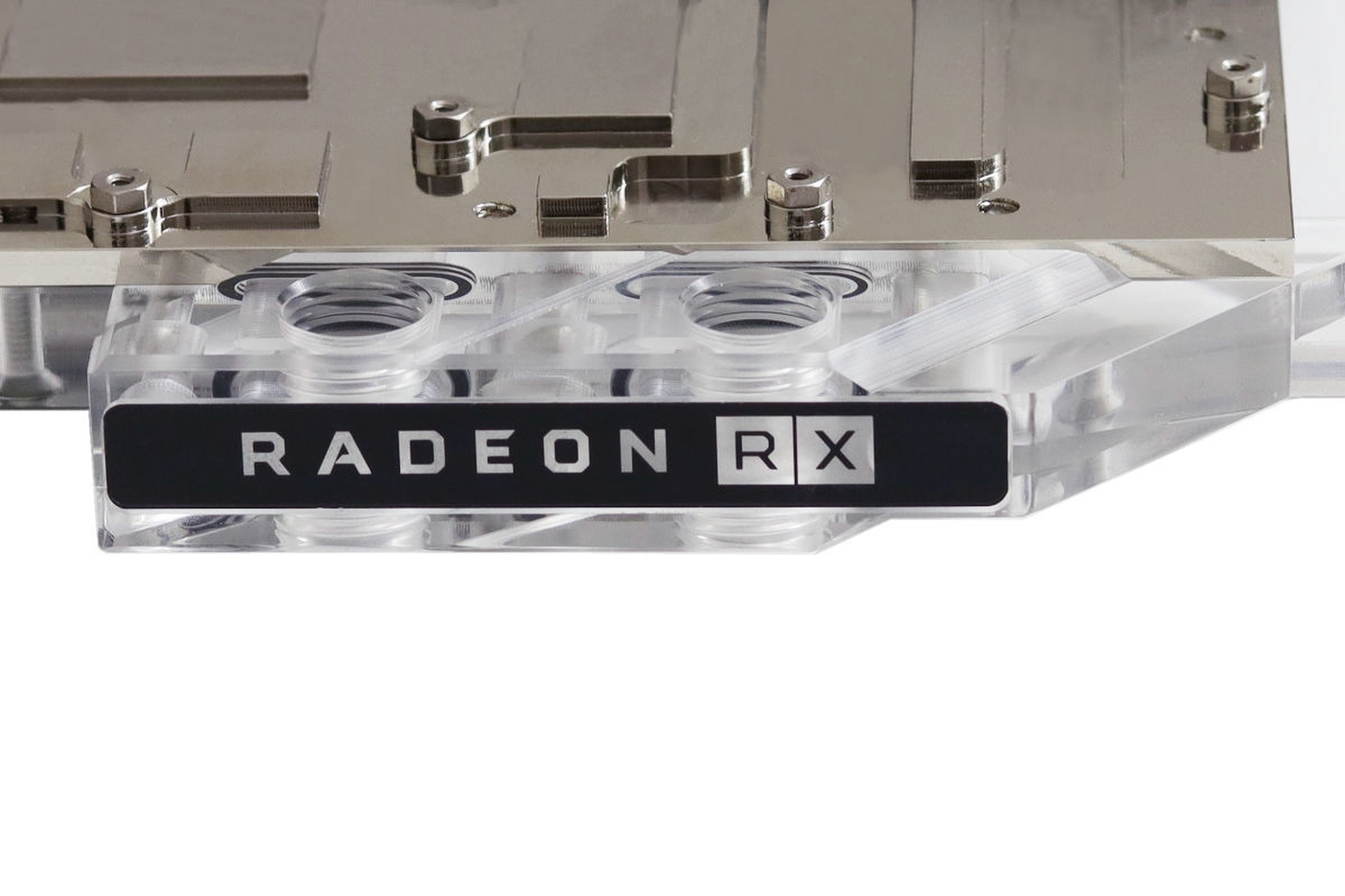

The connection terminal has four holes (G1 / 4-inch thread). Due to the flat design of the cooler, the connection of several graphics cards in a network is possible without any problems.

Note: Connections that are not included in the scope of delivery are required for integration into the cooling circuit. The original cooler must be removed before assembly, which invalidates the manufacturer's guarantee!

Technical details:

• Dimensions: 120.4 x 266.7 x 25.3 mm (W x D x H)
• Material: nickel-plated electrolytic copper (bottom), acrylic glass (lid)
• Weight: approx. 726 g
• Thread: 4x G1 / 4 inches
• Illumination: RGB-LED (3-Pin RGB, 5VDG, 5V)
• Compatibility:
  AMD RX 5700 reference design
  AMD RX 5700XT reference design
  AMD Radeon RX 5700 XT 50th Anniversary, 8GB GDDR6
  AMD Radeon RX 5700 XT, 8GB GDDR6
  ASRock Radeon RX 5700 XT, 8GB GDDR6, (90-GA15ZZ-00UANF)
  ASRock Radeon RX 5700, 8GB GDDR6, (90-GA16ZZ-00UANF)
  ASUS Radeon RX 5700 XT, RX5700XT 8G, 8GB GDDR6, (90YVOD8O-UONA00)
  ASUS Radeon RX 5700, RX5700-8G, 8GB GDDR6, (90YVOD7O-UONA00)
  Gigabyte Radeon RX 5700 8G, 8GB GDDR6, (GV-R57-8GD-B)
  Gigabyte Radeon RX 5700 XT 8G, 8GB GDDR6, (GV-R57XT-8GD-B)
  MSI Radeon RX 5700 8G, 8GB GDDR6, (V803-891R)
  MSI Radeon RX 5700 XT 8G, 8GB GDDR6, (V803-890R)
  PowerColor Radeon RX 5700 8G, 8GB GDDR6, HDMI, 3x DP (21294-01-40G)
  PowerColor Radeon RX 5700 XT 8G, 8GB GDDR6, (AXRX 5700XT 8GBD6-M3DH)
  Sapphire Radeon RX 5700 8G, 8GB GDDR6, (21294-01-20G)
  Sapphire Radeon RX 5700 XT 8G, 8GB GDDR6, (21293-01-40G
  XFX Radeon RX 5700 XT, 8GB GDDR6, (RX-57XT8MFD6)

Attention: Please note that some coolers are delivered with a protective film on the bottom. This must always be removed before assembly and commissioning. We accept no liability for damage caused by incorrect or incorrect assembly and improper use!
