Panelė Lian Li

Lian Li is considered the reference in housing construction and offers a collection of simple elegance, quality of workmanship and comprehensive functionality. Also the accessories and spare parts program is very extensive, high-quality processed and top-functional.

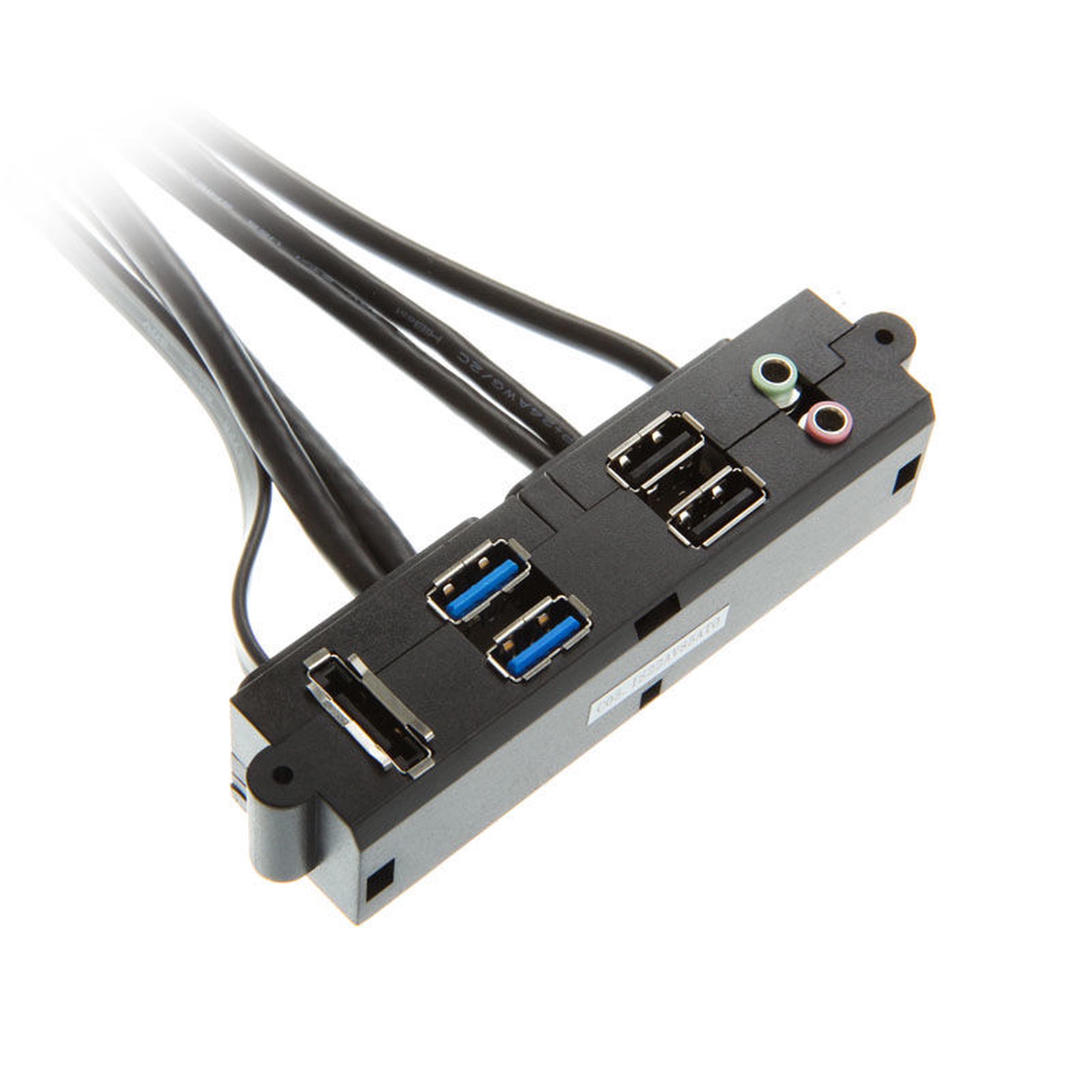

This is a replacement I / O panel for various Lian Li enclosures (see list below). The highlights are two USB 3.0 ports, which are connected internally to a 20-pin header of the mainboard and enable a considerably faster data transfer compared to USB 2.0.

For this it is of course necessary that the motherboard used also supports USB 3.0 and has at least one corresponding header. In addition to two other USB 2.0 ports, the I / O panel offers an eSATA interface, which is internally plugged into a SATA port, as well as two audio sockets.

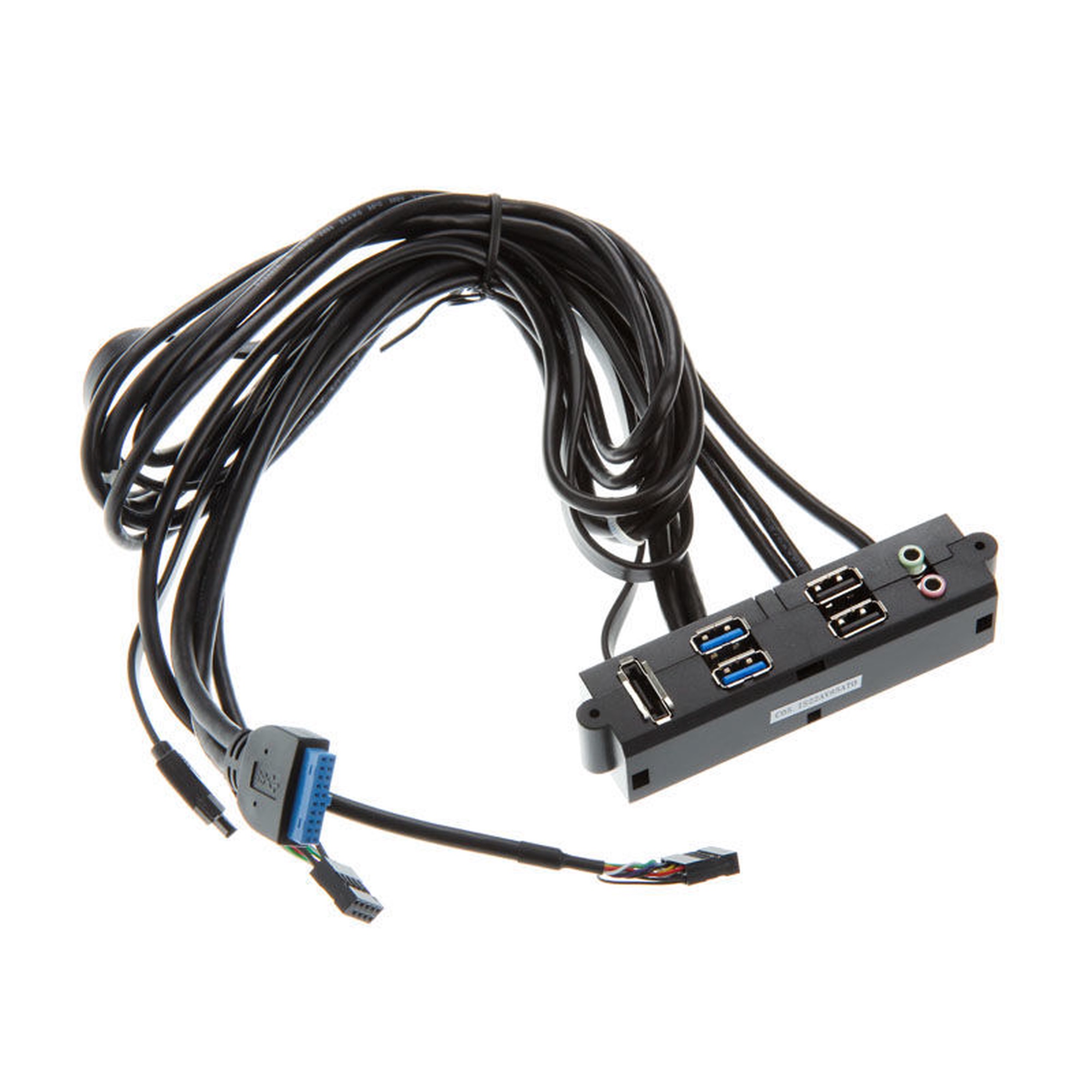

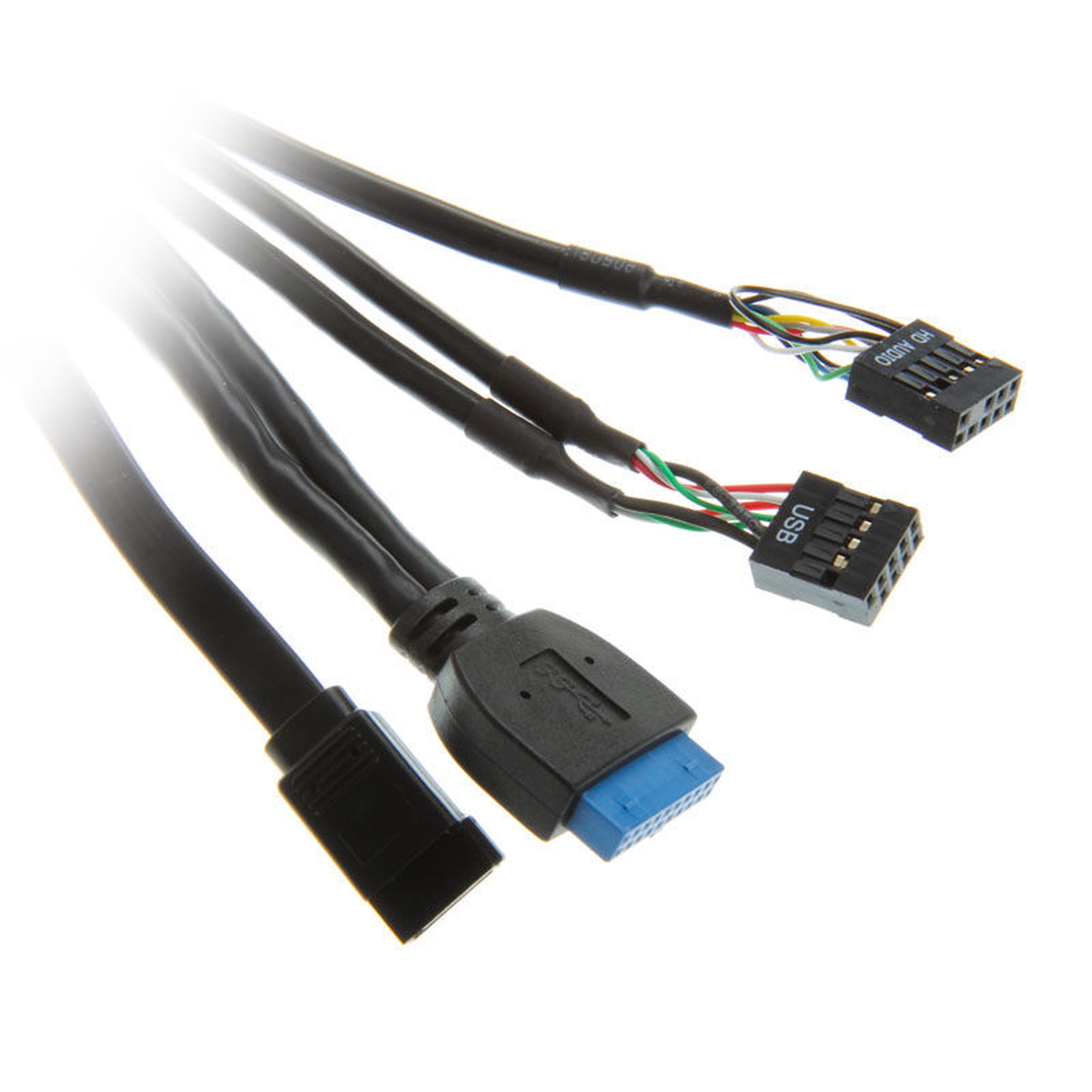

The required cables are included and are about 85 centimeters long. In addition, an alternative aperture is included, which must replace the old at some cases by means of two screws, so that the new connections fit. Please note the compatibility list below.

Technical details:

• I / O-Panel:
  2x USB 3.0 (internal connection)
  2x USB 2.0
  1x eSATA
  1x per Audio In / Out
• Cable length: approx. 85 cm
• Enclosure compatibility:
  Lian Li PC-A70F, PC-A71F, PC-B71, PC-A77FN, PC-A75, PC-X500F, PC-V1020, PC-V2120, PC-P80N, PC-A77F, PC-X2000F, PC-X900, PC-V2000
