Pompa EK Water Blocks

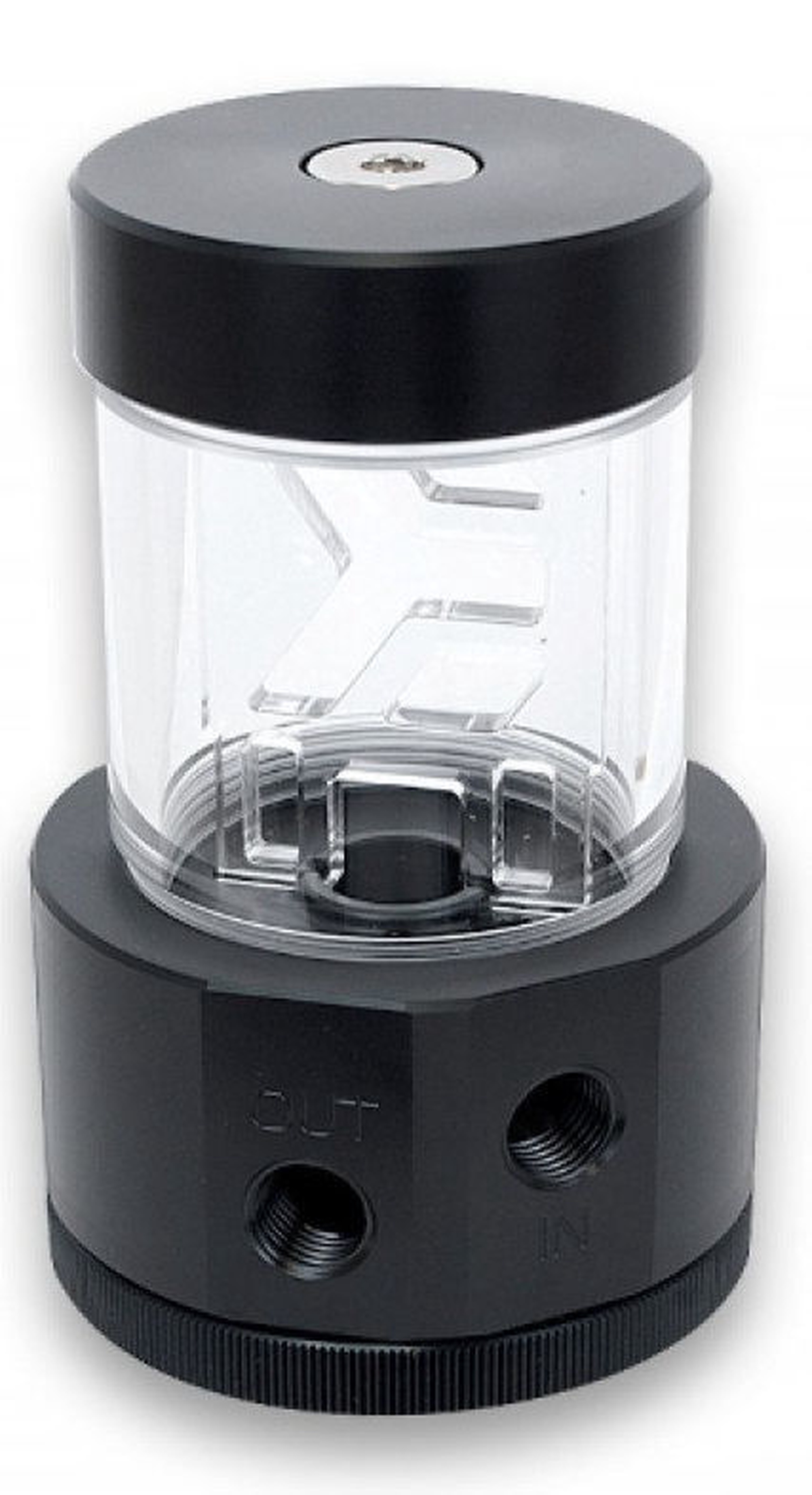

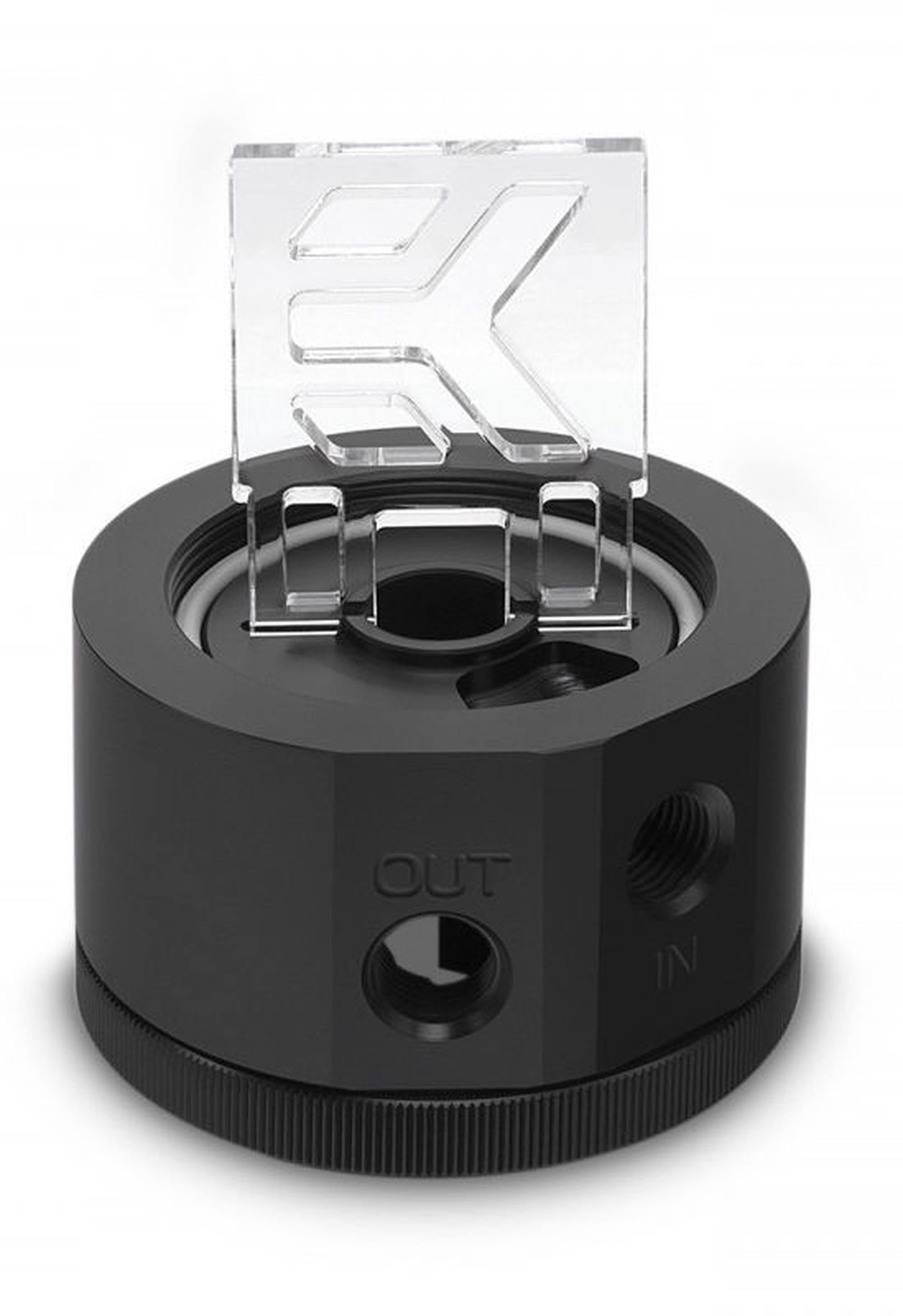

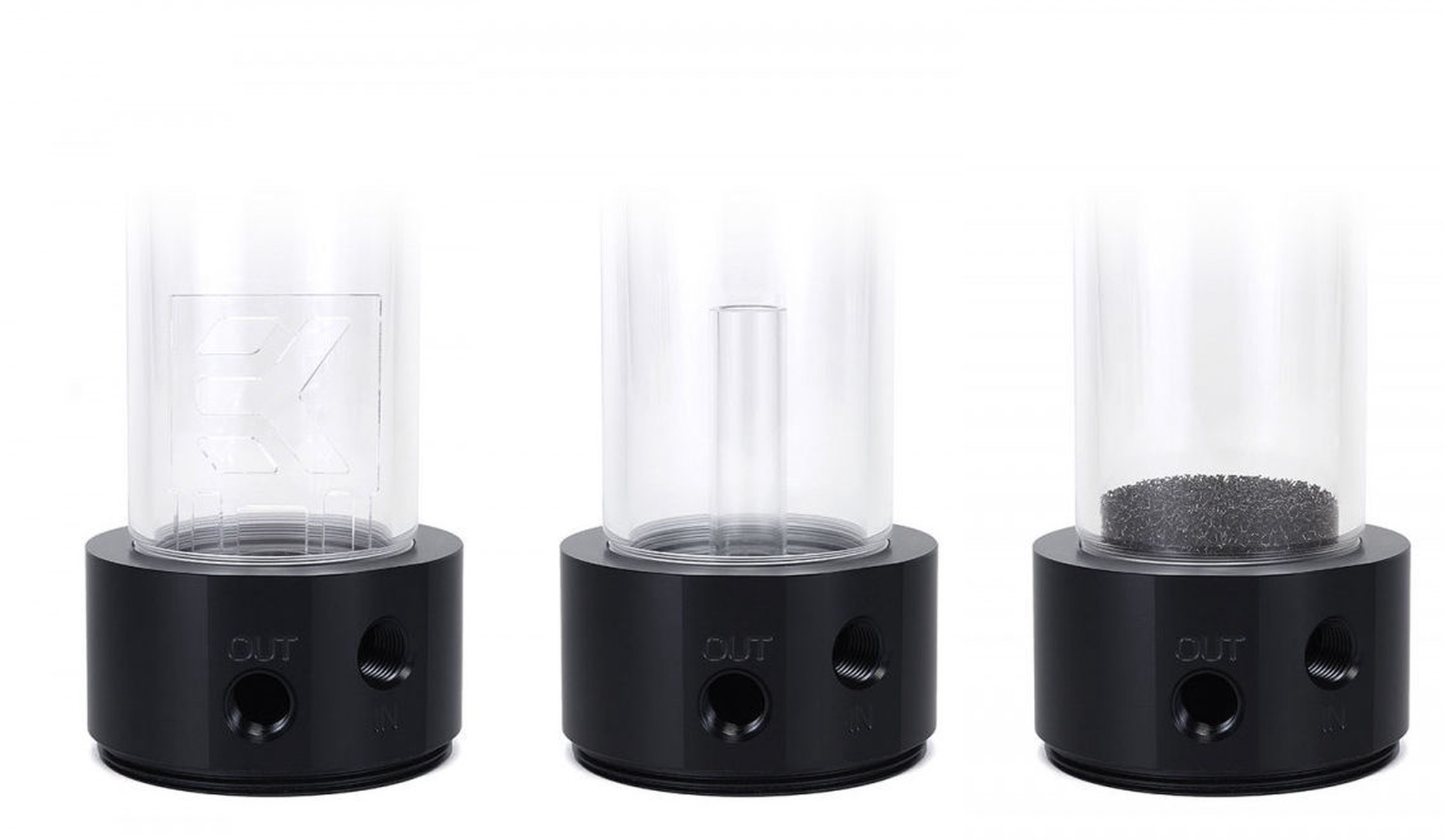

EK-XRES 100 Revo D5 series reservoirs come preinstalled with anti-cyclone insert. Additionally, a PU anti-vortex foam and EK-HD Tube are enclosed.

The tube is made of a quality acrylic material, while the volute/reservoir bottom is made of quality POM Acetal material.

EK-XRES 100 Revo D5 pump can also be upgraded with either:

• EK-UNI Pump Bracket (120mm fan) Vertical - For horizontal or vertical installation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) Vertical - For horizontal or vertical installation on any position with 140mm type fan hole pattern
• EK-UNI Pump Bracket (120mm fan) - For installation with only one orientation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) - For installation with only one orientation on any position with 140mm type fan hole pattern

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

The top of this combo unit can be used as an inlet by adding the EK-RES X3 - Multiport TOP and an EK-RES X3 - Internal Tube with the corresponding length to your reservoir size. The Internal Tube is important to prevent the splashing sound of the coolant inside the reservoir and to prevent coolant foaming. It is recommended that the end of the internal inlet tube is submerged in coolant.

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~ 125mL
- Overall unit height (with pump): 150mm
- Mounting hole pattern: 65x34mm

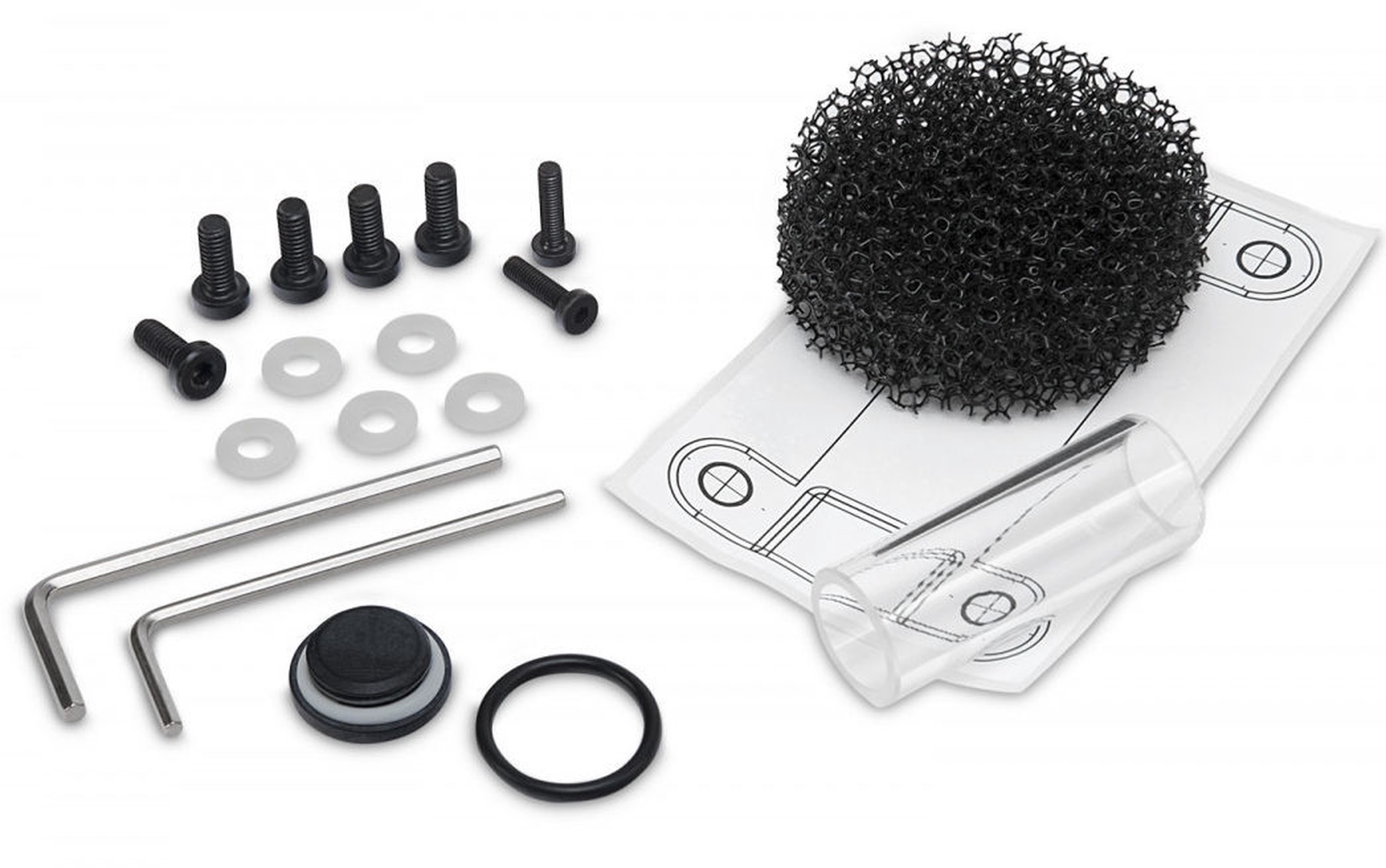

Enclosed:
- EK-XRES 100 Revo D5

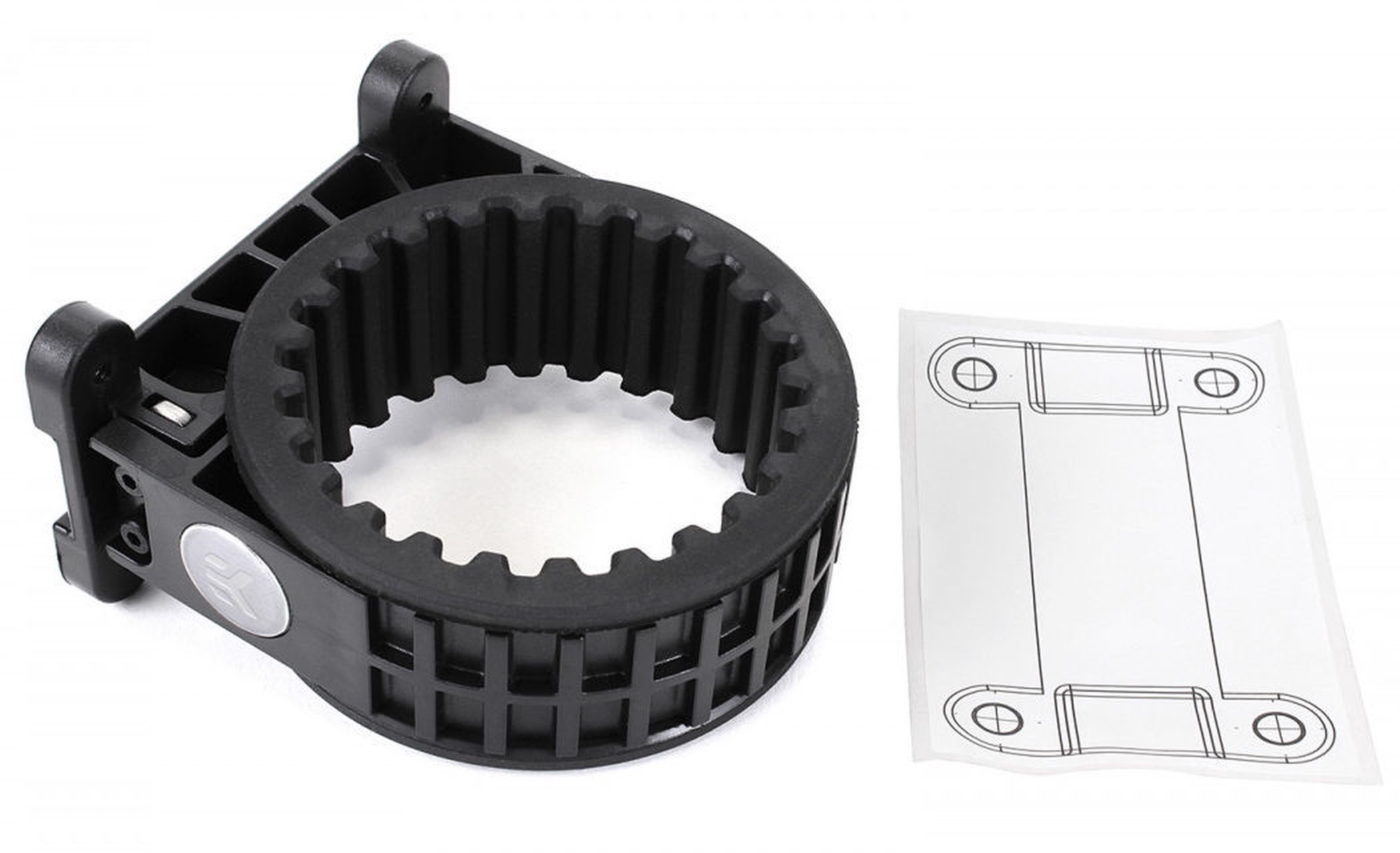

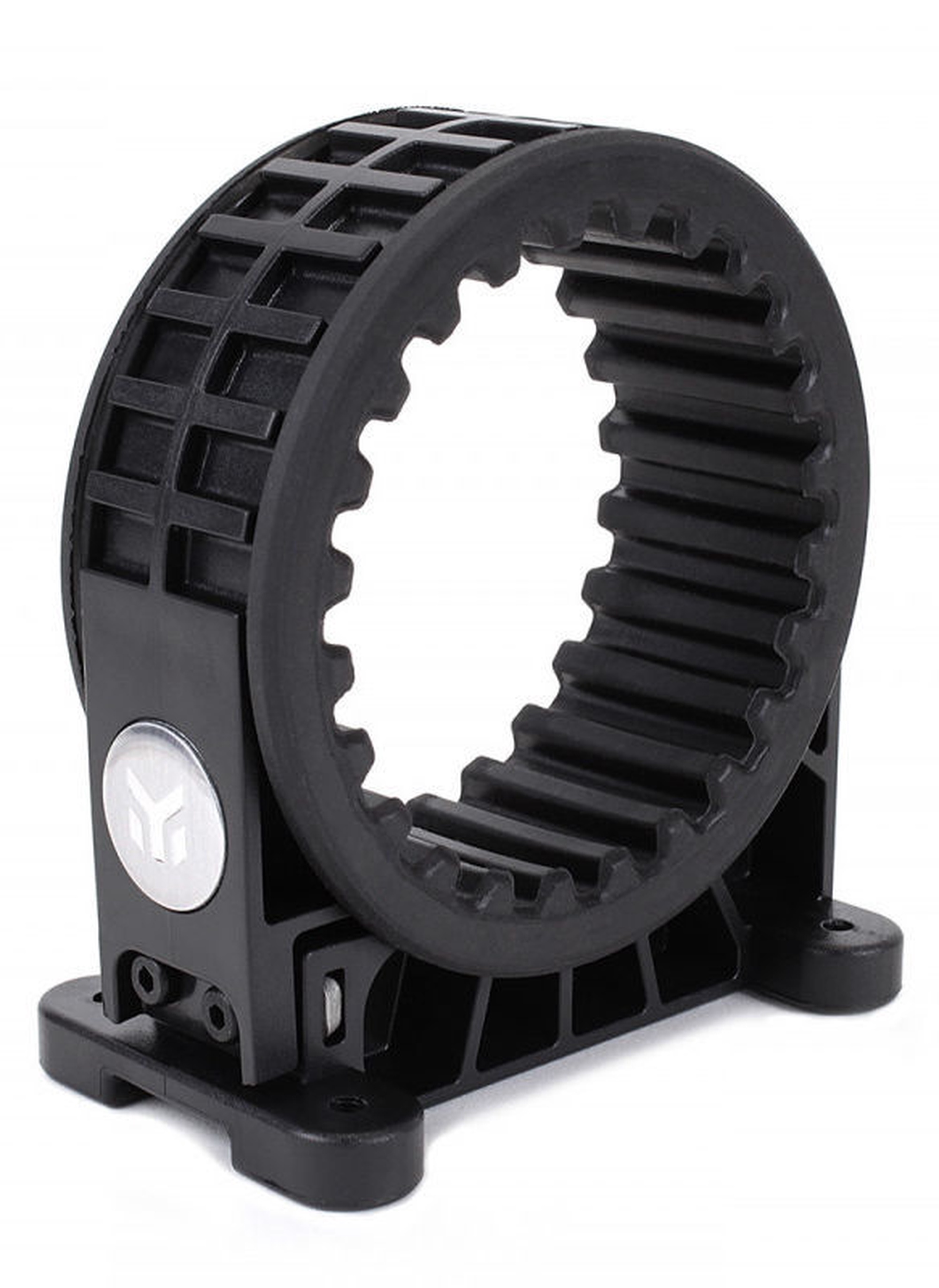

- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Anti-vortex PU foam and 12mm OD plexiglass tube
- Mounting mechanism (incl. required Allen keys)
- Installation manual
