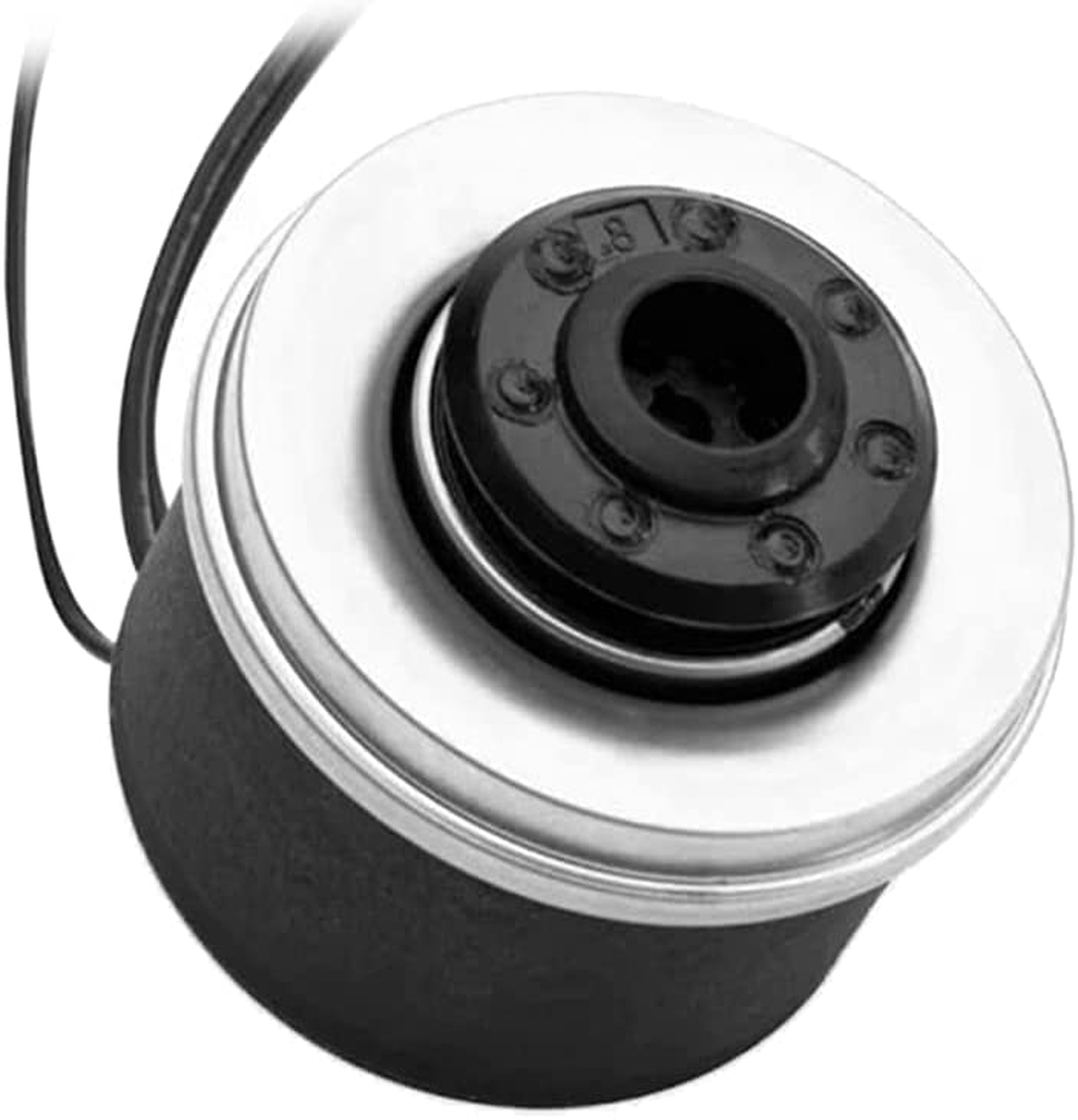

Pompa EKWB EK-Loop D5 G3 PWM Motor, juoda sp.

EK-Loop D5 G3 PWM Motor is a genuine high-performance D5 water pump with PWM speed control via the motherboard or a dedicated fan/pump controller. Compared to the previous generation G2, the G3 comes with elegant black cables and a SATA power connector.

EK-Loop D5 G3 PWM Motor is an enhanced variant of the world-renown, original Xylem D5 PWM pump which features an improved PWM control driver.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper-quiet operation in idle mode!

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic.

The magnetic rotor always balances itself ideally on the ceramic bearing. The pump is very robust and the parts exposed to the fluid are corrosion-resistant, which provides an exceptionally long service time.

Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum head pressure: 3.9m
- Maximum flow: 1500L/h
- Maximum liquid temperature: 60°C
- Cable color: Black
- Power connector: SATA power and 4-Pin PWM FAN connector

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
