Rezervuaras Aqua Computer

Prekės aprašymas anglų kalba:

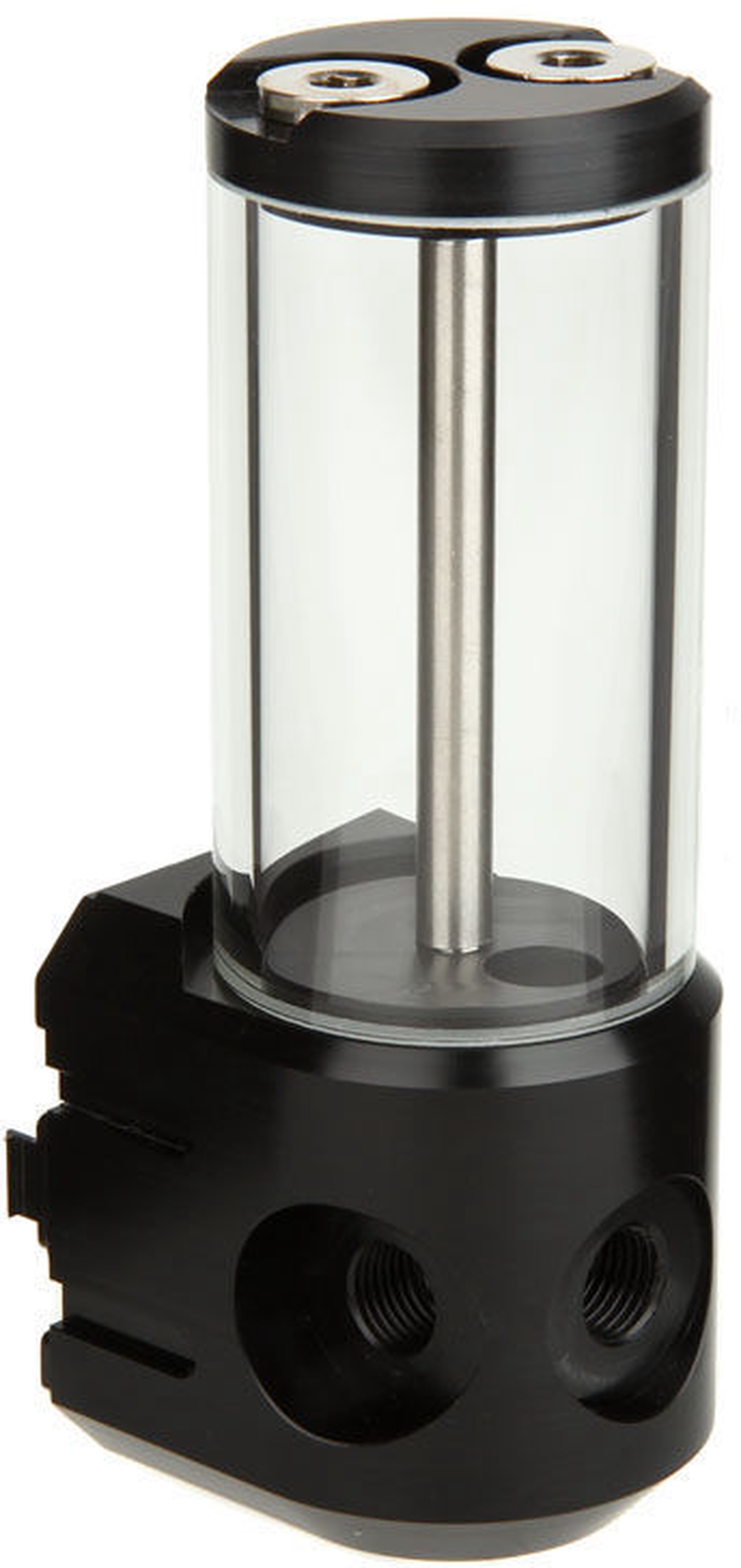

The aquainlet PRO 100 ml reservoir is mounted directly on an aquastream XT or Eheim 1046 pump. The design of the expansion tank is perfectly matched to the pump. Expansion tank and pump form a unit after assembly. In this case, the guideways for the mounting plate in the expansion tank are continued, so is the first time a stable mounting of the plate under the focus of the unit possible. This allows easy use of decoupling rubbers or a shoggy sandwich.

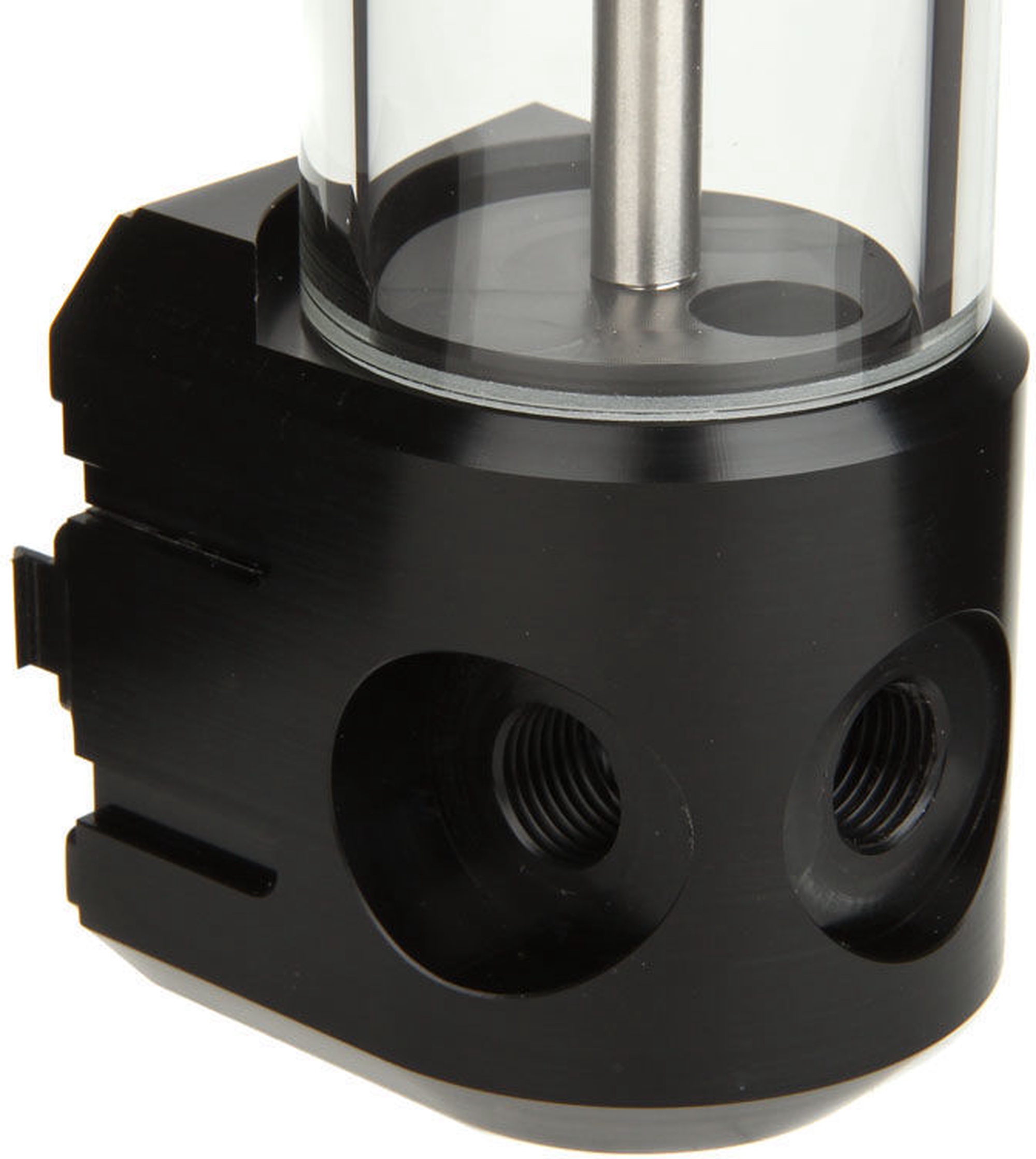

The expansion tank is sealed by an O-ring when plugged onto the suction nozzle of the pump, two latches lock into the pump housing and secure the expansion tank against removal and twisting, accidental loosening of the bayonet fitting of the pump is thus excluded. Two 90 ° offset connection threads (front and side) allow for flexible mounting of the return line, allowing the expansion tank to be used optimally even in confined spaces.

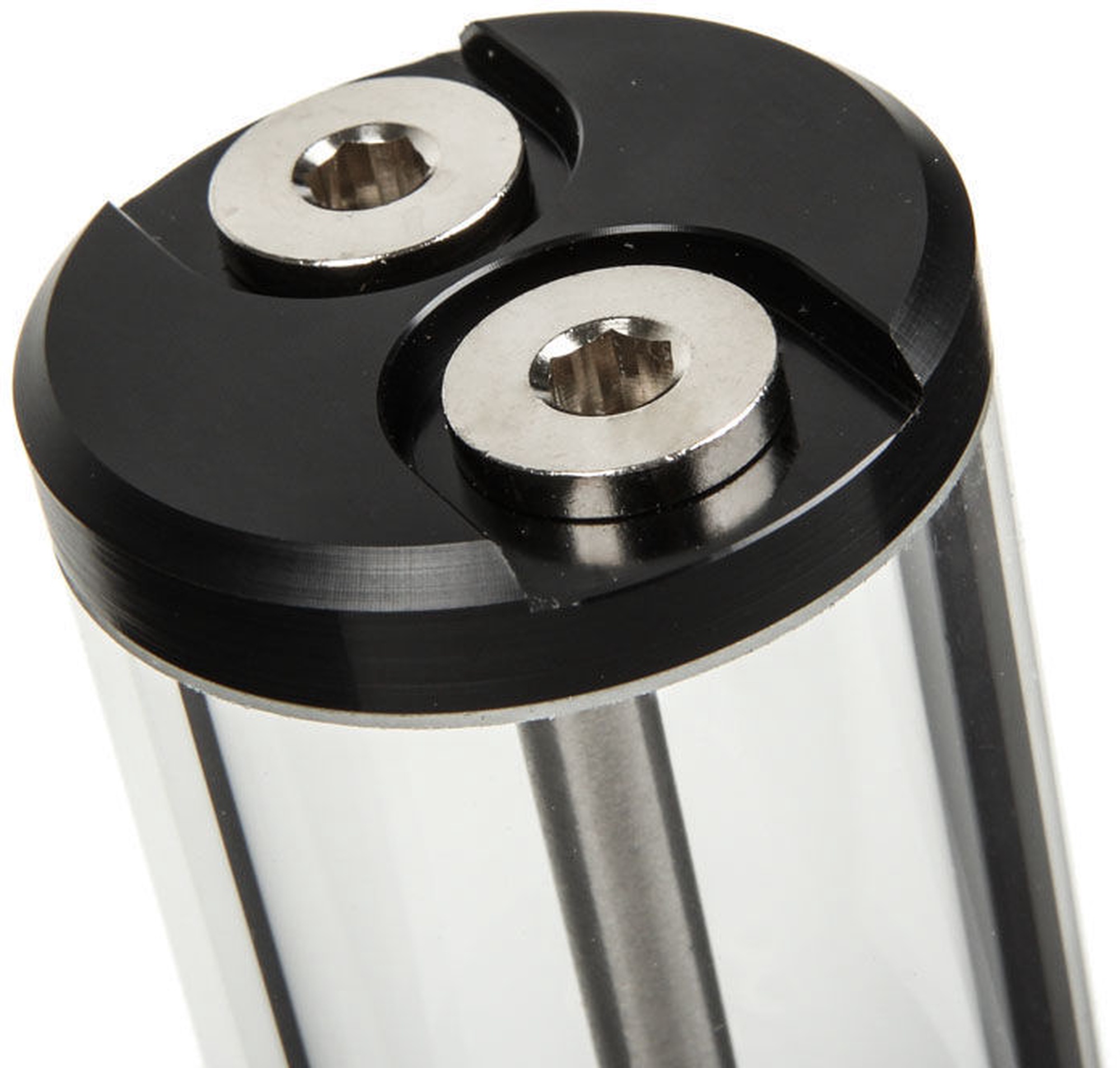

The equalizer aquainlet Pro 100ml is closely related to the aqualis series and also equipped with a tube made of borosilicate glass, which in contrast to the commonly used for tube expansion tank acrylic glass very high hardness and scratch resistance, a very low thermal expansion and excellent chemical and having thermal resistance. The glass tube has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and lid are made of Delrin, the lid and bottom are connected by a stainless steel rod.

Technical details:

• Material: Delrin, borosilicate glass
• Dimensions without pump: approx. 56 x 67 x 153 mm
• Thread: 4x 1/4 inch
• Filling volume: approx. 100 ml
• Compatibility:
  aquastream XT
  Eheim 1046 and identical pumps
• Scope of delivery:
  One expansion tank
  Three sealing screws G1 / 4 (pre-assembled)
