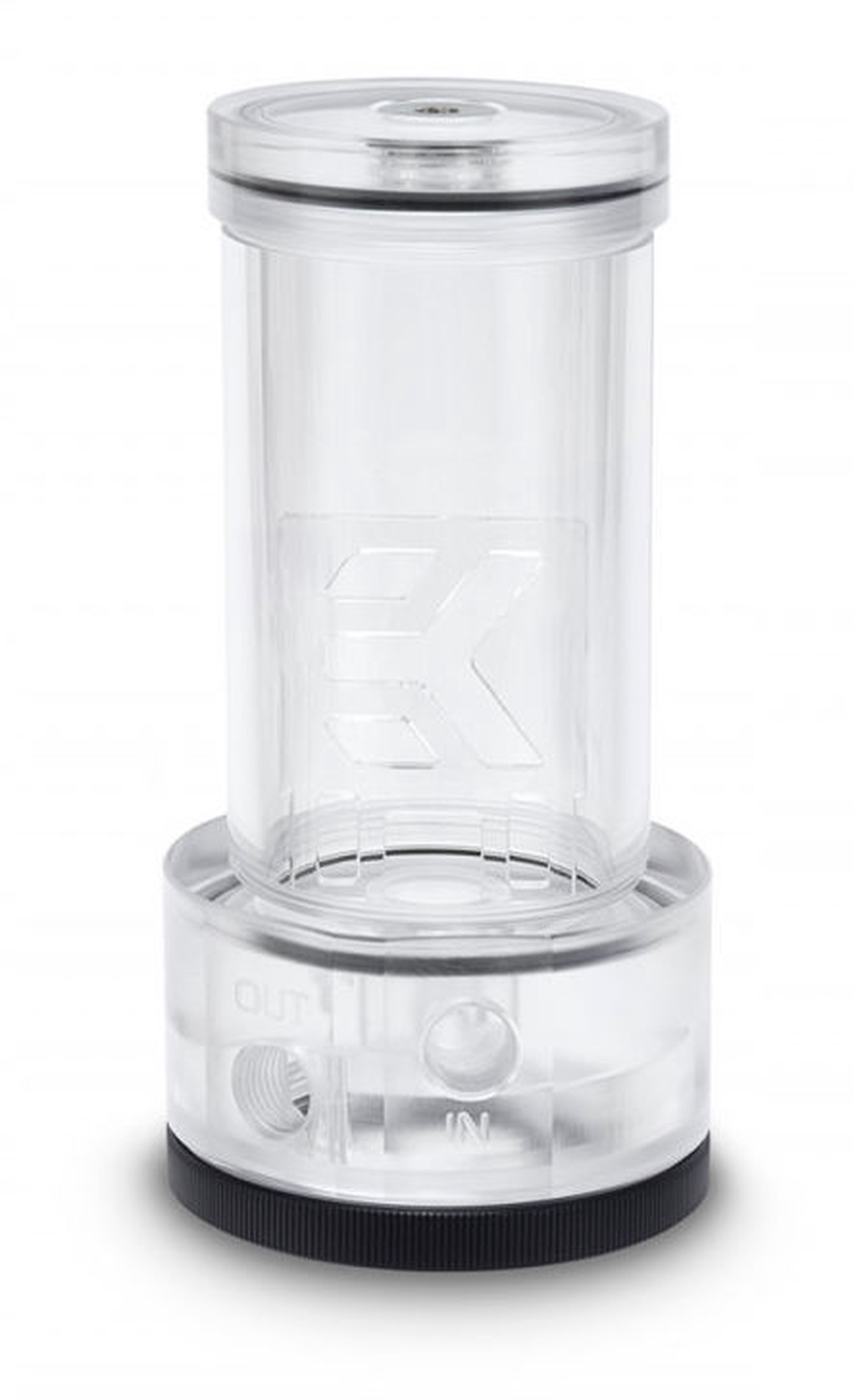

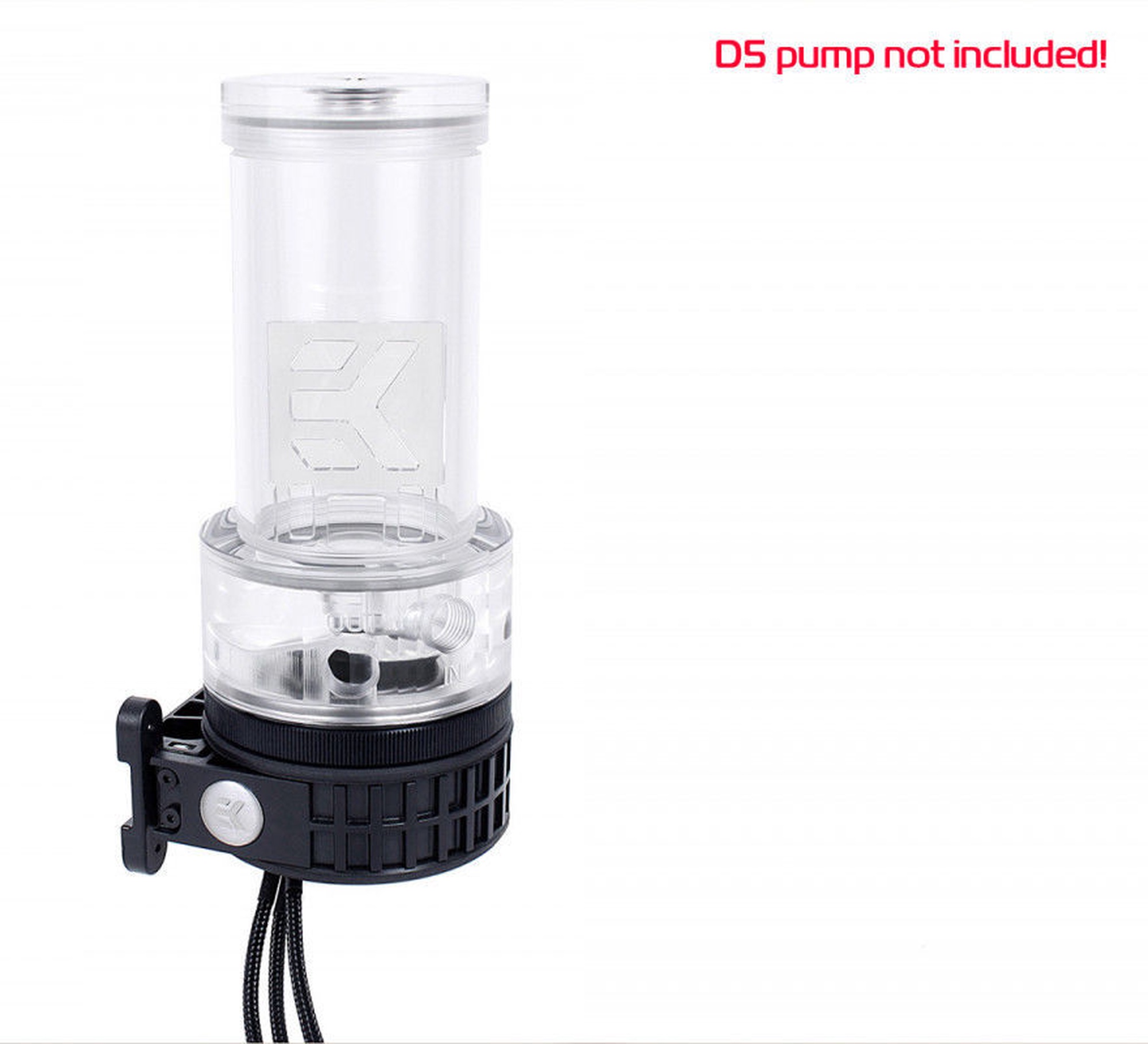

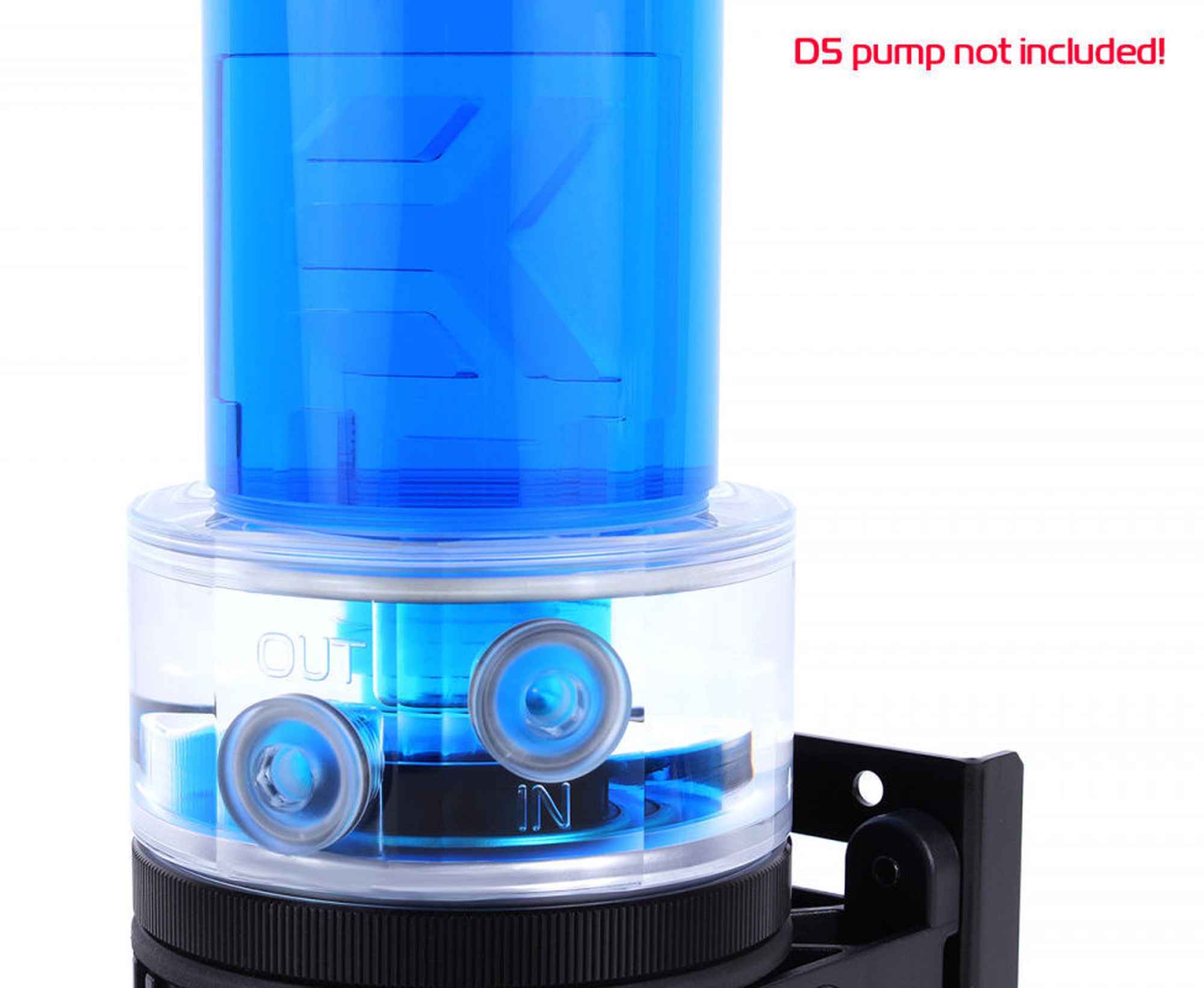

EK-XRES 140 Revo D5 - Plexi is a high-performance stand-alone pump top (volute) for Xylem D5 series water pumps with an integrated reservoir. This top offers increased hydraulic performance (up to 15%) compared to factory top. This stand-alone pump top kit does not include a pump!

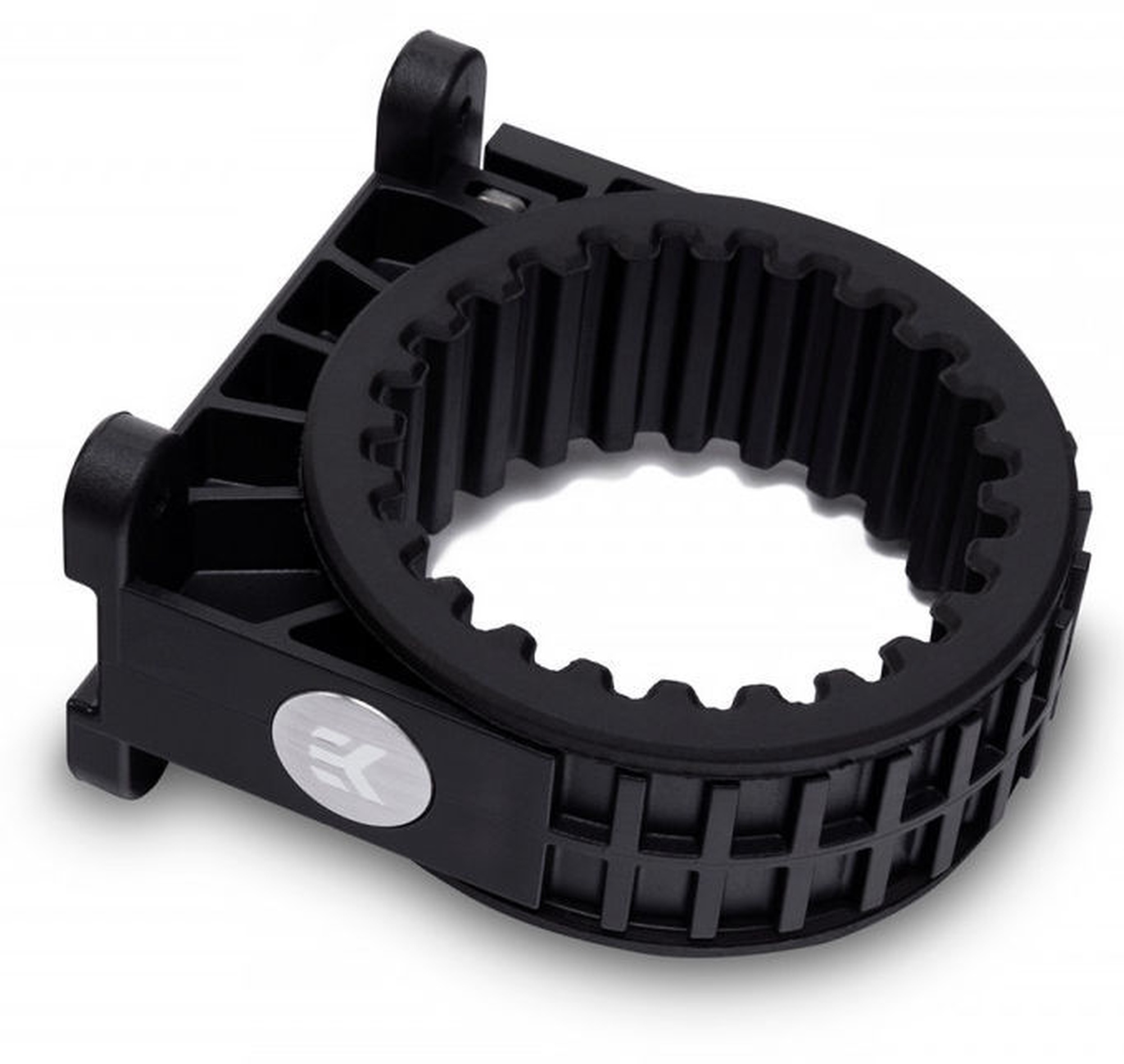

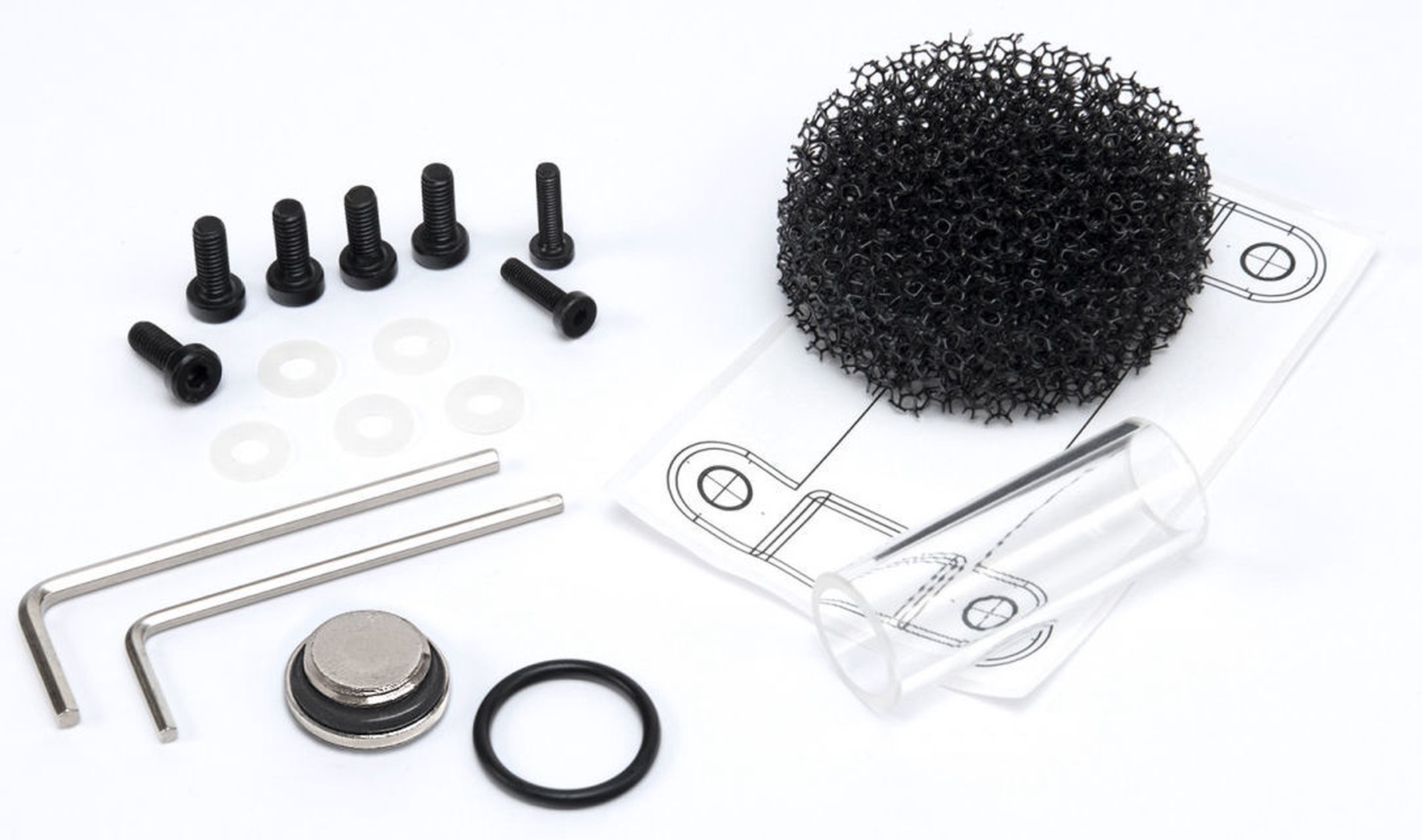

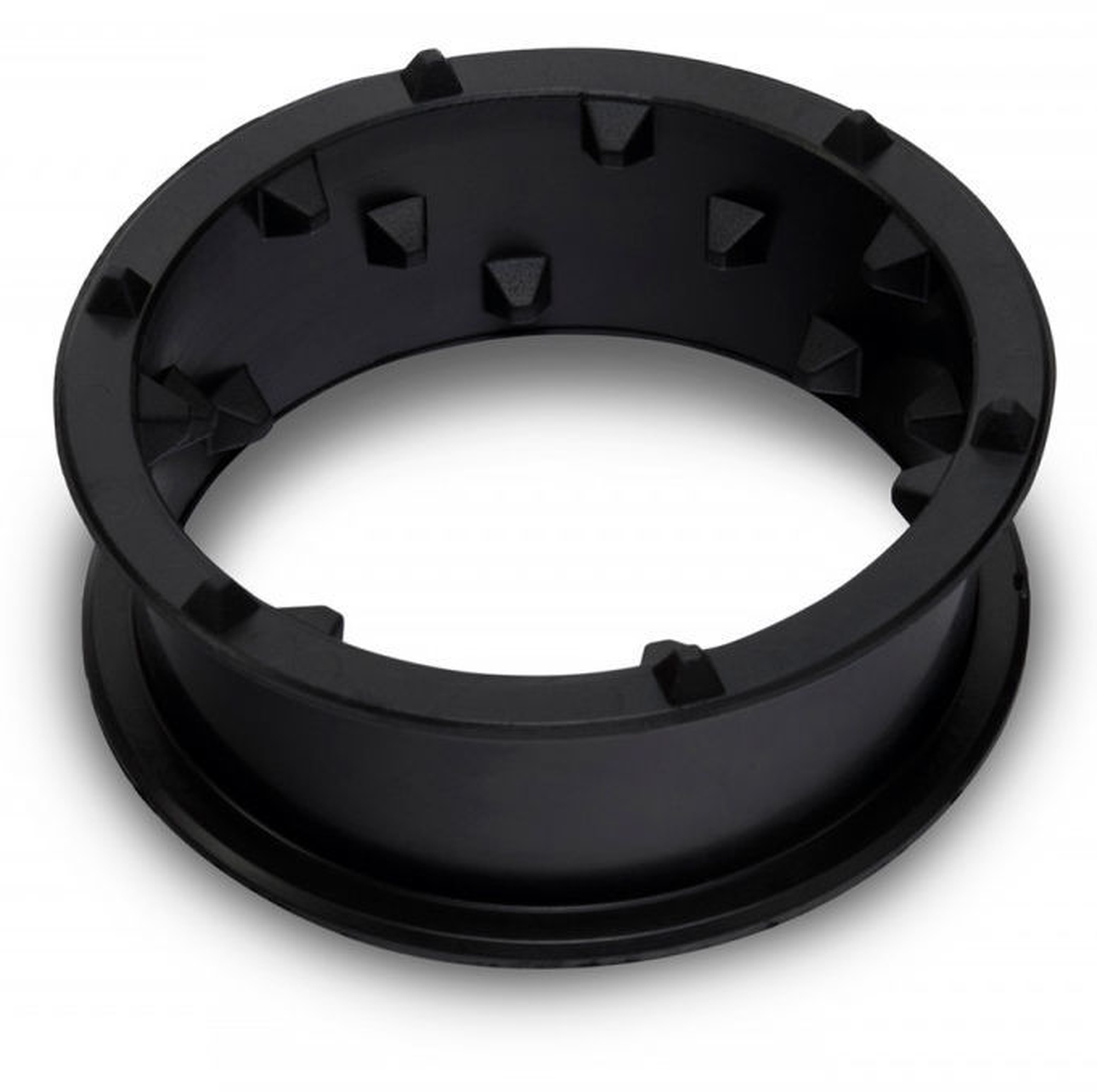

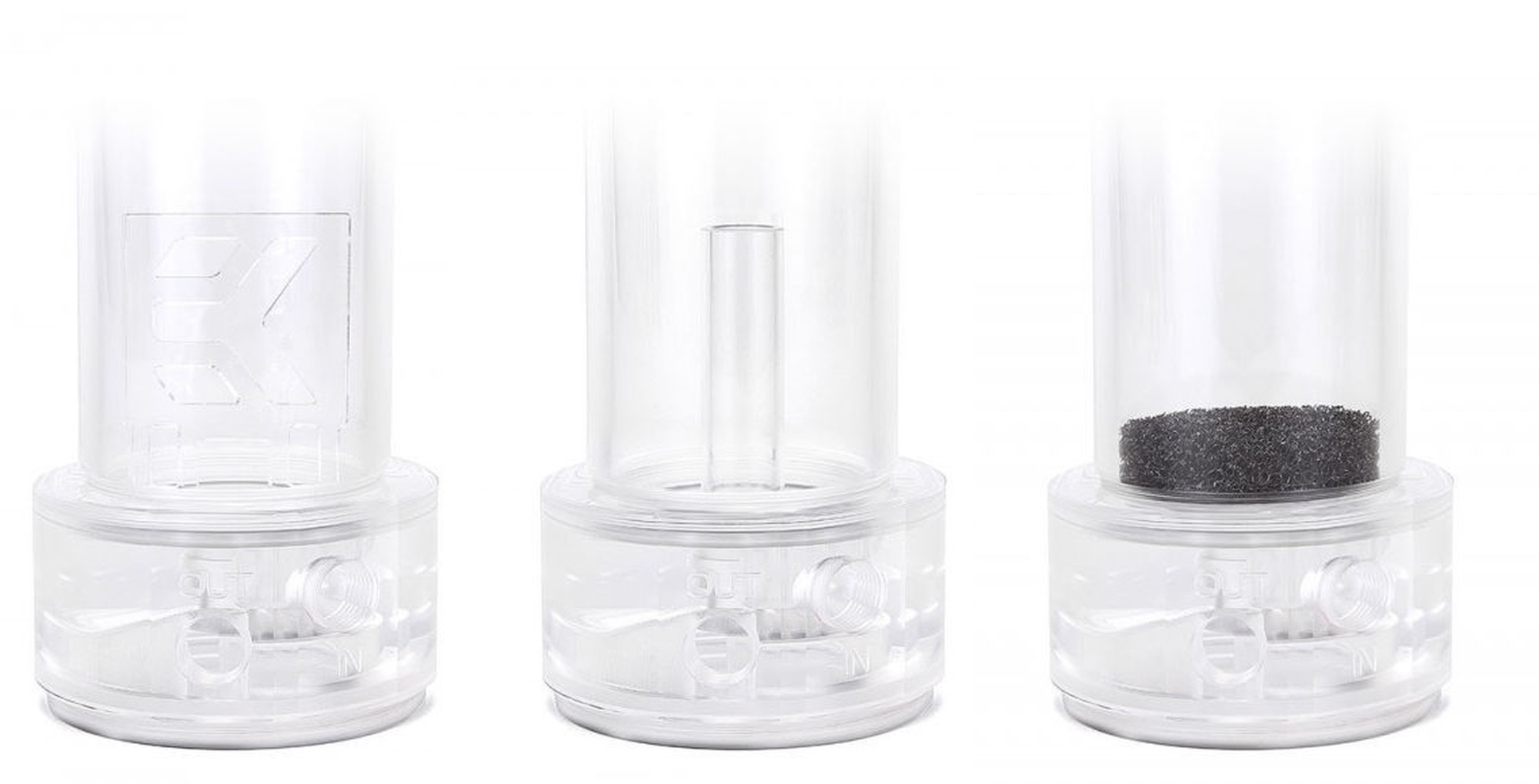

EK-XRES 140 Revo D5 - Plexi features a fully rounded see-through acrylic design thus offering stunning looks and greater usability. This allows installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning is supported for easier tube routing possibilities. EK-XRES 140 Revo D5 - Plexi series reservoirs come preinstalled with anti-cyclone insert. Optional PU anti-vortex foam and EK-HD Tube is enclosed for additional options.

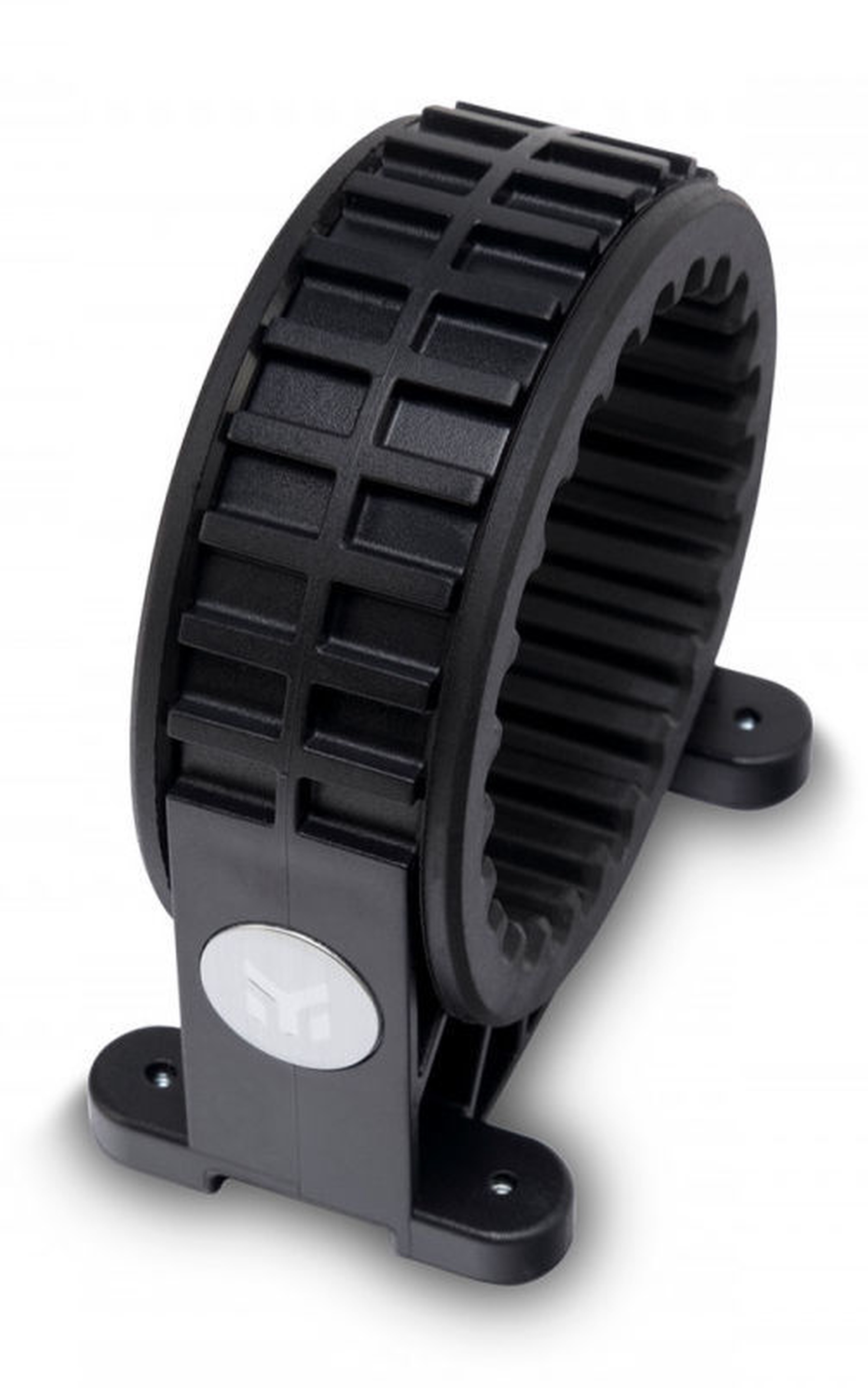

This water pump/reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.

The 60mm diameter tube is made of a high-quality acrylic material, while the reservoir bottom/pump top is CNC machined acrylic glass.

Once the D5 pump is installed, the EK-XRES 140 Revo D5 - Plexi (stand-alone) can also be upgraded with either:

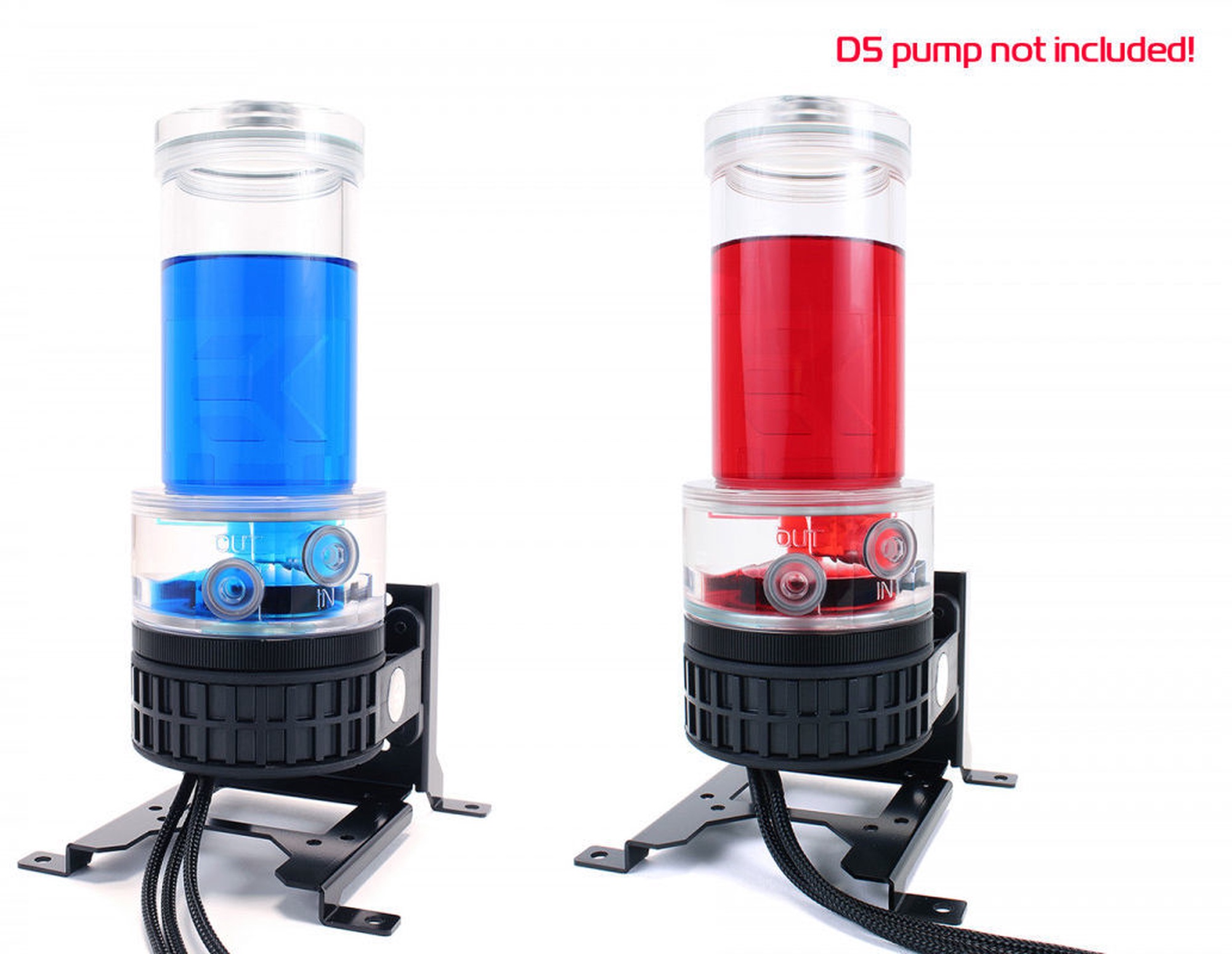

• EK-UNI Pump Bracket (120mm fan) Vertical - For horizontal or vertical installation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) Vertical - For horizontal or vertical installation on any position with 140mm type fan hole pattern
• EK-UNI Pump Bracket (120mm fan) - For installation with only one orientation on any position with 120mm type fan hole pattern
• EK-UNI Pump Bracket (140mm fan) - For installation with only one orientation on any position with 140mm type fan hole pattern

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.
