Prekės informacija
Gaminio savybės
Bendrosios charakteristikos
|
|
Prekės tipas
|
Serverių pagrindinės plokštės
|
|
Prekės ženklas
|
Asus
|
|
Modelis
|
Pro WS C621-64L
|
|
Lustas (chipset)
|
Intel® C621
|
Pagrindinės plokštės matmenys
|
|
Ilgis
|
277 mm
|
|
Plotis
|
305 mm
|
|
Plokštės dydis
|
CEB
|
Procesorius
|
|
Procesoriaus tipas
|
Intel
|
|
Procesoriaus lizdo tipas
|
LGA 3647
|
Operatyvioji atmintis
|
|
Operatyviosios atminties lizdų kiekis
|
12
|
|
Operatyviosios atminties tipas
|
DDR4
|
|
Maksimalus operatyviosios atminties kiekis (RAM)
|
1536 GB
|
|
Operatyviosios atminties taktinis dažnis
|
2666 MHz
|
Garsas, vaizdas ir tinklo plokštė
|
|
Tinklo plokštė
|
2 1GbE LAN
|
Kietojo disko ir optinių įrenginių pajungimas
|
|
SATA 3 jungtys
|
8
|
Išplėtimo lizdai
|
|
PCI Express 4X jungtys
|
1
|
|
PCI Express 16X jungtys
|
4
|
|
PCI jungtys
|
0
|

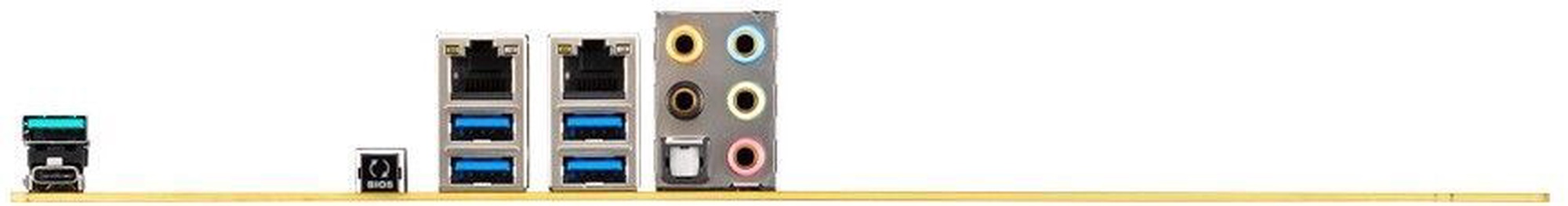

Galimos galinės dalies jungtys
|
|
USB 2.0 jungčių skaičius
|
0
|
|
USB 3.x jungčių skaičius
|
6
|
|
Ethernet LAN (RJ-45) lizdas
|
Ne
|
|
D-Sub jungtys
|
0
|
|
DVI jungtys
|
0
|
|
HDMI lizdų skaičius
|
0
|
Papildomai
|
|
Privaloma garantija
|
24 mėn
|
|
Papildoma informacija
|
ASUS Control Center. SafeSlot
|
Prekės aprašymas anglų kalba:

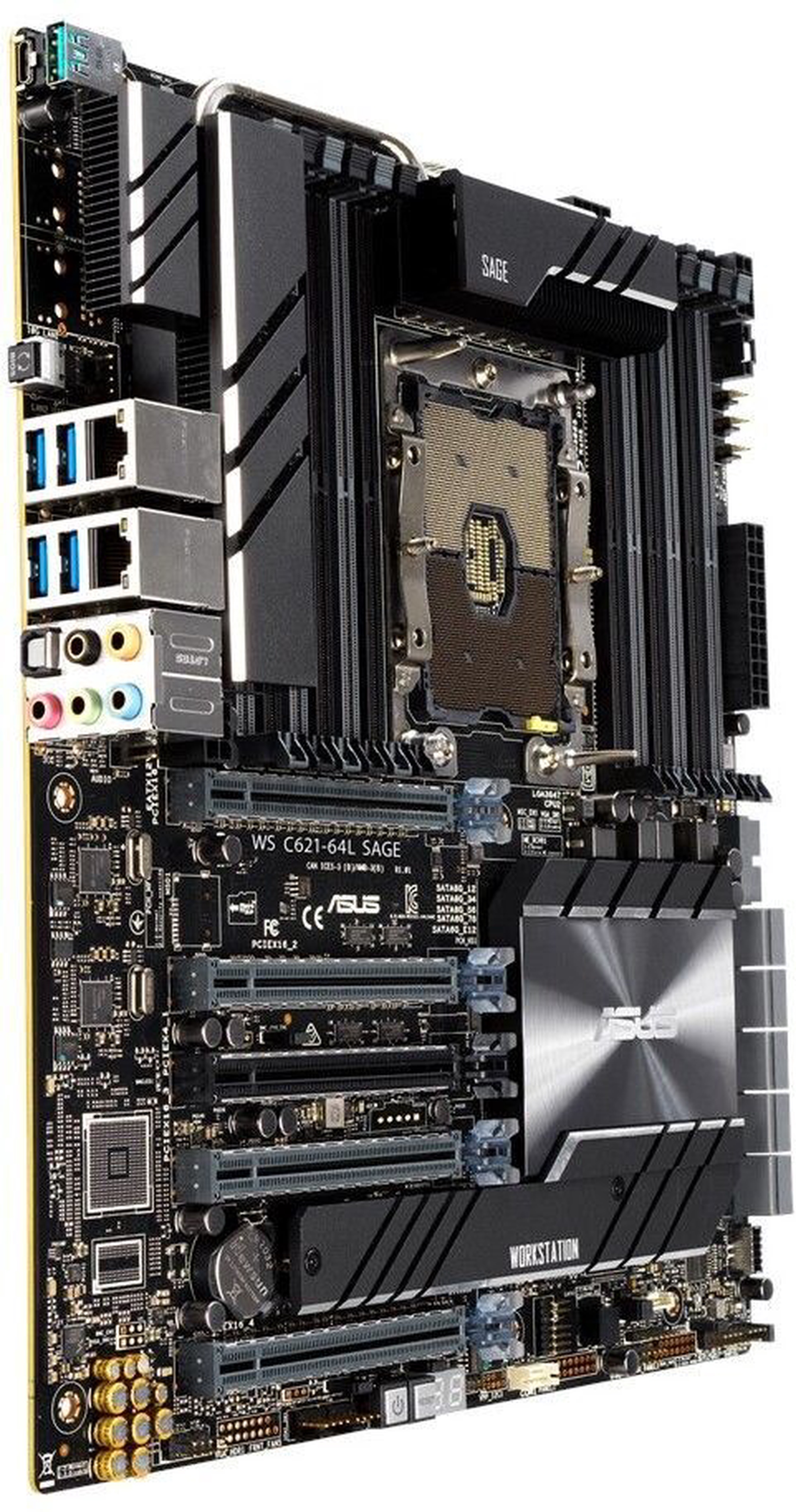

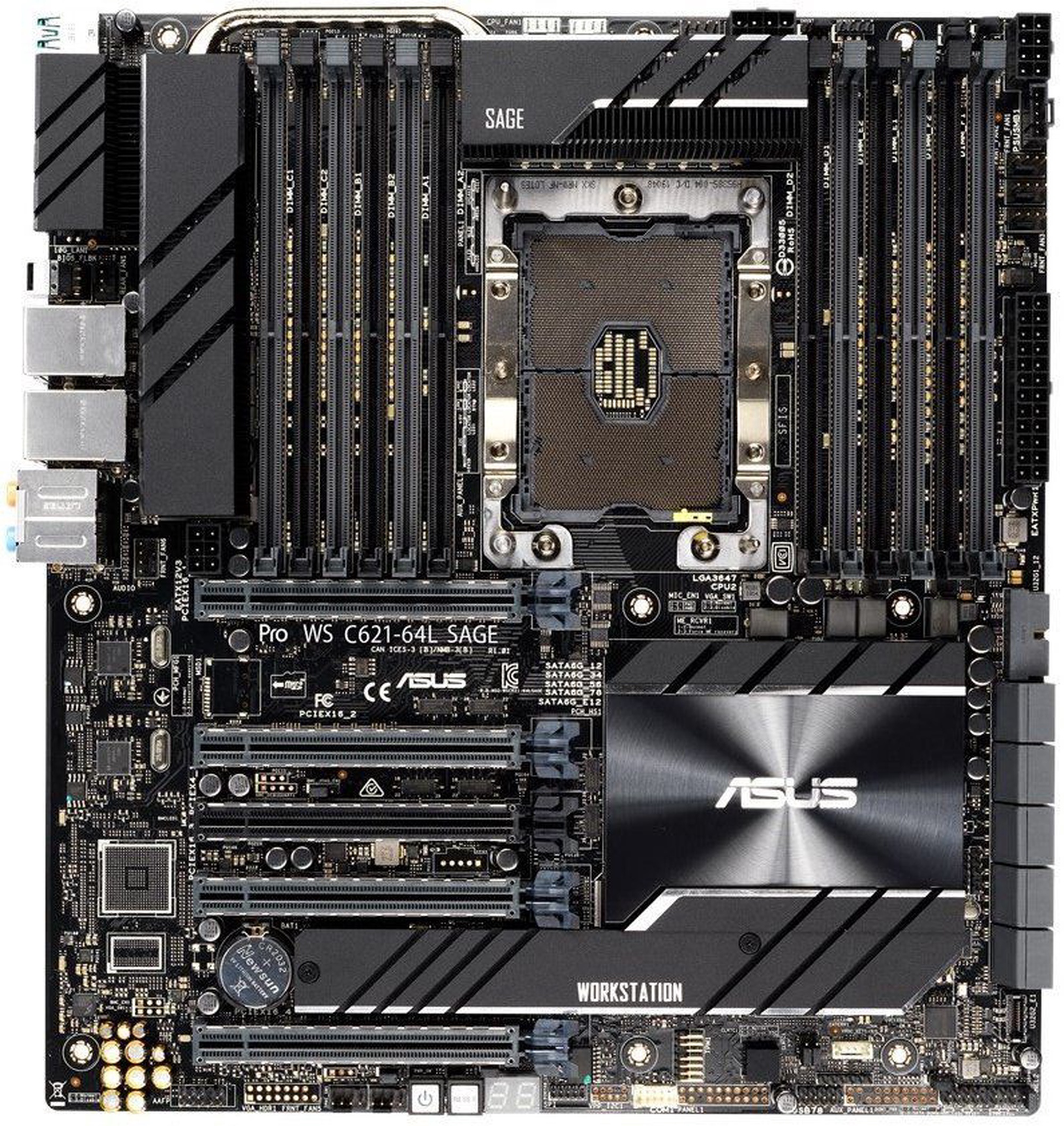

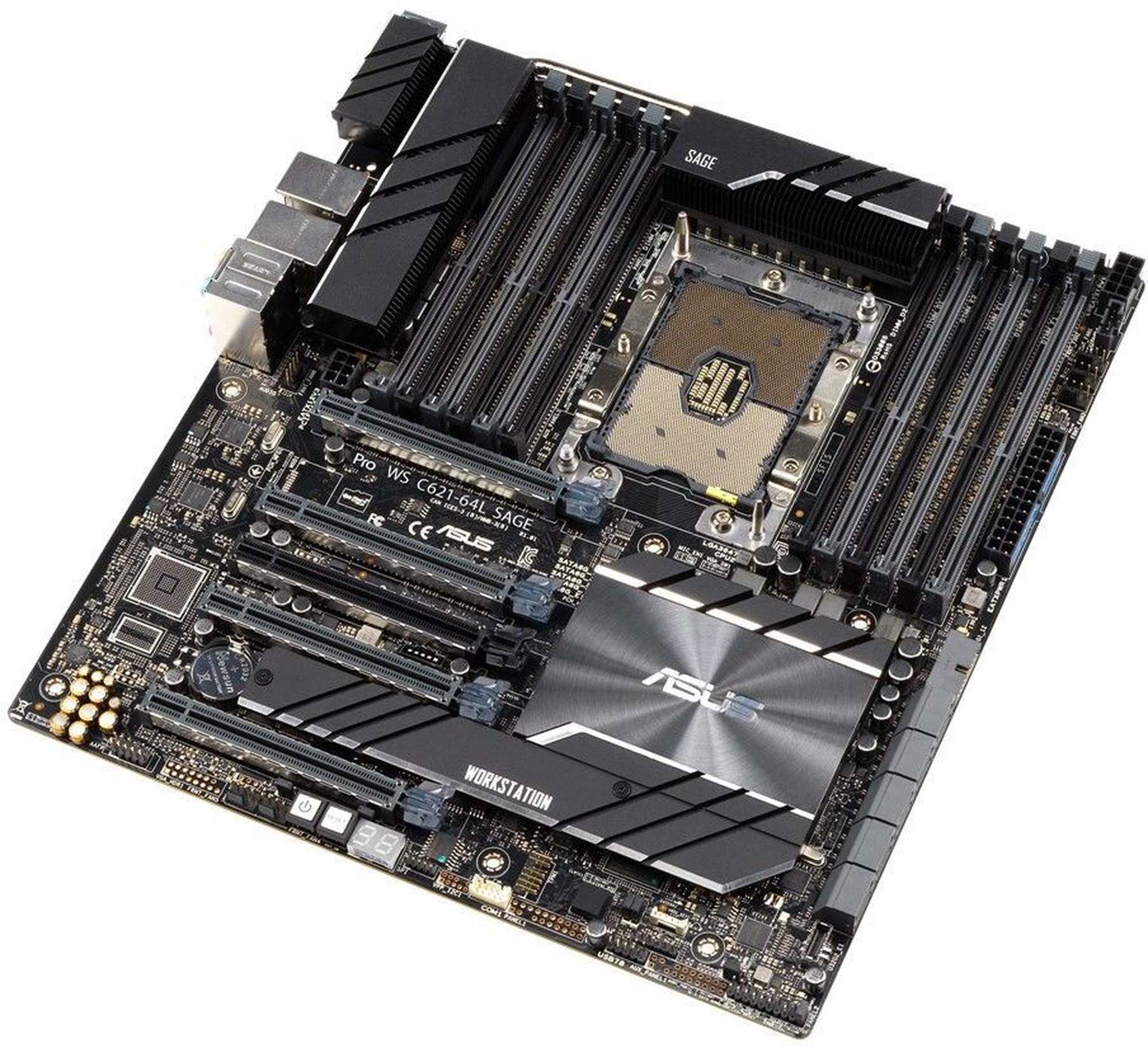

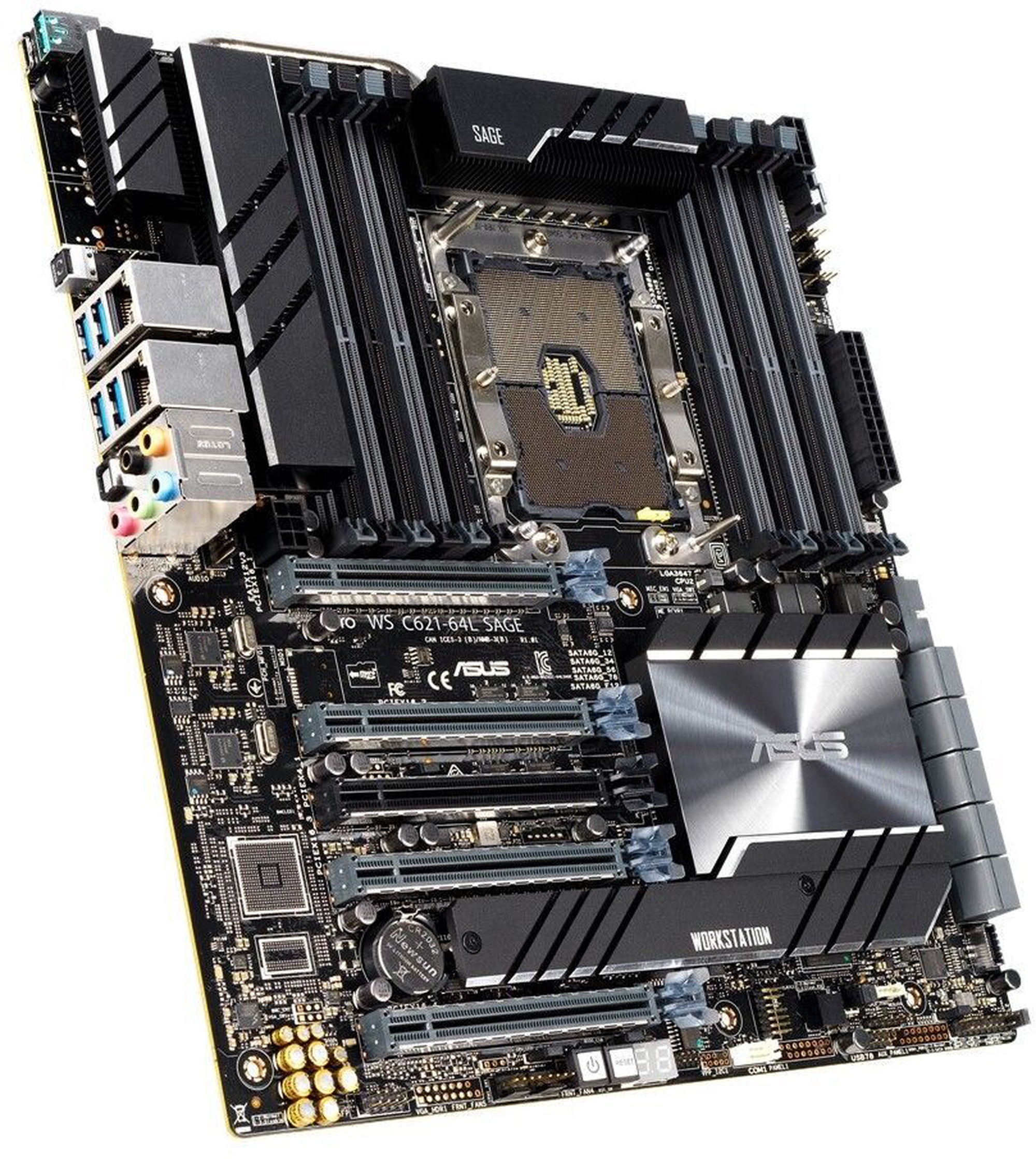

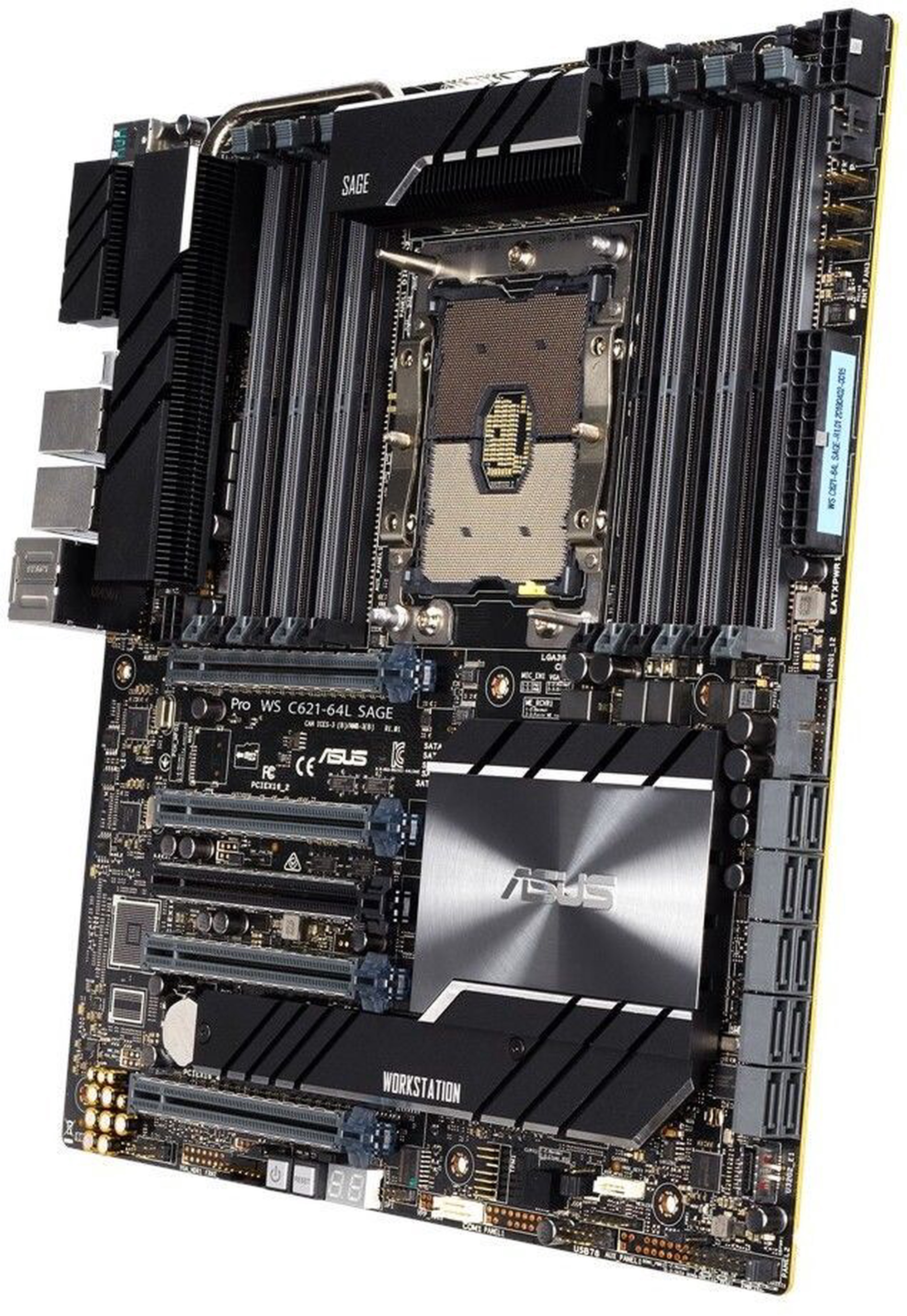

Breakthrough performance in a single-socket solution
Built for advanced workstation professionals, Pro WS C621-64L SAGE is powered by the latest Intel® Xeon® W-3200 processors that support up to 28 cores, 56 threads and 64 PCIe 3.0 in a single socket. Designed for faster visualizations, simulations and rendering capabilities across demanding applications of all types, Pro WS C621-64L SAGE also supports Intel® Xeon® Scalable processors, which utilize the same six-channel LGA3647 socket as the Intel Xeon® W-3200 processors.
Four GPUs support, faster bandwidth
Pro WS C621-64L SAGE fits up to four double-decked actively or passively cooled graphics cards, which each support PCIe Gen 3 x16 link bandwidth to ensure fast and fluid animations and model rendering. It also supports the latest NVIDIA® Tesla® and Quadro® graphics cards to deliver the horsepower needed to run design, modeling, medical research, and processing-intensive simulations and rendering applications.
Make your memory faster and reliable
Along with 12 DIMM for up to 1.5 TB of memory, Pro WS C621-64L SAGE supports Error-correcting code (ECC) to eliminate application or system crashes by automatically detecting and repairing single-bit memory errors.
Multiple ultra-efficient heatsinks
A header to keep ahead
Pro WS C621-64L SAGE features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximizes surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that's situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads.
M.2 heatsink
Keep your SSD cooler
Pro WS C621-64L SAGE features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.
Intel VROC
Combining the performance and flexibility that designers want and need, Pro WS C621-64L SAGE supports an ASUS NVMe® riser card to expand to up to four NVMe SSDs, and it utilizes Intel® Virtual RAID on CPU (VROC) to directly attach NVMe SSDs to the CPU PCIe lanes to unleash NVMe RAID performance.
* Intel® VROC is supported via RSTe, VROC_HW_Key are to be purchased separately. NVMe RAID type and function will depend on Intel® VROC_HW_ key installed.
ASUS Control Center
The ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
SafeSlot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using an insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Ready for Intel® Xeon® W-3200 ProcessorsThe Intel® Xeon® W-3200 processors are purpose built and optimized for advanced workstation professionals in a single-socket solution. These processors are designed for heavily and lightly threaded, I/O-intensive workloads across architecture, engineering, and construction (AEC), media and entertainment (M&E), artificial intelligence (AI), oil & gas, and data sciences.
Ready for Intel® Xeon® Scalable ProcessorsDrive actionable insight, count on hardware-based security, and deploy dynamic service delivery with Intel® Xeon® Scalable processors. Support your hybrid cloud infrastructure and most demanding applications – including in-memory analytics, artificial intelligence, autonomous driving, high performance computing (HPC), and network transformation
