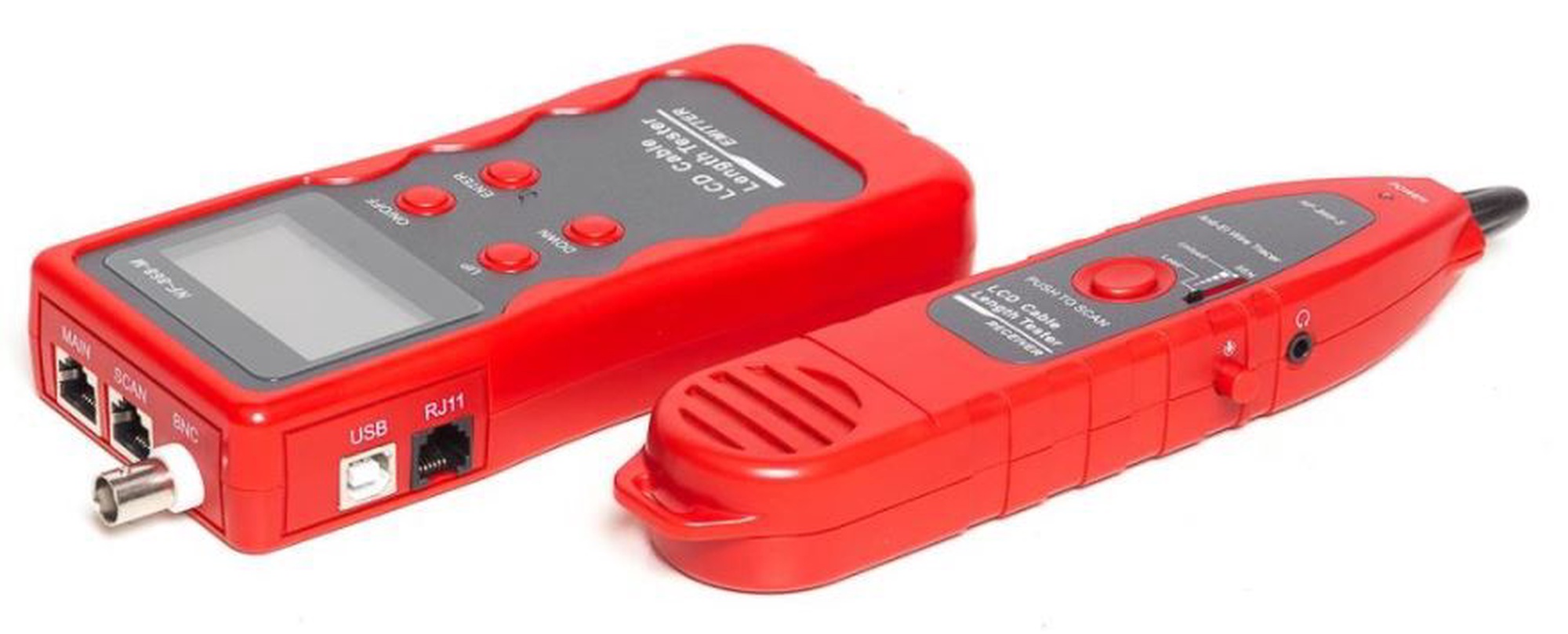

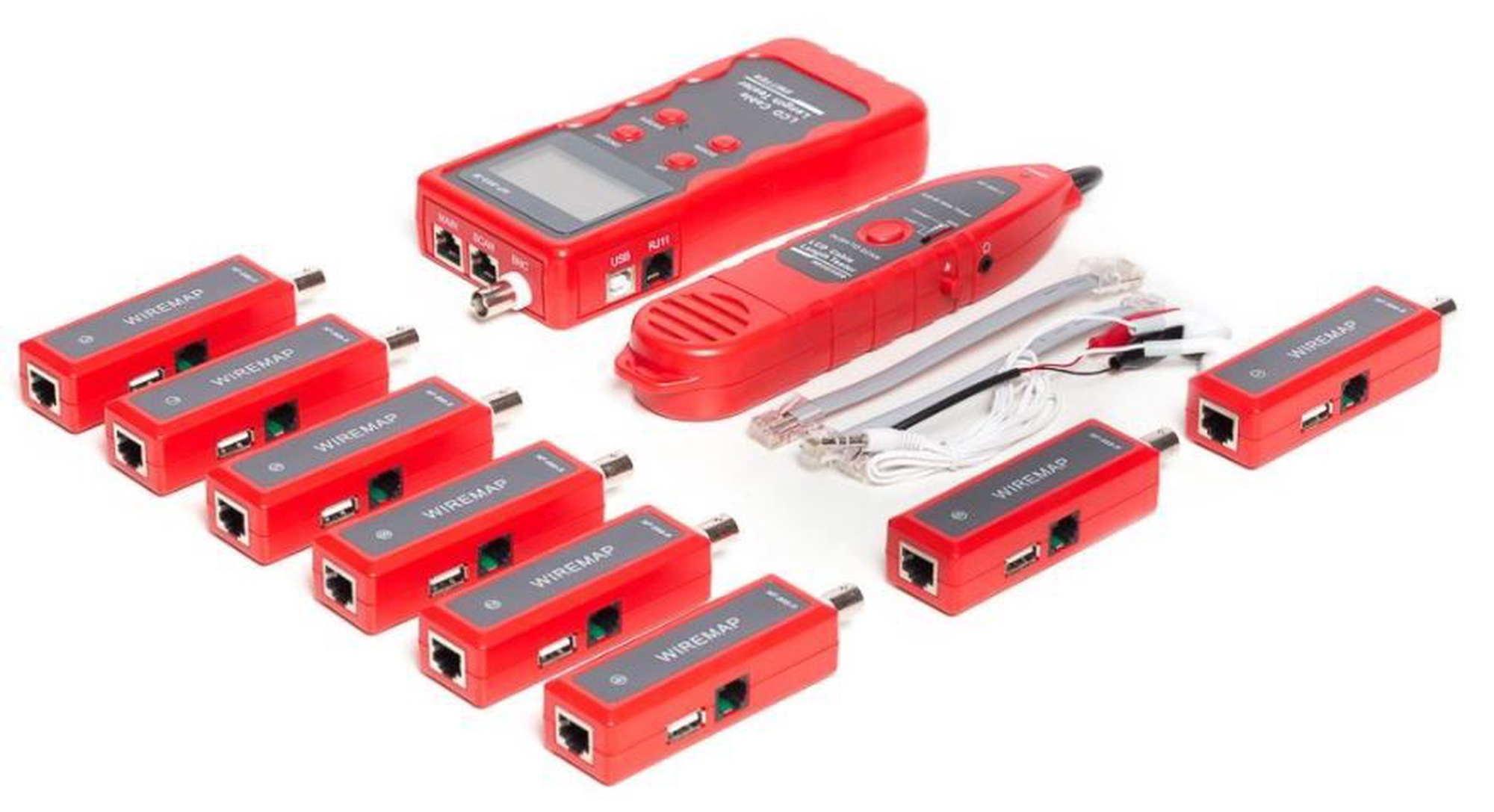

Testeris Netrack RJ45/RJ11/BNC + 8

for verifying communication cable

for verifying the continuity of the connection

end of RJ45 UTP cable

end of RJ45 FTP cable

end of BNC coax cable

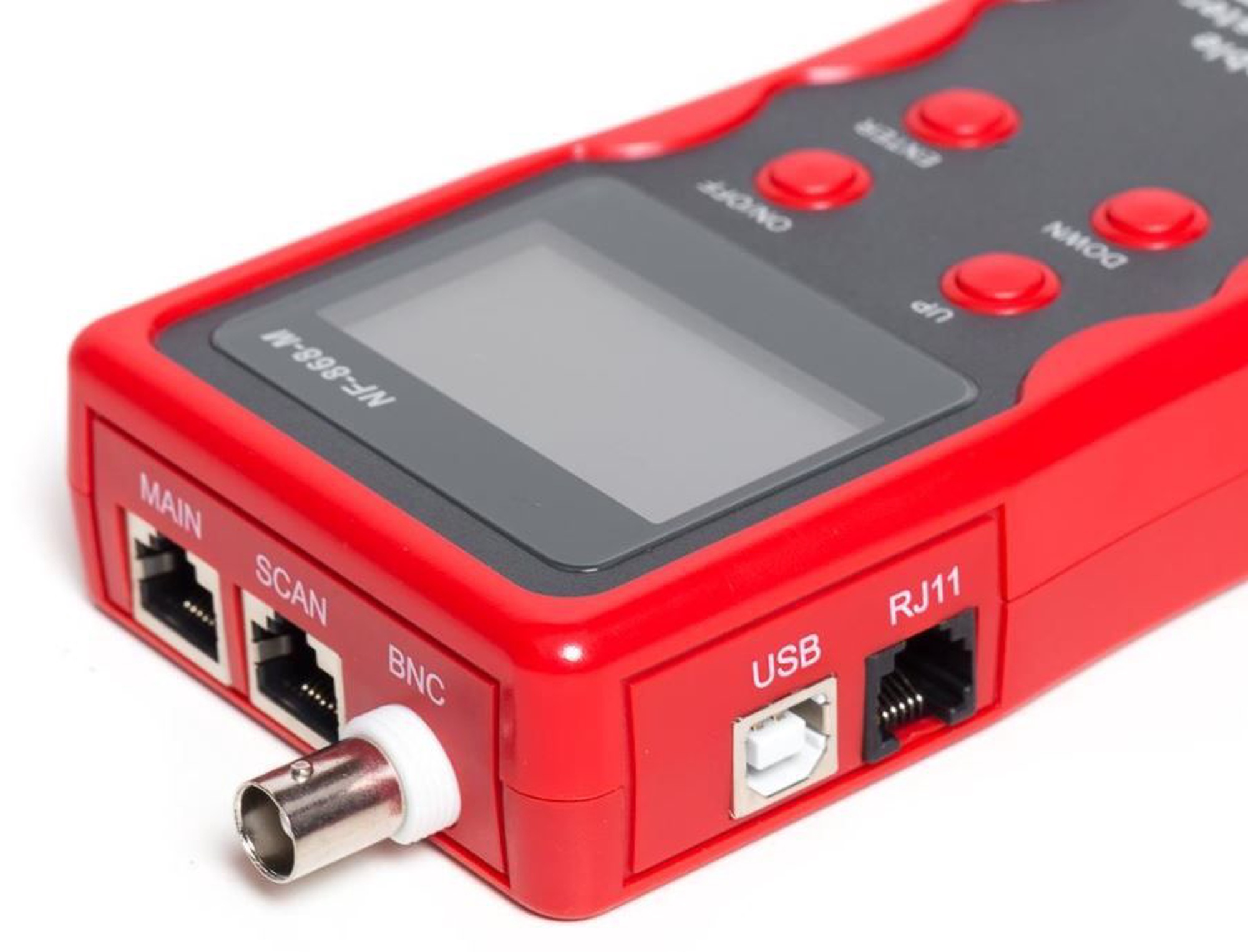

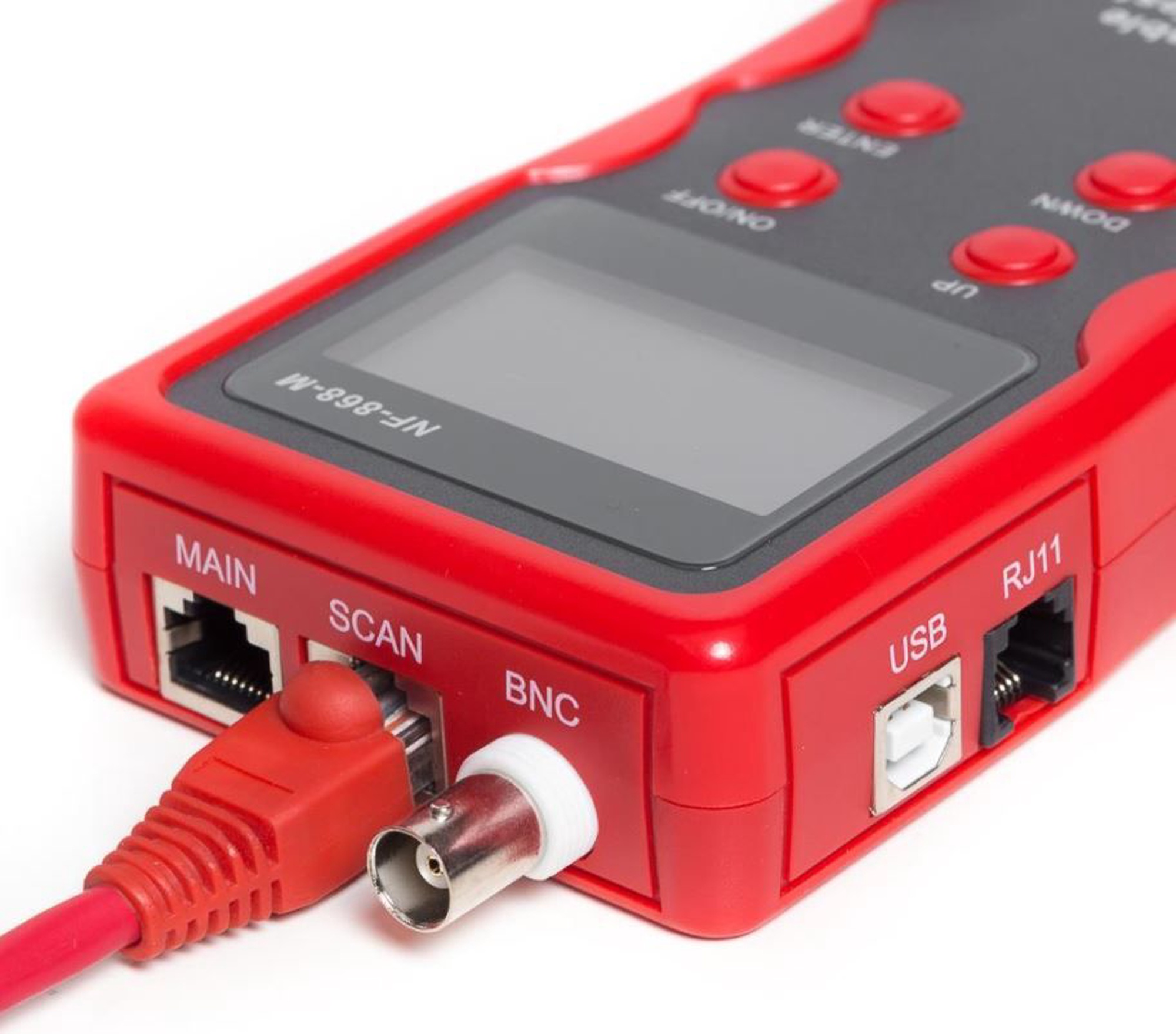

equipped with RJ11, RJ45, BNC, USB socket

for testing STP/UTP cat. 5E/6 cable

on the test procedure all the connections are checked

test result are presented on the LCD screen

test result are presented by ,toot, sound

transmitter and receiver requires a one pcs battery 9V DC 6F22

Batteries included

maximum testing length is from 1 up to 2000m

measure cable length

wire map test

cross-talk test

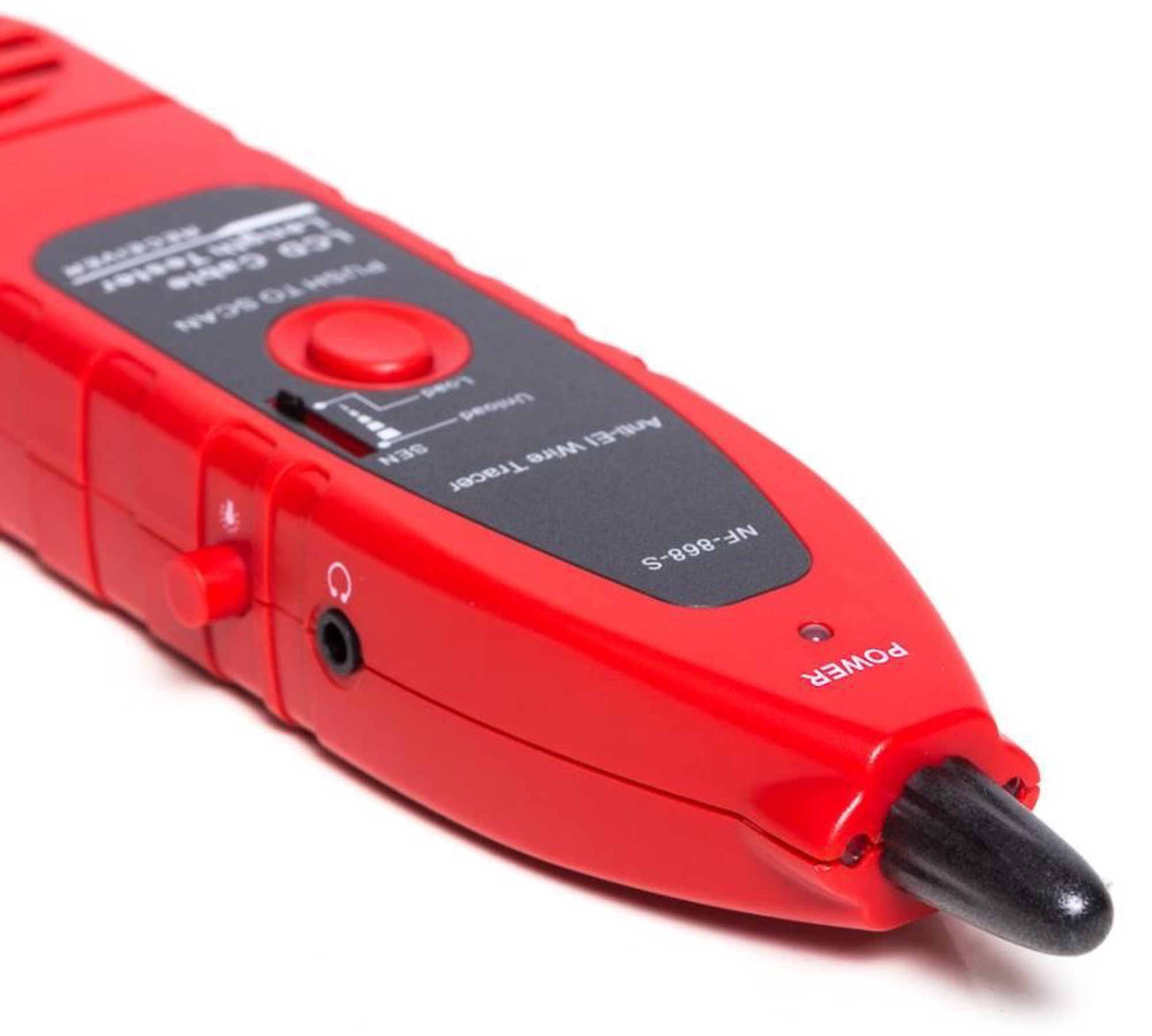

wire tracker - detecting and find one pair from one end

Volume adjustment

cable adapter RJ-11 - 2 crocodile clamp, earphone included

box for tester included

Width 3 cm

Height 17 cm

Depth 3 cm

Net weight 0,8 kg
