Valdiklis Delock

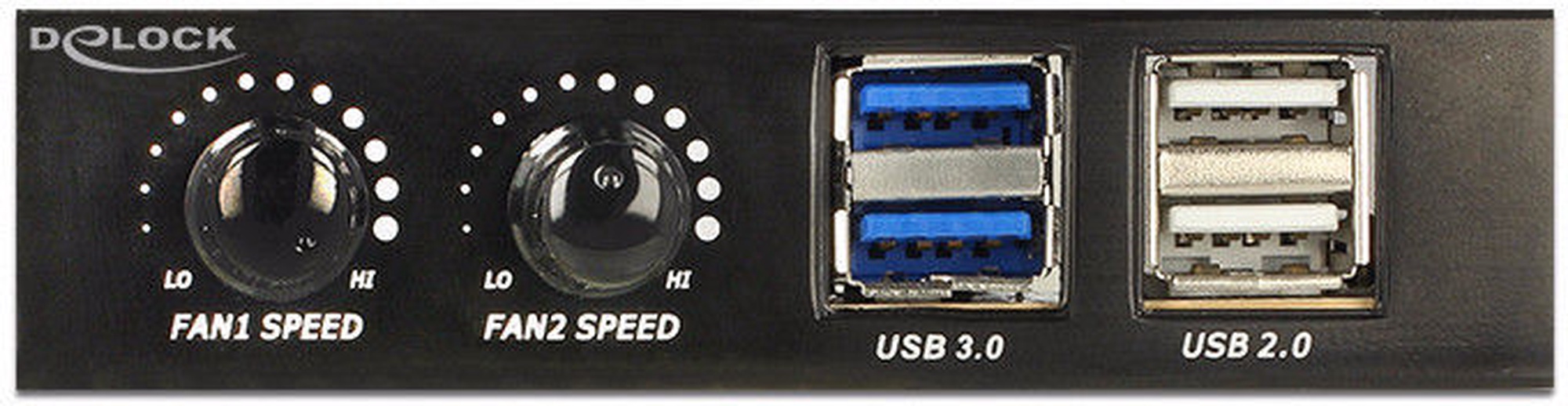

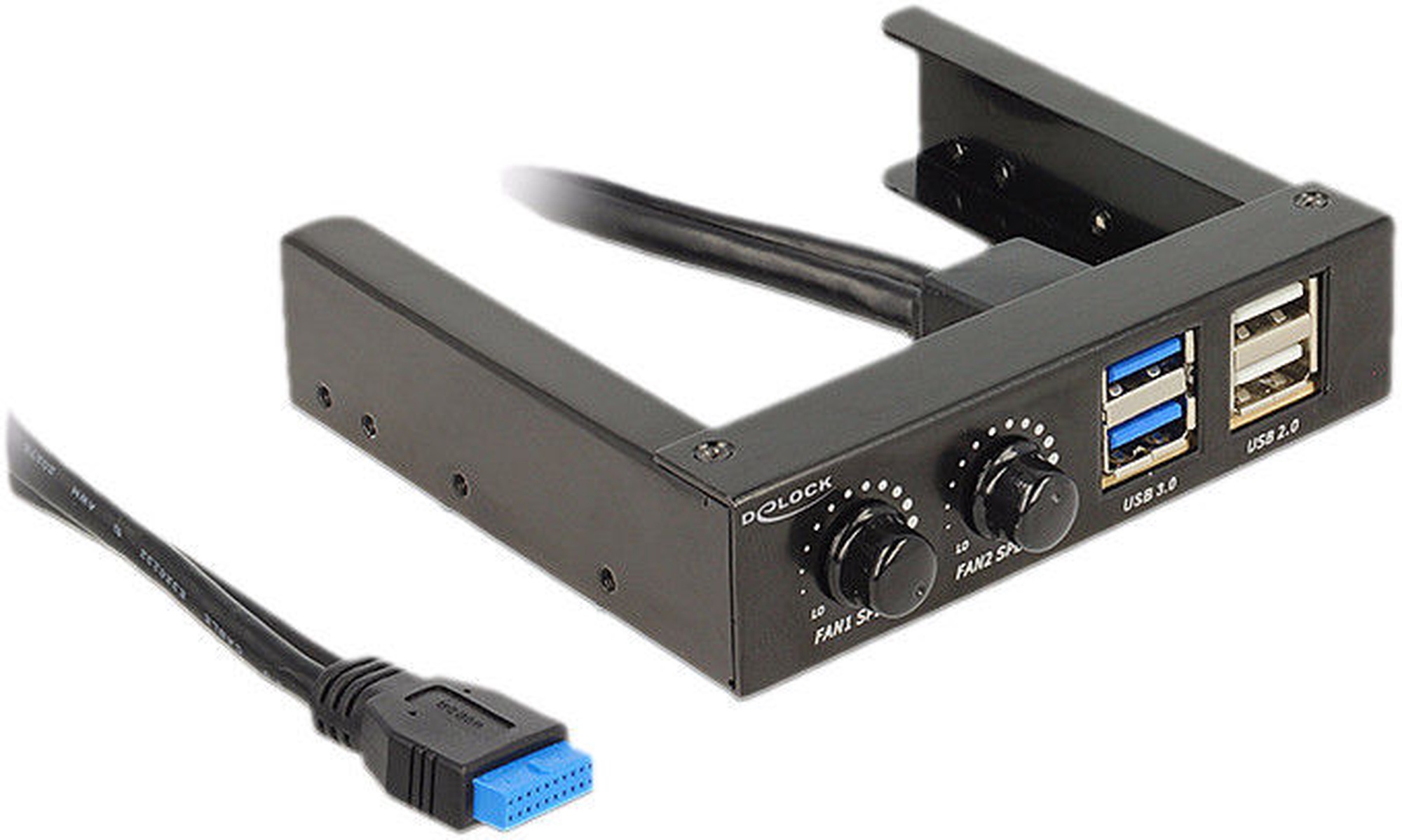

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB 3.0 and two USB 2.0 ports as well as two rotary buttons for fan control.
Specification• Connector:
external:
2 x USB 3.0 Type-A female
2 x USB 2.0 Type-A female
internal:
1 x 19 pin USB 3.0 pin header female port on the cable
1 x 9 pin USB 2.0 pin header male
2 x 3 pin fan pin header male
1 x 2 pin power connector male
• 2 rotary button for fan control
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps

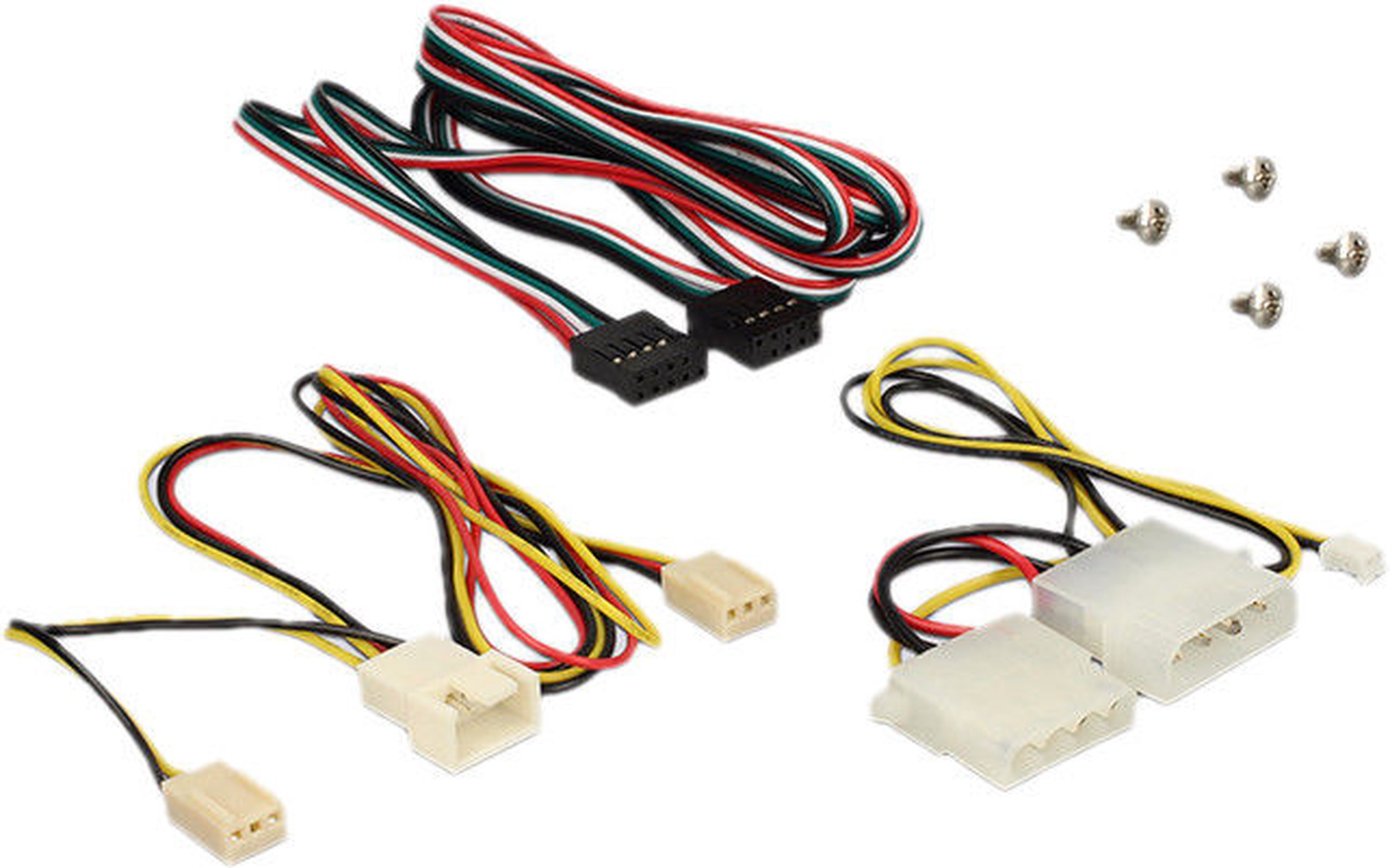

• Cable data:
1 x 19 pin USB 3.0 pin header female cable ca. 50 cm (incl. connector)
1 x 9 pin USB 2.0 pin header female cable ca. 70 cm (incl. connector)
2 x fan cable 1 x 3 pin female to 1 x 3 pin male + 1 x 3 pin female ca. 50 cm
(incl. connector)
1 x power cable 1 x 2 pin to 1 x 4 pin male + 1 x 4 pin female ca. 30 cm (incl. connector)
• 3.5″ metal frame
• Colour: black
• Hot Swap, Plug & Play
• OS independent, no driver installation necessary

System requirements• PC with one free 3.5″ bay
• Mainboard with a free 19 pin USB 3.0 pin header male
• Mainboard with a free 9 pin USB 2.0 pin header male
• Fan with two free 3 pin fan control connector
• Power supply with a free 4 pin power connector

Package content• 3.5″ front panel
• 4 x cable
• Screws
• User manual
